Subject Link RPT-2012G/GP-4F-T Instructions for use

Industrial Managed Ethernet Switch Hardware User Manual

RPT-2012G/GP-4F-T

Quick Installation Guide

Version 1.0.0

Subject Link Inc

9F-1, No. 77, Sec 4., Nangjing E.

Rd, Taipei City, 10580, Taiwan,

R.O.C.

Tel: +886 935 672 398

Mail: [email protected]

Web: www.sbjlink.com

Contents


Overview ...........................................................................................................................................................1
Package Check List...................................................................................................................................1
Hardware Description..................................................................................................................................2
Front Panel Instruction ..........................................................................................................................2
Dimensions..................................................................................................................................................2
Top View ......................................................................................................................................................3
LED Instruction ..........................................................................................................................................3
Reset Button...............................................................................................................................................4
USB Port .......................................................................................................................................................4
Earth Grounding........................................................................................................................................4
Hardware Installation...................................................................................................................................5
SFP Cabling.................................................................................................................錯誤! 尚未定義書籤。
Wiring Power Inputs ...............................................................................................................................6
Wiring Fault Alarm...................................................................................................................................6
Wiring Digital Inputs................................................................................................................................6
Double-Secure Power Input Fault Alarm........................................................................................7
Mounting .....................................................................................................................................................8
Installation Steps......................................................................................................................................9
Specification.................................................................................................................................................. 10


Overview

This user manual is for "RPT-2012G" and "RPT-2012G-T", where "-T" refers to the extended

temperature (-40°C ~ 75°C (-40°F ~ 167°F)) that is supported. This is an industrial managed gigabit

PoE+ Ethernet switch with the following hardware features:

Interface

▪MDI/MDI-X function supported on all copper ports

▪Embedded 8x Gigabit Ethernet ports with 30W PSE + 4x 1000 SFP Slot

▪Store-and-forward switching architecture

Switch Properties

▪Up to 16K MAC Address Table supported

▪Up to 9216bytes Jumbo Frame supported

▪Up to 12Mbits Packet Buffer supported

Power Input

▪Redundant 48-57VDC power

Temperature

▪Standard operating temperature: -10°C ~ 60°C (14°F ~ 140°F)

▪Extended operating temperature: -40°C ~ 75°C (-40°F ~ 167°F)

▪Storage temperature: -40°C ~ 85°C (-40°F ~ 185°F)

Mechanical Construction

▪Class IP30 protection

▪DIN-Rail Mounting, Optional Wall Mounting

PACKAGE CHECK LIST

The "RPT-2012G(-T)" is shipped with the following items. Ensure that all the items are in the

box. If any item is missing or damaged, contact us for assistance.

▪RPT-2012G/GP-4F(-T) switch x 1

▪Protective caps for 8x copper ports, 4x SFP slots, 1x USB port, and 1x RJ45 console port

▪Wall mount brackets and screws (Optional)

▪RJ45 to RS232 Serial console cable x 1

Hardware Description

FRONT PANEL INSTRUCTION

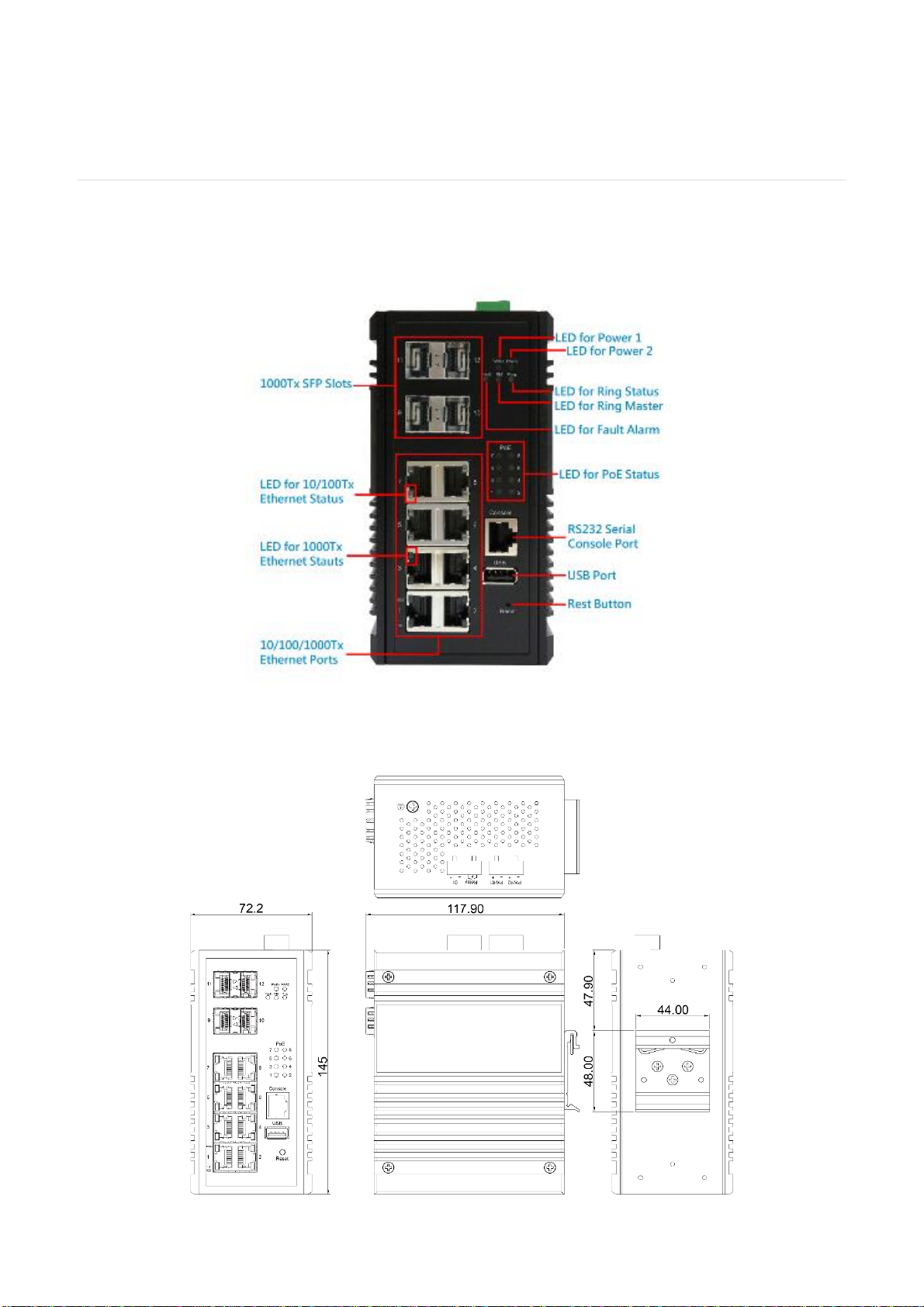

The following picture is the front panel for "RPT-2012GP-4F(-T)".

DIMENSIONS

WxHxD: 72x145x118 mm

TOP VIEW

This is the top view of the RPT-2012GP-4F(-T)

containing the ground, power inputs, and fault

alarm relay.

LED INSTRUCTION

System LEDs

LED

Color

Status

Description

PWR1

Green

Power is supplied on the power input 1.

Off

Power is not supplied on the power input 1.

PWR2

Green

Power is supplied on the power input 2.

Off

Power is not supplied on the power input 2.

Fault

Green

The system boots up and in normal operation.

Off

The system is powered off or during booting.

Red

The configured event of failure is triggered.

Green

This device has the Ring Master.

Off

The Ring Master is not on the device.

Ring

Green

The Ring protocol is enabled and works normally.

Flashing

The Ring protocol is enabled, but works abnormally.

Off

The Ring protocol is disabled.

Interface Status LEDs

LED

Color

Status

Description

SFP Slot

P9 to P12

(1000M)

Green

The 1000Mbps link of the fiber port is active.

Flashing

Data is transmitted on the fiber port at 1000Mbps.

Off

The 1000Mbps link of the fiber port is inactive.

LAN Port

P1 to P8

(1000M)

Green

The 1000Mbps link of the port is active.

Flashing

Data is transmitted on the port at 1000Mbps.

Off

The 1000Mbps link of the port is inactive.

LAN Port

P1 to P8

(10/100M)

Amber

The 10/100Mbps link of the port is active.

Flashing

Data is transmitted on the port at 10/100Mbps.

Off

The 10/100Mbps link of the port is inactive.

PoE+

P1 to P8

Amber

An IEEE 802.3at/af powered device is connected.

Flashing

PoE overload or power budget exceeded.

Off

No IEEE 802.3at/af powered device is connected.

RESET BUTTON

A multifunctional reset button is provided. Use a pointed object such as toothpick or paper clip

(straightened) to press the reset button.

Continuous

Seconds

Action

Save the running configuration to the USB device named "running-config".

Reboot the system.

More than 7

Reset the system to factory default and reboot it.

USB PORT

A USB port is available on the switch that is located between the Console port

and Reset button. This USB port provides the following features:

▪Backup/Restore Configurations

▪Auto-Load configuration from USB

▪Auto-Backup configuration to USB

▪Save system logs to USB

EARTH GROUNDING

The earth grounding and cautious wire routing are helpful to suppress the effects of noise from

electromagnetic interference (EMI). The switch has to be installed on a well-grounded surface, for

instance, a metal panel.

The location of earth ground screw is usually near the location of power

inputs, for example:

▪Top side for most of din-rail models

▪Rear side for most of rack-mount models

▪Front side for most of M12 models

Note: Connect the ground from the ground screw to the surface of ground before wiring the

power inputs.

Hardware Installation

Insert SFP Module

1. Insert the SFP module. A triangle is available on the switch and SFP module.

2. Push the SFP module down.

Remove SFP Module

1. Press and remove the SFP cable.

2. Open the SFP module and remove it.

WIRING POWER INPUTS

1. Insert the positive and negative wires into the PWR1 (+,-) and

PWR2 (+,-) on the 4-contact terminal block connector.

2. Tighten the screws to prevent the wires from loosening.

WIRING FAULT ALARM

1. Insert the wires into the left two contacts of the 4-contact

terminal block (Fault Alarm Relay).

2. Tighten the screws to prevent the wires from loosening.

3. The relay will detect the power and link failure.

4. Users can connect the relay to an alarm and buzzer so that

when the relay forms an open circuit, the users will be notified.

WIRING DIGITAL INPUTS

1. Insert the positive and negative wires into the right two

contacts (+,-) of the 4-contact terminal block (DI).

2. Tighten the screws to prevent the wires from loosening.

3. The system will detect the voltage go through the DI.

▪+13 to +30V for state "1"

▪-30 to +3V for state "0"

▪Max. input current: 8mA

DOUBLE-SECURE POWER INPUT FAULT ALARM

The power inputs are designed as a "common

negative", which implies that the negative

input is connected, but "double-secure" is

supported to prevent the unnotified failure of

power from one of the negative inputs. Should

one of the negative power inputs fail, the

system will detect the failure. NOTE: the

system will trigger an event occurrence only if

the user has set the fault alarm or event log

for power.

MOUNTING

Din-Rail Mounting

a. Screw the DIN-Rail bracket to the switch.

b. Insert the top of the DIN-Rail bracket to the

DIN-Rail track.

c. Pull down the DIN-Rail bracket to the DIN-Rail track and check if it is mounted tightly on the DIN-

Rail track.

Wall Mounting

a. Remove the DIN-Rail bracket.

b. Screw the wall mount kits to the switch.
