Sub-Zero Designer Series User manual

Designer Series Wine Storage

Use and Care Guide

CLEANING, MAINTENANCE,

AND MORE

2 | Sub-Zero Customer Care 800.222.7820

Designer Series Wine Storage

Contents

3Designer Series Wine Storage

4Safety Precautions

6Designer Series Wine Storage Features

7Touch Controls

9Storage

11 Product Operation

12 Care Recommendations

13 Troubleshooting

15 Sub-Zero Warranty

subzero.com | 3

Customer Care

The model and serial number are printed on the enclosed

product registration card. Both numbers are also listed on

the product rating plate. Refer to page 6 for rating plate

location. For warranty purposes, you will also need the

date of installation and name of your authorized Sub-Zero

dealer. Record this information below for future reference.

SERVICE INFORMATION

Model Number

Serial Number

Date of Installation

Certiﬁed Service Name

Certiﬁed Service Number

Authorized Dealer

Dealer Number

If your product ever needs attention, be sure to use a

Sub-Zero Factory Certiﬁed Service provider recommended

by our Customer Care Center, or select one from our list

of providers available at subzero.com/locator. All Factory

Certiﬁed Service providers are carefully selected and thor-

oughly trained by us.

Important Note

To ensure this product is installed and operated as safely

and eciently as possible, take note of the following types

of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially

important.

CAUTION

Indicates a situation where minor injury or product

damage may occur if instructions are not followed.

WARNING

States a hazard that may cause serious injury or

death if precautions are not followed.

IMPORTANT NOTE: Throughout this guide, dimensions in

parentheses are millimeters unless otherwise speciﬁed.

Designer Series Wine Storage

4 | Sub-Zero Customer Care 800.222.7820

IMPORTANT INSTRUCTIONS

WARNING

Do not store explosive substances such as

aerosol cans with a ﬂammable propellant in

this appliance.

WARNING

Keep ventilation openings, in the appliance

enclosure or in the built-in structure, clear of

obstruction.

WARNING

Do not use mechanical devices or other

means to accelerate the defrosting pro-

cess, other than those recommended by the

manufacturer.

WARNING

Do not expose this appliance to rain.

WARNING

This appliance is only intended for residential

use.

WARNING

• This appliance contains ﬂammable refrig-

erant and must be handled, installed, ser-

viced, and decommissioned by authorized

personnel. Once decommissioned, consult

local authorities for disposal instructions.

• To minimize the risk of ignition due to

improper installation, replacement parts,

or service procedures, only refrigeration

technicians with ﬂammable refrigerant

training who are aware of the dangers of

dealing with high voltage electricity and

refrigerant under pressure are allowed to

work on this equipment.

• Do not damage the refrigeration circuit

when installing, maintaining, or servicing

the unit.

• This symbol indicates risk of ﬁre/

ﬂammable materials.

CAUTION

Incorporated ice makers must be installed by

the manufacturer or its service agent.

WARNING

Do not use electrical appliances inside the

food storage compartments of the appliance,

unless they are of the type recommended by

the manufacturer.

Safety Precautions

subzero.com | 5

IMPORTANT INSTRUCTIONS

WARNING

This appliance is not intended for use by

persons (including children) with reduced

physical, sensory or mental capabilities, or

lack of experience and knowledge, unless

they have been given supervision or instruc-

tion concerning use of the appliance by a

person responsible for their safety. Children

should be supervised to ensure they do not

play with the appliance.

WARNING

DANGER: Risk of child entrapment. Before you

throw away your old refrigerator or freezer:

• Take o the doors.

• Leave the shelves and drawer dividers in

place so that children may not easily climb

inside.

WARNING

PROPOSITION 65 FOR CALIFORNIA RESIDENTS

Cancer and Reproductive Harm—

www.P65Warnings.ca.gov

This appliance is intended to be used in house-

hold and similar applications such as:

• sta kitchen areas in shops, oces, and other

working environments

• farm houses and by clients in hotels, motels,

and other residential type environments

• bed and breakfast type environments

• catering and similar non-retail applications

Safety Precautions

6 | Sub-Zero Customer Care 800.222.7820

Designer Series Wine Storage Features

FEATURES

1Product Rating Plate

2Touch Control Panel

3Wine Storage Racks

4Display Rack

5Full-View Glass Door

6Refrigerator Storage Drawers*

*Not available on all models.

Column model

Tall model

subzero.com | 7

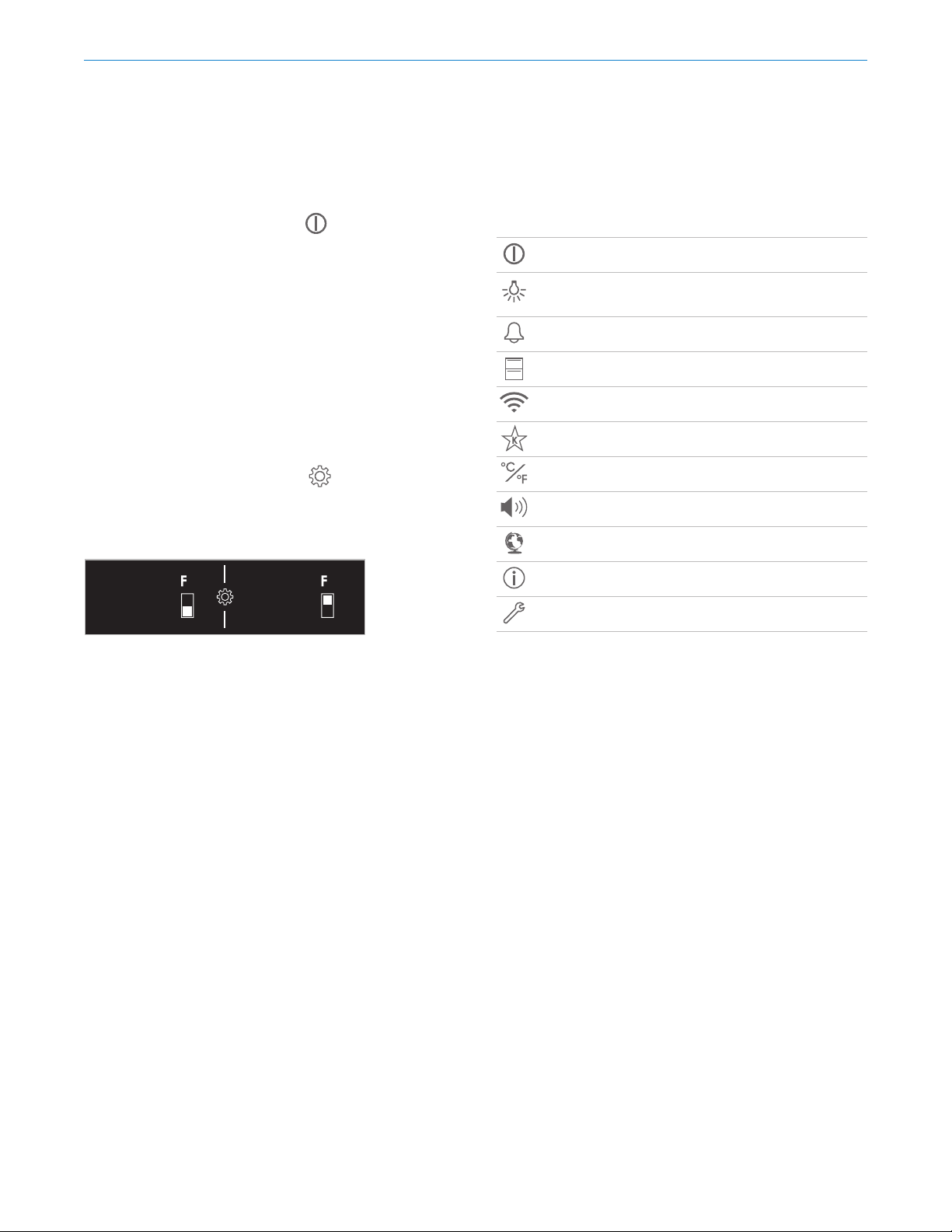

Touch Controls

Touch Control Panel

For initial start-up, touch and hold on the control panel

for 2 seconds.

The temperature can be adjusted in one-degree incre-

ments on the home screen. The temperature on the left of

the display represents the lower zone and the temperature

on the right represents the upper.

To adjust temperature:

1 Touch the temperature to be adjusted.

2 Touch + or – until the desired temperature is displayed.

Refer to the illustration below.

To adjust additional settings, touch on the control

panel. Refer to the illustration below.

SETTINGS

Turn the unit on or o

Turn accent lighting on or o and adjust brightness and

select soft on duration

Turn door alarm on or o and adjust duration

Adjust drawer temperature*

Turn connect on or o (if applicable)

Turn Sabbath on or o

Adjust temperature units

Adjust door alarm volume and tone

Select language

System information

View troubleshooting and service information

*Not available on all models.

4555

Home screen

8 | Sub-Zero Customer Care 800.222.7820

Touch Controls

Connect This Appliance

Connect this appliance to remotely monitor and control it.

Connecting requires a wireless router, an Internet connec-

tion with a network name and password, and a compatible

mobile device. There is no limit to the number of appli-

ances you can connect to an account. Connect products

from multiple homes to the same account. Connecting

appliances is optional.

Connect today to:

• Receive alerts, status updates, and routine maintenance

notiﬁcations.

• Streamline everyday tasks with the help of remote con-

trols and voice commands.

• Quickly access user manuals and cleaning and mainte-

nance tips.

To connect:

1 Download the free Sub-Zero Group Owner’s App from

the Apple App Store or Google Play.

2 With Bluetooth®enabled on the device, stand within a

few feet of the appliance, open the app, and follow the

on-screen instructions.

3 Log in or create an account.

4 Tap Add An Appliance to add appliances. To identify

which appliance to pair, open the appliance door.

5 Tap + next to the appliance to select it. If identical

appliances appear, follow the additional step on the

screen to identify which appliance to pair.

6 Tap Pair Via Bluetooth®. Wait for setup to complete,

then tap Set Up Your Appliance For Pairing.

7 Tap Choose a Network on the Connect Your Appliance

to Wi-Fi screen.

8 Select the home Wi-Fi network and enter the network

password.

9 Tap Turn on Notiﬁcations to allow notiﬁcations about

the appliance (for example, door left ajar).

10 Tap Done on the Success screen to complete the setup.

subzero.com | 9

Storage

DISPLAY RACK

The adjustable display rack is designed for wine to stay in

contact with the cork at any position. Refer to the illustra-

tion below.

To remove the display rack, pull out to full extension, tilt

up, then lift up and out.

CAUTION

Remove all bottles from the display rack before

removal.

Display rack

Wine Storage

WINE RACKS

The full-extension wine racks provide easy access to

750 ml bottles, half-bottles, and magnums. When storing

magnums, the rack above must be removed.

To remove a wine rack, pull out to full extension, tilt up,

then lift up and out. Refer to the illustration below. The top

two racks in each compartment cannot be placed in any

other position. These racks can be identiﬁed by the small

square cutout located in the right rear corner. Refer to the

illustration below.

The natural cherrywood facing on wine racks can be

stained or replaced with wood to complement cabinetry.

For more information, refer to the Sub-Zero Design Guide,

visit our website at subzero.com, or contact Sub-Zero

Customer Care at 800-222-7820.

CAUTION

Remove all bottles from the wine rack before

removal.

CUTOUT

Wine rack removal

Rack position indicator

10 | Sub-Zero Customer Care 800.222.7820

Storage Drawers

DRAWER DIVIDERS (TALL MODEL)

To reposition a drawer divider:

1 To move a short divider, slide the divider forward or

backward. Refer to the illustration below.

2 One long divider in the top drawer is adjustable. To

remove a long divider, pull the long divider up until it

stops, rotate counterclockwise, then pull upward.

3 To install a long divider, align the grooves with the

drawer tabs, rotate clockwise, then slide down.

SHORT DIVIDER

Drawer dividers

Storage

DRAWER REMOVAL (TALL MODEL)

To remove/install a storage drawer:

1 To remove, pull the drawer open until it stops. Raise the

front of the drawer slightly and pull straight out. Refer

to the illustration below.

2 To install, raise the front of drawer and place onto the

slides. Align the back of the drawer with hooks on the

slide, then align the white pegs at the front of the slide

with holes at the front of the drawer.

Drawer removal

Other manuals for Designer Series

Table of contents

Languages:

Other Sub-Zero Wine Cooler manuals

Sub-Zero

Sub-Zero 315W Guide

Sub-Zero

Sub-Zero 427 User manual

Sub-Zero

Sub-Zero Classic Series User manual

Sub-Zero

Sub-Zero 424G User manual

Sub-Zero

Sub-Zero 427R Instructions for use

Sub-Zero

Sub-Zero ICB424 User manual

Sub-Zero

Sub-Zero 315W User manual

Sub-Zero

Sub-Zero 315W Guide

Sub-Zero

Sub-Zero 315W User manual

Sub-Zero

Sub-Zero DEU1550B/R User manual

Sub-Zero

Sub-Zero Designer Series User manual

Sub-Zero

Sub-Zero 427 User manual

Sub-Zero

Sub-Zero 427G Guide

Sub-Zero

Sub-Zero 18" User manual

Sub-Zero

Sub-Zero ICB424 User manual

Sub-Zero

Sub-Zero DEC3050WAR User manual

Sub-Zero

Sub-Zero Wolf 400 Series User manual

Sub-Zero

Sub-Zero ICB424 Owner's manual

Sub-Zero

Sub-Zero ICBCL3050W/S User manual

Sub-Zero

Sub-Zero 424FSG User manual

Sub-Zero

Sub-Zero IW-18 User manual

Sub-Zero

Sub-Zero 424G User manual

Sub-Zero

Sub-Zero Classic CL3050W/O/L User manual

Sub-Zero

Sub-Zero 427G User manual

Popular Wine Cooler manuals by other brands

U-Line

U-Line Echelon Wine Captain 2075WC Features & benefits

Haier

Haier WS50GA user manual

Cavist

Cavist 62 instruction manual

Kenmore

Kenmore 461.99130 owner's manual

Miele

Miele KWT 6422 iG Operating and installation instructions

Danby

Danby DWC113BLSDB owner's manual

Caple

Caple Wi6128 instruction manual

Avanti

Avanti WC1001 instruction manual

Frigidaire

Frigidaire FFWC38F6LS Factory parts catalog

Titan

Titan TT-W2454SZ User guide & service manual

Klarstein

Klarstein Botella 166 Uno manual

Costway

Costway FP10130WL manual

Lemair

Lemair LWC59 instruction manual

Haier

Haier JC-125GEA user manual

Caple

Caple WCi46B Instructions for use

Climadiff

Climadiff CLI24 use instructions

Viking

Viking VCWB301LSS Use & care manual

Caple

Caple WC6511 instruction manual
