subzero.com
|
3
Thank You
Thank you for your purchase. We look forward to being part of your home for decades to
come. As a third-generation family-owned company, we take a very personal stake in the
preservation of your family’s food. We built our business and our reputation on helping
families serve the freshest food possible.
With your purchase, you receive one of the strongest warranties in the appliance industry.
Take a moment to read the full warranty statement on page 19. It’s also important to
register your Sub-Zero to ensure that you don’t miss out on exclusive owner benets,
such as; assurance that you will be taken care of in the unlikely event that service
becomes necessary during the warranty period, and a proof-of-purchase record in case
of a home insurance claim. You may register by one of the following options:
•Mail in the completed Sub-Zero product registration card.
•Register online at subzero.com/register and create a personalized My Sub-Zero/Wolf
account using the serial number on your product.
•Register by phone by calling Sub-Zero Customer Care at 800-222-7820.
As a Sub-Zero owner, you can count on ongoing support, day in and day out. Our cus-
tomer care center is available 24 hours a day, seven days a week and staffed by knowl-
edgeable product experts at our factory in Madison, Wisconsin. Should the need arise,
simply call 800-222-7820 and speak with one of our product experts. They will help
troubleshoot any issues you might have.
We are condent this guide will answer your questions about the features, operation, and
maintenance of your Sub-Zero, but if you have additional questions, please contact us at
800-222-7820 or visit us online at subzero.com.
4
|
Sub-Zero Customer Care 800.222.7820
Integrated Features
FEATURES
1Product Rating Plate
2Interactive Control Panel
3Freshness Cards
4Door Shelves
5Dairy Compartment
6Glass Shelves
7Refrigerator Drawer
8Freezer Basket
9Ice Container
10 Storage Drawers
11 Air Purication System
12 Water Filtration System
13 Automatic Ice Maker (ice maker models)
14 Water Dispenser (dispenser models)
15 Condenser (behind grille)
INTEGRATED FEATURES
subzero.com
|
5
Column all refrigerator.
6
3
14
7
11
Tall combination.
2
1
5
4
Drawer all refrigerator.
15
12
6
3
1
11
2
10
5
4
15
12
9
13
7
15
10
1
14
11
2
Integrated Features
Column combination.
6
3
14
7
11
2
1
5
4
15
12
INTEGRATED FEATURES
9
13
8
6
|
Sub-Zero Customer Care 800.222.7820
Interactive Control Panel
For initial start up, touch and hold ‘power’ on the control
panel for 2 seconds.
Temperature can be adjusted in one-degree increments on
the home screen. Combination units have separate temper-
ature controls for refrigerator and freezer. Temperatures are
preset at 38°F (3°C) and 0°F (-18°C). To change temperature,
touch the temperature being adjusted, then press ‘+’ or ‘–’
until the desired temperature is displayed. Refer to the illus-
tration below.
Once the temperature has been adjusted, additional
features can be activated or deactivated from the options
screen. Touch to view the options screen. Refer to the
illustration below.
OPTIONS SCREEN
Touch to activate or deactivate ice maker system and
max ice feature.
Touch to activate or deactivate door | drawer alarm.
Touch to activate or deactivate water dispenser.
Touch to activate or deactivate air purication system.
Touch to view settings screen.
SETTINGS SCREEN
Touch to view model information.
Touch to select temperature unit, Fahrenheit or Celsius.
Touch to adjust control panel brightness and contrast.
Touch to adjust door | drawer alarm volume and pitch.
Touch to adjust door | drawer alarm duration.
Touch to enter Sabbath mode.
Touch to view troubleshooting and service information.
Touch to set clock.
Touch to select smart home options.
Touch to select language options.
Touch to adjust soft on lighting.
INTERACTIVE CONTROLS
Home screen.
Options screen.
subzero.com
|
7
Refrigerator Storage
DOOR SHELVES
To remove a door shelf or the dairy compartment, lift from
the bottom and slide out. To reinstall, place in the desired
position and slide the shelf down onto the guides. Refer to
the illustration below.
IMPORTANT NOTE: If door opening is limited to 90°, door
shelves may need to be removed before removing a storage
drawer or glass shelf.
Keeping Food At Its Best
This Sub-Zero features a unique dual refrigeration system to
keep food fresher longer.
With the Sub-Zero dual refrigeration system, individual
refrigerator and freezer systems have been designed to
maintain accurate, consistent temperatures and proper
humidity levels for longer food life expectancy. Dual refrig-
eration eliminates transfer of fresh food odors to frozen food
and ice and does not freeze the moisture out of the air in the
fresh food section.
For handy tips and information on how to maximize food
freshness, refer to the freshness cards stored in the
refrigerator.
STORAGE
Door shelf removal.
8
|
Sub-Zero Customer Care 800.222.7820
Refrigerator Storage
GLASS SHELVES
To remove or adjust a glass shelf, tilt up, then lift up and out.
To reposition, insert shelf in the tracks along the back wall,
then lower the front until it locks into position. Refer to the
illustration below.
The stationary glass shelf at the bottom of the compartment
should be placed with beveled edge facing front. Rear sup-
port legs space the shelf away from the back wall to ensure
proper air ow through the unit.
IMPORTANT NOTE: Use care when handling glass shelves to
prevent breakage or scratching the interior.
CAUTION
Glass shelves should warm to room temperature before
immersing in warm water.
REFRIGERATOR DRAWERS
To remove a refrigerator drawer, pull open until the drawer
stops. Lift the front of the drawer slightly and pull straight
out. To reinstall, pull drawer carrier out and align the bottom
of the drawer with the carrier. Refer to the illustration below.
Dividers in refrigerator drawers can be removed by pulling
straight up. To replace, align tabs on the divider with
notches in the drawer and push down.
STORAGE
Refrigerator drawer removal.
Refrigerator drawer removal.
Glass shelf removal.
subzero.com
|
9
DRAWER REMOVAL
To remove, pull open until drawer stops. Raise the drawer
front and pull out drawer. To reinstall, raise the front of
drawer and place onto the slides. Align the back of the
drawer with hooks on the slide, then align the white pegs
at the front of the slide with holes at the front of the drawer.
Refer to the illustration below.
IMPORTANT NOTE: For drawer models, the upper drawer
has a control cable that must be disconnected before
removing the drawer. Refer to the illustration below.
Storage Drawers
CRISPER COVER
The crisper cover in the upper storage drawer can be slid
closed or left open.
To remove, pull the upper drawer all the way out, raise the
front edge of the crisper cover and pull it forward out of the
drawer. Refer to the illustration below.
DRAWER DIVIDERS
To remove or adjust a short divider, ex the long divider
slightly, then pull upward. Refer to the illustration below.
To remove a long divider, the short dividers must be
removed. Pull divider up until it stops, rotate counterclock-
wise, then pull upward. To reinstall, align grooves with
drawer tabs, rotate clockwise, then slide down.
Crisper cover.
Drawer dividers.
Drawer removal.
Control cable (drawers).
STORAGE
10
|
Sub-Zero Customer Care 800.222.7820
STORAGE
Freezer Storage
FREEZER BASKETS
To remove, pull forward until basket stops. Pull the two
plastic tabs located behind the bottom two corners of the
basket forward, then lift up and out. Refer to the illustrations
below.
If door opening is limited to 90°, the top basket must be
removed before removing the middle or lower basket.
Column |To reinstall, push basket slides in. Align the
basket with slides and push back until it stops. Press down
on the front of the basket to engage slides.
Column combination |To reinstall, fully extend the
basket slides. Align the basket with slides and push back
until the rear of the basket contacts the slide tabs. Push
back and down on the front of the basket to engage with
the tabs.
ICE CONTAINER
Column |To remove ice container, pull freezer basket open
until it stops and lift container out. Refer to the illustration
below.
Column combination |To remove ice container, pull freezer
basket open until it stops and slightly angle the container to
lift out. Refer to the illustration below.
Tall and drawer |To remove ice container, pull freezer
drawer open until it stops and lift container out. Refer to the
illustration below.
The ice maker must be turned off by touching when
the ice storage container is removed. The unit is equipped
with a 3-minute delay after the ice container is removed, to
ensure cubes are not ejected before ice maker can be deac-
tivated or ice container is reinstalled.

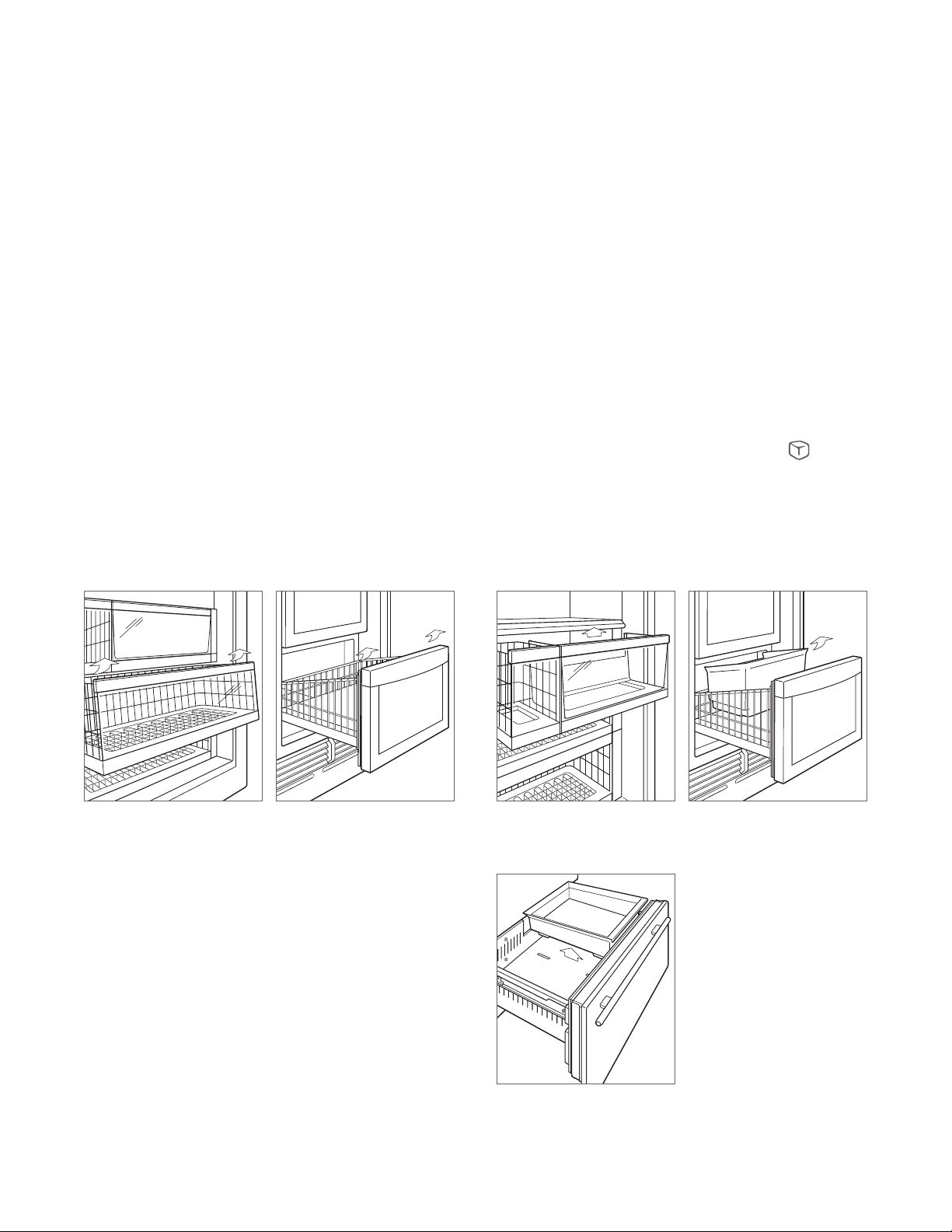

Column freezer basket.
Column combination freezer
basket.
Column ice container.
Column combination ice
container.
Tall and drawer ice container.
This manual suits for next models
14
Table of contents
Languages:
Other Sub-Zero Refrigerator manuals
Sub-Zero
Sub-Zero ICBB-36R Guide
Sub-Zero
Sub-Zero PRO 48 User manual
Sub-Zero
Sub-Zero PRO 48 Assembly instructions
Sub-Zero
Sub-Zero 611G User manual
Sub-Zero
Sub-Zero ICBIC-24R User manual
Sub-Zero
Sub-Zero 500 Series User manual
Sub-Zero
Sub-Zero BI-42SD Assembly instructions
Sub-Zero
Sub-Zero IT36CIRH User manual
Sub-Zero
Sub-Zero BI-30UA/S/PH-RH User manual
Sub-Zero
Sub-Zero CBIC-18FI Guide
Sub-Zero
Sub-Zero UC-24C User manual
Sub-Zero
Sub-Zero 736TCI User manual
Sub-Zero
Sub-Zero 600 Series BI-36S User manual
Sub-Zero
Sub-Zero Wolf 400 Series User manual
Sub-Zero
Sub-Zero 600 Series BI-48S User manual
Sub-Zero
Sub-Zero Designer Series User manual
Sub-Zero
Sub-Zero ICB700TCI User manual
Sub-Zero
Sub-Zero UC-24R User manual
Sub-Zero
Sub-Zero BI-30UG Operating manual
Sub-Zero
Sub-Zero 648PRO User manual
