Structural Concepts GMDSV12R.7183 User manual

G-SERIES MID-VOLUME REFRIGERATED SERVICE DELI MERCHANDISERS

> VERTICAL FRONT GLASS WITH REAR HINGES

> VERTICAL FRONT GLASS WITH FRONT HINGES

> REMOTE & SELF-CONTAINED > FULL AND OPEN END PANELS

> REFRIGERATED-TO-DRY SWITCH AT CASE REAR (OPTIONAL)

> REAR SLIDING DOORS > OPTIONAL SCALE STAND

Rev D Date: 8.22.2019Operating Manuals\Standard\G-Series_Mid-Volume Ref Svc Deli_Vertical Glass_Rear Hinges_21-01524.pub

Structural Concepts Corporation ∙ 888 E. Porter Road ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 ∙ www.structuralconcepts.com

READ AND SAVE THESE INSTRUCTIONS

INSTALLATION AND

OPERATING MANUAL

G-SERIES P/N 21-01524

GMDSV6R.7115C

GMDSV4R

GMDSV12R.7183

GMDSVC3R

GMDSV8R

CAUTION!

FRAGILE!

HOLD

GLASS

FIRMLY.

SLOWLY

OPEN &

CLOSE.

CAUTION!

FRAGILE!

DO NOT

STRIKE

DECKS

OR PANS

AGAINST

EDGE OF

GLASS.

GLDSV4R

GLDSV6R.6670C

GMDSV4R.7503

TABLE OF CONTENTS / LIST OF MODELS INCLUDED IN MANUAL

TABLE OF CONTENTS / LIST OF MODELS ENCOMPASSED IN MANUAL ……….………………….…..

OVERVIEW / UNIT TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING …..……….……...

INSTALLATION: REMOVAL FROM SKID, REMOVING LOWER FRONT PANELS ..……...…….…….….

INSTALLATION, CONT’D: CASE ADJOINMENT INSTRUCTIONS ……………….………...……………….

INSTALLATION, CONT’D: FRAME SUPPORT RAIL SHIMMING ……………………………………….......

INSTALLATION, CONT’D: FRONT GLASS ALIGNMENT & ADJUSTMENT (VIA RAIL SYSTEM) ……...

INSTALLATION, CONT’D: FIELD WIRING BOX / RACEWAY / LED DRIVER / ANTI-CONDENSATE

AXIAL FANS .…………………………………………..….……………………………………………….

INSTALLATION, CONT’D: REFRIGERATION LINES / STUB-UPS / DRAINS ……..…………….….……..

INSTALLATION, CONT’D: SCALE STAND WITH OUTLETS & CAT5 / FLIP-UP LEDGE ………….……..

START-UP AND OPERATION ………………..………………………………………………………………….

MAINTENANCE FUNDAMENTALS: LED LIGHT FIXTURES / REMOVAL & REPLACEMENT…………...

MAINTENANCE FUNDAMENTALS, CONT’D: SHELF ASSEMBLIES ………………………………....……

MAINTENANCE FUNDAMENTALS, CONT’D: DRAIN, TXV VALVE ACCESS ………………………....….

MAINTENANCE FUNDAMENTALS, CONT’D: REAR SLIDING DOORS ……………………………….…..

MAINTENANCE FUNDAMENTALS, CONT’D: REAR HINGED FRONT GLASS …………………………..

MAINTENANCE FUNDAMENTALS, CONT’D: FRONT HINGED GLASS DOORS ………………………...

MAINTENANCE FUNDAMENTALS, CONT’D: REFRIGERATED TO DRY SWITCH (OPTIONAL) ……...

MAINTENANCE FUNDAMENTALS, CONT’D: CUTTING BOARD / REAR LEDGE REMOVAL ...……….

MAINTENANCE FUNDAMENTALS, CONT’D: CONDENSATE PACKAGE LAYOUT ……………….…….

CLEANING SCHEDULE - INTERIOR: TO BE PERFORMED BY STORE PERSONNEL .………………...

CLEANING SCHEDULE - EXTERIOR: TO BE PERFORMED BY STORE PERSONNEL ………….……..

CLEANING SCHEDULE -STAINLESS STEEL: TO BE PERFORMED BY STORE PERSONNEL ……...

PREVENTIVE MAINTENANCE - TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY ....

TROUBLESHOOTING - TO BE PERFORMED BY STORE PERSONNEL (UNLESS NOTED

OTHERWISE) ……………………………………………………………………………………………...

TROUBLESHOOTING - CONDENSING SYSTEM (TO BE PERFORMED BY TRAINED SERVICE

PROVIDERS ONLY) ……………………………………………………………………………………...

TROUBLESHOOTING - EVAPORATOR SYSTEM (TO BE PERFORMED BY TRAINED SERVICE

PROVIDERS ONLY) ………………………...……………………………………………………….…...

SERIAL LABEL INFORMATION & LOCATION ..……………………………………...…....…………..….…..

CAREL® TEMPERATURE CONTROLLER INFORMATION ………………………………………….….…..

TECHNICAL SERVICE CONTACT INFORMATION & WARRANTY INFORMATION ...……….…............

3-4

26-28

32-34

GLDSV3R

GLDSV3R.6094

GLDSV3R.6602

GMDSV3R.6694

GLDSV4R

GLDSV6R

GLDSV6RG.5718

GLDSV8R

GLDSV10R

GLDSV8R.7183

GLDSV10R.6094E

GLDSV10R.6670A

THIS OPERATING MANUAL INCLUDES (BUT IS NOT LIMITED TO) THE FOLLOWING MODELS:

GLDSV12R

GLDSV442R.6670F

GLDSV542R.7042B

GLDSV642R.6670C

GLDSV842R.6670B

GLDSV842R.7042D

GLDSV1242R.6670D

GLDSV1242R.6839F

GLDSV1242R.7042F

GLDSV1242R.7186F

GMDSESV8R

GMDSESV12R

GMDSV3D.7215

GMDSV4D

GMDSV4D.7215

GMDSV3R.6694

GMDSV4R

GMDSV4R.6806A

GMDSV4R.6694

GMDSV4R.6749B

GMDSV4R.7215

GMDSV4R.7503

GMDSV5R.7215

GMDSV6R

GMDSV6R.6694

GMDSV6R.6806C

GMDSV6R.7115C

GMDSV8R

GMDSV8R.6694

GMDSV8R.6749A

GMDSV8R.7063B

GMDSV8R.7115D

GMDSV8R.7183

GMDSV8R.7215

GMDSV8R-RD

GMDSV10R.6806E

GMDSV10R.7215

GMDSV12R

GMDSV12R.7063D

GMDSV12R.7115F

GMDSV12R.7215

GMDSV12R.7280

GMDSVC3R.6694

GMDSVC3R.7215

GMDSVC4R

GMDSVC4R.7215

GMGV8.7183

OVERVIEW

 These Structural Concepts merchandisers are

designed to merchandise packaged products at 41 °F

(5 °C) or less product temperatures (unless custom

cases with wire rack shelving).

 Product must be pre-chilled to 41 °F (5 °C) or less

prior to being placed in merchandiser.

 Cases should be installed and operated according to

this operating manual’s instructions to ensure proper

performance. Improper use will void warranty.

TYPE

This unit is designed for the display of products in ambient

store conditions where temperatures and humidity are

maintained within a specific range.

 For Type 1 Conditions (most cases): ambient

conditions are to be at 55% maximum humidity and

maximum temperatures of 75 °F (24 °C).

 For Type 2 Conditions: ambient conditions are to be at

55% maximum humidity and maximum temperatures

of 80 °F (27 °C).

 If unsure if your unit is Type I or II, see tag next to

serial label. See SERIAL LABEL LOCATION &

INFORMATION LISTED / TECH INFO & SERVICE

section in this manual for sample serial labels.

COMPLIANCE

 Performance issues when in violation of applicable

NEC, federal, state and local electrical and plumbing

codes are not covered by warranty.

 See below compliance guideline.

WARNING

Hazardous moving parts. Do not operate unit with covers removed.

Fan blades may be exposed when deck panel is removed.

Disconnect power before removing deck panel.

WARNING

Risk of electric shock. Disconnect power before servicing unit.

CAUTION! More than one source of electrical supply is

employed with units that have separate circuits.

Disconnect ALL ELECTRICAL SOURCES before servicing.

WARNING

KEEP

HANDS

CLEAR

COMPLIANCE

This equipment MUST be installed in compliance with all applicable

NEC, federal, state and local electrical and plumbing codes.

OVERVIEW / UNIT TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING - PAGE 1 of 2

CAUTION! CHECK BOTH CONDENSATE PAN AND OVERFLOW PAN

Water on floor can cause extensive damage! Before powering up unit:

 Condensate pan MUST BE positioned directly under condensate drain.

 Overflow pan MUST HAVE single plug connected to its box. Units with

optional Clean Sweep™ MUST HAVE two plugs connected.

 WARNING for self-contained units only! Overflow condensate pan

heater rod is hot! Electric condensate pan must be disconnected and

allowed to cool before cleaning or removing from case.

WARNING

ELECTRICAL

HAZARD

ATTENTION

CONTRACTORS

WARNING: This product can expose you to chemicals, including

Urethane (Ethyl Carbamate), which are known to the state of

California to cause cancer and birth defects or other reproductive

harm. For more information go to P65Warnings.ca.gov.

OVERVIEW / UNIT TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING - PAGE 2 of 2

CAUTION! LAMP REPLACEMENT GUIDELINES

Fluorescent lamps have been treated to resist breakage and

must be replaced with similarly treated lamps.

LED lamps reflect specific size, shape and overall design.

Any replacements must meet factory specifications.

CAUTION

PRECAUTIONS

 Following are important precautions to prevent

damage to unit or merchandise.

 Please read carefully!

 See previous page for specifics on OVERVIEW,

TYPE, COMPLIANCE and WARNINGS.

WIRING DIAGRAM

 Each case has its own wiring diagram folded and in its

own packet.

 Wiring diagram placement may vary; it may be placed

near ballast box, field wiring box, raceway cover, or

other related location.

REFRIGERANT DISCLOSURE STATEMENT

 This equipment is prohibited from use in California with

any refrigerants on the “List of Prohibited Substances”

for that specific end-use, in accordance with California

Code of Regulations, title 17, section 95374.

 This disclosure statement has been reviewed and

approved by Structural Concepts and Structural

Concepts attests, under penalty of perjury, that these

statements are true and accurate.

CAUTION! CASES WITH POWER CORD AND PLUG

Risk of electric shock. If cord or plug becomes damaged,

replace only with cord and plug of same type.

CAUTION! ADVERSE CONDITIONS / SPACING ISSUES

 Performance issues caused by adverse conditions are NOT warranted.

 End panels must be tightly joined or kept at least 6-inches away from

any structure to prevent condensation.

 Unit must be kept at least 15-feet from exterior doors, overhead HVAC

vents or any air curtain disruption to maintain proper temperatures.

 Unit must not be exposed to direct sunlight or any heat source.

 Self-Cont. Units: Keep 4” min. air intake / 4” min. air disch. clearance.

CAUTION

CAUTION! GFCI BREAKER USE REQUIREMENT

If N.E.C. (National Electric Code) or your local code requires

GFCI (Ground Fault Circuit Interrupter) protection,

you MUST use a GFCI breaker in lieu of a GFCI receptacle.

CAUTION!

DO NOT RELY ON THERMOMETERS OR THERMOSTATS

FOR ACTUAL PRODUCT (FOOD) TEMPERATURES.

 Thermometers & thermostats reflect air temperatures ONLY.

 For ACTUAL product (food) temperatures, use a calibrated

food thermometer.

INSTALLATION: REMOVAL FROM SKID, REMOVING LOWER FRONT PANELS

1. Remove Case From Skid

 Remove shipping brace that may be

securing case to skid.

 Support case to prevent tipping.

 Caution! Rails can be damaged if case hits

floor with heavy force!

Case can be repositioned with pallet truck when

front lower panel is removed. Blocking may be

necessary to obtain adequate height.

Slide Skid Out

 Carefully slide unit to

rear of skid and tip

backward off skid.

 Illustration may not

reflect every feature

or option of your

particular case.

2. Remove Case From Skid (Casters)

Remove shipping brackets that may be securing

casters to skid

 Place ramp up against skid (to allow case to

smoothly slide off from skid).

 Maintain support of case at all times or center

of gravity may cause case to fall.

 Unlock Casters. Roll unit to rear of skid.

Ramp

Roll down ramp

and off from skid.

Support

while

rolling

case

down

ramp.

Note: Illustrations

shown reflect a

general outline of

sample cases and do

not reflect features or

options of your

particular model.

3. Removing Vertical Lower Front Panel (and Rear Panel)

 No screw removal is required to remove lower front/rear panel.

 Simply lift panel slots up and off case hooks.

 Replace in same manner it was removed.

 Note: Illustrations below may not exactly reflect every feature or option of your particular case.

Front Panel Shown

Removed and Reversed

Enlarged View of Hook/Magnet

For Retaining Front Panel

Note: Model GMDSV8R.7306 Is

Shown at Left. Decking And Front

Toe-Kick Have Been Removed

For Illustrated Purposes Only.

INSTALLATION, CONT’D: CASE ADJOINMENT INSTRUCTIONS

4. Case Adjoinment Instructions

>> Warranty is void if improper sealant/urethane is used.

>> Lay generous beads of sealant/urethane as specified.

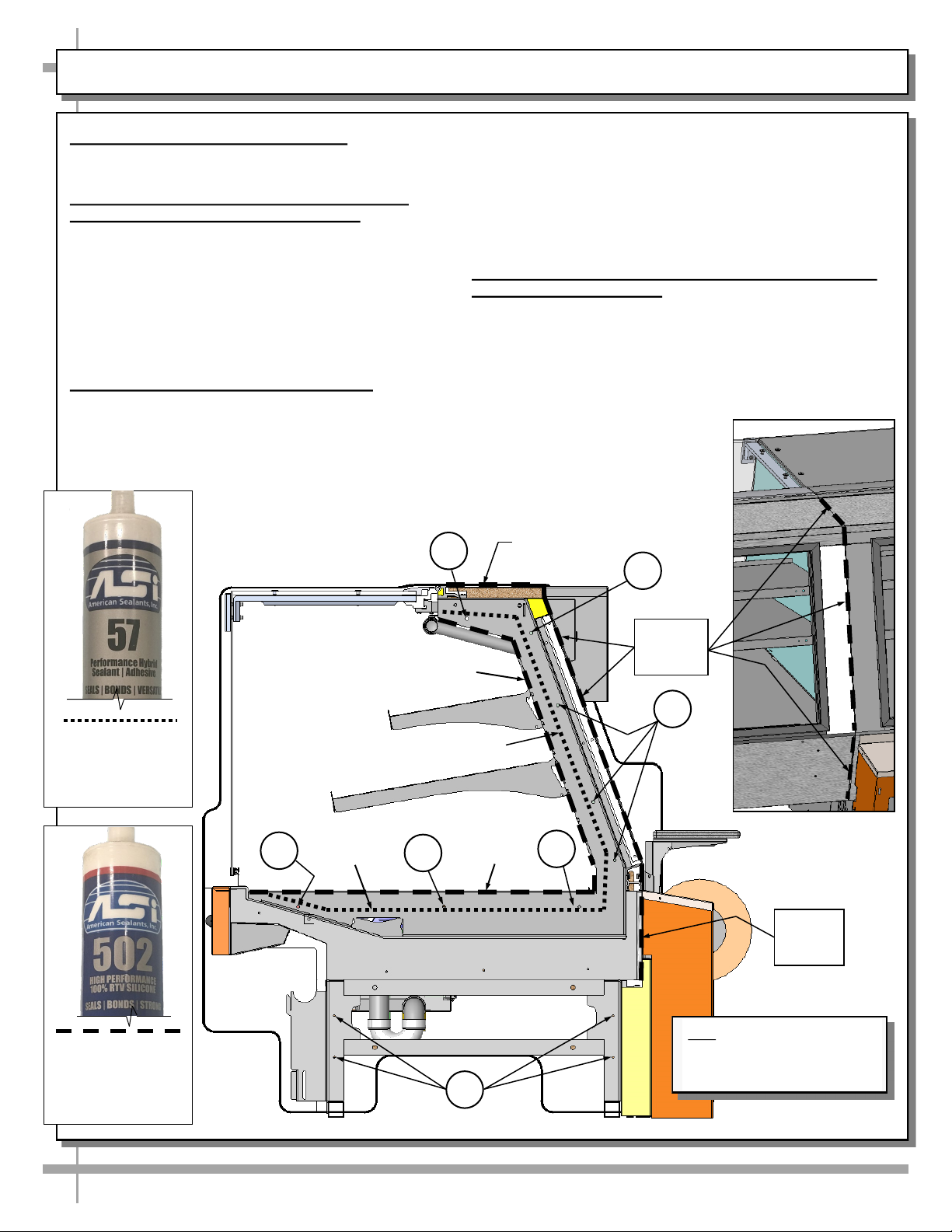

A. Prior To Adjoinment - Apply Industrial Grade

Urethane Adhesive at Center of Uprights

 Lay a generous bead of industrial grade urethane

adhesive at center of uprights (in non-visible areas).

 This urethane adhesive prevents refrigerated air from

escaping between cases (causing condensation and

reducing refrigeration efficiency) as well as preventing

ants or other insects from entering case.

 See industrial grade urethane adhesive illustration

below-left.

B. Adjoining Cases - Using Bolts and Nuts

 Use appropriately sized nuts and bolts for each hole.

#1 - Hole is accessible through rear sliding door (if you

are able to avoid gas cylinder, attach bolt); otherwise

start at #2 in bolt/nut attachment process.

#2 - Holes are accessible through rear sliding door.

#3 - Holes are accessible at underside of decking.

Decking must be removed to attach bolts/nuts.

#4 - Holes are accessible at base frame (through front of

case after front toe-kick has been removed).

 Tighten nuts securely (but do not over-tighten).

 See illustration below.

C. After Adjoinment - Apply Food Grade Silicone Sealant

To Inner And Outer Seams

 After all nuts/bolts are securely attached to case, apply a

generous bead of food grade silicone sealant at both inner

and outer seams.

 When properly applied, this food grade silicone sealant will

prevent water from seeping between cases (into the case or

to the floor) as well as crumbs or other residue from

entering between case seams.

 See silicone sealant illustration

below-left.

>> You must reattach toe-kick and

decking after case adjoinment

process is complete.

333

Refrigeration

Bead

Inner

Sanitation

Bead

Inner Sanitation

Bead

Refrigeration

Bead

Outer Sanitation Bead

To Be Applied At Rear

Adjoinment Seams

(Shown Above)

Outer

Sanitation

Beads

Outer

Sanitation Bead

Outer

Sanitation

Bead

Industrial Grade

Urethane Adhesive

(For Refrigeration

Bead Applications)

Silver, Black or Clear

Silicone Sealant

Conforming To NSF/

ANSI 51 Specs (For

Sanitation

INSTALLATION, CONT’D: FRAME SUPPORT RAIL SHIMMING

5. Position & Align Case Alongside Other

Cases

 Before adjusting levelers (or shimming frame

support rails), make certain that the case is in

proper position and, if required, aligned with

adjoining case.

 This may require the repositioning of the case

you are installing or the already positioned case.

 Though case below shows both end panels,

case adjoinments routinely consist of end panel

removal for case-to-case placement.

Frame Support

Rails

6. Frame Support Rails Must Be Shimmed

 Illustration below shows case with frame

support rails.

 Shims will be provided with all cases that have

frame support rails.

 Use shims to level case.

 Note: After case is in position, it must be

sealed to floor to prevent entry or leakage

of liquid or moisture.

Note: Illustration shown may not

exactly reflect every feature or

option of your particular unit.

INSTALLATION, CONT’D: FRONT GLASS ALIGNMENT & ADJUSTMENT (VIA RAIL SYSTEM)

Case with Curved

Front Glass

7. Front Glass Alignment & Adjustment via Rail System (For Curved and Flat Front Glass)

 Proper alignment of the front glass is important to create and maintain a seal inside the case.

 Improper alignment can cause air leaks compromising the environment inside the case and create condensation.

 Follow the five steps listed below to assure proper front glass alignment.

 Illustrations shown may not exactly reflect every feature or option of your particular case.

2. Front-to-Back Leveling:

 Place a level on top of case,

perpendicular to the front glass.

 Raise or lower either side of case

by shimming under the rails

(following steps 3 & 4 below).

 Double-check the side-to-side level.

1. Side-to-Side Leveling: Place a level on top of display case (parallel

to front glass). Raise or lower either side of case by inserting shims

under the rails to level the case (following steps 3 and 4 below).

5. Verification:

 After inserting shims, open and shut the front glass.

 Verify (again) that the front glass is properly aligned at

both left-hand and right-hand side of the case.

 If not, repeat the shimming procedure until the front

glass is properly aligned along both sides of the case.

CURVED

FRONT

GLASS

END

PANEL

LIFT

4. If FRONT-RIGHT CORNER is too close

to end panel (or hitting it), insert shims at

the BACK RIGHT CORNER of case.

LIFT

END

PANEL

CURVED

FRONT

GLASS

3. If FRONT-LEFT CORNER is

too close to end panel (or

hitting it), insert shims at the

BACK LEFT CORNER of case.

END PANEL

Case with Flat

Front Glass

END PANEL

Rails

Note: Illustration shown may not

exactly reflect every feature or

option of your particular unit.

8. Field Wiring Box / LED Driver / Raceway / LED Driver /

Anti-Condensate Axial Fans

 Probe leads are in probe leads box (on certain models).

It is located at customer front-left of case (behind front panel).

 Field wiring box is also located at case front)

 LED driver and terminal strip is also located behind front electrical cover (shown removed for illustrative

purposes).

 Screws hold front electrical cover in place. Unscrew and drop electrical cover down and out.

 Anti-condensate axial fans (for front glass) may be accessed (at underside of front panel) by simply

removing four screws, and dropping fans down.

 Caution! Only certified electricians are to access electrical components!

Electrical

Raceway (Typ.)

Terminal

Strip

Light

Ballast

Field Wiring Box / LED

Driver (Optional,

Dependent Upon Lighting)

--- View of Model GMDSV6R.7115C With Front Panel Remove / Electrical Box Cover Transparent ---

Anti-Condensate

Axial Fans (Typ.)

INSTALLATION, CONT’D: FIELD WIRING BOX / RACEWAY / LED DRIVER / ANTI-CONDENSATE FANS

Note: Illustration shown may not

exactly reflect every feature or

option of your particular unit.

Thermostat

Anti-Condensate

Axial Fans (Typ.) Thermostat

INSTALLATION, CONT’D: REFRIGERATION LINES / STUB-UPS / DRAINS

Note: Model GMDSV6R.7115C (model

shown) may not reflect every feature or

option of your particular unit.

9. Refrigration Line Stub-Up Connections

 Refrigerant stub-up access is at underside of

case.

 Stub-up connections are accessed by removing

rear panel (no screws required).

 Run case-to-case connections through cutouts in

base.

 Sweat the high and low pressure connections.

 Fill access hole with suitable filler to insure

watertight integrity of tub.

 Note: Illustration below may not reflect every

feature or option of your particular case.

Refrigeration Line

Stub-Ups Access

Field Connection

for Drain

P-Trap

10. Drains

 Cases have drains at left and right hand sides.

 Longer cases may have drain at case center.

 Drain field connection location as shown.

 See next page for illustration of TXV Valve,

Drains, Refrigeration Line Stub-Ups Access, etc.

 Depending upon drain access needs, either front

or rear panel may be removed to gain access to

drain stub-up.

 1.5” male PVC stub-up connection is under case.

 Drain stub-up may be at case center in extended

length cases.

 Connect tub drain to floor drain. Maintain

1/4” fall per foot to provide proper drainage.

This manual suits for next models

Other Structural Concepts Merchandiser manuals

Structural Concepts

Structural Concepts Oasis CO2739R User manual

Structural Concepts

Structural Concepts Oasis Mobile Series Installation instructions

Structural Concepts

Structural Concepts Oasis Mobile Series User manual

Structural Concepts

Structural Concepts G Series User manual

Structural Concepts

Structural Concepts Harmony HMO7536R User manual

Structural Concepts

Structural Concepts Harmony HMG3953 User manual

Structural Concepts

Structural Concepts REVEAL Series Installation instructions

Structural Concepts

Structural Concepts Oasis MOT4048RSS.5197 Installation instructions

Structural Concepts

Structural Concepts Oasis Mobile Series Installation instructions

Structural Concepts

Structural Concepts B3632H User manual

Structural Concepts

Structural Concepts Reveal NR3651RRSSV User manual

Structural Concepts

Structural Concepts Oasis Mobile Series Installation instructions

Structural Concepts

Structural Concepts Oasis Mobile Series Installation instructions

Structural Concepts

Structural Concepts G Series User manual

Structural Concepts

Structural Concepts Impulse Series Installation instructions

Structural Concepts

Structural Concepts BLEND 21-27948 User manual

Structural Concepts

Structural Concepts FUSION GMSV6H User manual

Structural Concepts

Structural Concepts Oasis B1832H User manual

Structural Concepts

Structural Concepts FSI856R Installation instructions

Structural Concepts

Structural Concepts DO3623R User manual

Structural Concepts

Structural Concepts G Series User manual

Structural Concepts

Structural Concepts Reveal NR3633RSSV Installation instructions

Popular Merchandiser manuals by other brands

FRIGOGLASS

FRIGOGLASS Flex 20 HC user manual

Hussmann

Hussmann ENTYCE TY3 Installation & operation manual

EPTA

EPTA COSTAN RHINO MULTI User instructions

Hussmann

Hussmann CRFD Installation and operation guide

CASCO

CASCO Nano Cube owner's manual

Hussmann

Hussmann WDCHI Installation & operation manual

True

True GDIM-26 installation manual

Hussmann

Hussmann Q2-SS Installation & operation guide

Haussmann

Haussmann RL Installation & operation manual

Howard McCray

Howard McCray R-CDS32E-4 Specifications

Hussmann

Hussmann microSC SHM-A Series Installation & operation manual

Hussmann

Hussmann APT0500 Installation & operation manual

EPTA

EPTA iarp Cool Emotions Delight Lite User instructions

VALERA

VALERA BC 85 datasheet

HL Display

HL Display 3eBin Assembly instructions

Hussmann

Hussmann Q1-SS Technical data sheet

Hussmann

Hussmann impact Excel C2X-XLEP Technical data sheet

Hussmann

Hussmann C2NX-XE Technical data sheet
