StreamLight Strion User manual

Operating Instructions

STRION

LED

99 Washington Street

Melrose, MA 02176

Phone 781-665-1400

Toll Free 1-800-517-8431

Visit us at www.TestEquipmentDepot.com

ENGLISH

OPERATING INSTRUCTIONS FOR THE STREAMLIGHT

STRION

AND STRION

LED

Thank you for selecting the Strion®/Strion®LED, a new concept in portable lights. As

with any fine tool, reasonable care and maintenance of this product will provide years

of dependable service.

Please read this manual before using your Strion®/Strion®LED. It includes important

safety and operating instructions and should be saved. Flashlight must be fully charged

before first use.

USING THE LIGHT

The Strion®features a tactical push button tailcap switch.

Press tailcap button for momentary operation.•

With one hand, rotate tailcap clockwise with thumb and forefinger for steady on.•

Rotate tailcap counterclockwise two (2) turns for storage.•

Rotate facecap to adjust focus to desired beam.•

The Strion®LED incorporates a digital multifunction tail mounted switch.

Lightly press the tailcap button for momentary operation.•

Fully press the pushbutton switch once to turn the light on at full intensity.•

Press and hold the switch to cycle through brightness levels. Release at desired•

level.

A quick double-click of the switch will activate the rapid flash function.•

A single press of the switch from any "on" mode will turn the flashlight off.•

SAFETY

While eye damage from the StrionA. ®LED is unlikely, it is a Class 2 LED product and

YOU SHOULD NOT STARE INTO THE BEAM.

CAUTION: LED RADIATION

AVOID DIRECT EYE EXPOSURE

CLASS 2 LED PRODUCT

Maximum LED output<60 mW per IEC 60825-1. Edition 1.2 2001-08

The StrionB. ®/Strion®LED is not approved for use in hazardous atmospheres.

SAVE THESE INSTRUCTIONS.C. This manual contains important safety,

operating and maintenance information for your flashlight and charger.

CAUTION:D. To reduce risk of fire, electrical shock, or personal injury, do not

attempt to use the charger to recharge any other product. Likewise, do not attempt

to charge the Strion®/Strion®LED with any other charger.

Do not abuse the cord. Never carry the charger by the cord or yank the cord toE. disconnect it from a receptacle. Do not use a damaged charger.

Plug AC charger directly into an electrical outlet. Do not use an extension cord.F.

Do not put any metal objects onto the charging terminals located in the chargeG. holder.

Do not try to repair the unit or charger yourself. Take it to a qualified service facilityH. or return it to the factory.

Use only battery #74175 (see parts list). The contact arrangement in the flashlightI. precludes the use of other batteries. Recycle worn out or damaged batteries

properly. Do not attempt to incinerate the battery as it may explode in a fire.

Handle the battery carefully and never allow it to short circuit.

Use of this product for other than a lighting device is not recommended.J. Streamlight

specifically disclaims liability for other than recommended use.K.

CHARGER FACTS

CHARGER MOUNTING

The charger should never be mounted against any heat sensitive surface.•

The most secure mounting position is with the Strion• ®/Strion®LED vertical and

head up.

Before drilling any holes, make sure there is room to insert and remove the•

flashlight.

Two (2) self-tapping screws are included to mount the charger.•

Use a 1/8th" drill bit.

LED CHARGE INDICATOR

With the Strion• ®/Strion®LED inserted properly the LED on the charger should light,

indicating a proper charge path. It may take a second or two for the LED to light

when the Strion®/Strion®LED is first inserted.

Charging…LED is steady.•

Charged…LED pulses shortly every second.•

Charge time is approximately 2.5 hours for Strion• ®and 3hrs for the Strion®LED.

IMPORTANT: Charging temperature is between 20°F and 115°F. A safety circuit

prevents charge outside that range.

Temperatures outside this range may also cause the charge indicator to temporarily•

function abnormally.

It is normal for the indicator to switch between steady and blink as the battery is•

“topped off”.

There is no danger of overcharge. The Strion• ®/Strion®LED is designed to be in the

charger continuously when not in use.

INSTALLATION IN VEHICLES

A 12VDC power cord (#22051) is equipped with a cigarette plug and is available for

mounting a Streamlight charger in a vehicle. The plug can be removed and the wires

can be attached directly to a power source for a more permanent installation. (A two

amp fuse must be used on the positive lead.)

IMPORTANT: Before making electrical connections in a vehicle, keep in mind that a

shorted auto battery can easily start a fire. Make all connections with insulated lugs

or other connectors intended for such use. Be sure that your installation is fused. The

striped power lead is positive and the unmarked lead is negative. The charger body is

electrically isolated from the charge circuit and allows positive ground installations.

The charger is diode protected and if connected in reverse polarity simply won’t

operate until connected properly.

Streamlight recommends connecting chargers to an unswitched source of power

to ensure the flashlight is always fully charged. If the vehicle will not be driven for

several days, the flashlight should be removed from the charger to avoid vehicle

battery drain.

BATTERY REPLACEMENT

Simply unscrew the tailcap and slide the battery from the flashlight. Replace the

battery inserting the contact end first and reattach the tailcap.

MAINTENANCE

Keep all threads and o-rings lubed with silicon grease.•

Keep flashlight charger contacts clean at all times. Poor contact can cause charger•

malfunction. An abrasive pencil eraser works well to clean the contacts.

REPLACEMENT PARTS

BATTERY P/N 74175

LAMP P/N 74914 (Incandescent Model Only)

IMPORTANT – Be sure to use genuine Streamlight®replacement parts.

Go to www.streamlight.com for additional information about replacement parts and

the location of an authorized Streamlight repair center near you.

Other manuals for strion

Table of contents

Other StreamLight Flashlight manuals

StreamLight

StreamLight PROTAC 2AA User manual

StreamLight

StreamLight PROTAC HL 1L-1AA User manual

StreamLight

StreamLight tLR-1 Series User manual

StreamLight

StreamLight strion User manual

StreamLight

StreamLight TLR-1 HL User manual

StreamLight

StreamLight STYLUS PRO COB User manual

StreamLight

StreamLight FIRE VULCAN User manual

StreamLight

StreamLight SURVIVOR User manual

StreamLight

StreamLight 3AA User manual

StreamLight

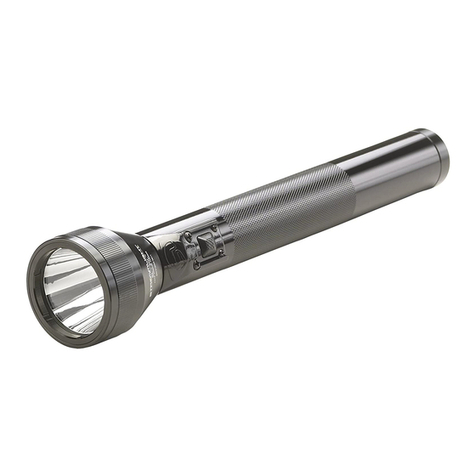

StreamLight RECHARGEABLES Flashlight User manual
