Stradis HDM500 User manual

HDM500

High-Definition MPEG-2 Decoder

User Guide

Table of Contents

Patent Notice...............................................................................................................................................3

Features.......................................................................................................................................................4

HDM500 Block Diagram..............................................................................................................................6

Specifications ..............................................................................................................................................7

Accessories and Cables..............................................................................................................................8

Hardware Installation...................................................................................................................................9

Back Panel and Onboard Connectors.......................................................................................................10

RS422 Connector......................................................................................................................................12

Audio Connector (DB15-HD).....................................................................................................................13

Installing the Device Drivers and the Stradis MPEG-2 Decoder Application............................................14

Software License Agreement ....................................................................................................................15

Limited Warranty on Hardware Products ..................................................................................................16

Warning: This is a Class A product. In a domestic

environment this product may cause radio

interference in which case the user may be

required to take adequate measures.

somewhere else, in which case we have no idea where it was printed. 6/22/2005 5:59 PM

Trademarks: Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation.

Pentium is a registered trademark of Intel. Stradis is a registered trademark of Stradis, Inc.

Because of technical progress, specifications are subject to change without notice

Patent Notice

Notice: Use of this product is expressly prohibited without a license under the following applicable

patents.

For more information, contact: Baryn S. Futa Phone: 1-303-331-1880

Manager and C.E.O. Fax: 1-303-331-1879

MPEG LA, LCC e-mail: [email protected]

250 Steele Street, Suite 300 U.R.L.: www.mpegla.com

Denver, CO 80206

This is the list of patents covered by the MPEG-2 Patent Portfolio License as of September 30, 1998.

Columbia University

US Re 35,093

CA 2,096,431-C

DE 0630157

FR 0630157

GB 0630157

JP 2,746,749

France Telecom (CNET)

US 4,796,087

DE 3767919

FR 2599577

GB 0248711

IT 0248711

SE 0248711

FI 86241

Fujitsu

US 5,235,618

CA 2,029,320

DE 69030056.5

FR 431319

GB 431319

General Instrument

Corporation

US 4,394,774

US 4,698,672

DE P3789373.8

FR 0266049

GB 0266049

IT 0266049

US 5,068,724

AU 627421-B2

NO 179890-C

TW NI-52990

US 5,091,782

AT 139402-T1

AU 627684-B2

CA 2,038,043-C

DE 69120139-T2

DK 0451545 T3

ES 2088440-T3

FR 0451545

GB 0451545

GR 3020736

IT 0451545

NO 178419-C

NO 178420-C

TW NI-50643

US 5,093,720

Kokusai Denshin Denwa Co.,

Ltd.

JP 1,835,550

Matsushita

US 5,113,255

AU 612543-B2

CA 2,016,523-C

CH 397402

DE 69027710

ES 2091790

GB 397402

FR 397402

IT 397402

JP 1,949,701

JP 2,695,244

KR 63,477

NL 397402

SE 397402

US 5,223,949

US 5,412,430

JP 2,699,703

JP 2,684,941

Mitsubishi

US 4,954,892

CA 2,000,156-C

DE 68913508-T2

FR 382892

GB 382892

IT 382892

JP 2,100,607

KR 58,957

SE 382892

US 5,072,295

AU 625476-B2

CA 2,023,543-C

DE 69027820-T2

FI 98421-B

FR 414193

GB 414193

IT 414193

JP 2,128,624

NL 414193

KR 77,808

SE 414193

JP 1,869,940

JP 2,510,456

Philips

US 4,849,812

CN 1013425-B

DE 3871998-T2

FR 282135-B

GB 282135-B

IT 282135-B

JP 2,534,534-B2

KR 9700364-B1

TW 29492-B

US 4,901,075

AT 260748-B

CN 10619-B

DE 3750206-C0

FR 260748-B

GB 260748-B

IT 260748-B

NL 260748-B

SE 260748-B

TW 35350-B

US 5,021,879

DE 3855114-B

FR 290085-B

GB 290085-B

JP 2,630,809-B

US 5,027,206

AT E 1313335-B

AU 634173-B

BE 0359334-B

CH 0359334-B

CN 1018695-B

DE 68925011-B

ES 0359334-B

FR 92127-B

GB 0359334-B

GR 0359334-B

HK 96-1695-B

IT 0359334-B

US 5,128,758

MX 172405-B

US 5,179,442

US 5,333,135

US 5,606,539

AT E157830-B

BE 460751-B

DE 69127504-B

DK 460751-B

FR 460751-B

GB 460751-B

IT 460751-B

NL 460751-B

SE 460751-B

US 5,608,697

Samsung Electronics Co., Ltd.

US 5,654,706

KR 95,631

Scientific Atlanta

US 5,418,782

AU 683,134

US 5,420,866

AU 687844

US 5,457,701

AU 680,680

Sony

US 4,864,393

DE 3854171-T2

GB 2205710-B2

US 5,191,436

US 5,291,486

GB 2289194-B2

GB 2289195-B2

GB 2289196-B2

GB 2259229-B2

US 5,298,991

US 5,343,248

US 5,428,396

US 5,461,420

AU 672,812

US 5,481,553

AU 673244-B2

NZ 261907-B

TR 28436-B

TW 66605-B

US 5,510,840

US 5,539,466

AU 662548-B2

US 5,543,847

US 5,559,557

AU 669209-B2

US 5,666,461

AU 670,288

MY 109,945

TW 70,497

US 5,663,763

AU 667,970

JP 2,712,645

Toshiba Corporation

US 5,317,397

US 5,424,779

JP 2,755,851

US 5,467,136

JP 2,758,378

US 5,742,344

Victor Company Of Japan,

Limited (JVC)

US Re 34,965

JP 2,530,217

JP 2,072,546

DE 69024235

DE 69030819

FR 379217-B

FR 572046-B

GB 379217-B

GB 572046-B

US Re 35,158

JP 2,137,325

DE 69012405

DE 69031045

FR 395440-B

FR 584840-B

GB 395440-B

GB 584840-B

NL 395440-B

NL 584840-B

US 5,175,618

DE 69123705

FR 484140-B

GB 484140-B

KR 94554

Features

With the HDM500 High-Definition MPEG-2 Decoder, your application can offer:

• Continuous, seamless back-to-back playback of multiple MPEG streams (which

may be in different formats: Transport, Program, System or Elementary streams) in

all popular ATSC-compliant formats including 1920x1080I, 1280x720P, 720x576P,

720x576I, 720x480P and 720x480I

• High-quality conversion of source video to selected display format. Lock the output

to one format and all outputs will be in that format, regardless of the source format.

• Frame-accurate, synchronized playback across multiple decoders

• High-speed, random access and display of any I-Frame in an MPEG file for

variable speed reverse and forward play, plus seamless switching to any I-frame of

another stream

• PCR-based clock recovery for 24/7/365 real-time stream reception for continuous

decoding of streams received from any common delivery mechanism, including

satellite, LAN, and ATM networks

• Complete control over all HDM500 functions via the API for Microsoft Windows NT,

Windows 2000, and Windows XP. Applications can access the API via a C

interface or by using the __stdcall calling convention

• API compatibility with all Stradis SDM series standard-definition MPEG Decoders

Additional features for professional MPEG decoding and output:

• Still picture display from bit-map files with transition effects and simultaneous audio

playback for “slide shows”

• True-color graphics over video or still pictures with keying or indexed color with

blending

• Digital control of video saturation, brightness, contrast, and gamma

• Genlock (external framelock synchronization) input

• Hardware Audio/Video synchronization

• High-Definition Serial Digital Interface (SMPTE 292M) video output with 12

channels of embedded audio

• 6 AES3 digital audio outputs, may be used as 12 discreet audio channels or 4 may

be used as IEC 61937/SMPTE 337M-2000 digital audio outputs to Dolby Digital®

(AC-3) or MPEG Multichannel®audio decoders

• One pair of unbalanced analog audio outputs for monitoring

• Machine Control via remote connector (9-Pin, RS-422A) can be configured as

either “Controller” or “Device”

• Linear Time Code (LTC) output based on stream time codes or synthesized by the

API

• Letterbox and pan-and-scan options for displaying 16:9 images on a 4:3 display

• Support for extraction of EIA 608 / EIA 708 closed captions with captions inserted

into HD-SDI in accordance with SMPTE 334M

• API provides three interface levels: RateBuffer, Demux, and File Interface

• DirectShow® filters for compressed data input to the Stradis decoder

• SMPTE 302M-2002 support for uncompressed digital audio in the Transport,

Program, and System streams

• Wave file playback and raw PCM audio playback

• Audio “voice-over” capability allows the application to replace the audio from the

main multiplexed stream with another audio stream

• Virtual streams based on a single, repeated I-Frame that can be seamlessly played

back-to-back with other MPEG streams

• Decryption function for file-based decryption using Stradis-supplied or user-

definable algorithms

• Video capture interface for capturing decoded video output and placing it into PC

memory

• Video image can be displayed on the computer’s VGA monitor in lower resolution

to conserve PCI bus bandwidth

Stradis HDM500 Decoder Operation Highlights

• All decoding takes place in hardware

• 12-bit Video D/A, 2x oversampled

• Decodes MPEG audio (up to eight output channels) in parallel with MPEG video

• Supports SMPTE 302M-2002 uncompressed audio (up to 12 channels)

• IEC 61937/SMPTE 337M-2000 compressed digital audio output of AC-3 – ATSC

A/52 on up to four AES3 outputs

• VCXO with clock recovery for streams received by satellite, LAN, ATM or any

transport delivery mechanism

• Serial Digital Interface (SMPTE 292M or SMPTE259M-C) video output with up to

12 channels of embedded audio, plus DVI and analog RGB (or YpbPr) outputs

HDM500 Block Diagram

S M P T E 2 5 9 M

S c r a m b l e r &

C o n t r o l l e r

S M P T E 2 5 9 M

T r a n s m i t t e r

A E S 3

T r a n s m i t t e r

V i d e o

E n c o d e r

M P E G

V i d e o D e c o d e r

A n a l o g

V i d e o

F i l t e r

D i g i t a l A d i o

( S t e r e o )

S - V i d e oC o m p o s i t e V i d e o

2 7 M H z

V C X O

E x t e r n a l S y n c

S e r i a l D i g i t a l V i d e o

w i t h E m b e d d e d A d i o

M P E G S t r e a m

D e m l t i p l e x e r

S t e r e o A d i o

D - A C o n v e r t e r

B a l a n c e d

L i n e D r i v e r s

B a l a n c e d A d i o

( S t e r e o )

S t e r e o A d i o

D - A C o n v e r t e r

B a l a n c e d

L i n e D r i v e r s

B a l a n c e d A d i o

( S t e r e o )

A E S 3

T r a n s m i t t e r

D i g i t a l A d i o

( S t e r e o )

S a m p l e R a t e

C o n v e r t e r s

( 4 S t e r e o C h a n n e l s )

M P E G

A d i o D e c o d e r s

( 4 S t e r e o C h a n n e l s )

A d i o C r o s s b a r

S w i t c h

( C h a n n e l M a p )

S M P T E 2 7 2 M

E m b e d d e r

P C I B s

P C I B r i d g e ,

V i d e o S c a l e r &

C o l o r S p a c e

C o n v e r t e r

B l a c k B r s t

G e n e r a t o r

S y n c G e n e r a t o r

& G e n l o c k

Specifications

MPEG Streams ISO/IEC 13818 and ISO/IEC 11172 compliant. Accepts MPEG-2

Elementary, Packetized Elementary (PES), Transport and Program

Streams and MPEG-1 System Streams.

MPEG Video Decodes MP@HL (4:2:0) up to 80 Mbps.

Digital Bitstream

Input Through the PCI bus using bus mastering and burst transfer mode.

Digital Video

Outputs SMPTE 292M digital video output, with embedded audio.

DVI (Digital Visual Interface) output via DVI-I Digital/Analog

Connector

Analog Video

Outputs SMPTE 253M, 274M, 296M. RGB with sync-on-green, RGB with

sync-on-all, YPbPr with sync-on-Y, YPbPr with sync-on-all, via DVI-

I Digital/Analog Connector

Digital Audio

Output 6 AES-3 outputs, 75 ohms, unbalanced (SMPTE 276M-1995), via

DB15-HD connector, 4 may be configured as IEC 61937/SMPTE

337M-2000 Digital audio outputs

Analog Audio

Output 1 pair unbalanced audio, via DB15-HD connector or MPC (CD-

ROM style) header connector.

LTC 2V P-P, 1K ohm, BNC connector with optional SAC014

Machine Control 9-Pin, RS-422A can be configured as either “Controller” or “Device”

Genlock Locks to the H-sync and V-sync, allows variable delay about the H-

sync

On-Screen

Display Up to 24 bits per pixel or indexed color with blending.

Host System

Requirements Pentium-based PC with an available PCI short card slot conforming

to specification revision 2.1 running Windows NT 4.0, or greater,

with a VGA display adapter supporting Microsoft® Direct Draw

mode. Disk transfer rate may limit the maximum sustained MPEG

data rate achievable.

Power

Requirements 3.3v (5 W typical), 5v (1.6 W typical),

12v (1.6 W typical), -12v (0.2 W typical)

Size Standard PCI short card, 6.875 in. (174.63 mm) by 4.2 in. (106.68

mm), less connectors.

Regulatory

Approvals FCC Part 15, Class A. CISPR 22/EN55022, Class A. CISPR

22/EN55024 (98)

Accessories and Cables

SAC011 Unbalanced audio bracket

SAC012 Sync daisy chain cable

SAC014 Bracket with DB9 for RS422 Machine Control and BNC connector for LTC

SAC015 Audio Cable (DB15 to 6 BNCs for Digital Audio)

SAC017 PC bracket with 2 BNC connectors for sync input

SAC018 DVI-I to VGA Adapter

SAC019 Cable: DVI-A to 5 BNC 2 Meter

SAC020 DVI-I to DVI-D and VGA "Y" Adapter

SAC021 Audio Cable - for connecting a HDM500 HD Decoder to a sound card

(60 cm)

SAC024 HDMI male to DVI male cable, 2 meter

See http://www.stradis.com/hdaccessories.html for more information

CAUTION

Observe all ESD precautions. Failure to do so could result

in damage to the equipment.

Hardware Installation

1. Do not remove card from anti-static bag until you are ready to install it.

2. Turn off the power to the computer and any device connected to it such as a

monitor, powered speakers, scanner, etc. Disconnect the power cord from the

wall or uninterruptible power supply.

3. Touch a metal surface on the computer to ground yourself and to discharge any

static electricity.

4. Remove the computer's cover.

5. Locate an unused PCI expansion slot.

6. Remove the metal cover from the back of the computer adjacent to the slot to be

used. Do not lose the screw.

7. Holding the Stradis HDM500 Card by the metal bracket, align it with the PCI slot

and press it down into the connector. Avoid touching the board’s edge connector.

The card must be completely seated into the connector.

10. Secure the Decoder Card into the expansion slot by replacing the screw removed

in step 6.

11. Replace the computer's cover and reconnect the power cables.

12. Proceed to “Installing the Device Drivers.”

Back Panel and Onboard Connectors

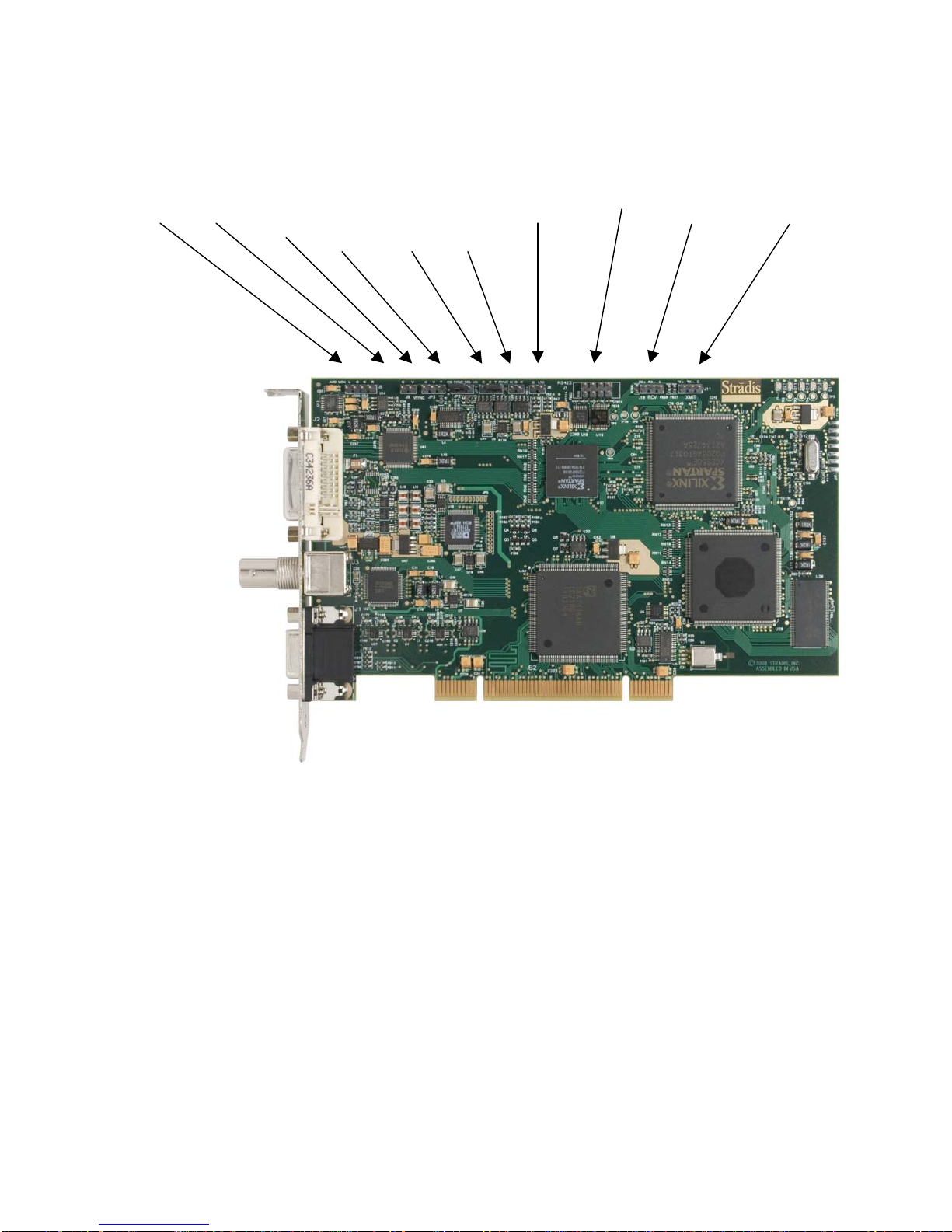

JP5 J9 JP3 JP2 JP1 J6 J8 J7 J10 J11

Audio VSync VSync Sync Sync Sync Linear Time RS-422 SIDI SIDI

Out In Out Select Out In CodeOutput Receiver Transmitter

(C,H) (C,H) (C,H)

DVI-I

Output

SDI

Output

Audio

Connector

(see page 13 for

pin outs)

JP2 is used to select composite vs. H sync. If JP2 is selected to composite then JP1

and JP6 are used for composite sync out and composite sync in, respectively.

Otherwise, JP1 and JP6 are used for H sync out and H sync in, respectively. All the

sync pairs work the same with the terminators. For example, in composite mode, JP1

and J6 are used for sync-in or sync pass-through. JP1 can switch a 75-ohm terminator

in or out. If you have multiple boards in one PC chassis that you wish to genlock to an

outside sync source, set JP1 to Hi-Z by removing the jumper factory installed between

“C” and “T” on the first board. (You may wish to leave the jumper plugged into “T” only

so that it will be available for future use.) Using a SAC012 "Sync daisy chain cable"

plugged into JP1 (“G” is Ground & “C” is Sync), you can then feed sync to the

subsequent boards, J6. Leave JP1 set to 75 Ohms on the last board.

J5 can be used to feed audio into a PC sound card. It is an unbalanced output.

J7 is for RS-422 machine control. Connect it to the Stradis SAC014 or your own

connector. To use the HDM500 as a “Device” install the cable with the red (pin 1) line to

Table of contents

Other Stradis Media Converter manuals

Stradis

Stradis SDM290e User manual

Popular Media Converter manuals by other brands

SoundTraxx

SoundTraxx Blunami BLU-2200 user guide

SPROLINK

SPROLINK VA1 user manual

Acclaim Lighting

Acclaim Lighting DDC-1-AC user guide

Nikon

Nikon AF-S TC-20E III user manual

Axis

Axis AXIS Q7406 user manual

Omega

Omega TAC80B-J instruction sheet

Zoom

Zoom Thunderbolt TAC-2R Operation manual

OST

OST iConverter 10/100M quick start guide

Vertiv

Vertiv Netsure user manual

birddog

birddog MINI user guide

Roland

Roland GI-10 owner's manual

Wallenstein

Wallenstein WX310 Operator's manual

Pace

Pace MSS 200-1 Service manual

Solar Converters

Solar Converters EQ 12/24-50 manual

CYP

CYP EL-7400V Operation manual

TIE

TIE MIDI 1i1o user manual

DCS

DCS Vivaldi Upsampler user manual

Westermo

Westermo MCW-211 SERIES user guide
