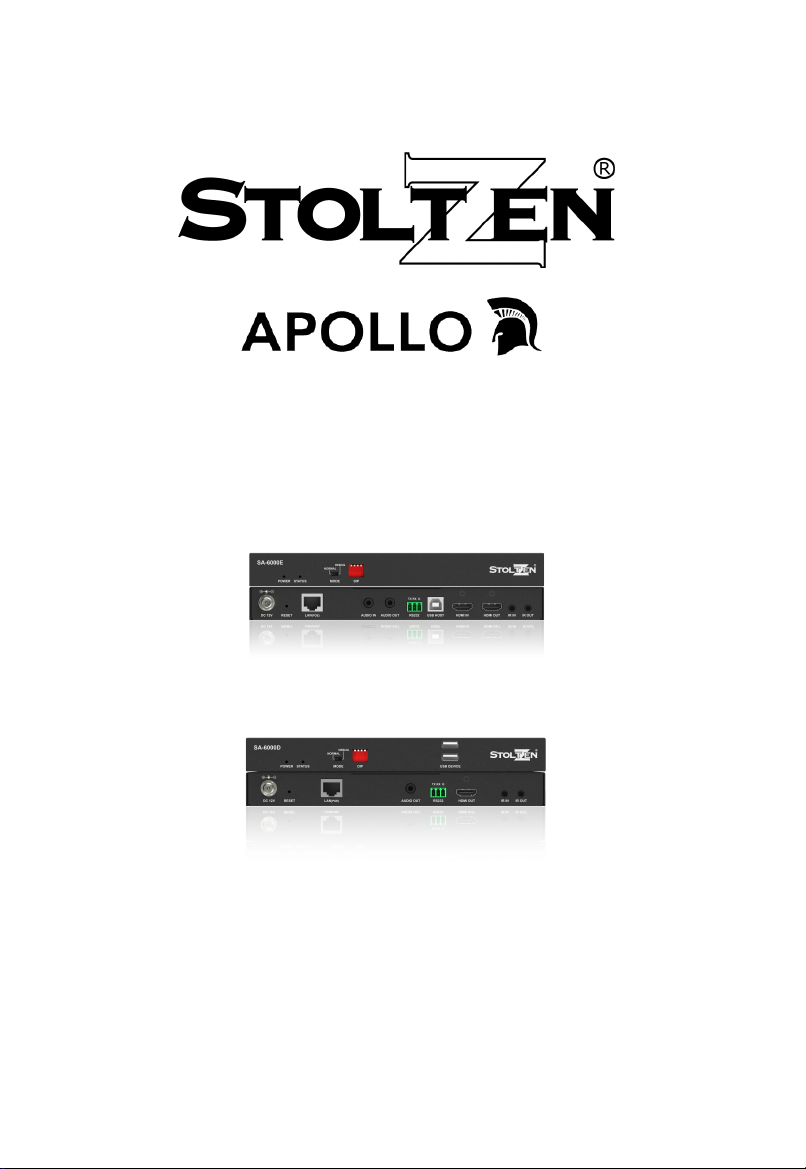

Stoltzen APOLLO SA-6000E User manual

4K HDMI over IP Encoder & Decoder w/ KVM

SA-6000E & SA-6000D

USER MANUAL

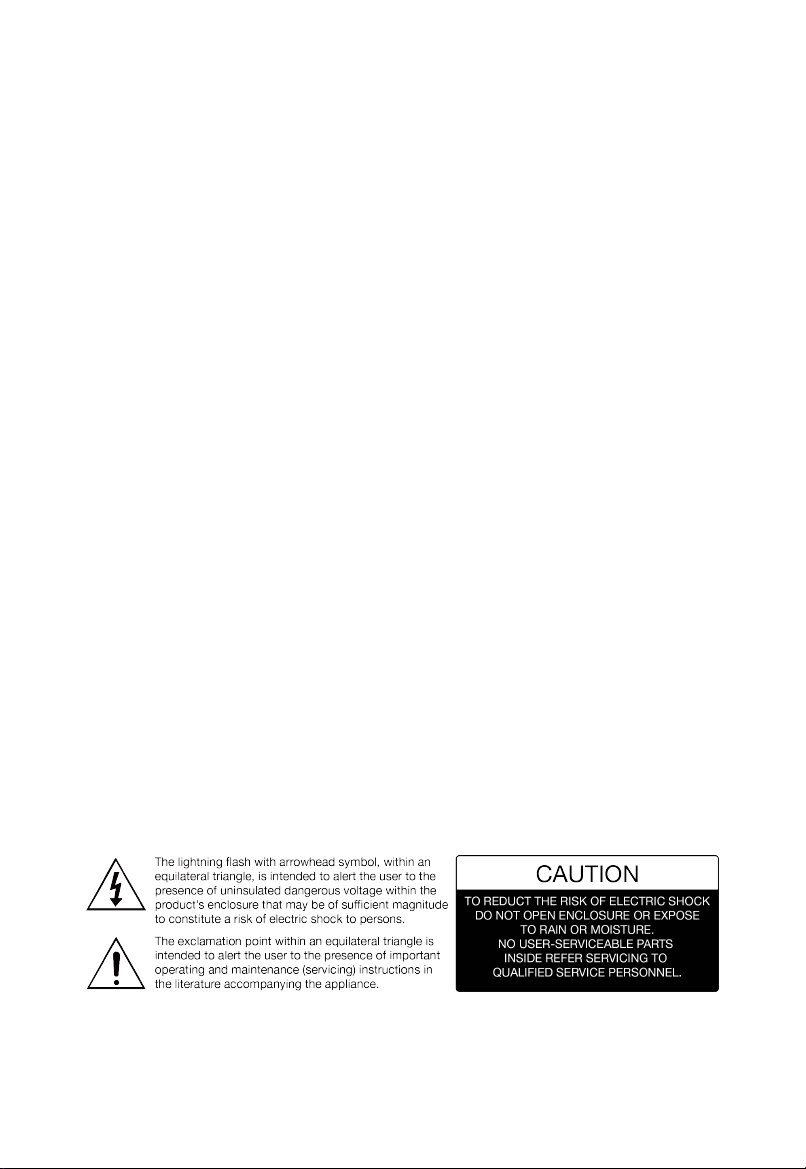

Important Safety Information

1. Read, follow, and keep these instructions.

2. Heed all warnings.

3. Do not use this product near water. Keep away from wet places, such as: spas, pools,

sinks, laundries, wet basements, etc.

4. When cleaning, unplug the unit and wipe with a dry cloth. Do not use damp cloths,

cleaning fluids, or aerosols which may result in electric shock, fire, or unit damage.

5. Operate this product using only the included power supply and/or power cable. Use of an

unapproved power implement may impair performance, damage the product, or cause

fires.

6. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

7. Do not install or place this product near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers) that produce heat.

8. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the product.

9. Only use attachments/accessories specified by Stoltzen to avoid fire, shock, or other

hazards.

10. To reduce the risk of electric shock and/or damage to this product, never handle or touch

this unit or power cord if your hands are wet or damp. Do not expose this product to rain

or moisture.

11. Unplug this product during lightning storms or when unused for long periods of time.

12. Never open, remove unit panels, or make any adjustments not described in this manual.

Attempting to do so could result in electric shock, damage to the unit, or other hazards.

Contents

Important Safety Information............................................................................ 1

Introduction ...................................................................................................... 3

Features ................................................................................................... 3

Package Contents .................................................................................... 5

Panel Description............................................................................................. 7

Encoder .................................................................................................... 7

Front Panel........................................................................................ 7

Rear Panel ........................................................................................ 8

Decoder.................................................................................................... 9

Front Panel........................................................................................ 9

Rear Panel ...................................................................................... 10

Specifications................................................................................................. 12

Encoder .................................................................................................. 12

Decoder.................................................................................................. 14

Installation...................................................................................................... 15

Typical Application ......................................................................................... 16

Scenario 1 .............................................................................................. 16

Scenario 2 .............................................................................................. 17

Hardware Installation ..................................................................................... 18

Operating the Devices ................................................................................... 19

Introduction to Different Operation Tools ................................................ 19

Using DIP Switch to Perform Routing..................................................... 20

Using PC Configurator to Perform Routing............................................. 20

Using PC Configurator to Perform Fast Switching.................................. 20

Configuring Mouse Roaming ......................................................................... 21

Configuring before HDR10 Signal Input......................................................... 25

Firmware Upgrade ......................................................................................... 26

Introduction

SA-6000E encoders and SA-6000D decoders provide the flexible, powerful,

and scalable solution at resolutions up to 3840 x 2160@60Hz 4:2:0, 3840 x

2160@30Hz 4:4:4. They allow 4K UHD media to be switched and distributed

over standard gigabit Ethernet networks, providing complete end-to-end

streaming systems. Audio, video together with IR, and USB signals can be

routed separately or as a whole throughout the matrix system. Encoders can

be used with decoders to function video wall up to the dimensions of 16 x 16.

Both of them have the capacity to handle and output up to 7.1 channel audio,

allowing you to enjoy the finest sound.

HDCP 2.2 specifications are employed. A local area network is covered with

a range up to 330ft (100m) over a single Cat 5e cable or above. Standard

features like bi-directional serial, bi-directional IR, and independent analog

audio input/output are included. The codecs allow USB extension to take

place to control a keyboard and a mouse. They offer integration-friendly

control features -- the front panel link DIP switch, Windows PC configurator

(Apollo Configurator), Apollo Visual Composer Touch on iPad and IP control

box (SA-C), providing simple, flexible control and management options. They

are the perfect solution for any low latency and signal routing applications.

Common applications include homes, classrooms, conference rooms and

broadcasts.

Features

Distributes and switches 4K UHD AV signals via standard gigabit

Ethernet networks, providing complete end-to-end streaming systems.

Encoder supports HDMI input and output resolutions up to 3840 x

2160@60Hz 4:2:0.

Decoder supports HDMI output resolutions up to 3840 x 2160@30Hz

4:4:4.

Supports streaming resolutions up to 3840 x 2160@30Hz 4:4:4.

Features video wall up to the dimensions of 16 x 16.

Supports HDR10.

Supports CEC one-touch-play and standby commands to power on/off

the display, as well as CEC Frame.

Supports multi-channel audio up to PCM 7.1, Dolby Atmos and DTS:X.

Supports independent analog audio input and output at 2 channels, 24

bits@48 kHz/channel.

HDCP 2.2 compliant.

Flexible routing policies, allowing audio, video, USB, IR and RS232

signals to be routed separately or as a whole throughout the matrix

system.

Allows AV, USB, IR, RS232 and power signals to be delivered up to

330ft/100m over a single Cat 5e cable or above.

Allows video output to follow input resolution or to convert the input

resolution to 3840 x 2160@30Hz 4:4:4 and 1080p@60Hz.

Supports HDMI input and output transmission distance up to 50ft/15m.

1 ~ 2 fps latency.

Supports bi-directional serial communication, allowing control of remote

RS232 devices between encoders/decoders and IP control box, or

between encoders and decoders.

Supports bi-directional IR pass-through, allowing control of remote

source and display devices between encoders and decoders.

Supports IR generation – send IR codes through API.

Encoder offers a USB type B port to directly connect to a PC and

complies with USB 2.0 standard.

Decoder offers two USB type A ports to directly connect to a keyboard

and a mouse and complies with USB 2.0 standard, providing +5 VDC at

up to 500 mA to connected USB peripherals.

Supports Mouse Roaming. (See Configuring Mouse Roaming section for

more information)

Supports point-to-point, point-to-multipoint, multipoint-to-point,

multipoint-to-multipoint applications.

Supports PoE to be remotely powered by compatible power source

equipment such as a PoE-enabled Ethernet switch, eliminating the need

for a nearby power outlet.

Supports user-selectable output HDCP configuration via PC configurator.

Fit in/stretch out video wall, and rotate video management -- Decoded

video can fill a video wall, maintain aspect ratio in a video wall, or can be

rotated 180°and 270°clockwise, presenting imagery that meets

customer expectations.

Supports Auto IP, zero-configuration networking (zeroconf), a set of

special technologies that automatically assign dynamic IP addresses to

the devices on startup and a server-less method of choosing an IP

address.

Works with multiple operation tools, the front panel link DIP switch,

Windows PC configurator, Apollo Visual Composer Touchon iPad and IP

control box for device control and management.

Supports communications protocols used on the Ethernet such as

TCP/IP, ARP, DHCP, ICMP (ping), IGMP, UDP.

Package Contents

Encoder

1 x SA-6000E Unit

1 x Phoenix Male Connector (3.5mm, 3 Pins)

1 x IR Emitter (3.9ft/1.2m)

1 x Broadband IR Receiver (3.9 ft/1.2 m, 30 kHz ~ 50 kHz)

2 x Mounting Brackets

Decoder

1 x SA-6000D Unit

1 x Phoenix Male Connector (3.5mm, 3 Pins)

1 x IR Emitter (3.9ft/1.2m)

1 x Broadband IR Receiver (3.9 ft/1.2 m, 30 kHz ~ 50 kHz)

2 x Mounting Brackets

Panel Description

Encoder

Front Panel

Name

Description

1 Power LED On: SA-6000E is powered on.



Off: SA-6000E is powered off.

2 Status LED

Solid on: SA-6000E is connected to both an active

video source and SA-6000D.

Blinking: SA-6000E is disconnected from an active

video source. / SA-6000E is disconnected from

SA-6000D.

Off: SA-6000E is powered off or in the boot process.

/ Network is down.

3 Mode

Use this switch to toggle between normal and debug

modes.

Normal (Default): In this mode, you can connect the

rear panel RS232 port to a RS232 device such as a

computer for bi-directional serial communication

with a RS232 device on the IP control box side.

Debug: In this mode, you can connect the rear

panel RS232 port to a RS232 device such as a

computer for debugging SA-6000E.

4 DIP

This DIP switch consists of four manual switches, which

are used to route audio, video together with IR, and

USB signals between SA-6000E and SA-6000D based

on their positions. By default, each individual switch is in

the up position. For more information, see "Using DIP

Switch to Perform Routing".

Note:

For the DIP switches in both encoder and decoder,

changes to them take effect immediately without

rebooting the system.

Rear Panel

1110

876

No.

Name

Description

DC 12V

Connect this port to a 12 V 1 A power adapter.

2 Reset

Use this button to reset device.

When SA-6000E is powered on, use a pointed stylus to

hold down this button for five or more seconds, and then

release it, it will reboot and restore to its factory defaults.

3 LAN (PoE)

10/100/1000 Base-T port, connect this port to a gigabit

Ethernet switch for IP stream output, device control and

management.

Default Protocol

Default IP Mode

Auto IP

IP Address

169.254.x.x

Subnet mask

255.255.0.0

4 Audio In

Connect this 3.5 mm stereo tip-ring-sleeve port to an

audio source such as a computer for unbalanced stereo

audio signal input.

Note: When this audio port is connected to an audio source,

both encoder and decoder will output the audio signal from the

audio source instead of that from the HDMI video source. If this

audio port is connected via an audio cable but no audio signals

are input, you can get picture but no sound. The situations above

do not apply to the HDMI loop-through port in encoder, which can

still output the AV signals from the video source.

5 Audio Out

Connect this 3.5 mm stereo tip-ring-sleeve port to an

audio receiver such as a speaker or amplifier for

unbalanced, stereo audio signal output.

6 RS232

Use this port to perform bi-directional serial

communication and device debug functions.

When the front panel "MODE" switch is moved to

the "NORMAL" position, connect this port to a

RS232 device such as a computer to bi-directionally

communicate with a RS232 device at the IP control

box side.

When the front panel "MODE" switch is toggled to

No.

Name

Description

the "DEBUG" position, connect this port to a RS232

device such as a computer for debugging

SA-6000E.

7 USB Host

Connect a type A male to type B male USB cable

between this port and the USB port of a desktop or

laptop. SA-6000E is USB 2.0 compliant.

HDMI IN

Connect this port to an HDMI source device.

9 HDMI OUT Connect this port to a local HDMI display device.

10 IR IN Connect this port to an IR receiver for IR communication

with an IR emitter at the SA-6000D side on the network.

11 IR OUT

Connect this port to an IR emitter for IR communication

with an IR receiver at the SA-6000D side on the

network.

Decoder

Front Panel

No.

Name

Description

1 Power LED On: SA-6000D is powered on.



Off: SA-6000D is powered off.

2 Status LED

On: SA-6000D is connected to SA-6000E and the

video is displayed.

Blinking: SA-6000D is disconnected from

SA-6000E.

Off: SA-6000D is powered off or in the boot process.

/ Network is down.

3 Mode

Use this switch to toggle between normal and debug

modes.

Normal (Default): In this mode, you can connect the

rear panel RS232 port to a RS232 device such as a

computer for bi-directional serial communication

with a RS232 device on the IP control box side.

Debug: In this mode, you can connect the rear

panel RS232 port to a RS232 device such as a

computer for debugging SA-6000D.

This manual suits for next models

Table of contents

Other Stoltzen Media Converter manuals

Stoltzen

Stoltzen ECHO SP12 User manual

Stoltzen

Stoltzen APOLLO SA-3000E User manual

Popular Media Converter manuals by other brands

SoundTraxx

SoundTraxx Blunami BLU-2200 user guide

SPROLINK

SPROLINK VA1 user manual

Acclaim Lighting

Acclaim Lighting DDC-1-AC user guide

Nikon

Nikon AF-S TC-20E III user manual

Axis

Axis AXIS Q7406 user manual

Omega

Omega TAC80B-J instruction sheet

Zoom

Zoom Thunderbolt TAC-2R Operation manual

OST

OST iConverter 10/100M quick start guide

Vertiv

Vertiv Netsure user manual

birddog

birddog MINI user guide

Roland

Roland GI-10 owner's manual

Wallenstein

Wallenstein WX310 Operator's manual

Pace

Pace MSS 200-1 Service manual

Solar Converters

Solar Converters EQ 12/24-50 manual

CYP

CYP EL-7400V Operation manual

TIE

TIE MIDI 1i1o user manual

DCS

DCS Vivaldi Upsampler user manual

Westermo

Westermo MCW-211 SERIES user guide
