stilum Merga User guide
© stilum GmbH, Gewerbegebiet Larsheck, D-56271 Kleinmaischeid • Tel. +49 (0) 2689 92790-0 • Alle Rechte und Produktmodikationen vorbehalten
Mounting instruction balance „merga“
Item No. 51 5002 401
State: 04.06.2020 p. 1
Diagram 1: Overall view of the play equipment
© stilum GmbH, Gewerbegebiet Larsheck, D-56271 Kleinmaischeid • Tel. +49 (0) 2689 92790-0 • Alle Rechte und Produktmodikationen vorbehalten
Mounting instruction balance „merga“
Item No. 51 5002 401
State: 04.06.2020 p. 2
Play level
1. Select the location of the play equipment taking into account the required
minimum space (see diagram 3).
2. The impact area of a playground equipment with an enforced movement is
not allowed to overlap the impact area of other equipment.
According to DIN EN 1176-1, 4.2.8.5.2 shock-absorbing oors must be made
on the entire impact area of every equipment that cause forced movement.
3. Carry out excavation work for the foundation as shown in diagram 2. After
excavation compress the foundation oor.
Note: The balance equipment is installed at play level.
Pay attention to items marked „play level“ at play equipment!
4. Set up the concrete foundation according to diagram 2 with central, horizontal
reinforcement. Pour the supplied foundation anchor in the foundation so that
the upper angle frame is horizontal and ush with the foundation surface.
5. After a setting period of 10 – 14 days, depending on weather conditions and
foundation size, ll up and compress the holes between the foundation and
the foundation hole with excavation.

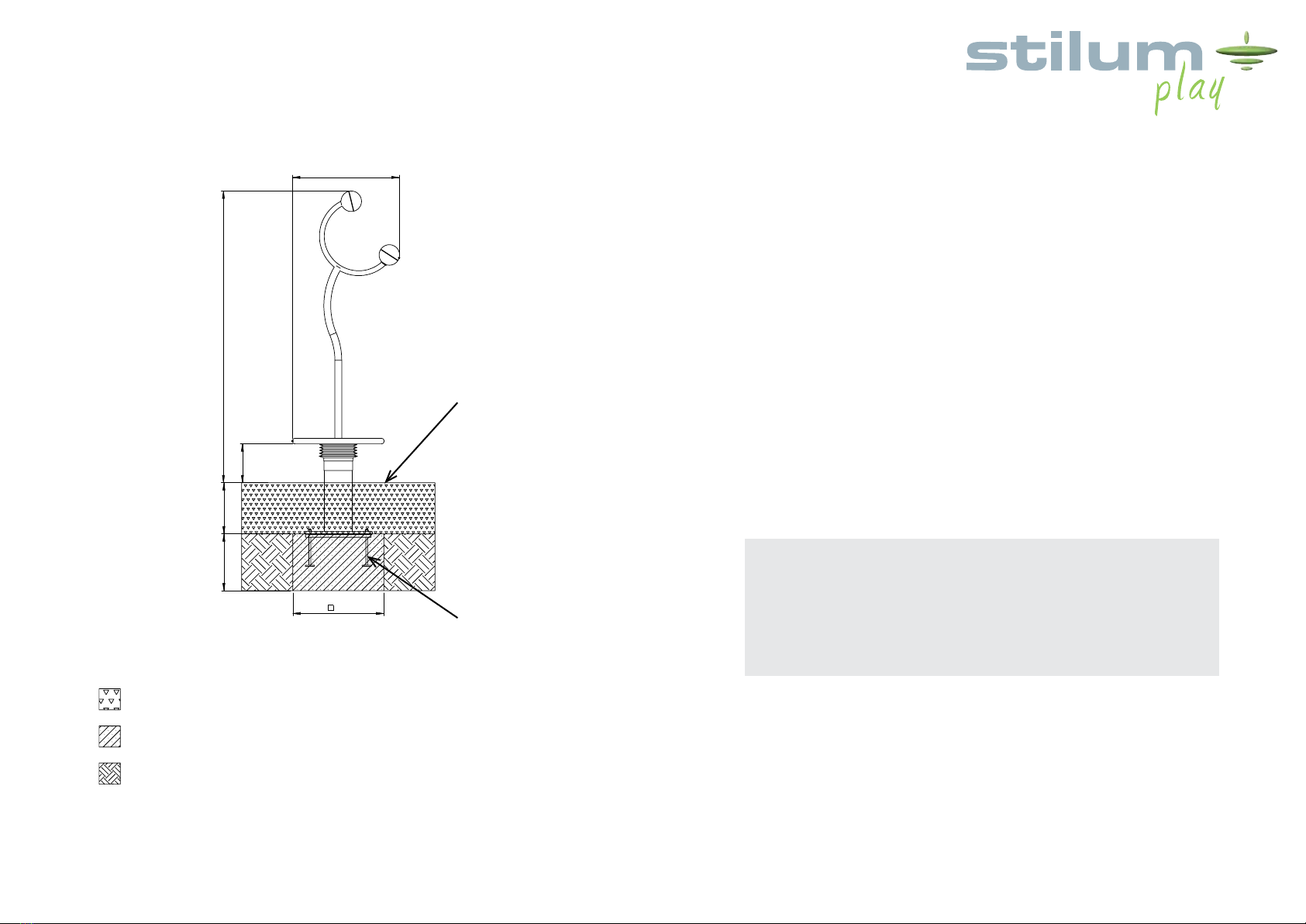

Diagram 2: Foundation plan
Reinforcement plan: Concrete foundation with reinforcement
Main foundation: BSt 500S
Stirrups Ø 8 mm lengthwise and cross
Concrete cover h´= 3 cm
Concrete quality class C25/30
500
800
450
342
2566
938
OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE
TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER
ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-
WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.
1
merga
Benennung
Gepr.
Blatt
Datum
Projekt
Gez.
Zeichnungsnummer
1:20
A3
Name
Name
Fundamentplan
0304-00-00
Maßstab
Schramm 20.02.18
Gewerbegebiet Larsheck
56271 Kleinmaischeid
Deutschland
Beton
concrete
gewachsenes Erdreich
natural ground
Legende
stoßdämpfender Boden
shock-absorbing floor
ES
11.05.20
stoßdämpfender Boden
A
DatumÄnderungRev
Foundation anchor
© stilum GmbH, Gewerbegebiet Larsheck, D-56271 Kleinmaischeid • Tel. +49 (0) 2689 92790-0 • Alle Rechte und Produktmodikationen vorbehalten
Mounting instruction balance „merga“
Item No. 51 5002 401
State: 04.06.2020 p. 3
6. Clean the foundation surface and place the play equipment on the foundation
anchor and screw it down.
7. Cover the entire impact area with fall protection according to the required
drop height in accordance with EN 1176-1.
Critical drop height: 400mm
Recommended surface material: grass, sand, wood chips, gravel,
synth. impact protection
With a smaller installation depth (special edition) we recommend synthetic
impact protection. In this case, make sure that protruding parts (e.g. screws,
gusset plates) are covered with appropriate fall protection.
8. Do not allow children to use the equipment before the installation has been
nished.
Attention: If the play equipment has been incompletely installed or partly dis-
mantled when carrying out maintenance and repair work, this may lead to par-
ticular risks of injury for the user. For this reason, make clearly visible that the
equipment shall not be used in such cases.
NOTE: Play equipment, which contain components made of stainless steel
should not come with „normal“ steel parts in contact. Those steel parts may rub
o and leave small steel particles in combination with moisture brown rust stains.
If such corrosion occur on stainless steel parts, they are ne with an abrasive
(240 grit) to remove.
Please take care when transporting and setting up the fact that the components
are made of stainless steel with no „normal“ steel parts in contact.
4800
1997
OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI+KAISER GMBH DARF DIESE
TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT, NOCH DRITTEN MITGETEILT ODER
ZUGÄNGLICH GEMACHT WERDEN, NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VER-
WENDET WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.
1
merga
Benennung
Gepr.
Blatt
Datum
Projekt
Gez.
Zeichnungsnummer
Rev
Änderung
Datum
1:25
A3
Name
Name
Draufsicht
0304-00-00
Maßstab
Schramm 20.02.18
Gewerbegebiet Larsheck
56271 Kleinmaischeid
Deutschland

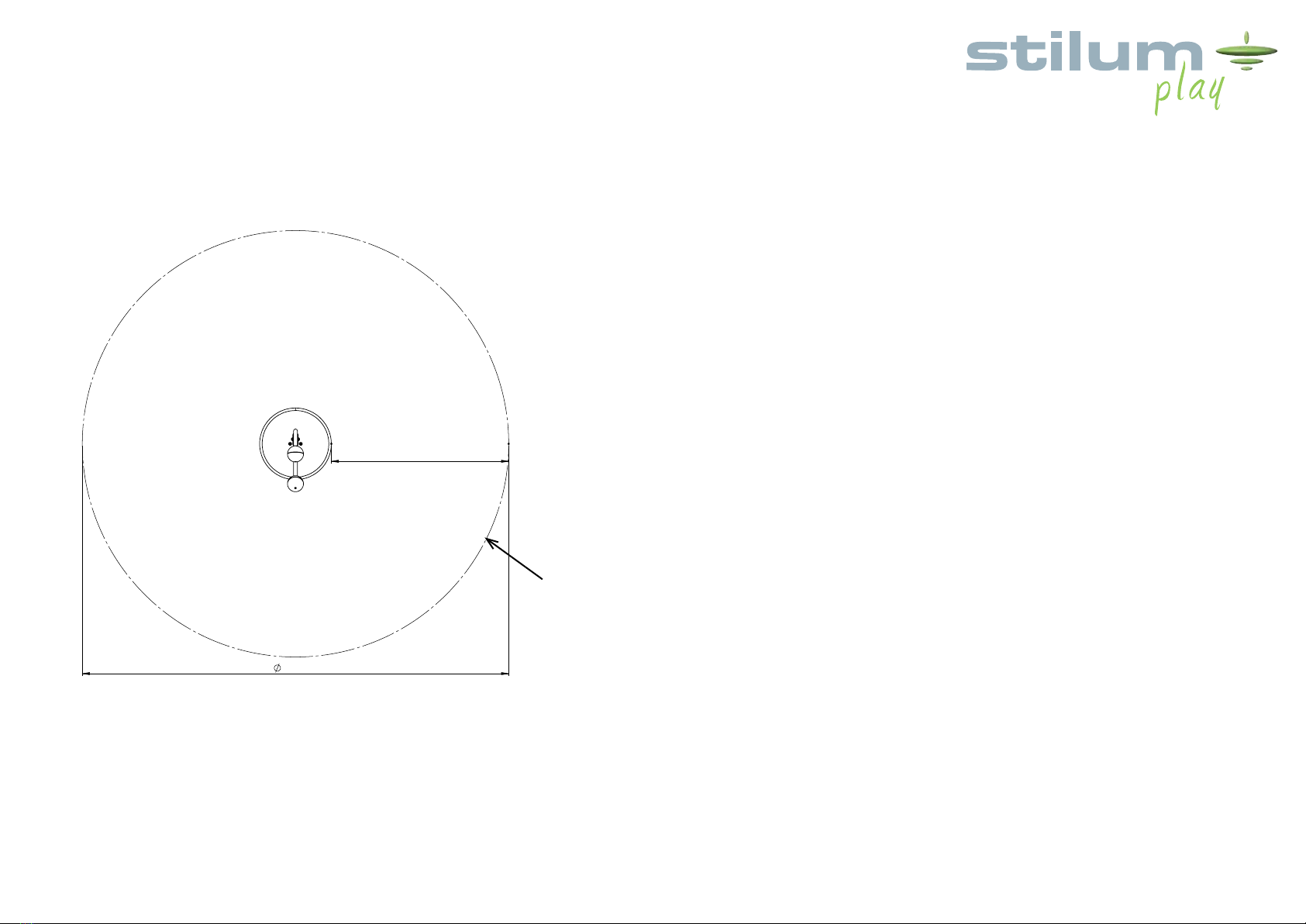

Diagram 3: Top view
Area of the
minimum space
© stilum GmbH, Gewerbegebiet Larsheck, D-56271 Kleinmaischeid • Tel. +49 (0) 2689 92790-0 • Alle Rechte und Produktmodikationen vorbehalten
Mounting instruction balance „merga“
Item No. 51 5002 401
State: 04.06.2020 p. 4
In order to preserve a good visual appearance of your stilum playground equip-
ment over a long period one should take care of maintenance of the stainless
surface even despite of their corrosion resistance.
Especially areas, which can not be reached by rainfall should be frequently clea-
ned from dirt and deposits due to air pollution and dirt caused by the atmosphere.
Light soiling can easily be romoved by using a high pressure cleaner.
For persistent deposits use a clean cloth moistened with a special liquid cleaner
(e.g. on phosphoric acid) and rinse o with clear water after a short application
time. During cleaning with mild abrasive components, only wipe over stainless
steel surface in polishing direction.
For heavily soiled surfaces, polishes can be used (e.g. for cleaning chrome on
cars) or for greasy and oily dirt alcoholic cleaning agents and solvents (e.g. ethyl
alcohol, isopropyl alcohol or acetone).
However, it should be noted that the dissolved soiling is not spread over the sur-
face again.
Do not use any chlorid or hydrochloric containing cleaning products nor scouring
powder, bleaching - or silver polish cleaner. Cleaning intervals depend on type
and degree of soiling as well as on demands made on optical characteristics.
Therefore cleaning is advisable at intervals of six to twelve months – whereby in
the case of strong soiling it is appropriate to clean the playground equipment at
intervals of three to six months.
