Stelpro SCRSP Series Assembly instructions

INSSCRSP0214

Installer’s guIde

SCRSP SERIES - SPLICE PLATE

For further information or to consult this guide online, please visit our web site:www.stelpro.com

Prior to installing the two radiators, the end covers facing each other need to be removed from both units. Install them both according to the instructions

described in the SCR User’s Guide included with the units.

Make sure to leave a space between the two units to allow for metal expansion during the heating cycle. See THE MINIMUM SPACE TABLE below for

the minimum required space depending on the model. To simplify the task of making the electrical connections in the junction boxes, you may temporarily

position one unit further away; and once the connections are made, to disengage only the bottom clips of the wall brackets of that unit, slide the unit to

the proper spacing between the units and re-engage the clips.

POWER SUPPLY CONNECTION AT ONE OF THE EXTREMITIES

To do so, you must proceed with the electrical connections shown in FIGURE 1 (see next page) for both the center connections and for the

extremity connections, and plan for a spacing between the units according to the MINIMUM SPACE TABLE.

POWER SUPPLY CONNECTION IN THE MIDDLE

If you choose making the power supply connections in the middle of both units, it must be done according to FIGURE 2 (see next page) and

proceed with one of the following methods depending on the choice of knockout hole.

1 - USING THE KNOCKOUT HOLE AT THE BACK PART OF THE SPLICE PLATE

Space the units equally or larger than the minimum listed in the MINIMUM SPACE TABLE, keep in mind this space must be at least equivalent to the



plate, pass the cable through it and fasten it in place. Make the electrical connections according to FIGURE 2 (see next page).

2 - USING A KNOCKOUT HOLE FROM ONE OF THE RADIATORS’ JUNCTION BOX

Space the units equally or larger than the minimum listed in the MINIMUM SPACE TABLE, make sure it is large enough to allow the insertion of the cable



CHOICE OF ELECTRICAL POWER SUPPLY CONNECTIONS

minimum space TaBLe

minimum space BeTWeen TWO iDenTicaL RaDiaTORs insTaLLeD siDe BY siDe

mODeL # pOWeR - WaTTs minimum space - inch (mm)

SCR045 450 7/16 (11)

SCR060 600 9/16 (14)

SCR075 750 11/16 (17)

SCR090 900 3/4 (19)

SCR105 1050 7/8 (22)

SCR120 1200 1 (25)

SCR150 1500 1-1/8 (29)

Before installing and operating this product, the user and/or installer must

read, understand and follow these instructions and keep them handy for

future reference. If these instructions are not followed, the warranty will be

considered null and void and the manufacturer deems no further responsibility

for this product.

The following instructions must be adhered to in order to avoid personal and

serious injuries, property damages and potentially fatal electric shocks.

Switch off the power at the circuit breaker/fuse before installing, repairing and

cleaning the unit.

Make sure the unit is appropriate for the intended use (if needed, refer to the

product catalogue or a representative).

WARNING

2INSSCRSP0214

STELPRO DESIGN INC. | Saint-Bruno-de-Montarville | Quebec | J3V 6L7

Once the electrical connections are done and the two radiators are installed, install the splice plate according to the following instructions, referring

to FIGURE 3.

1 - FRONT PART INSTALLATION





the units, while retaining the top portion near the top edge of the radiators. Once the bottom portion of the front part of the splice plate is inserted, lift the top

portion slightly and push it into place towards the back of the units.

2 - BACK PART INSTALLATION

Place the back part (2) of the splice plate behind the two units, facing the meeting points with the front part (1). First align and insert the hooks at the bottom

with the slots at the bottom of the front part (1). Then, assemble the top of each part and fasten with the screws (3) provided.

SPLICE PLATE PARTS INSTALLATION

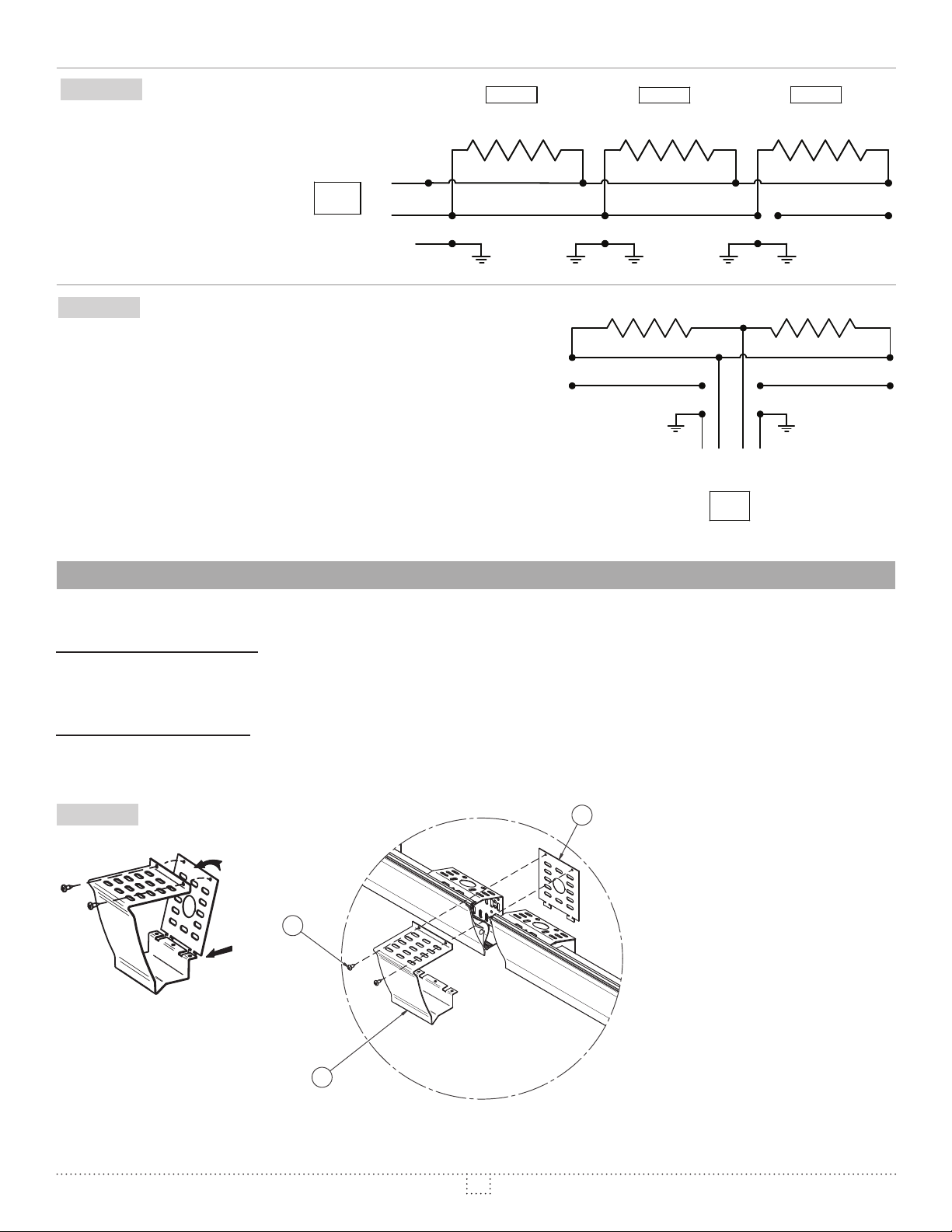

FIGURE 1

2 OR MORE HEATERS



FIGURE 2

2 HEATERS



L2/N

ELEMENT

L2/N

POWER

SUPPLY

ELEMENT

L2/N

{

EXTRA EXTRA

L2/N L2/N L2/N

UNIT #1

{

POWER

SUPPLY

{

POWER

SUPPLY L

UNIT #2 UNIT #3

UNIT #1 UNIT #2 UNIT #3

1L1L

EXTRA

FIGURE 3
