Stealth Cam STC-I430IR User manual

STC-I430IR

User’s Manual

Toll Free Customer Support 1-877-269-8490

.stealthcam.net

Version 1.0 04/08

STC-I430IR

www.stealthcam.net Toll Free 877-2 9-8490 2

For Customer Service or Warranty Information Call Toll Free

877-269-8490

Stealth Cam, LLC

P.O. Box 539504

Grand Prairie, TX 75053-9504

www.stealthcam.net

Stealth Cam Limited Warranty

Your Stealth Cam scouting camera is covered by a 90 days Limited Warranty

on parts and labor from the date of original purchase, and purchases must be

made through an authorized dealer. The warranty covers defects in

workmanship and materials. The warranty does not apply to units, which have

been damaged or abused intentionally or unintentionally. A purchase from

individuals or unauthorized internet sites voids the warranty.

Tampering with or altering the unit will void the warranty. Any unauthorized

service will void warranty. Original sales receipt must be produced for any

warranty service and a Return Authorization (RA) number must be obtained

from customer service at 877-2 9-8490 prior to returning product.

STC-I430IR

www.stealthcam.net Toll Free 877-2 9-8490 3

Manual Contents

Camera overview 4

Camera kit contents 7

Battery and memory Installation 8

Definitions 12

Set up and programming 14

Camera use 19

Mounting the camera 20

Viewing & Deleting images 25

Memory compatibility chart 32

Technical Specs 33

General Information 3

Image capacity chart 38

Moon Phase Chart 40

STC-I430IR

www.stealthcam.net Toll Free 877-2 9-8490 4

Camera overvie

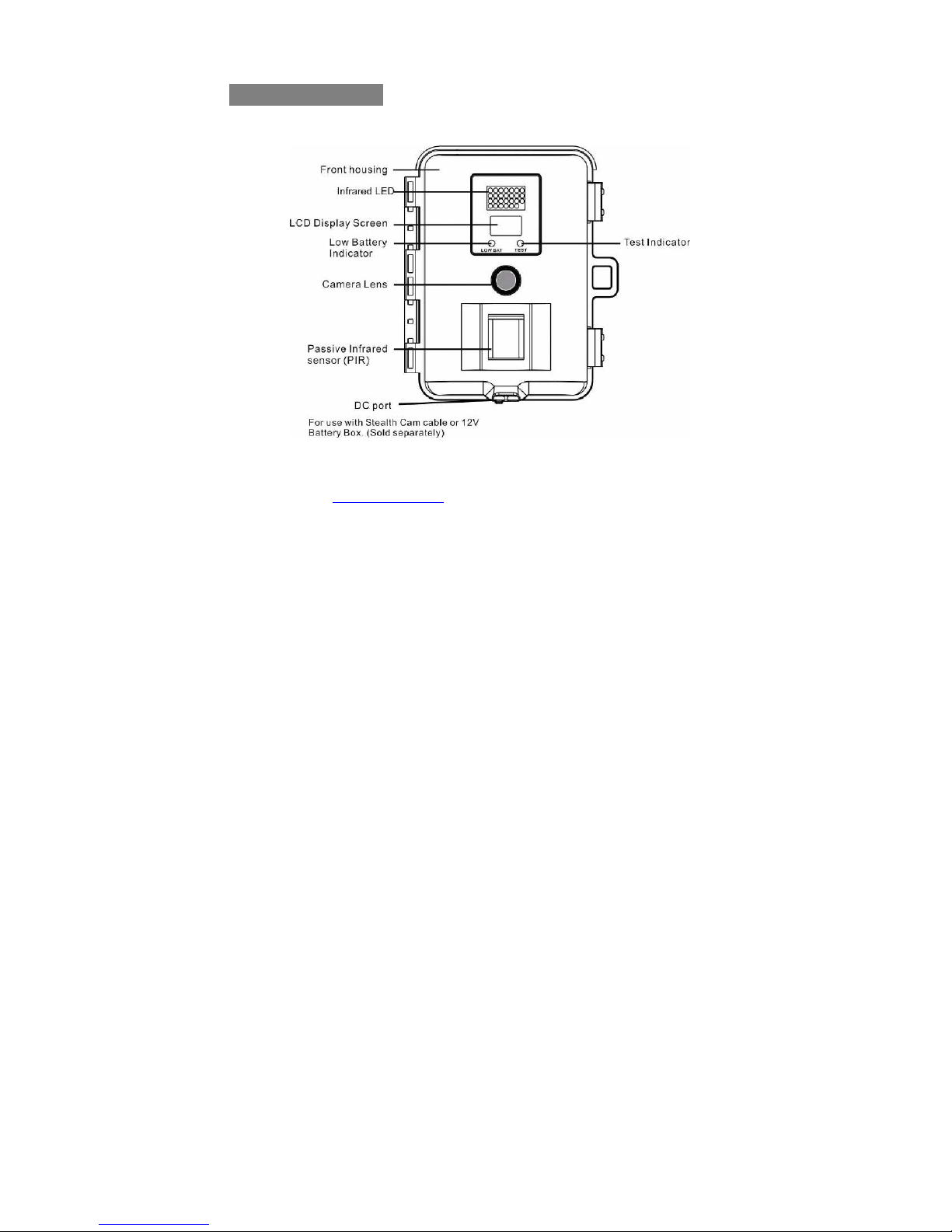

Front housing image with major parts indication.

STC-I430IR

www.stealthcam.net Toll Free 877-2 9-8490 5

Open view image with major parts indication

For use with Stealth Cam cable

only. (sold separately)

STC-I430IR

www.stealthcam.net Toll Free 877-2 9-8490 6

Side view with major parts indication

STC-I430IR

www.stealthcam.net Toll Free 877-2 9-8490 7

Camera kit contents

• Model STC-I430IR Digital Scouting Camera

• User Manual.

• USB cable.

• Strap.

STC-I430IR

www.stealthcam.net Toll Free 877-2 9-8490 8

Battery & memory installation

The Stealth Cam STC-I430IR Advanced Digital Scouting Camera is

designed to operate using two different types of battery power options.

NOTE: Always have camera in the OFF position when installing or

removing batteries. Removing battery while the camera is in operation

may damage the camera.

Batteries “C” cell:

The internal battery compartment accepts x “C” cell batteries. Be

sure to use high quality brand name alkaline batteries. Install batteries

with correct polarity (+/-) as noted inside the battery compartment.

Warning:

Do not use different Voltage lead

acid battery other than the one specified in

this section. Doing so will damage the camera

and will void the warranty.

STC-I430IR

www.stealthcam.net Toll Free 877-2 9-8490 9

12V Lead Acid external battery

The STC-I430IR is equipped with an external power jack designed to

accept a barrel plug cable to attach to a sealed lead acid battery. (sold

separately). This will enhance the camera’s field life. Battery cable and

complete 12V Lead Acid battery kits are available wherever Stealth

Cam scouting cameras are sold or call toll free 877-2 9-8490. Only

Stealth Cam external battery accessories are recommended.

• Insert the external battery barrel plug into the DC 12V jack on

the bottom of camera housing

• Turn the camera power on.

 Please make sure the voltage and polarity (+/-) are correct

before connection. Incorrect voltage or polarity (+/-) will

damage the camera.

Please note: When both internal and external batteries are connected,

the camera will draw power from the higher voltage

source first.

STC-I430IR

www.stealthcam.net Toll Free 877-2 9-8490 10

Memory Options

Your STC-I430IR camera is equipped with 32MB built in flash memory.

The camera is also equipped with an expandable media card slot

capable of accepting up to 2GB SD card (sold separately). With no

memory card inserted into the slot, the camera will use the built in

32MB memory. If an SD card is inserted into the slot then the camera

will bypass the built in memory, and utilize the SD memory for image

storage. The front counter display will show the number of images on

the built in memory unless the expansion card is inserted at which point

the counter will only show the number of images in the expansion card.

Inserting SD card

ake sure camera is in the OFF position whenever adding or

removing memory.

• Insert SD memory card in to the SD card slot completely and in

the correct direction, as shown by the SD picture printed at the

side of the housing.

• To remove the SD memory card, depress the SD card and pull

out the card gently.
