State Water Heaters SHE50 76 Application guide

State Water Heater Parts Fulfillment

125 Southeast Parkway

Franklin, TN 37068

1-800-365-8170

www.statewaterheaters.com

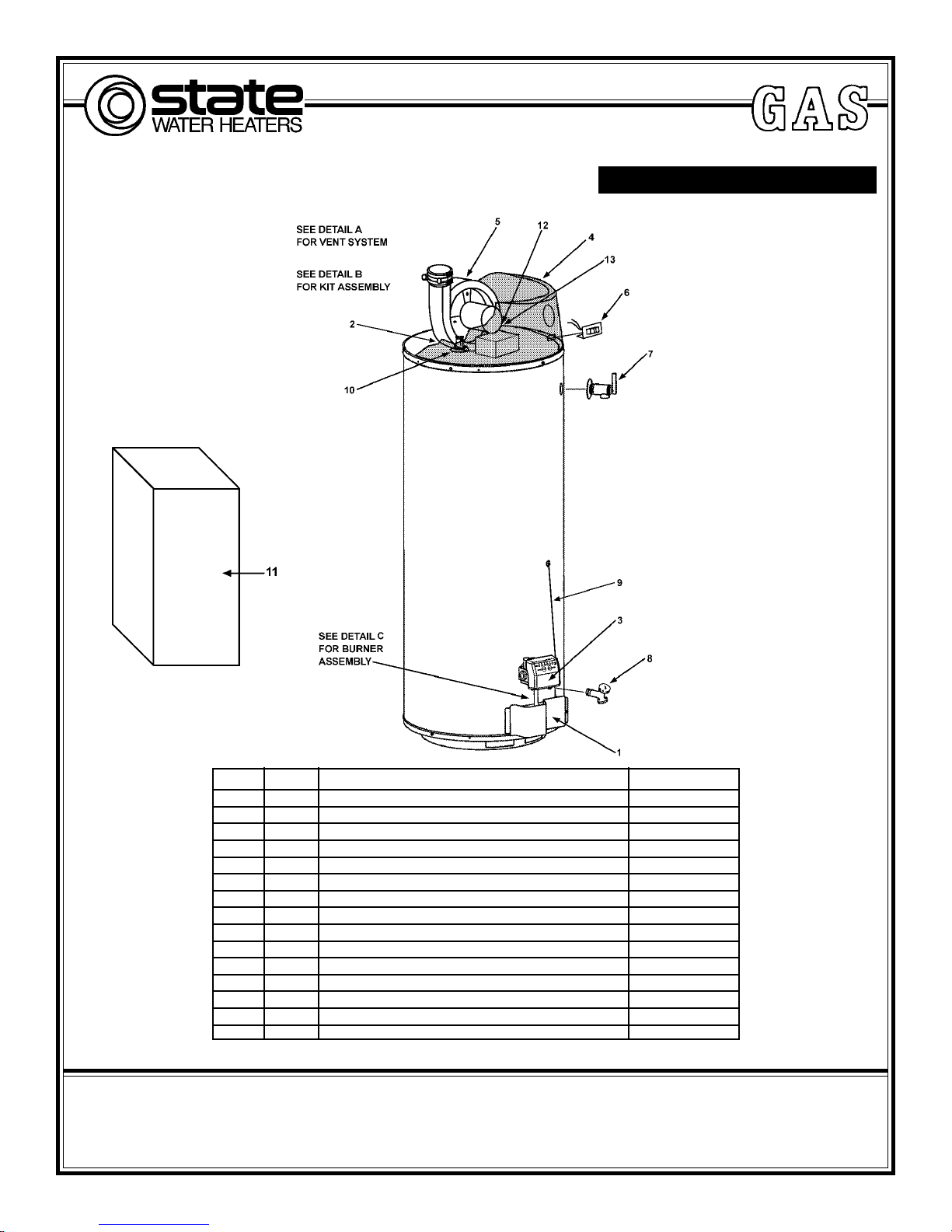

COMMERCIAL WATER HEATERS

REPLACEMENT PARTS LIST

MODELS SHE50 76 SERIES 100

PRINTED 0508 197422-002

Item Qty. Description Part Number

1 1 Outer Door 9003545

2 1 Aluminum Anode 9004335

3 1 Intellivent Control 9004049

4 1 Plastic Top 9005978

5 1 Blower Assembly (Standard) 9006683

5 1 Blower Assembly (High Altitude) 9006684*

6 1 Switch and Harness Assembly (Standard) 9006685

6 1 Switch and Harness Assembly (High Altitude) 9006686*

7 1 T & P Valve 9003917

8 1 Drain Valve 9003906

9 1 Wiring Harness 9005725

10 1 Aluminum Anode Outlet 9005981

11 1 Vent Attenuation Assembly Kit 9005982

12 1 Inlet Tube 9005983

13 1 2" x 3/4" NPT Nipple 9003719

* For use at elevations above 5,300 feet.

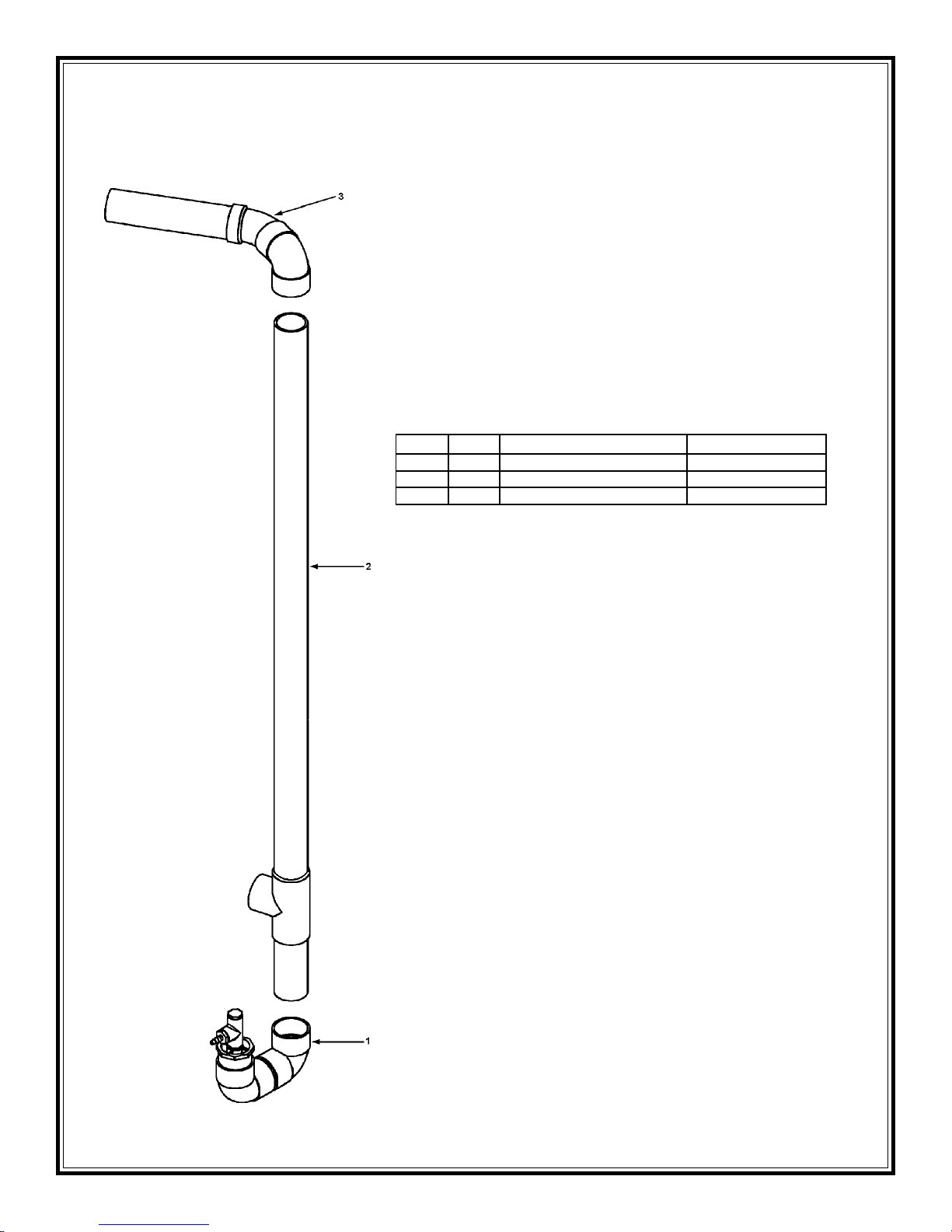

DETAIL A

VENT PIPE ASSEMBLY

Item Qty. Description Part Number

1 1 Vent Pipe Assembly #1 9005984

2 1 Vent Pipe Assembly #2 9005985

3 1 Vent Pipe Assembly #3 9005986

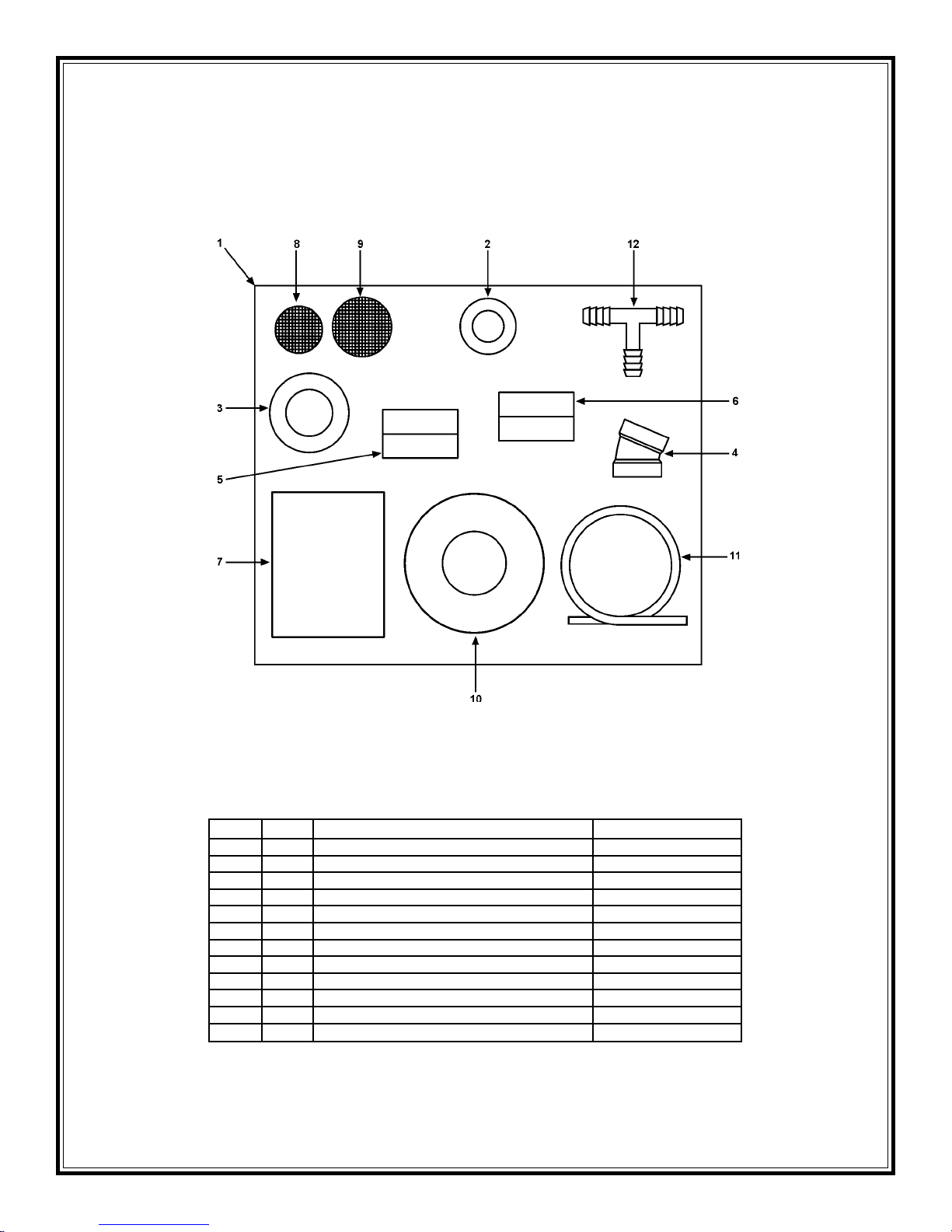

DETAIL B

ENVELOPE WITH PARTS

Note: Parts are not drawn to scale.

Item Qty. Description Part Number

1 1 Vent Kit with All Components 9005987

2 1 Wall Plate 2" Included in Kit

3 1 Wall Plate 3" Included in Kit

4 1 Screen and Vent Terminal Assembly Included in Kit

5 1 Instruction Tag-Wire Screen F/E 3" Included in Kit

6 1 Instruction Tag-Wire Screen F/E 4" Included in Kit

7 1 Instruction Sheet Included in Kit

8 1 Wire Screen 3" Included in Kit

9 1 Wire Screen 4" Included in Kit

10 1 Wall Plate 4" Included in Kit

11 (2) 6 ft. Flexible Tubing Included in Kit

12 1 Reducing Hose Barb Tee Included in Kit

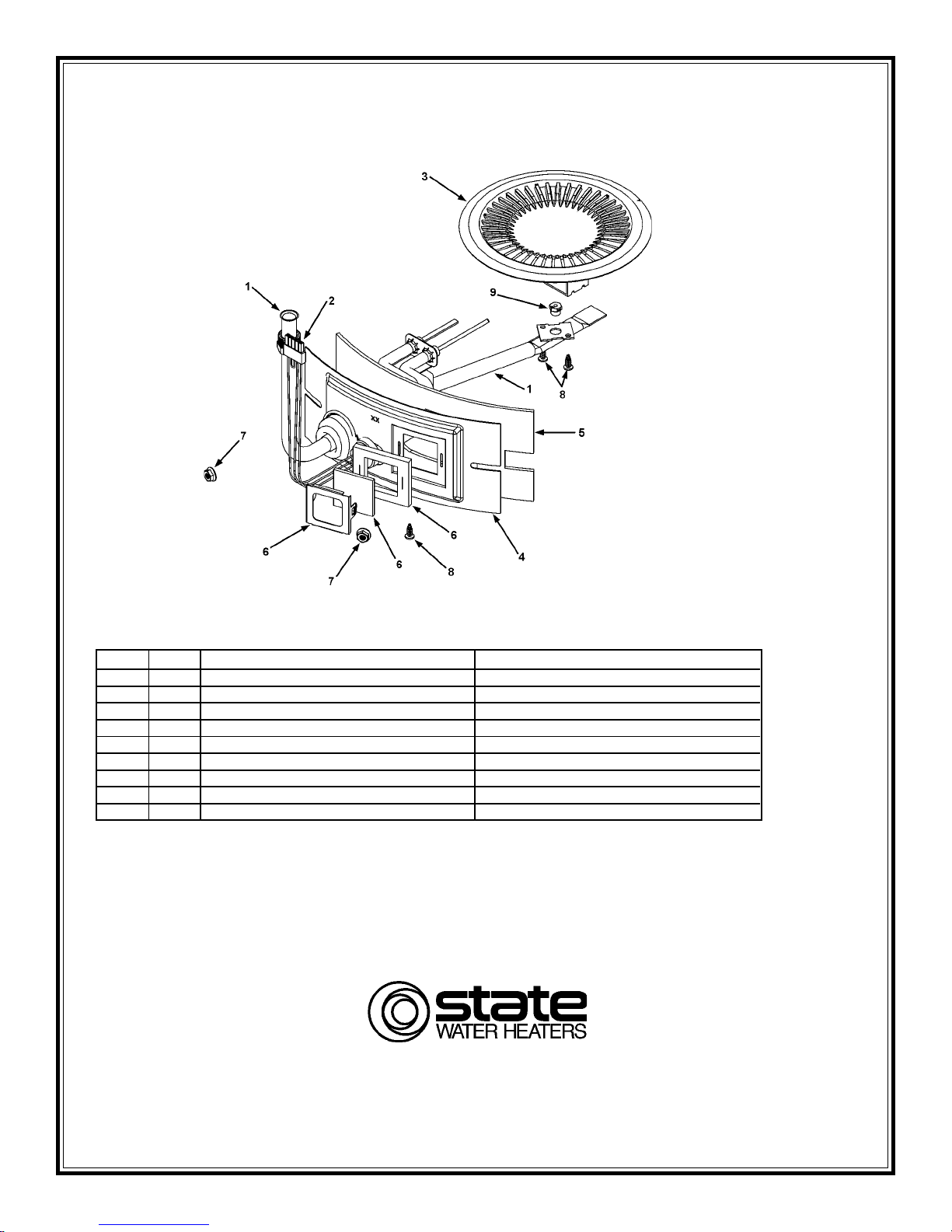

BURNER ASSEMBLY

DETAIL C

Item Qty. Description Part Number

1 1 Burner Tube Assembly 9005988

2 1 Hot Surface Ignitor 9005989

3 1 Burner Head Assembly 9005990

4 1 Embossed Inner Door 9005991

5 1 Insulation - Inner Door 9003401

6 1 Viewport Assembly 9003414

7 2 Nut - Serrated Hex Flange #10-32 Available from Local Hardware Supplier

8 3 Screw - Sheet Metal, 1/2" Long, # 8-15 Available from Local Hardware Supplier

9 1 Orifice - Burner* 9005992

*Note: This Burner Orifice size is only for altitudes less than 10,100'. Contact the water heater

manufacturer for higher altitudes.

State Water Heater Parts Fulfillment

125 Southeast Parkway

Franklin, TN 37068

www.statewaterheaters.com

© 2005 State Industries
