StarTech.com HSB4SATSASBA User manual

Manual Revision: 09/23/2014

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

HSB4SATSASBA

4 Drive Trayless 3.5” SATA/SAS Mobile Rack

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment o and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

Changes or modications not expressly approved by StarTech.com could void the user’s

authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

CAN ICES-3 (B)/NMB-3(B)

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Product Diagram ....................................................................................2

Front View .................................................................................................................................................... 2

Rear View...................................................................................................................................................... 2

Installation ..............................................................................................3

Hardware Installation .............................................................................................................................. 3

3.5in Hard Drive Installation.................................................................................................................. 4

3.5in Hard Drive Removal....................................................................................................................... 5

How to Use ..............................................................................................6

Connecting the Hard Drive.................................................................................................................... 6

LED Indicator .............................................................................................................................................. 7

Disconnecting the Hard Drive.............................................................................................................. 7

Initializing the Hard Drive ...................................................................................................................... 7

Technical Support ..................................................................................9

Warranty Information............................................................................9

Instruction Manual

Introduction

Packaging Contents

• 1x 4 Drive Trayless 3.5in SATA/SAS Mobile Rack

• 8x Installation screws

• 2x Drive bay keys

• 4x SATA cables

• 1x Instruction Manual

System Requirements

• 1x Computer System with SATA connectivity and three available 5.25” bays

• 2x Available SATA Power Connections

• Up to four 3.5” SATA/SAS Hard Drive(s)

Instruction Manual

Product Diagram

Front View

Rear View

1. 4x 3.5” Drive bays

2. 4x 3.5” Drive bay key hole

3. 4x 3.5in LED indicators

1. 2x SATA Drive Power Connector ports

2. 4x SATA Data Connector ports

3. Hard Drive LED Enable/Disable

4. Fan speed control switch (High/Low)

Instruction Manual

Installation

WARNING! Hard drives and storage docks require careful handling, especially when

being transported. If you are not careful with your hard disk, lost data may result.

Always handle your hard drive and storage device with caution. Be sure that you

are properly grounded by wearing an anti-static strap when handling computer

components or discharge yourself of any static electricity build-up by touching a large

grounded metal surface (such as the computer case) for several seconds.

Hardware Installation

1. Ensure your computer system is powered down, and the power cable has been

disconnected from the Power Supply.

2. Open your computer case (refer to the computer user manual for details), and place

the 3.5in SATA/SAS HDD Backplane into four available 5.25” slots, lining up the side

installation holes on the HSB4SATSASBA (pictured below), with installation holes on

the 5.25” slot inside the computer.

Instruction Manual

3. Hold the HSB4SATSASBA into place by lining up the screw holes on HSB4SATSASBA

with the corresponding mounting holes in your 5.25in bays. Next, x the

HSB4SATSASBA to your 5.25in bays by screwing 4 of the included screws into any of

the installation holes on both side of the 5.25” bay (8 screws in total).

4. Connect the 4x SATA cables (4x included) from an available SATA host port on your

motherboard to the SATA data connector ports on the back of the HSB4SATSASBA.

5. Connect 2x SATA Power connectors from your power supply to the SATA power

connector ports on the back of the HSB4SATSASBA.

Note: For optimal performance, ensure each SATA power connector is on a dierent

power rail. Failure to do so may result in power disruption while swapping drives.

3.5in Hard Drive Installation

1. Insert either of the included bay keys into the your desired 3.5in Drive bay key holes

depending on which drawer you intend to install the drive into. And Turn the key

clockwise into the unlock position.

2. Pull the drive door handle to open the drive bay

Instruction Manual

3. Insert your desired drive

4. Close the drive door.

3.5in Hard Drive Removal

1. Insert either of the included bay keys into the 3.5in Drive bay key holes depending

on which type of drive you intend to install. And Turn the key clockwise into the

unlock position.

2. Pull the drive door handle to open the drive bay

Instruction Manual

3. Remove your drive

4. Close the drive door.

Note: It is important to eject or unmount the hard drive from your computer system

before physically removing the drive. See How to Use - Disconnecting the Hard

Drive section for instructions.

How to Use

Connecting the Hard Drive

Once the drive has been installed in the drive bay, the drivers will install automatically,

and the inserted drive will be accessible as though it were installed within the system.

Note: some operating systems may require that the system be scanned for hardware

changes from within device manager, for the newly connected drive(s) to be

recognized.

Prior to using the drive, it will need to be formatted according to your operating

system requirements.

Refer to Initializing the Hard Drive.

Instruction Manual

LED Indicator

The HSB2535SATBK oers 3.5in LED indicators, to enable you to monitor drive activity.

The LED will ash while the hard drive is being accessed. Do not remove the enclosure

from the host computer while the LED is ashing, as it could damage the drive or the

enclosure, resulting in data loss.

Disconnecting the Hard Drive

Windows

The drive should be uninstalled from device manager, or unmounted using third party

hot swap software.

Note: Removing the connected drive while it is active in the system could result in

losing or corrupting data stored on the drive.

Mac OS X

To safely disconnect the attached drive from the host computer, close any windows

listing the contents of the removable drive. Once all windows are closed, click on the

icon for the drive on the desktop, and drag it to the Trash Can icon on the desktop.

Allow 5 seconds before physically removing the enclosure/drive from the computer.

Initializing the Hard Drive

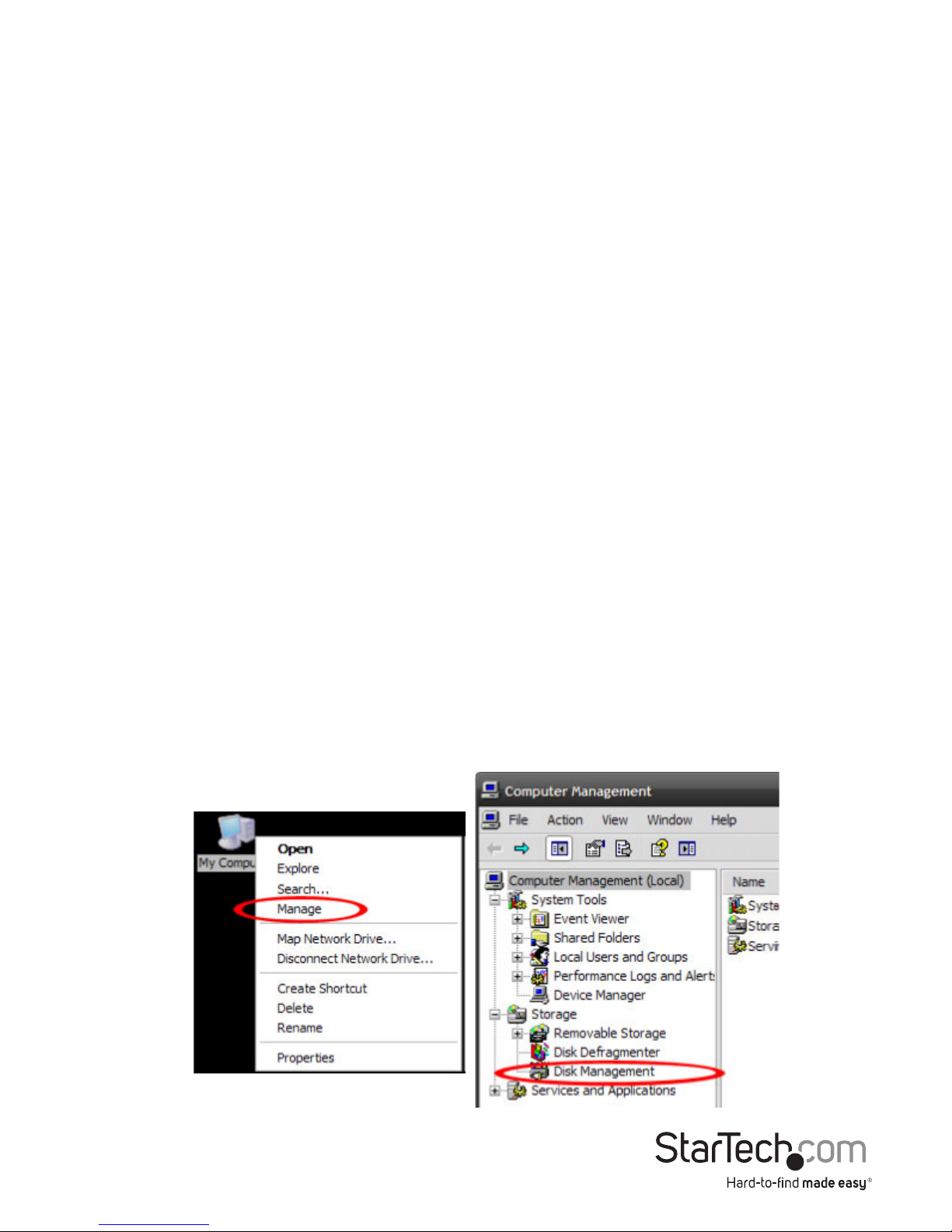

1. If the SATA Hard Drive is blank it may need to be initialized and formatted before

use. From the main Windows desktop, right-click on “My Computer” (“Computer” in

Vista/ 7 / 8), then select Manage. In the new Computer Management window, select

Disk Management from the left window panel.
