DRW115ATABK

Aluminum 5.25in Bay to 3.5in IDE HDD

Mobile Rack

*actual product may vary from photos

*DRW115ATABK shown

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Installation ..............................................................................................2

Installing Hard Drive in the Caddy...................................................................................................... 2

Installing the Bay in the PC.................................................................................................................... 3

Installing the Caddy in the Bay ............................................................................................................ 3

Removing the Drive Drawer.................................................................................................................. 4

Swap Manager Software.......................................................................4

To convert a dynamic disk to a basic disk: ....................................................................................... 4

To install the Swap Manager Software:............................................................................................. 5

Using Your Swap Manager Software.................................................................................................. 5

Troubleshooting Swap Manager......................................................................................................... 6

Monitoring Your Hard Disk Drive and Drawer ................................................................................ 6

Specications..........................................................................................7

Technical Support ..................................................................................8

Warranty Information............................................................................8

Instruction Manual

Introduction

This high quality Removable ATA/ IDE Hard Drive Drawer/Mobile Rack delivers a

professional-grade ATA/ IDE hot-swap solution, allowing you to quickly swap ATA/ IDE

hard drives in and out of a computer without having to open the computer case.

Simply install the (included) drive bay into a 5.25in drive bay on the host computer,

then mount a 3.5in IDE HDD in the (removable) caddy. Connecting the IDE hard drive

to the computer is as easy as inserting the caddy into the drive bay, which can be

locked to prevent unauthorized removal of the installed IDE drive.

A practical, time-saving hot swap solution, the drive drawer includes Swap Manager

utility software that lets users swap drives in and out of the host computer without

powering down the computer.

A suitable solution for large volume drives, the HDD drawer supports IDE modes up

to ATA-133, allowing you to swap in large amounts of data in a matter of seconds.

With support for IDE HDD speeds up to 133 MBps, the mobile rack/backplane is fully

compatible with RAID installations to ensure maximum performance and versatility for

enhanced storage applications.

The drive caddy features two front panel ball bearing fans that help keep the enclosed

drive cool, in turn helping to optimize operation while preserving drive lifespan.

To prevent damage to the hard drive(s) while being transferred in and out of the

computer, the drive caddy features shock absorbers and rubber cushioning that help

limit vibration/shock to the drive.

Packaging Contents

• 1 x Drive caddy

• 1 x Drive bay

• 2 x Keys

• 1 x Screw kit

• 1 x Swap Manager software CD

• 1 x Instruction Manual

System Requirements

• Computer with an available 5.25 Inch Drive Bay

• Swap Manager software requires Microsoft® Windows® XP/ 2000/ Server 2003 / Vista / 7

• 1 x 40-pin IDE data cable

• Power Supply with available LP4 Molex power connector

Instruction Manual

Installation

Installing Hard Drive in the Caddy

WARNING! Hard drives and storage enclosures require careful handling,

especially when being transported. If you are not careful with your hard disk,

lost data may result. Always handle your hard drive and storage device with

caution. Be sure that you are properly grounded by wearing an anti-static

strap when handling computer components or discharge yourself of any static

electricity build-up by touching a large grounded metal surface (such as the

computer case) for several seconds.

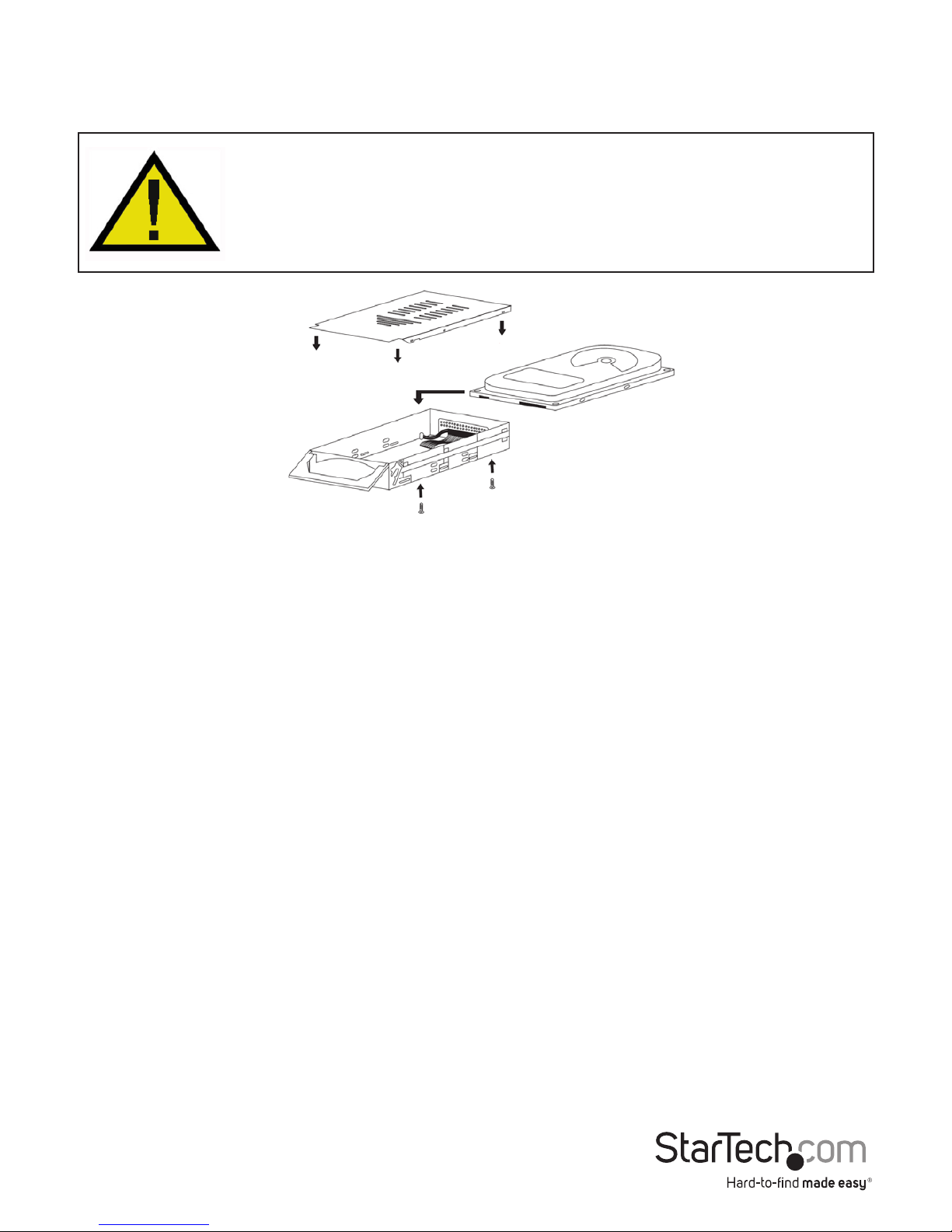

1. Remove the drive caddy from the bay by lifting the handle and sliding the caddy

out of the bay.

2. Remove the top panel from the caddy by pressing the cover release button and

sliding the lid towards the back of the caddy.

3. Connect the short IDE data cable inside the drive caddy to the hard drive.

4. Attach the LP4 Molex power cable inside the drive caddy to the hard drive.

5. Gently place the hard drive in the caddy, making sure that the screw-holes on the

bottom of the hard drive line up with the holes in the caddy.

6. Firmly hold the hard drive to the shock absorber plate and use the four #6-32 x

1/4”(coarse thread) screws to mount your hard drive to the drawer from underneath.

7. Replace the top panel of the drive caddy.

Instruction Manual

Installing the Bay in the PC

WARNING! Computer parts can be severely damaged by static electricity. Be

sure that you are properly grounded before opening your computer case.

StarTech.com recommends that you wear an anti-static strap when installing

any computer component. If an anti-static strap is unavailable, discharge

yourself of any static electricity build-up by touching a large grounded metal

surface (such as the computer case) for several seconds.

1. Turn your computer o and any peripherals connected to the computer (i.e. Printers,

external hard drives, etc.). Unplug the power cable from the rear of the power

supply on the back of the computer and disconnect all peripheral devices.

2. Remove the side covers from your system and remove the front cover from an

available 5.25”drive bay (see your computer’s user manual for details, if necessary).

3. Insert the bay into the 5.25” bay slot, making sure that the screw-holes on the side of

the bay line up with the holes in the bay slot.

4. Connect an IDE data and LP4 Molex power cable to the rear of the bay from the

computer systems IDE controller and power supply respectively.

NOTE: The “System” drive cannot be hot-swapped, as it contains the operating

system. Only secondary drives can be hot-swapped through the operating system or

SwapManager software

5. Place the cover back onto the computer case.

6. Insert the power cable into the socket on the power supply and reconnect all other

connectors removed in Step 1.

Installing the Caddy in the Bay

1. With the handle on the caddy fully raised, insert the caddy into the bay.

2. Once inserted as far as it will allow, lower the handle to rmly seat the caddy into

the bay.

3. Use the provided key to lock the caddy into the bay by turning the lock counter-

clockwise. The caddy must be locked in order for the drive to power up.

Instruction Manual

Removing the Drive Drawer

1. Insert the key and turn clockwise to unlock the drive drawer.

2. Lift the handle and gently pull the caddy out of the bay.

NOTE: Do not unlock the drawer when the hard drive is in use (See “Monitoring Your

Hard Disk Drive and Drawer” below). Only power down the drive when the hard drive is

idle. Once you have powered down the hard drive, wait about 15 seconds to let the

hard drive“spin down” before removing the caddy from the bay.

Swap Manager Software

NOTE: Remember that Swap Manager only works on computers running Windows

2000/ XP/ Server 2003/Vista/7

NOTE: Windows 2000/ XP/ Server 2003 users should be aware that Swap Manager

does not support the dynamic disk feature introduced in these versions of Windows. If

you are using the dynamic disk feature, you must convert the volume back to a basic

disk to use Swap Manager.

To convert a dynamic disk to a basic disk:

1. Back up all the data on all the volumes on the disk you want to convert to a basic

disk.

2. Log on as Administrator or as a member of the Administrators group.

3. Click the “Start” button, and then click “Control Panel”.

4. Click “Performance and Maintenance”, click “Administrative Tools”, and then double

click “Computer Management”.

5. In the left pane, click“Disk Management”.

6. Right-click a volume on the dynamic disk that you want to change to a basic disk,

and then click “Delete Volume”.

7. Click Yes when you are prompted to delete the volume.

8. Repeat steps 4 and 5 for each volume on the dynamic disk.

9. After you have deleted all the volumes on the dynamic disk, right-click the dynamic

disk that you want to change to a basic disk, and then click “Convert to Basic Disk”.

NOTE: You must right-click the gray area that contains the disk title on the left side of

the Details pane. For example, right-click Disk 1.

Instruction Manual

To install the Swap Manager Software:

1. Insert your Swap Manager CD into your CD drive.

2. AutoPlay should automatically launch and display all of the folders on the CD. If not,

open “My Computer” and double-click on the CD/DVD drive.

3. Enter the folder “AUTOptn”, and double-click the le “SwapManager.exe”.

4. Click Next to continue the installation.

5. Select Yes, I accept to agree to the terms in the license agreement and click Next.

6. Enter a suitable location for the Swap Manager software and click Next. Click Yes to

conrm the location of the installation.

7. Click Finish when the installation is complete and reboot your computer to allow

the changes to take eect.

Using Your Swap Manager Software

The following is intended to provide you with an introduction to your Swap Manager

software. For detailed instructions and troubleshooting tips, consult the material

provided on the Swap Manager CD.

• Start Swap Manager by double-clicking on the Swap Manager icon. This will bring

up the Swap Manager window.

• The Swap Manager window displays a list of all the drives attached to your

computer. The window also lists information about each drive’s IDE channel.

• Remember that while the window lists all drives for your computer, you can only

swap drives attached to the secondary IDE channel.

• If possible always keep the Swap Manager open if you are planning to swap drives.

It can be minimized, but it should not be closed.

• To remove a drive, bring up the Swap Manager window and click on the Swap

Out button above the drive information. Wait a few seconds then remove the

drive (see “Removing the Drive Drawer”) or follow instructions provided by the

drive manufacturer. Click on the “Swap All” In button to refresh the Swap Manager

information. The drive information should now be removed from the Swap

Manager.

• To add a drive, add your drive according to the instructions on page 5 or according

to instructions provided by your drive manufacturer. Bring up the Swap Manager

window and click on the Swap All In button to refresh the Swap Manager. It may

take a few seconds to properly register all the new information. You should now see

your new drive listed in the Swap Manager.

Instruction Manual

Troubleshooting Swap Manager

If you have installed a new drive but there is no new icon listed in Swap Manager, rst

make sure that you have clicked the Swap In icon to let Swap Manager know that there

is a new drive. If that does not work, check the following:

• Make sure that the hardware is properly installed and that all cables are properly

connected and rmly seated.

• Make sure that the drive bay is connected to the secondary ATA/ IDE channel. The

primary ATA/ IDE channel is not accessed by Swap Manager.

• Make sure that the drive caddy is rmly seated in the bay and that the bay has been

locked. If the bay is not locked, no power will be supplied to the drive and Swap

Manager will not detect it.

Monitoring Your Hard Disk Drive and Drawer

The status LED is located on the right side of the drive drawer. It is your best indication

of the hard drive’s status, and is lit when the drawer is successfully inserted and locked

into the caddy.

The Fan Status LED located on the left side of the drive drawer indicates fan failure.

When lit up, a problem with the cooling fans has been detected.

NOTE: It is recommended that you avoid removing a drawer during hard disk activity,

as doing so could damage the drive and/or data.

Instruction Manual

Specications

Number of Drive Bays 1

Host Interface ATA/ IDE (pass through)

Host Connectors 1 x 40-pin IDE data male

1 x 4-pin LP4 Molex male

LEDs 1 x Power

1 x Fan Failure

Compatible Hard Drives 3.5in ATA/ IDE

Fans 2 x 40mm (ball bearing)

Insertion Rating 7, 000 cycles

Enclosure Material Aluminum

Dimensions (LxWxH) 220.0mm x 148.0mm x 41.0mm

Weight 980g

Other manuals for DRW115ATABK

Table of contents

Other StarTech.com Rack & Stand manuals

StarTech.com

StarTech.com ADJ-TABLET-STAND-W User manual

StarTech.com

StarTech.com SHELF-2U-14-CENTER-V User manual

StarTech.com

StarTech.com ARMDUALPS User manual

StarTech.com

StarTech.com ARMPIVOTE User manual

StarTech.com

StarTech.com RK4242BK24 User manual

StarTech.com

StarTech.com PROJCEILMNT2 User manual

StarTech.com

StarTech.com ARMUNONB1 User manual

StarTech.com

StarTech.com 8STARMBARDUO User manual

StarTech.com

StarTech.com RK619WALL User manual

StarTech.com

StarTech.com WALLSTSI1 User manual

StarTech.com

StarTech.com ARMDUAL2 User manual

StarTech.com

StarTech.com ARMDUALV User manual

StarTech.com

StarTech.com ARMDUALWALL User manual

StarTech.com

StarTech.com 8STHSB2535SATBK User manual

StarTech.com

StarTech.com VIDWALLMNT User manual

StarTech.com

StarTech.com FPWHANGER User manual

StarTech.com

StarTech.com RKPNLTL2UV User manual

StarTech.com

StarTech.com RK8OD User manual

StarTech.com

StarTech.com 4POSTRACK U Series User manual

StarTech.com

StarTech.com WALLMOUNTH1 User manual

StarTech.com

StarTech.com 2POSTRACK16 User manual

StarTech.com

StarTech.com RKPNLHV2U User manual

StarTech.com

StarTech.com ADJPROJCART User manual

StarTech.com

StarTech.com 4POSTRACKxU User manual

Popular Rack & Stand manuals by other brands

Salamander

Salamander Acadia AC/W/L400/WH Assembly instructions

Fohhn

Fohhn VAT-09 Mounting instruction

ricoo

ricoo FS0522 quick start guide

AMSOIL

AMSOIL BMK-22 Installation and service instructions

Kargo Master

Kargo Master 48220 installation guide

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 installation instructions

ricoo

ricoo S1222 installation instructions

Ready-Set-Mount

Ready-Set-Mount RSMCM602 instruction manual

VidaBox

VidaBox VB MNT FFS2 installation guide

Welch Allyn

Welch Allyn 48960 Assembly instructions

Arkon

Arkon CM035-ST-2 installation instructions

PROEL

PROEL PLWIN60C user manual

Agilent Technologies

Agilent Technologies E2609B installation guide

Mustang

Mustang MV-ARM4 installation guide

Mounting Solutions

Mounting Solutions WRM-320 manual

Pyle

Pyle PMKSPAD1 manual

ShelterIt

ShelterIt 21208 installation instructions

SPL

SPL RackPack?4 1040 manual
