StarTech.com ST121UTPHDMI User manual

HDMI Video Extender

HDMI Audio/Video Extender

over Cat5 with RS232 and

IR Control

ST121UTPHDMI

ST121UTPHDGB

ST121UTPHDEU

Instruction Manual

Manual Revision:11/26/2010

For the most up-to-date information, please visit www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes

only and do not represent an endorsement of a product or service by StarTech.

com, or an endorsement of the product(s) to which this manual applies by the

third-party company in question. Regardless of any direct acknowledgement

elsewhere in the body of this document, StarTech.com hereby acknowledges that

all trademarks, registered trademarks, service marks, and other protected names

and/or symbols contained in this manual and related documents are the property

of their respective holders.

Table of Contents

Introduction .............................................................. 1

Packaging Contents............................................................. 1

System Requirements ......................................................... 1

Front View- Transmitter/Receiver Unit ................................. 2

Rear View- Transmitter/Receiver Unit.................................. 2

Installation................................................................ 3

Hardware Installation........................................................... 3

Speciﬁcations........................................................... 5

Technical Support.................................................... 6

Warranty Information............................................... 6

Introduction

The ST121UTPHDMI HDMI Audio Video Extender over Cat5 with RS232

and IR extends an HDMI source signal up to 80 meters (260 feet) using a

standard Cat5 or better UTP/STP cable, giving you the freedom to optimize

the placement of your display without sacriﬁcing image quality. Compliance

with High Speed HDMI (1.3) as well as HDCP ensures that even the latest

devices will be able to pass a signal with support for full 1080p resolutions

and the accompanying digital audio.

This HDMI A/V extender also features bi-directional RS232 serial and

Infrared (IR) interfaces allowing you to communicate with and control your

media source from either end of the connection.

Comprised of a transmitter and receiver unit this HDMI, RS232 and IR

extender kit is a complete, cost-effective solution for digital signage,

tradeshow demo stations or video conferencing.

Backed by a StarTech.com 1 year warranty and free lifetime technical

support.

Packaging Contents

• 1 x Transmitter Unit

• 1 x Receiver Unit

• 2 x IR Emitter cable

• 2 x IR Receiver cable

• 2 x Power Adapter

• 1 x Instruction Manual

System Requirements

• HDMI enabled video source (i.e. computer, game console, etc)

• HDMI enabled display device (i.e. monitor, projector, HDTV, etc)

• Available AC power outlet at transmitter/receiver locations

Front View- Transmitter/Receiver Unit

Rear View- Transmitter/Receiver Unit

Installation

Make sure all devices are turned off before beginning installation.

Hardware Installation

1. Connect an HDMI cable from the video source device (i.e. computer,

game console, PVR/DVR) to the “In” HDMI connector on the Transmitter

unit.

2. OPTIONAL: If also transmitting IR control over Cat5, connect the IR

emitter and receiver probes to the corresponding connectors on the

Transmitter unit. The emitter should be placed near the IR sensor on the

video source device. The receiver should be placed in a visible location

so as to be accessible to the IR remote control for the video source

device.

3. OPTIONAL: If also transmitting RS232 signals over Cat5, connect the

transmitting RS232 device to the “RS232” connector on the Transmitting

unit using a DB9 cable.

4. Connect an RJ45 terminated Cat5 Ethernet cable to the RJ45 connector

on the Transmitter unit.

If you are using surface cabling, ensure you have enough Category 5

unshielded twisted pair (UTP) network cabling to connect the Host Unit

to the Remote Unit’s location, and that each end is terminated with a

RJ45 connector. The cabling should not go through any networking

equipment (i.e. router, switch).

If you are using premises cabling, ensure that the Category 5 unshielded

twisted pair (UTP) network cabling between the Host Unit and the

Remote Unit has been properly terminated in a wall outlet in each

location and there is a patch cable long enough to connect the Remote

Unit and the Host Unit to their respective outlets. The cabling should not

go through any networking equipment (i.e. router, switch).

5. Connect the other end of the Cat5 cable run to the RJ45 connector on

the Receiver unit.

6. Connect an HDMI cable from the “Out” HDMI connector on the Receiver

unit the HDMI input connector on the display device (i.e. monitor, HDTV).

7. If Step 2 previously performed, connect and position the IR emitter/

receiver probes appropriately from the Receiver unit.

8. If Step 3 previously performed, connect a male DB9 serial cable from the

Receiver unit to the RS232 serial device. The male pinout on the DB9

connector is identical to that of the pinout on the male cable plugged into

the Transmitter unit.

9. Turn the extender units on by plugging in the power adapters. The

power LED should light up and stay solid. The Link LED on the RJ45

connector will light up to indicate a proper connection.

10. Turn on the display device and make sure it’s set to the HDMI input.

11. Turn on video source device. The video output should appear on the

display on the Receiver unit.

Driver Installation

No driver or software installation is required.

Specications

ST121UTPHDMI

ST121UTPHDGB

ST121UTPHDEU

Video Signal High Speed HDMI (1.3)

Connectors

(Transmitter)

1 x HDMI type A female

1 x RJ45 female

1 x DB9 female

2 x IR probe connector

1 x DC Power

Connectors

(Receiver)

1 x HDMI type A female

1 x RJ45 female

1 x DB9 male

2 x IR probe connector

1 x DC Power

LEDs

(per unit)

1 x Power

1 x RJ45 Link

1 x IR Emitter Activity

1 x IR Receiver Activity

Compatible Cabling Cat5/5e/6/6a/7 UTP/STP/FTP

Maximum Cable Length 80 m / 260 ft

Maximum Video Resolution 1080p @ 60Hz, 48-bit

Audio Support Yes (Dolby TrueHD, DTS-HD

MA)

HDCP Compliant Yes

DDC Support Yes

ST121UTPHDMI

ST121UTPHDGB

ST121UTPHDEU

Supported Protocols RS232

Maximum Serial Baud Rate 115, 200 Kbps

IR Interface Bi-directional 38Khz / ±10° / 5m

Power Adapter 5VDC, 2000mA, center positive

Operating Temperature 0°C ~ 55°C (32°F ~ 131°F)

Storage Temperature -20°C ~ 85°C (-4°F ~ 185°F)

Humidity 0% ~ 95%

Dimensions (LxWxH) 130.0mm x 88.0mm x 30.0mm

Weight (per unit) 500 g

Technical Support

StarTech.com’s lifetime technical support is an integral part of our

commitment to provide industry-leading solutions. If you ever need

help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and

downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial

date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion.

The warranty covers parts and labor costs only. StarTech.com does

not warrant its products from defects or damages arising from misuse,

abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.

com USA LLP (or their ofﬁcers, directors, employees or agents) for

any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of proﬁts, loss of business, or any

pecuniary loss, arising out of or related to the use of the product exceed

the actual price paid for the product. Some states do not allow the

exclusion or limitation of incidental or consequential damages. If such

laws apply, the limitations or exclusions contained in this statement

may not apply to you.

This manual suits for next models

Table of contents

Other StarTech.com Extender manuals

StarTech.com

StarTech.com STDHVHDBT User manual

StarTech.com

StarTech.com 4K70IC-EXTEND-HDMI User manual

StarTech.com

StarTech.com USBthere USB110EXT User manual

StarTech.com

StarTech.com 110VDSLEXT User manual

StarTech.com

StarTech.com ST12MHDLNHR User manual

StarTech.com

StarTech.com ST121SHD30 User manual

StarTech.com

StarTech.com STUTPRXL User manual

StarTech.com

StarTech.com USB3004EXT2 User manual

StarTech.com

StarTech.com USB2G4LEXT2 User manual

StarTech.com

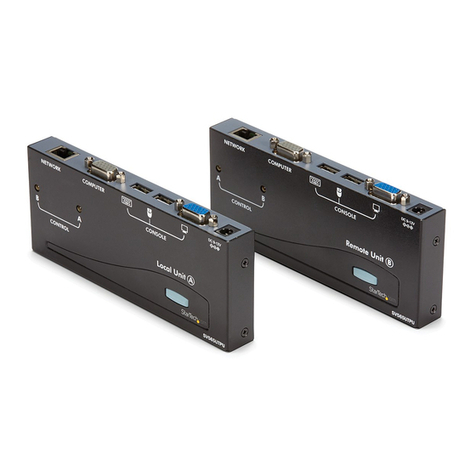

StarTech.com SV565UTPU User manual
