StarTech.com 35FCREAD Manual

3.5” Bay 7-in-1 Flash

Card Reader/Writer

35FCREAD

35FCREADBK

Instruction Guide

The Professionals’ Source For Hard-to-Find Computer Parts

UUSSBB22..00FFLLAASSHH

CCAARRDDRREEAADDEERR

* Actual products may vary from photo

FCC COMPLIANCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Using Your Card Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Introduction

Thank you for purchasing a StarTech.com 3.5” bay Flash card reader. This panel fits into

an open 3.5” bay and works with CompactFlash memory cards, IBM-Microdrives,

SmartMedia memory cards, MS Pro cards, Memory Stick cards, SecureDigital memory

cards, and Multi-Media cards. The card reader plugs into any USB port and makes it

easy to transfer files, images, and music between your computer and your MP3 player,

digital camera, cell phone, or PDA.

Features

• Supports seven different types of flash cards: MS Pro cards, CompactFlash memory

cards, IBM-Microdrives, SmartMedia memory cards, Memory Stick cards,

SecureDigital memory cards, and Multi-Media cards

• Powered by the USB bus, no external power source is needed

• Supports drag and drop between cards

• Reads and writes any files suited for PC or Mac computers

• Fits into any 3.5” drive bay

• Backed by StarTech.com’s one-year warranty

Before You Begin

WARNING! Flash cards, like all computer equipment, can be damaged by static

electricity. Be sure that you are properly grounded before opening your computer case or

touching your card. StarTech.com recommends that you wear an anti-static strap when

installing any computer component. If an anti-static strap is unavailable, discharge

yourself of any static electricity build-up by touching a large grounded metal surface

(such as the computer case) for several seconds.

System Requirements

• Windows 98SE (or higher) with a Pentium-class (or compatible) processor, or Mac

OS X with a Power PC (or above).

• An open USB port

Contents

This package should contain:

• 1 x 7-in-1 card reader

• 1 x Expansion slot mounting bracket

• 1 x Screw kit

IInnssttaallllaattiioonn

This section will guide you through the installation of your card reader and the related

software. Please read through the instructions carefully and complete each step in the

order listed.

Depending on your OS and the configuration of your system, the instructions below may

not be identical to what you see on your screen.

Installing the Panel

Note: The instructions below outline how to install the card reader into a 3.5” drive bay.

Alternatively, you can use your card reader externally by plugging the USB cable into an

open USB port.

1. Make sure that your system is unplugged and you are grounded.

2. Remove the cover of your system and remove the cover from a 3.5” drive bay (see

your computer's user manual for details, if necessary).

3. Gently insert the panel into the open 3.5” bay (after threading the attached USB cable

into the computer) until it is flush with the front of the case. Make sure the bracket is

lined up with the screwholes in the case, and screw the panel into place.

4. Thread the attached USB cable out the back of your computer and plug it into a USB

port. You can use the metal rear bracket cover to hold the cable in place. Just screw

the bracket cover into an open I/O bracket on the rear of your computer.

5. Put your case’s cover back on and power on your computer.

6. Your computer will display a message saying new hardware has been found.

Windows 98SE and 2000 users Follow the onscreen prompts and direct Windows to

the appropriate folder on the driver disk. Windows will install the necessary drivers.

Follow any on-screen prompts to complete the installation.

UUssiinnggYYoouurrCCaarrddRReeaaddeerr

The LEDs on the card reader are your best indication of the reader’s activity.

• The solid Power LED indicates that the card reader is powered.

• A flashing R/W LED indicates that there is data being transferred to or from the

card.

Inserting a Card

1. Turn on your computer.

2. Insert your memory card into the proper slot on the card reader.

3. Mac users: A new icon will appear on your desktop.

Windows users: A new icon will appear in “My Computer.”

4. The card can now be accessed as an extra disk.

Removing a Card

1. Make sure that none of the LEDs on the front of the card reader are flashing. If you

remove the card when the LEDs are flashing, data may be lost from your card.

2. Mac users should drag the memory card icon to the Trash bin.

Windows users should right-click on the drive icon and choose to eject the card.

3. Physically remove the card from the reader.

RReemmoovviinnggtthheeCCaarrddRReeaaddeerr

Use this procedure to permanently uninstall the card reader.

Windows users

1. Make sure there is no card reader connected to the USB port.

2. Click on the “Uninstaller” icon in the taskbar.

3. Click on “USB Storage Device - Change/Remove.”

4. Remove all installed components and click Next.

5. Choose to restart your computer and click Finish.

Mac users

1. If there is a memory card connected to the card reader, drag the memory card icon

into the Trash. Wait until the icon has disappeared.

2. Disconnect the card reader.

TTrroouubblleesshhoooottiinngg

The card reader is not detected.

The reader has not been properly connected or is not receiving enough power. Make

sure that the reader’s USB cable is firmly seated in the USB port. If you are connecting

the card reader to a hub, make sure that it is a powered hub.

The card doesn’t fit in the reader.

Make sure you are installing the card in the proper slot and that the card is facing the

right direction. Check with the card manufacturer’s instructions.

A drive letter is shown for the card, but it can’t be accessed.

The card has not been formatted or is formatted incorrectly. Follow the instructions

provided by the manufacturer of your digital media device (i.e., your MP3 player, digital

camera, etc.) to format the card using your digital media device.

No icon appears when a card is inserted into the reader (Mac OS X).

The card may have been formatted in Windows’ FAT-32 format. Using a PC or digital

device, re-format the card using the OS X-compatible FAT or FAT-16 format.

TTeecchhnniiccaallSSppeecciiffiiccaattiioonnss

Standards USB 2.0

Data Transfer Rate Flash Cards: 700 Kbits/sec to 480 Mbits/sec

Compatibility:

Compact Flash I & II Card

IBM Micro Drive

Smart Media Card

Secure Digital Card

Multi-Media Card

Memory Stick

MS Pro Card

LED Indicators Power, Activity

System Requirement

An available 3.5” bay

98SE/2000/ME/XP or Mac OS X

Connections 1 x USB type ‘A’ female

1 x USB motherboard header connector

TTeecchhnniiccaallSSuuppppoorrtt

The following technical resources are available for this StarTech.com product:

On-line help:

We are constantly adding new information to the

Tech Support

section of our web site. To

access this page, click the

Tech Support

link on our homepage, www.startech.com.In

the tech support section there are a number of options that can provide assistance with

this product.

Knowledge Base - This tool allows you to search for answers to common issues using

key words that describe the product and your issue.

FAQ - This tool provides quick answers to the top questions asked by our customers.

Downloads - This selection takes you to our driver download page where you can

find the latest drivers for this product.

Call StarTech.com tech support for help:

USA/Canada: 1-519-455-4931

UK/Ireland/Europe: 00-800-7827-8324

Support hours: Monday to Friday 9:00AM to 5:00PM EST (except holidays)

WWaarrrraannttyyIInnffoorrmmaattiioonn

This product is backed by a one-year warranty. In addition, StarTech.com warrants

its products against defects in materials and workmanship for the periods noted,

following the initial date of purchase. During this period, the products may be

returned for repair, or replacement with equivalent products at our discretion. The

warranty covers parts and labor costs only. StarTech.com does not warrant its

products from defects or damages arising from misuse, abuse, alteration, or

normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

officers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the actual

price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential

damages. If such laws apply, the limitations or exclusions contained in this statement may

not apply to you.

Revised: 12 September, 2006

Other manuals for 35FCREAD

This manual suits for next models

Table of contents

Other StarTech.com Card Reader manuals

StarTech.com

StarTech.com CFASTRWU3 User manual

StarTech.com

StarTech.com 525FCREADREM User manual

StarTech.com

StarTech.com 35FCREAD20 System manual

StarTech.com

StarTech.com 4SD4FCRU31C User manual

StarTech.com

StarTech.com 35FCREADAL System manual

StarTech.com

StarTech.com ECREAD User manual

StarTech.com

StarTech.com SDMSDRWU3AC User manual

StarTech.com

StarTech.com CFASTRWU3 User manual

StarTech.com

StarTech.com 525FCREAD System manual

StarTech.com

StarTech.com 525FCREADAL Manual

StarTech.com

StarTech.com FCREADMICRO User manual

StarTech.com

StarTech.com 525FCREAD Manual

StarTech.com

StarTech.com FCREADU3HC User manual

StarTech.com

StarTech.com 35FCREADBU3 User manual

StarTech.com

StarTech.com 35FCREADBK User manual

StarTech.com

StarTech.com FCREADU2OTGB User manual

StarTech.com

StarTech.com 2SD4FCRU3 User manual

StarTech.com

StarTech.com 35FCREADREM System manual

StarTech.com

StarTech.com FCREADMINI User manual

StarTech.com

StarTech.com 35FCREAD System manual

StarTech.com

StarTech.com 35FCREADREM Manual

StarTech.com

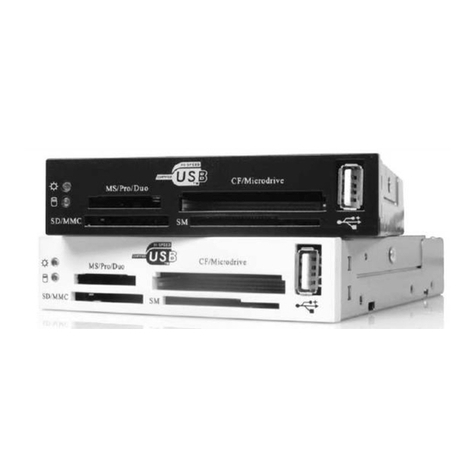

StarTech.com 52535FCREADB User manual
