SSV Works GN-C65 User manual
!
Please read and understand these
instructions completely before
installation to avoid possible injury, or
damage to the accessory or vehicle.
WARRANTY INFORMATION:
All SSV Works enclosures are covered by a limited lifetime warranty against defects in
material or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty
against defects in material or workmanship. All SSV Works Speakers are covered by a
limited 1 year warranty against defects in material or workmanship. Labor for replacement of
defective components is not covered. Contact SSV Works for further warranty information.
SSV WORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030
www.SSVworks.com | Phone: 818-991-1778 | Fax: 866-293-6751
TOOLS NEEDED FOR INSTALLATION
- 8mm Open End Wrench - 4mm Allen Wrench
PARTS LIST IMAGES
2. Cage Bar Clamp x 2 4. M6 Set Screws x 4
1. US-C65 Enclosures
(1 pair) 3. M6 Hex Head Bolt &
Washers x 4
B
B. Loosely install the clamp base to the cage mount pod with the two
(2) 8 mm head bolts and washers, place the cage mount pod in the
desired mounting location on the vehicle.
A. Find the best orientation for the speaker on your bar and screw
in the Set Screws in the OPPOSITE holes of where the clamp will
install into using a 4mm allen wrench.
A
GN-C65
Polaris General
6.5” Speaker Cage Mount Pods

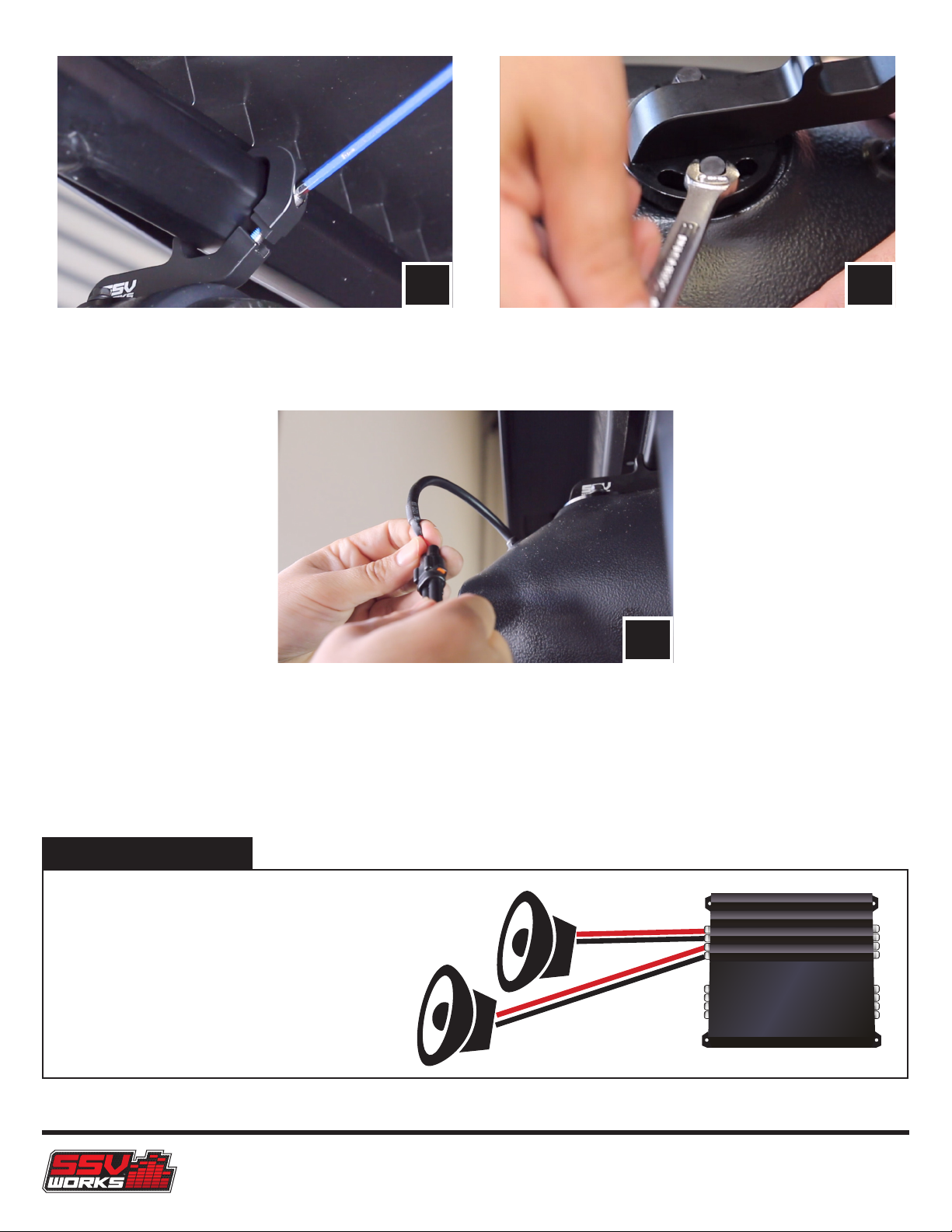

D
E
D. Tighten the 8mm bolts once you have the speaker pods in your
desired location.
E. Route the speaker wire away from any moving parts and any sharp
metal, then connect to the amplier.
Connecting the GN-C65 using the pre-installed, two-pin connector
will require an optional SSV Works plug-&-play harness (WP-H1150 -
sold separately). If you are not using the WP-H1150 harness, simply
cut off the two-pin connector and follow the wiring instruction below.
C
C. Using a T5 hex key tighten clamp until it secures to cage.
© 2018 SSV Works, Oxnard, CA 93030 GN-C65 Rev. A 2-21-18
WIRING INSTRUCTIONS
For proper sound, ensure the speaker polarity is correct
connect the “+” to the “+” and the “-“to the “-“from
the speaker wire to the amplier. If using with an SSV
Works complete system refer to the amplier wiring
instructions for more detailed wiring information.
“+”
“+”
“
-
”
“
-
”
GN-C65
