Spirax Sarco M10Si Automation User manual

IM-P133-61 ST Issue 1 1

M10Si ISO, M10Si ISO Automation

and M10Vi ISO Ball Valves

Screwed, SW, BW and Flanged versions

Installation and Maintenance Instructions

IM-P133-61

ST Issue 1

BAC 13361

1. Safety information

2. General

product information

3. Installation

4. Commissioning

5. Operation

6. Maintenance

7. Spare parts

IM-P133-61 ST Issue 12

1. Safety information

Safe operation of these products can only be guaranteed if they are properly installed,

commissioned, used and maintained by qualified personnel (see Section 1.11)

in compliance with the operating instructions. General installation and safety instructions

for pipeline and plant construction, as well as the proper use of tools and safety

equipment must also be complied with.

1.1 Intended use

Referring to the Installation and Maintenance Instructions, name-plate and Technical

Information Sheet, check that the product is suitable for the intended use / application.

The products listed below comply with the requirements of the European Pressure

Equipment Directive 97 / 23 / EC and carry the mark when so required. The products

fall within the following Pressure Equipment Directive categories:

Group 1 Group 2 Group 1 Group 2

Product Gases Gases Liquids Liquids

M10Vi DN8 SEP SEP SEP SEP

(virgin PTFE seats), DN10 SEP SEP SEP SEP

DN15 SEP SEP SEP SEP

M10Si DN20 SEP SEP SEP SEP

(graphite reinforced PTFE seats) DN25 SEP SEP SEP SEP

and DN32 2 SEP 2 SEP

DN40 2 1 2 SEP

M10Si automation DN50 2 1 2 SEP

(graphite reinforced PTFE seats) DN65 2 1 2 SEP

i) The products have been specifically designed for use on steam, compressed

air, water and other industrial fluids that are in Group 2 of the above mentioned

Pressure Equipment Directive. They can also be used on methane gas, propane

gas, oxygen gas and hydrocarbons which are in Group 1 of the Pressure

Equipment Directive. The products' use on other fluids may be possible but, if

this is contemplated, Spirax Sarco should be contacted to confirm the suitability

of the product for the application being considered.

ii) Check material suitability, pressure and temperature and their maximum and

minimum values. If the maximum operating limits of the product are lower than

those of the system in which it is being fitted, or if malfunction of the product

could result in a dangerous overpressure or overtemperature occurrence, ensure

a safety device is included in the system to prevent such over-limit situations.

iii) Determine the correct installation situation and direction of fluid flow.

iv) Spirax Sarco products are not intended to withstand external stresses that may

be induced by any system to which they are fitted. It is the responsibility of the

installer to consider these stresses and take adequate precautions to minimise

them.

v) Remove protection covers from all connections before installation.

1.2 Access

Ensure safe access and if necessary a safe working platform (suitably guarded)

before attempting to work on the product. Arrange suitable lifting gear if required.

IM-P133-61 ST Issue 1 3

1.3 Lighting

Ensure adequate lighting, particularly where detailed or intricate work is required.

1.4 Hazardous liquids or gases in the pipeline

Consider what is in the pipeline or what may have been in the pipeline at some

previous time. Consider: flammable materials, substances hazardous to health,

extremes of temperature.

1.5 Hazardous environment around the product

Consider: explosion risk areas, lack of oxygen (e.g. tanks, pits), dangerous gases,

extremes of temperature, hot surfaces, fire hazard (e.g. during welding), excessive

noise, moving machinery.

1.6 The system

Consider the effect on the complete system of the work proposed. Will any proposed

action (e.g. closing isolation valves, electrical isolation) put any other part of the

system or any personnel at risk?

Dangers might include isolation of vents or protective devices or the rendering

ineffective of controls or alarms. Ensure isolation valves are turned on and off in

a gradual way to avoid system shocks.

1.7 Pressure systems

Ensure that any pressure is isolated and safely vented to atmospheric pressure.

Consider double isolation (double block and bleed) and the locking or labelling of

closed valves. Do not assume that the system has depressurised even when the

pressure gauge indicates zero.

1.8 Temperature

Allow time for temperature to normalise after isolation to avoid danger of burns.

If parts made from PTFE have been subjected to a temperature approaching

260°C (500°F) or higher, they will give off toxic fumes, which if inhaled are likely to

cause temporary discomfort. It is essential for a no smoking role to be enforced

in all areas where PTFE is stored, handled or processed as persons inhaling the

fumes from burning tabacco contaminated with PTFE particles can develop 'polymer

fume fever'.

1.9 Tools and consumables

Before starting work ensure that you have suitable tools and / or consumables

available. Use only genuine Spirax Sarco replacement parts.

1.10 Protective clothing

Consider whether you and/or others in the vicinity require any protective clothing

to protect against the hazards of, for example, chemicals, high / low temperature,

radiation, noise, falling objects, and dangers to eyes and face.

1.11 Permits to work

All work must be carried out or be supervised by a suitably competent person.

Installation and operating personnel should be trained in the correct use of the

product according to the Installation and Maintenance Instructions.

Where a formal 'permit to work' system is in force it must be complied with. Where

there is no such system, it is recommended that a responsible person should know

what work is going on and, where necessary, arrange to have an assistant whose

primary responsibility is safety.

Post 'warning notices' if necessary.

IM-P133-61 ST Issue 14

1.12 Handling

Manual handling of large and /or heavy products may present a risk of injury. Lifting,

pushing, pulling, carrying or supporting a load by bodily force can cause injury

particularly to the back. You are advised to assess the risks taking into account the

task, the individual, the load and the working environment and use the appropriate

handling method depending on the circumstances of the work being done.

1.13 Residual hazards

In normal use the external surface of the product may be very hot. If used at the

maximum permitted operating conditions the surface temperature of these products

may reach temperatures of 300°C (572°F).

These products are not self-draining. Take due care when dismantling or removing

the product from an installation (refer to 'Maintenance instructions').

1.14 Freezing

Provision must be made to protect products which are not self-draining against

frost damage in environments where they may be exposed to temperatures below

freezing point.

1.15 Safety information - Product specific

Hydraulic locking

Ball valves are prone to lock-up when used on certain heating / cooling applications

where both steam and liquid will pass through the valve. This is caused by liquid

trapped in the ball during closure being heated to create a high hydraulic pressure

inside the ball cavity. To prevent this, during manufacture, a minute hole is drilled in

the ball, so, that in the closed position, any excess pressure will be relieved. Spirax

Sarco ball valves for these applications are clearly marked to allow the valve to be

correctly installed, such that, when closed, the hole is facing the steam source.

Cap gaskets

If the 'O' rings have been subjected to a temperature approaching 315°C (599°F)

or higher, they may have decomposed and formed hydrofluric acid. Avoid skin

contact and inhalation of any fumes as the acid can cause skin burns and damage

to the respiratory system.

1.16 Disposal

Unless otherwise stated in the Installation and Maintenance Instructions, this

product is recyclable and no ecological hazard is anticipated with its disposal

providing due care is taken, with the exception of PTFE.

PTFE:

- Can only be disposed of by approved methods, not incineration.

- Keep PTFE waste in a separate container, do not mix it with other rubbish, and

consign it to a landfill site.

1.17 Returning products

Customers and stockists are reminded that under EC Health, Safety and

Environment Law, when returning products to Spirax Sarco they must provide

information on any hazards and the precautions to be taken due to contamination

residues or mechanical damage which may present a health, safety or

environmental risk. This information must be provided in writing including

Health and Safety data sheets relating to any substances identified as hazardous

or potentially hazardous.

IM-P133-61 ST Issue 1 5

2. General product information

Fig. 2 M10Si automation screwed version shown

Fig. 1 M10Si and M10Vi screwed version shown

IM-P133-61 ST Issue 16

2.1 General description

The M10Si ISO, M10Si ISO Automation and M10Vi ISO are three piece body ball valves

designed for steam, process and other industrial ﬂuids for services ranging from vacuum to

the higher temperatures and pressures.

They can be serviced without removing the valve from the pipeline (screwed and welded

versions only).

A lockable handle is provided as standard on the M10Si ISO and M10Vi ISO.

ISO mounting

The integral ISO body mounting allows the valve to be automated without losing seal integrity,

as the body does not require disassembly. Manual to remote control may therefore be easily

accomplished by the ISO range of Spirax Sarco ball valves.

Standards

This product fully complies with the requirements of the European Pressure Equipment

Directive 97/23/EC and carries the mark when so required.

Certification

This product is available with certiﬁcation to EN 10204 3.1.

Note: All certiﬁcation / inspection requirements must be stated at the time of order placement.

Available types For further information see Technical Information (TI) sheets below

M10Si2_ _ ISO Zinc plated

carbon steel body

M10Si3_ _ ISO Stainless steel body PDR 0.8 seats TI-P133-58

M10Si4_ _ ISO Complete stainless steel

M10Si2_ _ ISO Automation Zinc plated

carbon steel body

M10Si3_ _ ISO Automation Stainless steel body PDR 0.8 seats TI-P133-59

M10Si4_ _ ISO Automation Complete stainless steel

M10Vi2_ _ ISO Zinc plated

carbon steel body

M10Vi3_ _ ISO Stainless steel body PTFE seats TI-P133-60

M10Vi4_ _ ISO Complete stainless steel

Note: The nomenclature will be followed with either FB (full bore) or RB (reduced bore).

2.2 Sizes and pipe connections

¼", ", ½", ¾", 1", 1¼", 1½", 2", (2½" only available with reduced bore).

Screwed BSP, BSPT, NPT, BW, SW full bore and reduced bore.

DN15 to DN50 (DN65 only available with reduced bore).

Flanged PN40, ANSI 150 and ANSI 300 full bore and reduced bore.

IM-P133-61 ST Issue 1 7

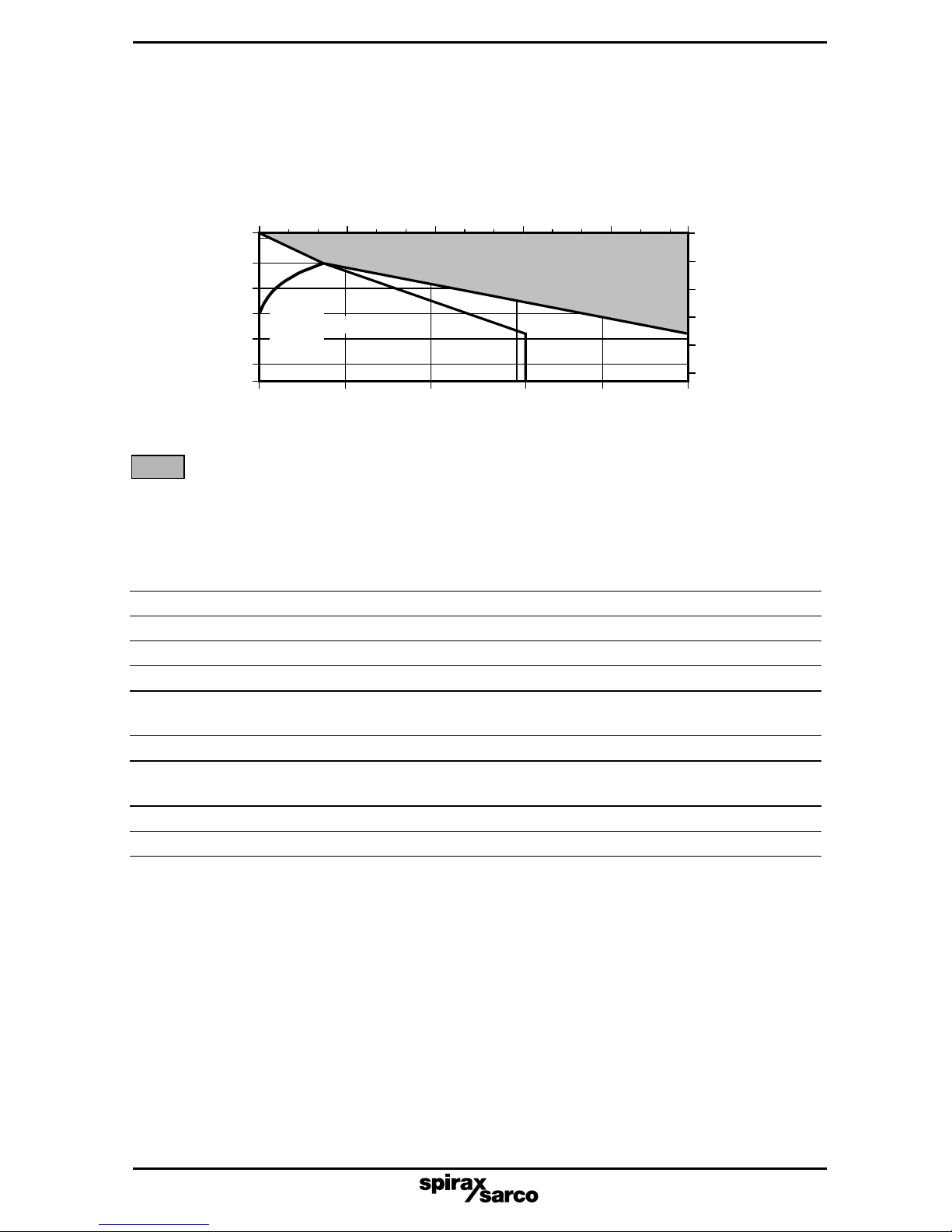

2.3 Pressure / temperature limits

2.3.1 M10Si ISO and M10Si automation ball valves

















    







   









Temperature °C

Pressure bar g

Steam

saturation

curve

The product must not be used in this region.

A - B 2" FB and 2½" RB only

A - C ¼" - 1½" FB, RB and 2" RB

Note: The ﬂange standard may restrict the maximum operating pressure.

Please check with Spirax Sarco.

Body design conditions PN100

PMA Maximum allowable pressure 100 bar g @ 60°C (1 450 psi g @ 140°F)

TMA Maximum allowable temperature 260°C @ 0 bar g (500°F @ 0 psi g)

Minimum allowable temperature -29°C (-20°F)

PMO Maximum operating pressure 17.5 bar g (254 psi g)

for saturated steam service

TMO Maximum operating temperature 260°C @ 0 bar g (500°F @ 0 psi g)

Minimum operating temperature -29°C (-20°F)

Note: For lower operating temperatures consult Spirax Sarco

PMX Maximum differential pressure is limited to the PMO

Designed for a maximum cold hydraulic test pressure of: 150 bar g (2 175 psi g)

Pressure psi g

Temperature °F

IM-P133-61 ST Issue 18















      

     











Temperature °C

Pressure bar g

Steam

saturation

curve

The product must not be used in this region.

A - B 2" FB and 2½" RB only

A - C ¼" - 1½" FB, RB and 2" RB

Note: The ﬂange standard may restrict the maximum operating pressure.

Please check with Spirax Sarco.

Body design conditions PN100

PMA Maximum allowable pressure 70 bar g @ 40°C (1 015 psi g @ 104°F)

TMA Maximum allowable temperature 230°C @ 0 bar g (446°F @ 0 psi g)

Minimum allowable temperature -29°C (-20°C)

PMO Maximum operating pressure 10 bar g (145 psi g)

for saturated steam service

TMO Maximum operating temperature 230°C @ 0 bar g (446°F @ 0 psi g)

Minimum operating temperature -29°C (-20°F)

Note: For lower operating temperatures consult Spirax Sarco

PMX Maximum differential pressure is limited to the PMO

Designed for a maximum cold hydraulic test pressure of: 105 bar g (1 523 psi g)

2.3.2 M10Vi ball valve

Pressure psi g

Temperature °F

IM-P133-61 ST Issue 1 9



Note: Before actioning any installation observe the 'Safety information' in Section 1.

Although the valve has great structural integrity, severe misalignment and/or the pulling effect

of incorrect pipe length will have a detrimental effect on the valve and must be avoided.

Particular attention should be paid to correct pipe alignment such that the inlet pipework and

valve are all on the same axis.

Valves are for on/off applications and may be operated manually.

Wherever practicable, valves should be installed where there is adequate space available so

that they can be conveniently operated and maintained.

Before installing a valve, check to ensure that size, pressure rating, materials of construction,

end connections, etc. are suitable for the service conditions of the particular application.

Care must be taken to ensure that all dirt which may have accumulated in the valve during

storage is removed before installation, maintain cleanliness during installation since the

introduction of dirt can result in damage to the valve seats and operating mechanism.

To minimise the danger of abrasive particles damaging the seats, pipeline strainers should

be ﬁtted upstream of the valves.

Install the valve with the handle in a suitable position. The preferred position is with the spindle

vertical. The valve can be installed in any position for gas service (see Fig. 4 below).

When used on steam services:

1. Fit a trapped drain pocket upstream of the valve.

2. Open valve slowly to prevent the risk of waterhammer damage.

3. Installation

Fig. 4 Correct installation for gas service

Do not mount the valve upside down for

liquid service (Fig. 3).

Valves should be installed into the pipeline

in the fully closed position. Prior to welding

socket an butt weld valves into the pipeline,

it will be necessary to:

1. Dismantle the end caps from the body.

2. Remove the seats and body gasket.

3. Weld each end cap to the pipeline.

4. Replace the seats and body gasket.

5. Reassemble.

Always open valves slowly to avoid system

shocks.

Fig. 3 Incorrect installation for liquid service

IM-P133-61 ST Issue 110

6. Maintenance

Note: Before actioning any maintenance programme observe

the 'Safety information' in Section 1.

6.1 General information

As with all mechanical devices, regular maintenance is the most efﬁcient means of ensuring

continued operational efﬁciency.

Regular scheduled inspection of all valves is essential especially on valves which are operated

only occasionally.

6.2 General maintenance

Maintenance work can be carried out without removing the complete ball valve from the

pipeline. Remove the two upper bolts and nuts (15 and 16) and loosen the lower two.

The complete body assembly can then be removed and any new parts ﬁtted.

Flanged valves

To proceed with maintenance work, the complete ﬂanged valve requires removal from the

pipeline. Remove the 4 nuts (16), the complete body assembly can now be removed and new

parts ﬁtted.

6.3 To replace seats and body gasket

- Remove the body as described in Section 6.2.

- With the body removed, remove the seats (5) and body gasket (19).

- Fit new seats (5) and body gasket (19), pushing them into the body recesses.

6.4 To replace stem seals

- Remove the body as described in Section 6.2.

- Remove the nuts (9 and 11), and the two belleville washers (8).

- Replace the stem seals (6 and 22).

6.5 Reassembly

Reassemble in reverse order to instructions given above. The securing bolts and nuts (15 and

16) should be tightened to the recommmended torques shown in Table 1 opposite.

After 24 hours in service, retighten body bolts.

4. Commissioning

After installation or maintenance ensure that the system is fully functioning. Carry out tests

on any alarms or protective devices.

5. Operation

The valve is operated manually by a handle. Special care must be taken to ensure that the

movement is made in the correct direction.

The valve can be used as an on/off valve, and can be operated fully open, or fully closed.

This manual suits for next models

Table of contents

Other Spirax Sarco Control Unit manuals

Spirax Sarco

Spirax Sarco MSC-125 User manual

Spirax Sarco

Spirax Sarco PF5 Series User manual

Spirax Sarco

Spirax Sarco HM Series User manual

Spirax Sarco

Spirax Sarco BSA3-BD User manual

Spirax Sarco

Spirax Sarco PV4 User manual

Spirax Sarco

Spirax Sarco DP27S User manual

Spirax Sarco

Spirax Sarco 25P User manual

Spirax Sarco

Spirax Sarco PM6 User manual

Spirax Sarco

Spirax Sarco M80i ISO User manual

Spirax Sarco

Spirax Sarco MST21 Series User manual

Spirax Sarco

Spirax Sarco 5953 Series User manual

Spirax Sarco

Spirax Sarco SafeBloc DBB3 User manual

Spirax Sarco

Spirax Sarco 600 Series User manual

Spirax Sarco

Spirax Sarco Colima FLU Series User manual

Spirax Sarco

Spirax Sarco M10HPi ISO Series User manual

Spirax Sarco

Spirax Sarco M15 Series User manual

Spirax Sarco

Spirax Sarco SX100e Specification sheet

Spirax Sarco

Spirax Sarco SV615 User manual

Spirax Sarco

Spirax Sarco GKE 10 Guide

Spirax Sarco

Spirax Sarco TD120 User manual

Spirax Sarco

Spirax Sarco UFT32 User manual

Spirax Sarco

Spirax Sarco FTC80 User manual

Spirax Sarco

Spirax Sarco 25P User manual

Spirax Sarco

Spirax Sarco SRV2S User manual

Popular Control Unit manuals by other brands

Festo

Festo Compact Performance CP-FB6-E Brief description

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Quick installation guide

JS Automation

JS Automation MPC3034A user manual

JAUDT

JAUDT SW GII 6406 Series Translation of the original operating instructions

Spektrum

Spektrum Air Module System manual

BOC Edwards

BOC Edwards Q Series instruction manual

KHADAS

KHADAS BT Magic quick start

Etherma

Etherma eNEXHO-IL Assembly and operating instructions

PMFoundations

PMFoundations Attenuverter Assembly guide

GEA

GEA VARIVENT Operating instruction

Walther Systemtechnik

Walther Systemtechnik VMS-05 Assembly instructions

Altronix

Altronix LINQ8PD Installation and programming manual

Eaton

Eaton Powerware Series user guide

WAGO

WAGO 750-407/040-000 manual

Sony

Sony CCU-590 Operation manual

Graco

Graco 25D614 instructions

Task Force Tips

Task Force Tips YE-RF-900 Instructions for installation, safe operation and maintenance

Shini

Shini SPV-U Series manual
