Speakman S-3471 User manual

INSTRUCTIONS FOR MODELS

92-S-3471-01

For additional assistance or service please contact:

SPEAKMAN®

800-537-2107

customerser[email protected]

www.speakman.com

S-3471

TOOLS AND SUPPLIES

Plumber’s

Putty

Adjustable

Wrench

Pipe

Wrench

Slip Joint

Wrench

IMPORTANT

SAFETY TIPS

Cover your drain to prevent loss of parts. Be sure to

wear eye protection while cutting pipe.

MAINTENANCE

Your new Speakman Product is designed for years

of trouble-free performance. Keep it looking new by

cleaning it periodically with a soft cloth. The use of

harsh chemicals and abrasives on any of the

Speakman custom finish products may damage the

finish and void the product warranty. Please be sure

to only use approved cleaners. Please contact

Speakman for any clarification of acceptable

cleaners.

WARRANTY

Warranty information can be found at:

www.speakman.com

• Be sure to read instructions thoroughly before

beginning installation.

• Do not over-tighten any connections or damage

may occur.

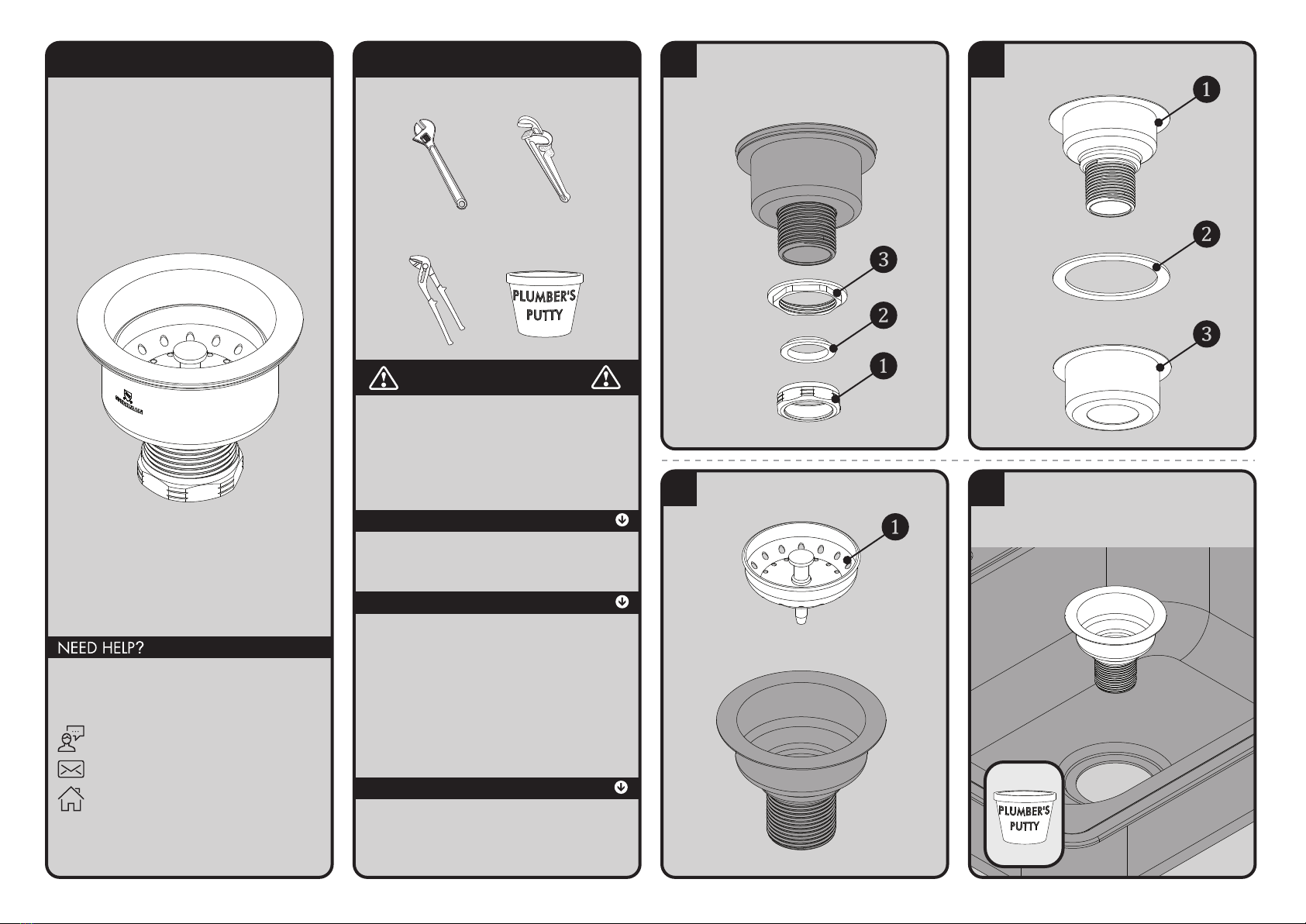

1Disassemble the Sink Strainer by removing the

Bottom Slip Joint Nut (1), Rubber Sealing Gasket

(2), and Lock Nut (3).

2Separate the Top Body (1) and Gasket (2) from

the Bottom Body (3).

3Remove the Basket (1) and set to the side.

4Apply Plumber’s Putty to the underside lip of the

Top Body. Insert Top Body into the sink from

above.

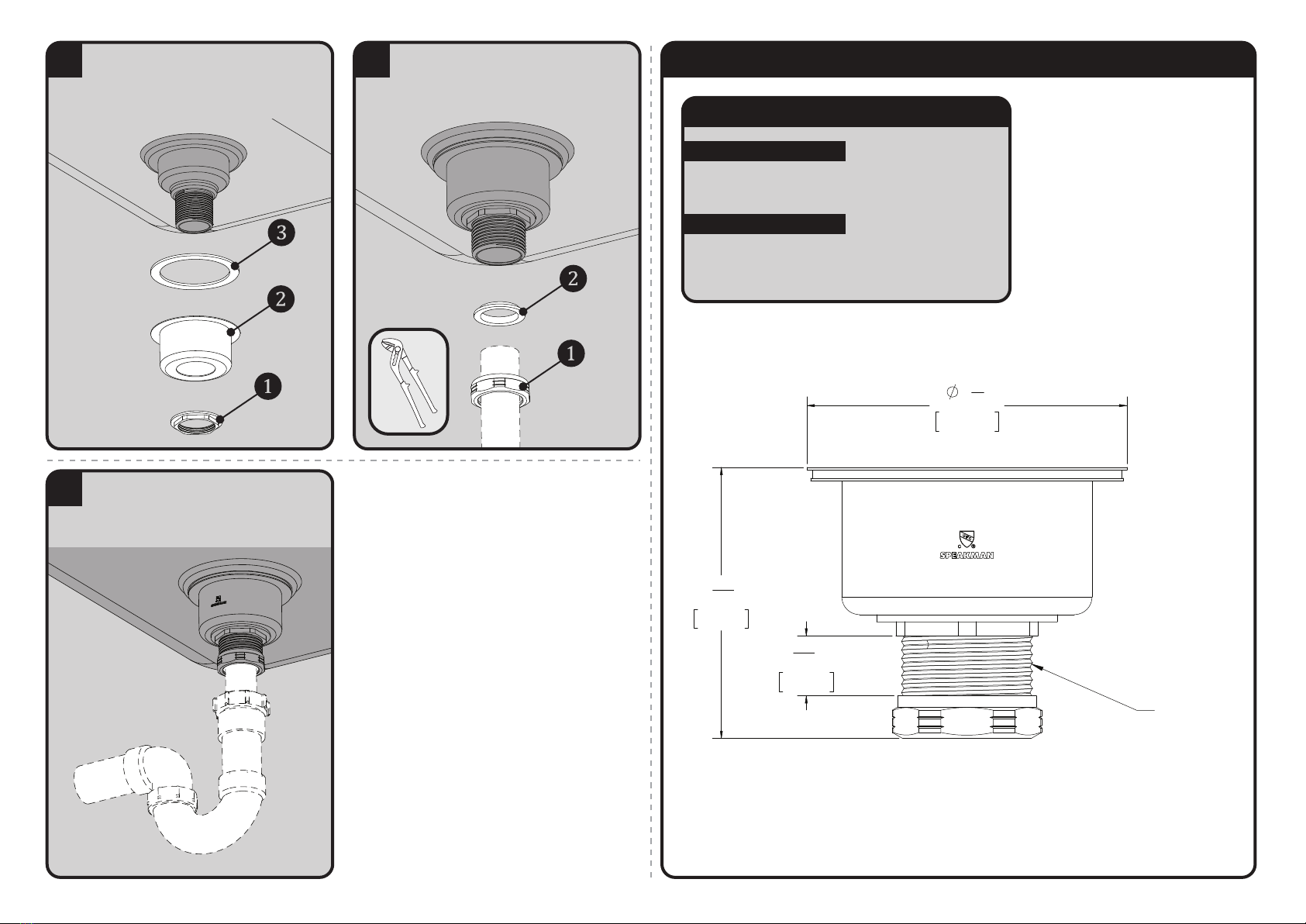

5From below, install Gasket (3), Bottom Body (2),

and secure with Lock Nut (1). Tighten with Slip

Joint Pliers. Take care to not over-tighten

connection.

6Install the Rubber Sealing Gasket (2) and Drain

Pipe Tailpiece (not included). Secure with the

Slip Joint Nut (1). Wrench tighten with Slip Joint

Wrench.

7Assemble all remaining Drain Connections (not

included) and tighten all connections.

S-3471 ROUGH-IN DIAGRAM SPEAKMAN®

DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.

NOTES:

COMPLIANCE:

CONNECTIONS:

ASME A112.18.2/CSA B125.2

• Outlets: 1” Drain Pipe (not included)

313

97mm

114mm

21mm

1-1/2" NPS

THREADS
