SpeakerCraft High Resolution Series User manual
1Nortek Security & Control LLC
User's Manual
High Resolution Series
In-Wall Subwoofer
SC-HRSIW8-CAB
2
Nortek Security & Control LLC
IMPORTANT SAFETY INSTRUCTIONS
1. Read Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all Instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including ampliers) that produce heat.
8. Refer all servicing to qualied service personnel. Servicing is required when the
apparatus has been damaged in any way, such as a connector is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been
dropped.
9. Object and Liquid Entry — Care should be taken so that objects do not fall into
and liquids are not spilled into the inside of the apparatus.
WARNING: THIS LOUDSPEAKER IS CAPABLE OF PRODUCING VERY
HIGH SOUND PRESSURE LEVELS. YOU MUST TAKE EVERY PRECAUTION
TO PROTECT YOUR HEARING FROM PERMANENT DAMAGE.

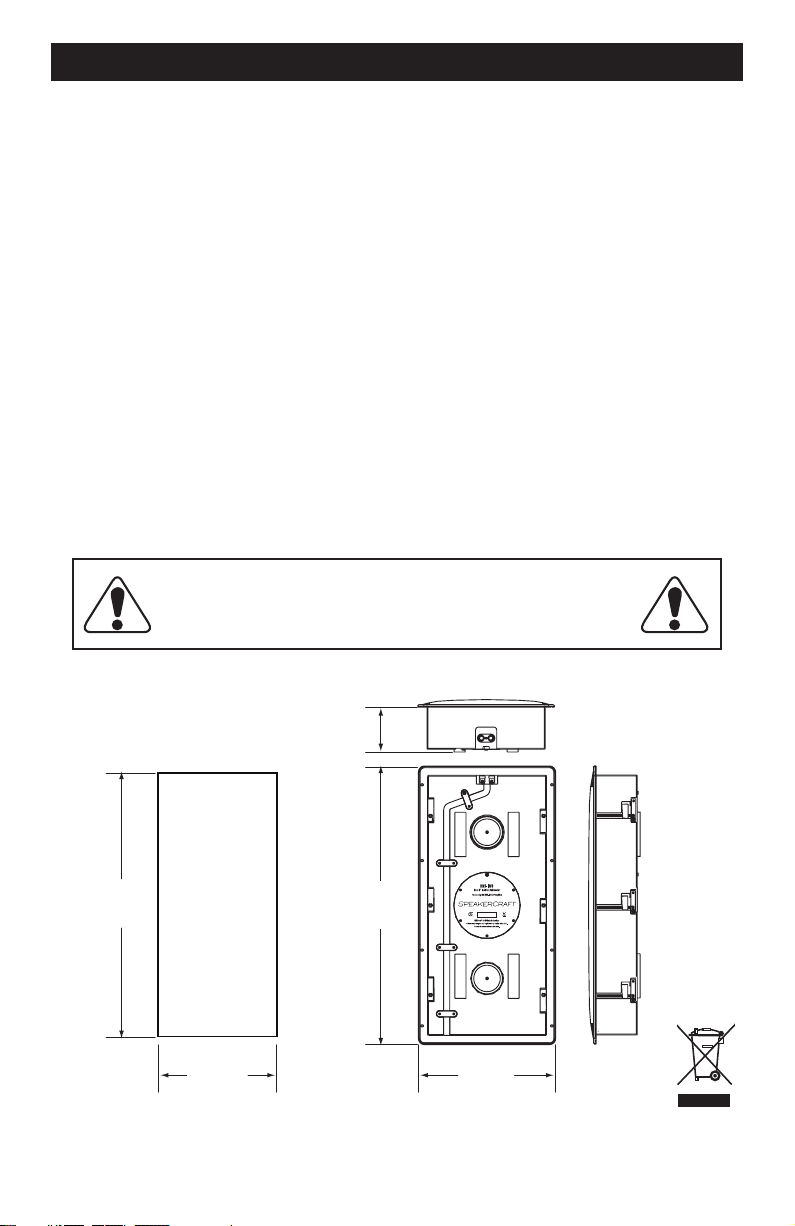

24 5/8"
(625 mm)
23 5/16"
(593 mm) REQUIRED
CUTOUT
12 1/16"
(306 mm)
10 13/16"
(274 mm)
3 3/4"
(95 mm)
DIMENSIONS
3Nortek Security & Control LLC
IMPORTANT SAFETY INSTRUCTIONS .................................................2
DIMENSIONS ..........................................................................2
CONTENTS .....................................................................3
INTRODUCTION..................................................................4
UNPACKING ....................................................................4
FEATURES......................................................................5
CARE..........................................................................5
REAR PANEL FEATURES ...........................................................6
FRONT PANEL FEATURES ..........................................................7
LOCATION ......................................................................8
Preliminary............................................................................8
Corner installation ......................................................................8
Center Location ........................................................................9
Using Two Subwoofers ...................................................................9
LOCATION .....................................................................10
Speaker Level connections...............................................................10
Magnetic Fields .......................................................................10
SYSTEM CONFIGURATION ........................................................11
HRSIW8AMP..........................................................................11
HRSIW8 In-Wall Subwoofer...............................................................11
SUBWOOFER INSTALLATION ......................................................12
Tools required ........................................................................12
Preliminary Steps ......................................................................12
Marking and cutting the opening ..........................................................13
Wiring ..............................................................................14
Installing the Subwoofer.................................................................15
Final steps ...........................................................................15
SPECIFICATIONS................................................................16
TROUBLESHOOTING .............................................................17
Poor or no sound ......................................................................17
LIMITED 5-YEAR WARRANTY......................................................18
5-Year Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
CONTENTS
4
Nortek Security & Control LLC
INTRODUCTION
Thank you for purchasing this SpeakerCraft High Resolution Series HRSIW8 in-wall
subwoofer. We hope you enjoy it and the music it makes as much as we have enjoyed
creating it for you.
The companion HRSIW8AMP is designed to supply speaker-level power to the HRSIW8
in-wall subwoofer, to produce stunning low frequency effects for your home theater.
This guide gives an overview of the features of your subwoofer. Further details of the
system are supplied in the manual provided with the HRSIW8AMP.
UNPACKING
Your SpeakerCraft subwoofer should reach you in perfect condition. If you do notice
any shipping damage, please contact your SpeakerCraft Dealer immediately.
Gently lift out the unit and remove all the packing material. It is important to save all
the packing materials and the box in case your subwoofer ever needs to be moved or
shipped for repair.
Make sure that you keep your sales receipt. It is the only way to establish the duration
of your Limited Warranty and it may come in useful for insurance purposes.
For more information on this and other SpeakerCraft products, please visit our website:
www.SpeakerCraft.com
5Nortek Security & Control LLC
FEATURES
• Sealed cabinet
• High pressure design
• Dual 8 inch woofers
• Fiberglass cones
• StillBass™ anti-shake technology
• Gold plated spring terminals
• Rear channel for securing the speaker wires
• Designed for in-wall mounting with six wall clamps
• Wall cutout template supplied
• Removable grill attaches with magnets and is easily removable for painting
• Designed to be powered exclusively by the HRSIW8AMP, which is a 500 Watt,
all-discrete Class-D switching power amplier
CARE
To maintain the subwoofer’s nish, rst turn off the amplier and then use a soft dry
cloth to clean the grille surface. The grille can be removed to clean it, if required.
If your SpeakerCraft subwoofer ever needs servicing, please contact your nearest
authorized SpeakerCraft Dealer.
6
Nortek Security & Control LLC
REAR PANEL FEATURES
➊
➋➌
1. Binding Posts
The subwoofer has one pair of binding posts for connection with speaker wire to the
output posts of the HRSIW8AMP.
Always use high quality connections and speaker wires, and make sure there are no
loose ttings or stray wire strands. The spring connections accept bare wire or pins.
Connect the positive speaker-level output of the HRSIW8AMP to the positive (red) input
of the subwoofer. Connect the negative speaker-level output of the HRSIW8AMP to the
negative (black) input of the subwoofer.
Make sure that the positive and negative connections do not touch, or this may damage
your power amplier.
2. Speaker Wire Channel
To ease installation, the speaker wiring are passed through these channels to the
binding posts. This is recommended as the channel will support the weight of the
speaker cable, so it does not pull on the binding posts.
3. Clamps
Once the subwoofer is pressed into an opening in the sheetrock, screws on the front
panel are turned to pull the clamps out and down to press against the sheetrock, and
secure the subwoofer in place.
7Nortek Security & Control LLC
FRONT PANEL FEATURES
➍
➎
➍
➏ ➐ ➑
4. Woofers
The HRSIW8 uses two identical 8 inch custom drivers.
5. Clamp Screws
These six screws are used to clamp the loudspeaker in place once it has been pressed
into the sheetrock opening of your wall.
6. Grille Magnets
The grille is attached to the main body with small magnets around the edge of the
subwoofer bafe.
7. Grille
To remove the grille, gently pry it away from the corners and release it from the magnets
holding it in place. The grill can be painted to match the room decor.
8. Cutout Guide
This guide allows you to easily mark the required cutout onto your wall.
8
Nortek Security & Control LLC
LOCATION
The suggestions below will typically result in outstanding performance. However,
although low frequencies are non-directional, factors such as room reections, standing
waves, resonance and absorption will strongly affect your subwoofer’s performance.
Since your SpeakerCraft subwoofer is designed to be professionally installed into your
wall, engineering services from your authorized SpeakerCraft dealer and/or outside
acoustical resources should be considered to ensure optimum performance.
The HRSIW8AMP’s DSP features will tailor the sound to the room for optimum
performance in the location you choose. Controls include the crossover frequency, and
slope, phase, and subsonic lter.
Preliminary
Before cutting a hole in your wall, it is always best to test the subwoofer in that
location rst. Place it on the oor near to the “possible” location, and connect it to the
HRSIW8AMP. Play some typical bass passages through the subwoofer. This will help
you identify any problems in the sound due to the location, and you may be able to nd
a location that sounds better.
Corner installation
Installing the subwoofer on the front wall, towards the corner will reinforce the low
frequencies. This is best suited for:
• Rooms larger than 200 square feet where a single subwoofer will be used
• For dedicated home theaters
• For listeners who enjoy “heavy” bass.
Corner location
9Nortek Security & Control LLC
Center Location
Installing the subwoofer closer to the center of the front wall will still provide adequate
bass, but will tend to be less “heavy” and somewhat tighter. This is ideally suited for:
• For rooms smaller than 200 square feet
• Dedicated music listening rooms.
Using Two Subwoofers
If you wish to use two subwoofers, the sound output will double. Each subwoofer will
need its own dedicated HRSIW8AMP.
Locating the subwoofers on the front wall, with one towards each corner will provide
more exibility in crossover points, without causing localization that can happen with
subwoofers located on side and rear walls. SpeakerCraft pre-ampliers and receivers
feature multiple subwoofer outputs for these applications. If your preamplier has a
single sub/LFE output, use a Y cable to split it into two outputs, one for each amplier.
Center location
for one subwoofer
Corner location
for two subwoofers
10
Nortek Security & Control LLC
LOCATION
Speaker Level connections
The amplier’s speaker level outputs can accept speaker wires with banana, dual-
banana, bare wire, pins or spade terminals. If you have banana type connectors on
your speaker wire, make sure that you tighten the binding posts before inserting.
Make sure that the negative speaker wires never touch the positive wires as this will
short out and possibly damage your amplier.
Magnetic Fields
We recommend that you place your subwoofer further than two feet away from your TV,
VCR, tape deck or computer, so the speaker’s magnet won’t distort the colors of your
TV picture or erase your video tapes, audio tapes or computer discs.
