Speaka Professional 1694483 User manual

XD2210-MX INSTALLATION INSTRUCTION

(A0)

26"~55" Max:400x400mm/16x16"

Min:100x100mm/4x4"

1 2

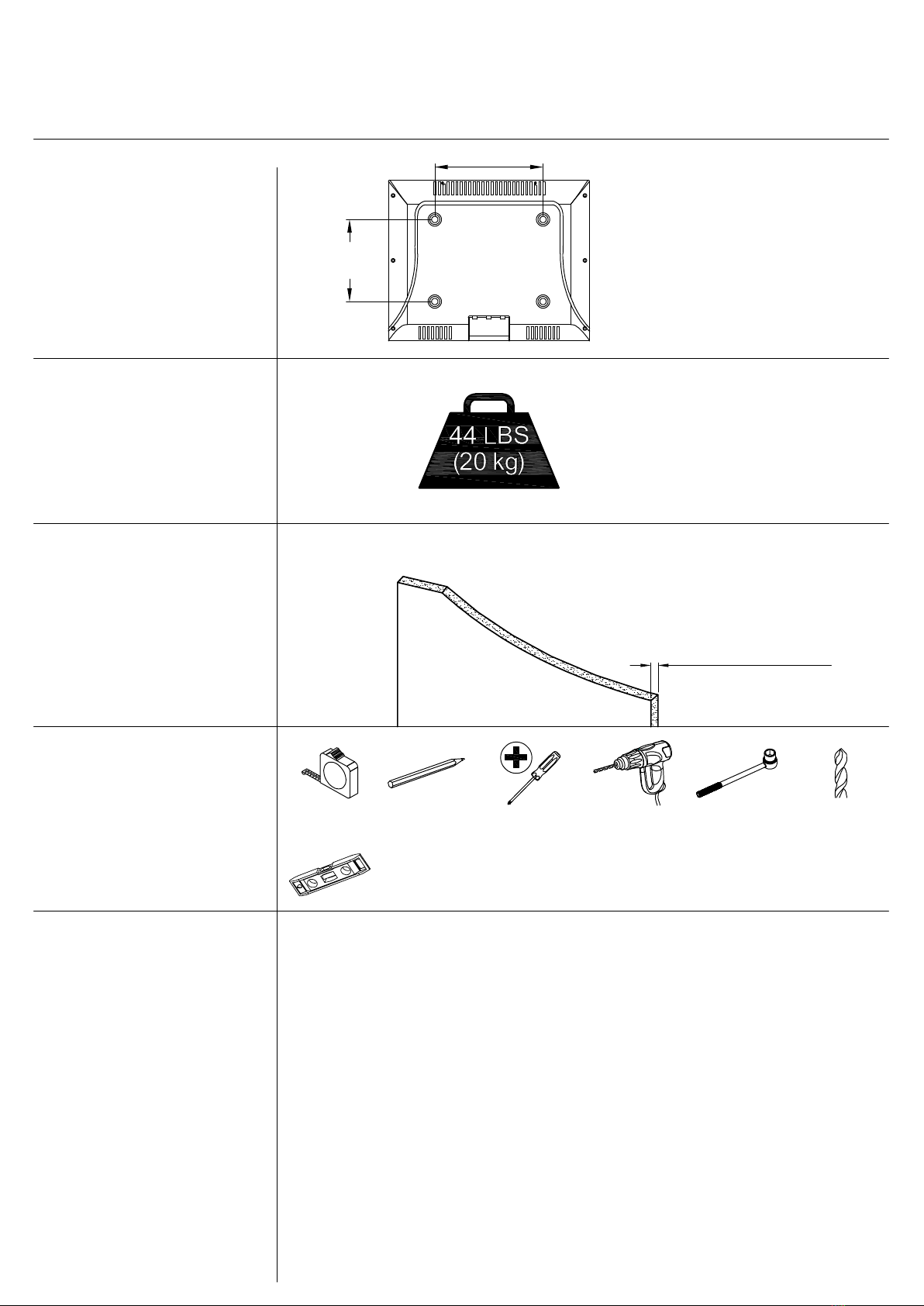

Before getting started, let’s make sure this mount is perfect for you!

1 Is your TV VESA

equal to/greater than

100x100mm/4x4" and

equal to/less than

400x400mm/16x16"?

2 Does your TV

(including accessories)

weigh less than

44 LBS (20 kg)?

4 Installation Tools

Yes --- Perfect!

No --- This mount is NOT compatible.

MAX:400mm/16"

MAX:

400mm/16"

Yes --- Perfect!

No --- This mount is NOT compatible.

Band Tape

2M2M

5 Safety Caution

Please read this instruction carefully before installation.

● The hardware provided in the package can only use in 0.5" thick or above wooden

board installation on RV.

● The wall must be capable of supporting five times the weight of the TV and mount

combined. According to the wall you're going to install, the structure of your RV may

require additional reinforcement.

● Incorrect installation may result in product damage or body injury. Mounting Dream shall

bear no responsibility for any damage or injury resulted from incorrect installation,

incorrect assembly or misuse.

● Do not apply this product to any purpose not indicated by Mounting Dream.

● Make sure to stow the TV and fully lock the mount in place before your RV is moving.

Pencil Screwdriver Electrodrill Socket Wrench

1/2"(13mm)

3 Where can you

install this mount?

0.5"(12.7mm) thick or above wooden board

Min. 0.5"(12.7mm)

5/32"(4mm)

Wood Drill Bit

Triangle

Bubble level

Parts and Hardware

WARNING:This product contains small items that could be a choking hazard if

swallowed. Before starting assembly, verify all parts are included and undamaged.

NOTE: Not all hardware included will be used.

M4x12mm

M5x12mm

M6x12mm

M8x25mm

M4x30mm

M5x30mm

M6x35mm

M8x50mm

M5/M6x17mm M8x22mm

M5/M4 M6

10mm 2.5mm

Washers

Spacers

TV Screws

x4 x4

x4 x8

Wall Plate

Unit

M6x8mm

Allen Key

1-1 Disassemble Wall Plate Unit into Two Pieces

Right Extended Arm

x2x2

Left Extended Arm

Extended Arm Screws

① 100mm x 100mm

② 100mm x 200mm

③ 150mm x 150mm

④ 200mm x 100mm

⑤ 200mm x 200mm

⑥ 200mm x 300mm

⑦ 300mm x 200mm

⑧ 300mm x 300mm

⑨ 400mm x 200mm

⑩ 400mm x 300mm

400mm x 400mm

1-2 Choose Configuration

① ①

② ②

③

③ ③

③

④ ④

④④

⑤

⑤ ⑤

⑤

⑥⑥

⑦

⑦⑦

⑦

⑩ ⑩

⑥⑥

⑧ ⑧

⑨ ⑨

⑨⑨

1-3 Select TV Screws

TV back

Bracket Washer

Bracket

Long Screw

Spacer

No, go to PAGE 5 for detailed combination.

Yes, go to PAGE 5 for detailed combination.

TV back

1-4 Need Spacer?

Short Screw

Washer

1-2 Extended arms assembly example (for reference)

Tips: If you need to combine M8(d/h) screw with 2.5mm spacer(n), you have to remove

the inner circle.

Screw and washer

Spacer(s), screw and washer

1-5 Attach TV Plate to TV Back

No!

Parts and Hardware

Min. 0.5"(12.7mm)

Wall plate

Bolt Head UP!

5/32"

(4mm)

Wall plate

Wall Plate

Lag Bolt M7x30mm

No!

CAUTION: To avoid potential personal injury or property damage:

All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To prevent the TV falling down, the Bolt Head Must Keep UP at this step!!

Wooden Board

44 LBS (20 kg)

Before hanging TV, please conduct "wall plate installation integrity test" first.

1 2

Handle

② Pull out and hold the handle.

③ Turn the handle in the opposite direction.

④ Push and release the handle.

⑤ Turn handle again to tighten or loosen.

① Turn handle (loosen or tighten)

until stopped by mount.

To tighten or loosen the handle

4-1 Tilting angle adjustment (+5°/-15°)：

Loosen handle and tilting bolt, adjust TV to your desired position,

then tighten handle and tilting bolt.

-15°

+5°

Handle

Loosen

Tighten

Tilting bolts

4-2 TV leveling adjustment (±5°):

Loosen 2 leveling bolts on the rear of TV plate by maximum 2

turns, adjust to level, and retighten to secure.

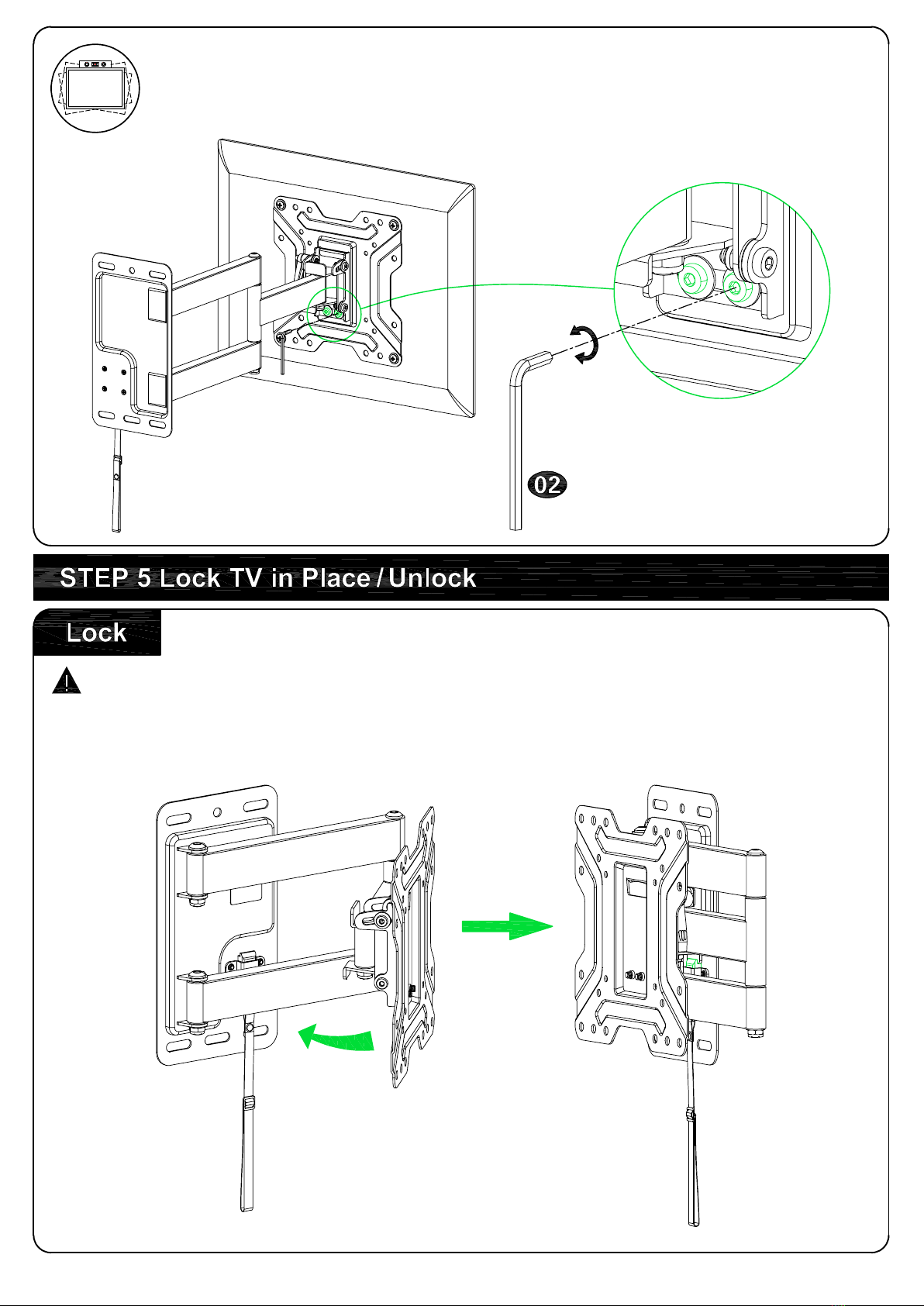

Important ! Make sure to stow the TV and fully lock the mount in place

before your RV moves.

Loosen

Tighten

Push your TV to the wall until you hear the "click" sound.

Stow
