Soundstream DIGI-Q User manual

-1-

Owner's Manual

Congratulation!

You now own the Pre-amplifier, the product of an

uncompromising design and engineering philosophy. Your

Pre-Amplifier Will outperform any other parametric equalizer in the world.

To maximize the performance of your system, we recommend that you thoroughly

acquaint yourself with its capabilites and features. Please retain this manual and

your sales receipt for future reference.

Soundstream Pre-amplifier is the result of American innovation and the highest

quality control standard. When properly installed, they will provide you with many

years of listening pleasure. Should your Pre-Amplifier ever need service or

replacement due to the theft, please record the following information which will help

protect your investment.

Soundstream DIGI-Q

DIGI-Q

Model and Serial #

Dealer’s Name

Date of Purchase

Installation Shop

Installation Date

CAUTION!

Prolonged listening at extremely high levels may result in hearing

loss. Even though your car audio system with your new

Soundstream DIGI-Q Pre-Amplifier sounds better than

anything you’ve ever heard, exercies caution to prevent hearing

damage.

DIGI-Q

65-C0512-MA ： 0A

Model No.: SVX-558D

Using this Digi Q is probably going to be the easiest thing to use in your car.

You can control all the functions of this unit from only one knob of the unit.

This one knob can be pressed or rotated to make raise, lower, select and

move from one function to another.

In idol mode, the unit will display the status of your battery voltage. You can

either press the knob to gain access to the functions, or turn the knob in the

dirrection you want to adjust the volume of the system.

ln idol mode oress the knob toswitch between all the functions, like inputs,

EQ settings, volume, sub-control, etc. Once you reach a point you want to

adjust you turn the knob to select your prefered setting.

So what type of controls do you have on this unit, there are master volume

control, fader, sub-woofer crossover and level, 7 EQ bands, input selection

and frequency counter.

This new breed of equalizer has a ton of possibilities. Use your imagination

to set it the best scenario.

With multi inputs, you can select an audio source from all types of devices

With a little work, you can use the AUX/CD CHANGER input to allow you to

listen to almost any portable MP3 Player, or a second CD/DVD player inthe

car.

Using the volume control in the EQ over the volume control of the main

source unit is more practical. Using the main source unit leaves the output

of the EQ at a high tilt which can cause excessive noise or hiss when you

lower the level of the source unit. You can avoid all that by using the volume

of the EQ instead, besides the EQ offers better S/N and seperation than the

source unit (in most cases).

When applying a second source to the EQ, make sure to level match the two,

this way when you switch from one to the other you won’t have unexpected

clip or the need to change the master volume to accomodate the auxilary

source signal. You can do this with the controls in the EQ. you start by press-

ing the knob of the Digi Q until it reaches the control point for the AUX/CD

CHANGER input and make your adjustments accordingly.

-2- -3-

USING THE DIGI-Q TO ITS WITHOUT FULLEST POTENTIAL USING THE DIGI Q TO ITS FULLEST POTENTIAL

-5-

FRONT PANEL

The subwoofer output is an additional convenience when you

wish to add subwoofers to your audio system to

greatly enrich the bass sound.

It will perform with any unit operating in a 12 volt negative ground

electrical system.

FEATURES

All functions controled by one knob.

Volume Control with up to 5.5 Volts RMS of output.

Seven band equalizer with 10dB boost / Cut.

Low noise BI-FET op-amp design yields minimum

distortion.

Universal Half-DIN chassis for easy of installation.

High grade gold plated RCA jacks.

Subwoofer level control

Subwoofer frequency adjustable(50Hz-550Hz)

Main/Aux (CD/Aux) input selector.

Night illumination design

Function display ( VOLTAGE BAND FADER VOL

SUB VOL SUB FC).

,, ,,

-4-

Digi-Q

Select

Level SUND

STREAM

Volume

7 Band Digital eQ

1. Voltage: No any adjust the LED display input voltage

2. Volume control: when you adjust the menu” you can adjust the

output level.

3. Input selector: you can push the menu when display CD or Aux

you turn the menu” can choose CD/Aux input.

4. Band selector: you can push the menu” when display band-. You

can turn the menu choose the band1 to band 7. Boost 10dB.

5. Sub level control: you can push the menu when the : “Sub

Vol” display. You turn the menu you can choose the sub level

output.

6. Sub frequency control: you can push the menu when display the

: SUBFC you can turn the menu adjust. The SUB frequency

from 50Hz to 550Hz.

“

“” .

“

“”

“” “”

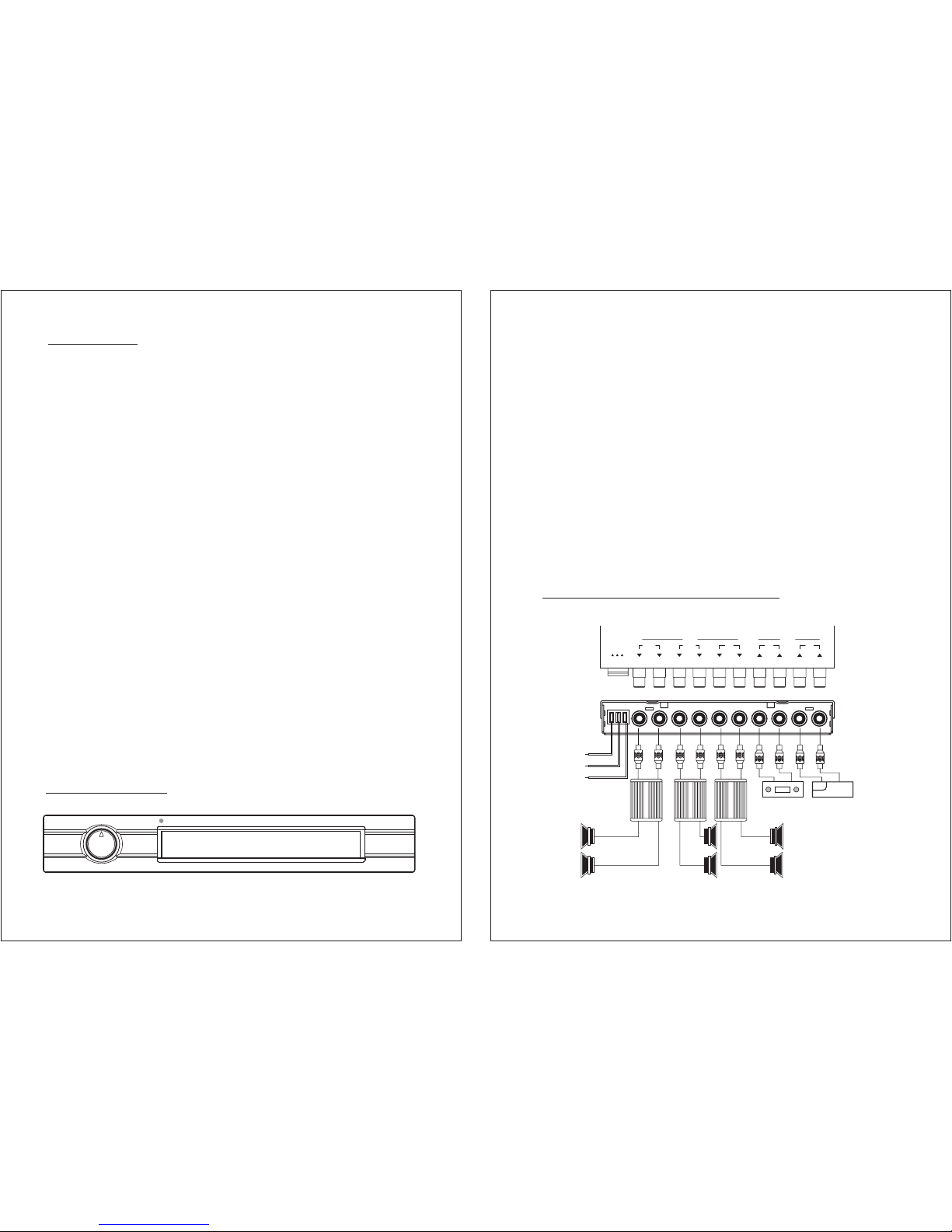

ELECTRICAL INSTALLATION

B+

REM

GND

R L LR

CD AUX FRONT REAR

R L R L LR

SUB

GND

REM

B+

OUTPUT

INTPUT

FRONT

SPEAKER

REAR

SPEAKER

RADIO/CASSETTE

CD CHANGER

SUBWOOFER

SPEAKER

AMP

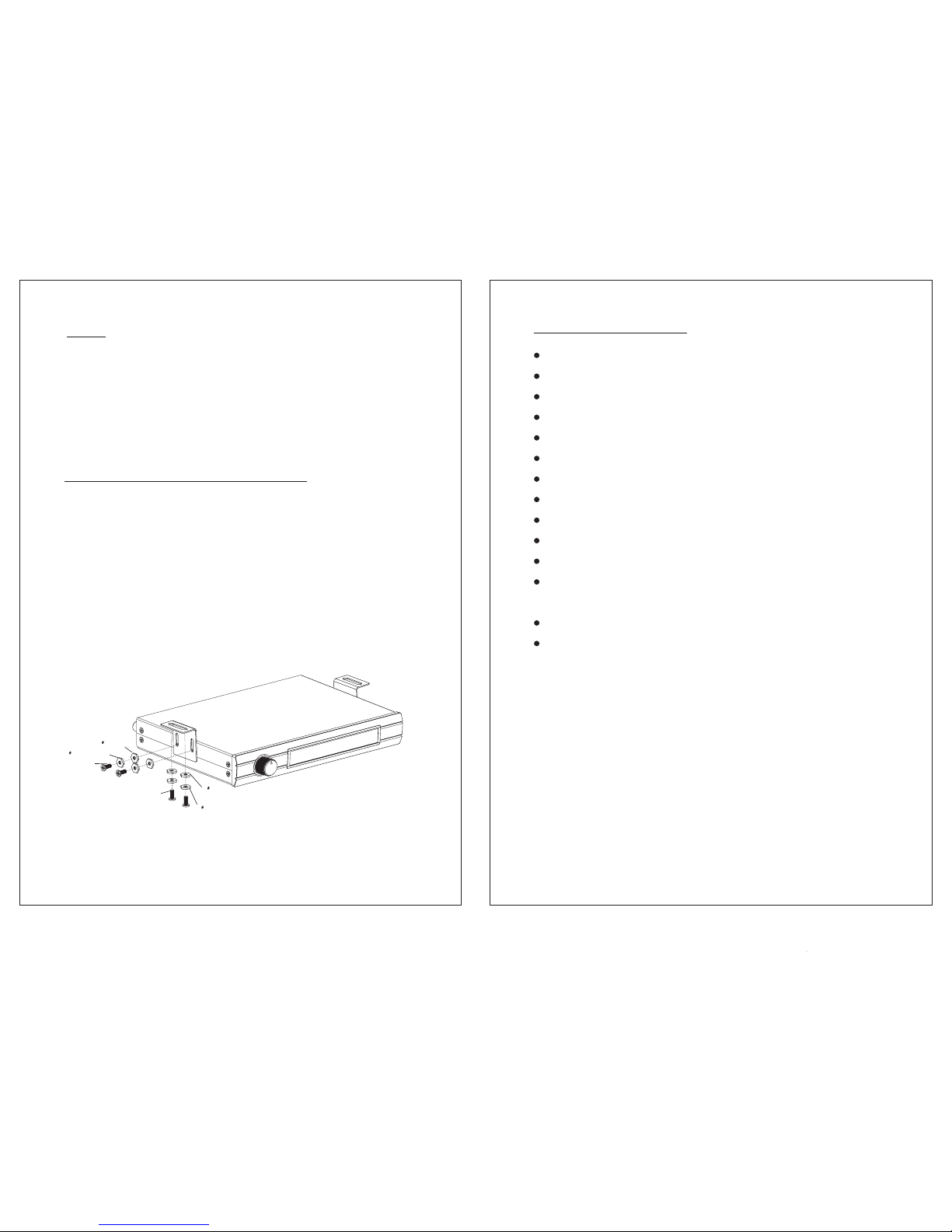

MECHANICAL INSTALLATION

1. Select the location to mount the unit under the dash board.

2. Drill (4) 4.2 mm diameter holes. Fix the mounting bracket

to the location with (4)4x15mmtapping screw. Be

careful when drilling so as not to damage existing

wiring under the dash board.

3. Mount unit to the mounting bracket with (4)3x6mm

machine screws.

-6-

NOTES: Set your source volume at one -half to three quarter .

Always use the volume on the EQ as the master volume control. It has

better electronics, higher S/N ratio and is more linear than any source

unit.

SPECIFICATIONS:

65-C0512-MA

SOUNDSTREAM TECHNOLOGIES

WWW.SOUNDSTREAM.COM

3.0 SPRING WASHER

M3.0x6 MACHINE

SCREW

3.0 WASHER

M4.0x15 TAPPING

SCREW

4.0 SPRING WASHER

4.0 WASHER

-7-

Master Volume, Fader, Subwoofer Level Control

2 Inputs

System Battery Voltage Read Out

7 Band Equalizer

Output Voltage Up to 8 V

Subwoofer Output Voltage Up to 10 V

Frequency Response 15HZ ~ 30KHZ

THD+n (1vrms output) = 0.002%

Input sensitivity = 0.3 ~ 1.5 Vrms

Channel separation = 79db

Battery Voltage Range = 9.5 ~ 14.2VDC

Current Consumption=2ampere

(all outputs maxed)

B/Ccontrolrange=20db(+10to-10db)

Subwoofer Output Frequency Range 180 ~ 550Hz
