Soundoff Signal ETSSLFVBK10 User manual

1.800.338.7337 / www.soundo󰀨signal.com

ETSSLFVBK10 0221

FRAME MOUNT BRACKET (NO DRILL) FOR THE AFTERSHOCK LOW FREQUENCY SPEAKER

2019.5 - 2021 CHEVROLET SILVERADO 1500 (VIN STARTS WITH 1G)

ETSSLFVBK10

NOTICE:

Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.

Improper use or installation may void warranty coverage.

To review our Limited Warranty Statement & Return Policy for this or any SoundO Signal product, visit our website at www.soundosignal.com/tech-services/returns/.

If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).

Questions or comments that do not require immediate attention may be emailed to techservices@soundosignal.com.

ENHANCING SAFETY THROUGH INNOVATION

INSTALLATION:

1. Remove the front grille and shutter assembly to gain

access behind vehicle bumper. Consult a local Chevrolet

service center for best disassembly method. Keep all

hardware.

CONTAINS

QTY COMPONENT

1 Low Frequency Bracket

1 Installation Instruction Sheet

1 Product Warning Card

•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat build-up and

re. Follow crimp connector manufacturer instructions.

•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle Owner’s

Manual for deployment zones.

•Do NOT use system to disconnect headlights, brake lights or other safety equipment.

•Unit may become hot to touch during normal operation.

•Failure to properly install connectors, fuses or wiring may cause vehicle failure or re.

•Installation must only be performed by trained technician. Installer must determine vehicle wiring

conguration and proper integration of system.

•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal or local

chassis ground (-) must be sized to supply at least 125% of max. current and properly fused at power source.

•Install protective grommets when routing wire through rewall or metal.

WARNING

*Speaker and Speaker Hardware Sold Separately

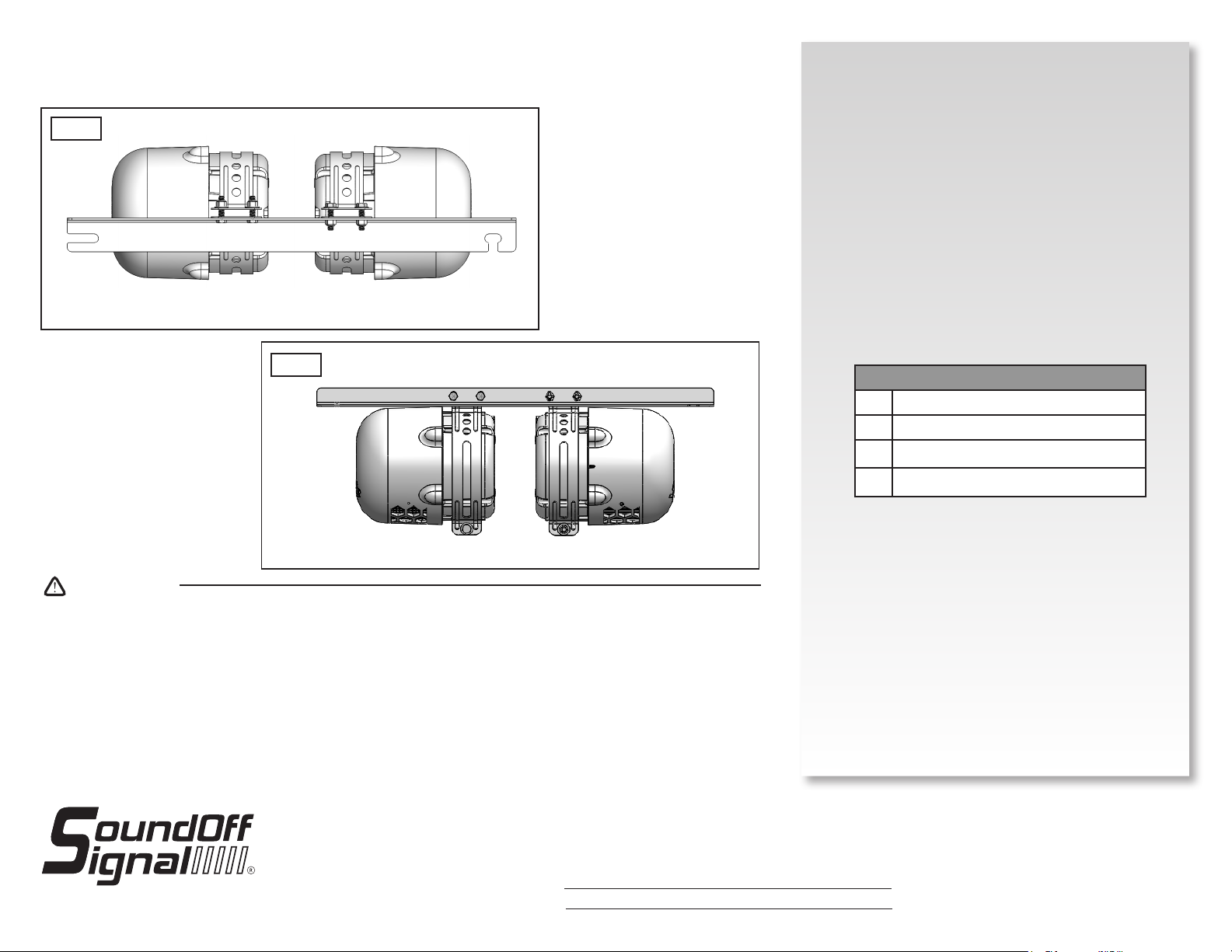

TOP VIEW

FIG. 1

FIG. 2

FRONT VIEW

1.800.338.7337 / www.soundo󰀨signal.com

ETSSLFVBK10 0221

FRAME MOUNT BRACKET (NO DRILL) FOR THE AFTERSHOCK LOW FREQUENCY SPEAKER

2019.5 - 2021 CHEVROLET SILVERADO 1500 (VIN STARTS WITH 1G)

ETSSLFVBK10

NOTICE:

Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.

Improper use or installation may void warranty coverage.

To review our Limited Warranty Statement & Return Policy for this or any SoundO Signal product, visit our website at www.soundosignal.com/tech-services/returns/.

If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).

Questions or comments that do not require immediate attention may be emailed to techservices@soundosignal.com.

ENHANCING SAFETY THROUGH INNOVATION

INSTALLATION (CONT.):

2. Once the vehicle is disassembled loosen the large bolts

on either side of the vehicle behind the bumper, as shown

in Fig. 3, in order to slide the bracket into position.

3. When the bracket is positioned, tighten the preexisting

bolts to manufacturer specications.

4. After the bracket is installed on vehicle, attach the

universal mount bracket to the aftershock speaker(s.)

5. The aftershock speakers(s) and Universal Mount Bracket

are installed from below the vehicle. Position both sides

of the speaker bracket(s) on the back side of the bracket

mounted in the vehicle. Tighten to 15 ft-lb.

6. Connect the wire harness to back of the speaker(s.)

7. Reinstall grille using factory hardware.

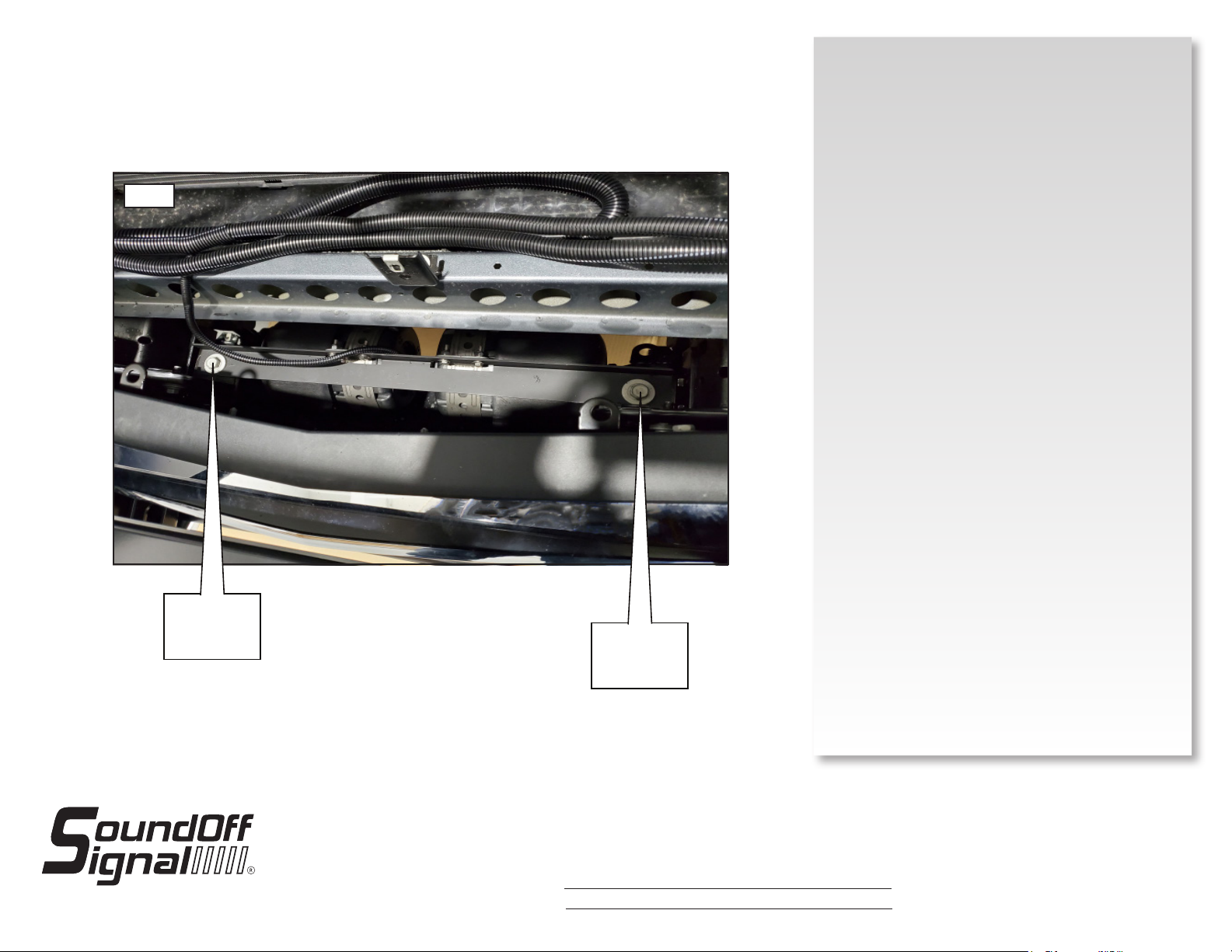

FIG. 3

Passenger Side

bolt to be

removed Driver Side

bolt to be

removed

NOTE: Ensure the speaker grille is pointed

towards the ground and the Universal Mount

Brackets are positioned with the double

mounting holes facing upwards
