SoundMax SM-CDM1036 User manual

SM-CDM1036

CD/MP3/WMA–RECEIVER CD/MP3/WMA-РЕСИВЕР

Instruction manual Руководство по эксплуатации

Dear customer!

Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully

before connecting, operating and/or adjusting the product and keep the manual for reference in the future.

Table of contents

Table of contents............................................................................................................................2

Important safeguards .....................................................................................................................3

Installation/Connections..................................................................................................................4

Panel controls ................................................................................................................................7

General operations .........................................................................................................................9

CD/MP3 operations....................................................................................................................... 10

MP3 overview .............................................................................................................................. 12

Radio operations .......................................................................................................................... 13

Anti-theft system ......................................................................................................................... 17

Handling compact discs................................................................................................................. 18

Cleaning ..................................................................................................................................... 18

Troubleshooting guide................................................................................................................... 19

Specification................................................................................................................................ 20

Important safeguards

• Read carefully through this manual to familiarize yourself with this high-quality sound system.

• Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.

• When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a

higher amperage rating may cause serious damage to the unit.

• DO NOT attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the

eyes.

• Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or

create safety hazards such as electrical shock or laser beam exposure.

• If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car

becomes normal before operating the unit.

• DO NOT open covers and do not repair yourself. Consult the dealer or an experienced technician for

help.

• Make sure you disconnect the power supply and aerial if you will not be using the system for a long

period or during a thunderstorm.

• Make sure you disconnect the power supply if the system appears to be working incorrectly, is making

an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Have a

qualified technician check the system.

• The unit is designed for negative terminal of the battery, which is connected to the vehicle metal.

Please confirm it before installation.

• Do not allow the speaker wires to be shorted together when the unit is switched on. Otherwise it may

overload or burn out the power amplifier.

• Do not install the detachable panel before connecting the wire.

Installation/Connections

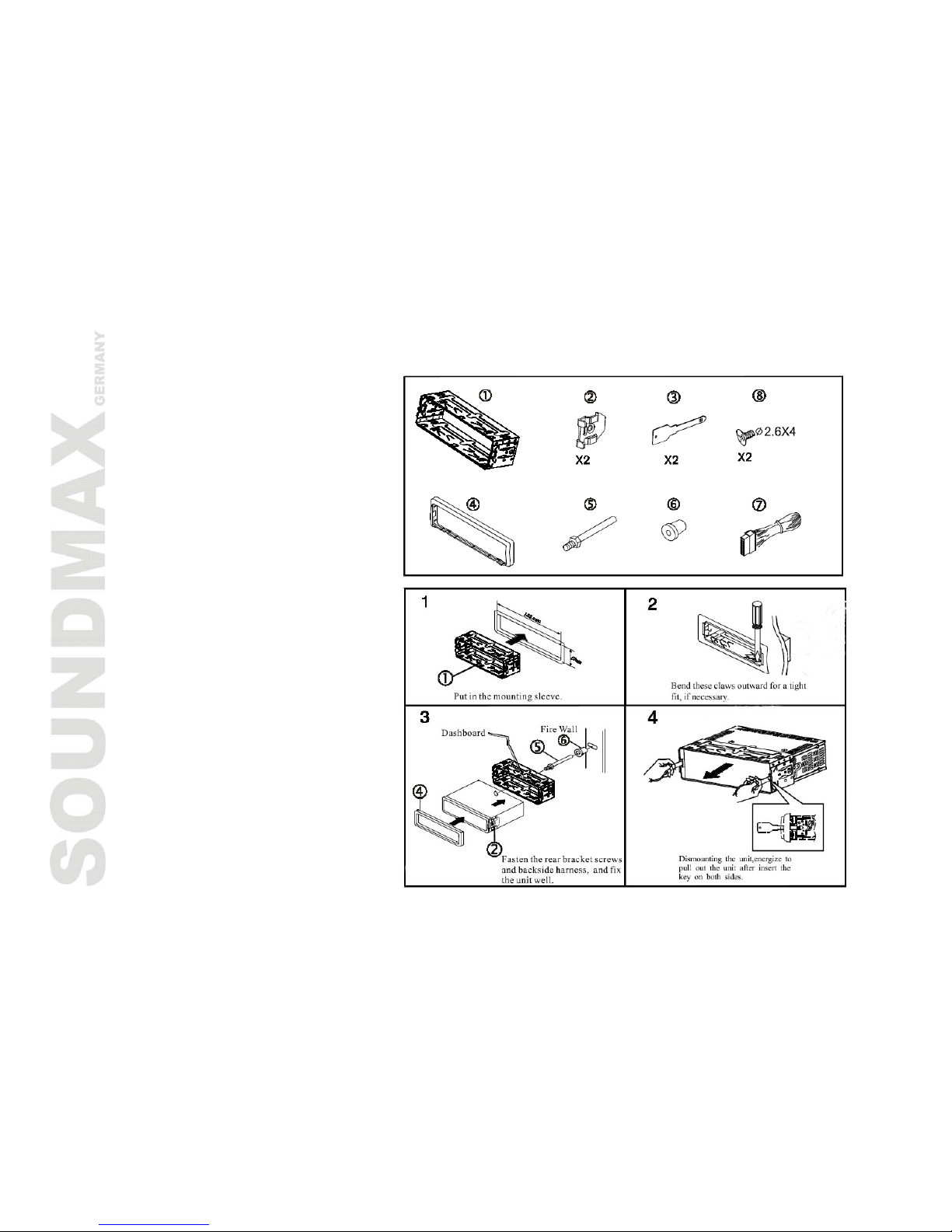

Parts List

Installation method 1

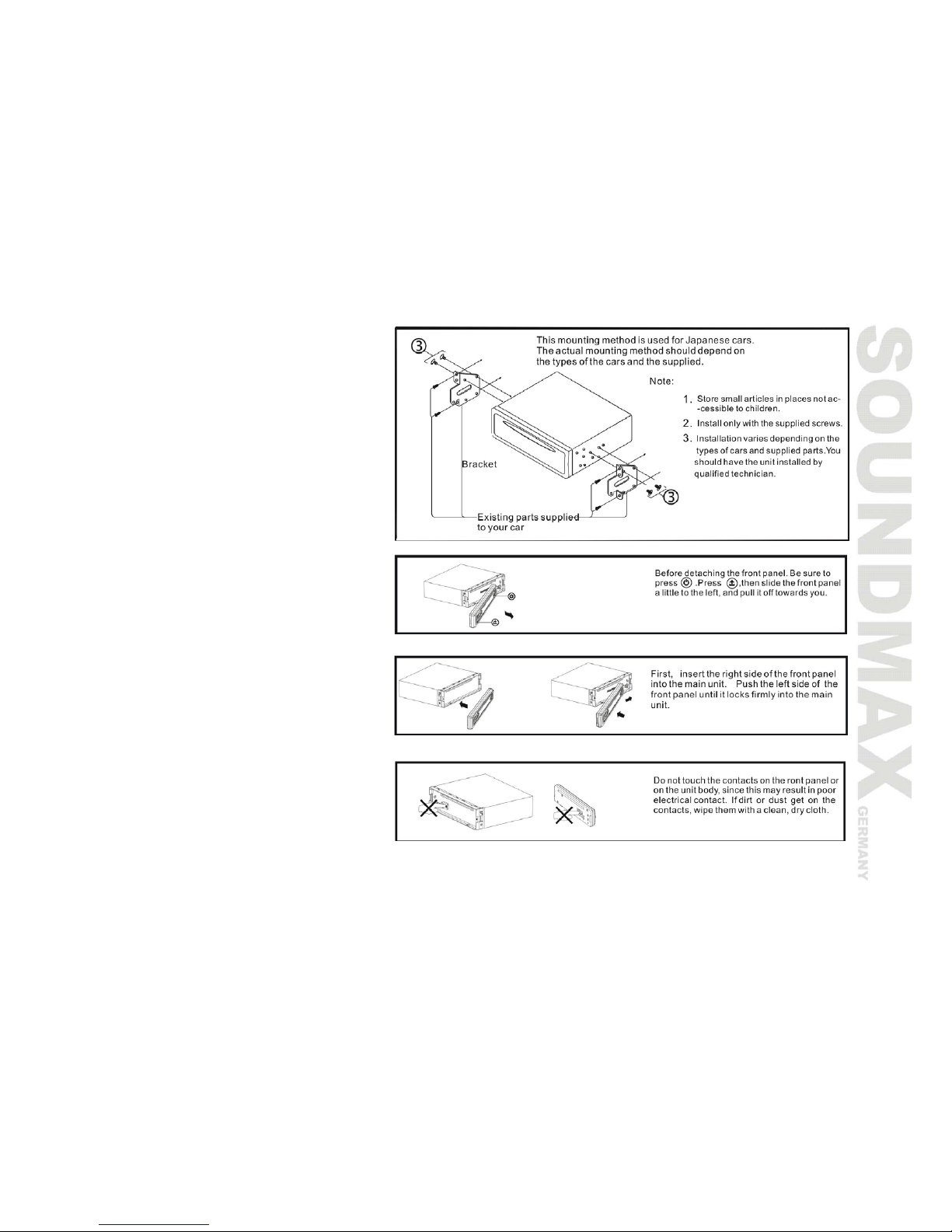

Installation method 2

Detaching the front panel

Replacing the front panel

Precautions

Connection diagram

1. Replaceable antenna 5. Output socket (male)

2. Line out (R) 6. Output socket (female)

3. Line out (L) 7. Fuse holder (15A, 0.5A)

4. Screw holes

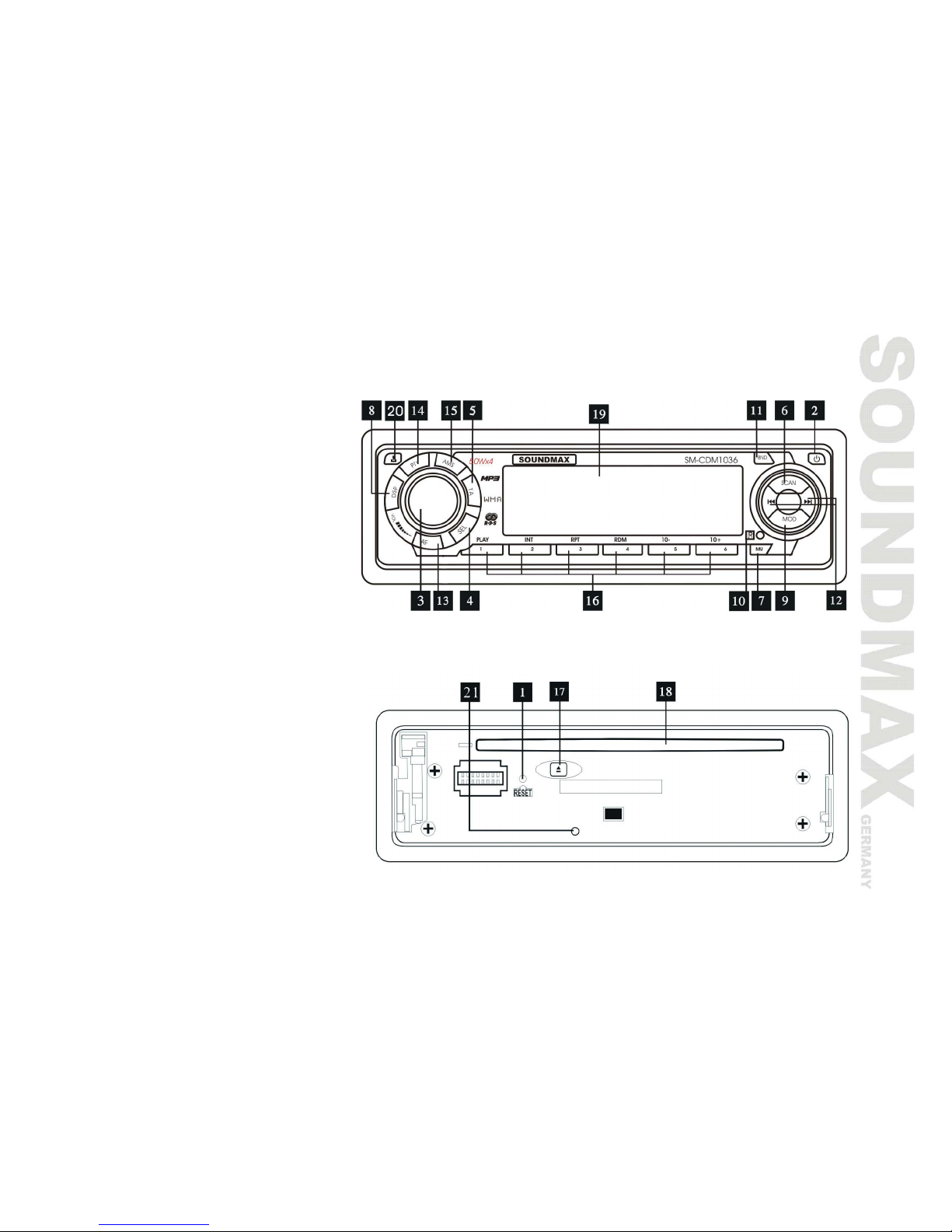

Panel controls

Front panel

1. RESET button

2. POWER button

3. VOL knob (volume)

4. SEL button

5. TA button

6. SCAN button

7. MU button (mute)

8. DSP button

9. MOD button (mode)

10. Infra red sensor

11. BND button (band)

12. /buttons

13. AF button

14. PTY button

15. AMS button Inner panel

16. Number buttons

17. EJECT button

18. Disk slot

19. LCD display

20. RELEASE button

21. LED indicator

Remote control

1. POWER button

2. MUTE button

3. SCAN button

4. VOL+/VOL- buttons

5. RDM button

6. ST/AF button

7. D-DN/D-UP buttons

8. /buttons

9. AMS button

10. LOC/DX/PTY button

11. BAND button

12. PLAY/PAUSE button

13. SEL button

14. RPT button

15. MOD button

16. LOUD/TA button

17. INT button

18. DISP button

Installing the Battery

1. Pull out the battery holder while pressing the stopper 1.

2. Put the button-type battery (+) mark upward into the battery holder.

3. Insert the battery holder into the remote control.

General operations

Reset the unit

Operating the unit for the first time or after replacing the car battery, you must reset the unit.

Press RELEASE button, then press the RESET button to restore the unit to the original factory settings.

Power button

Press the POWER button to switch the unit on. Press it and hold for 2 seconds to turn the unit off.

Note: After the unit is off, volume level and radio current settings will be memorized, and when you turn

the unit on it will resume the stored status you set.

Volume control

Rotate VOL knob clockwise or VOL+/VOL- buttons to increase the volume level; rotate anticlockwise to

decrease the volume level.

Audio settings adjustment

Press SEL button shortly and repeatedly to select the mode: VOL => BAS => TRE => BAL => FAD. Rotate

the VOL knob to adjust each mode.

Mode selection

Press the MOD button to select the mode: TUNER => DISC.

Mute function

Press the MU button to turn off the sound. Press again to resume.

Clock setting

Press the DISP button on the RC or DSP button on the unit until the clock is shown. Then press and hold

this button, the clock starts blinking. Rotate the knob clockwise to adjust hours and anticlockwise to adjust

minutes.

CD/MP3 operations

Discs for playback

This unit can play disc types: CD/CD-R/-RW. Compatible with formats: CDDA/MP3/WMA.

Loading/eject a disc

• Press the RELEASE button on the panel. Insert the disc with the printed side facing upward into the slot.

• Press EJECT button on the inner side to eject the disc.

Playing/pausing playback

• Press PLAY/PAUSE button on the RC or PLAY button on the unit to start playback.

• Press PLAY/PAUSE button on the RC or PLAY button on the unit to pause the playback. Press again to

resume.

Playing the previous/next track

During playback press the /buttons to play the previous/next track.

Choosing 10+, 10- track

Press 10+,10- buttons on the unit or D-DN, D-UP buttons on the RC to jump over 10 tracks. Every 10th

track will play.

For example if you press this button three times, the order of the playing tracks will be as follows:

1=>11=>21=>31.

Fast forward and backward playback

Press and hold the /buttons to hasten the playing in backward or forward direction. Release the button

when the desired location is found.

Repeat playback

During disc playback, press the RPT button shortly to repeat the current track playback. Press again to

cancel.

Random playback

During disc playback, press the RDM button to start random playback of the tracks. Press again to cancel.
