Sound Sation Lightblaster 616 LED User manual

WARNING

PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liechtenstein) only

This symbol indicates that this product is not to be disposed of with your household

waste, according to the WEEE Directive ( 2202/96/EC) and your national law.

This product should be handed over to a designated collection point, e.g., on an

authorized one-for-one basis when you buy a new similar product or to an authorized

collection site for recycling waste electrical and electronic equipment (WEEE) .

Improper handling of this type of waste could have a possible negative impact on the

environment and human health due to potentially hazardous substances that are

generally associated with EEE. At the same time , your cooperation in the correct

disposal of this product will contribute to the effective usage of natural resources.

For more information about where you can drop off your waste equipment for

recycling , please contact your local city office , waste authority , approved WEEE

scheme or your household waste disposal service.

Contents and images shown on this manual can be changed without any notice.

Please visit our website www.soundsationmusic.com to check latest version.

DESIGNED IN ITALY BY

SOUNDSATION®

All the Trademarks are property of their respective owners

SOUNDSATION® is a registered trademark of

FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati – Italy

manual by any other company or person without express authorization of

SOUNDSATION is strictly forbidden.

LIGHTBLASTER 616 LED

USER MANUAL

PRO-LIGHTING

Dear customer，

first of all, thanks for purchasing a SOUNDSATION® product. Our

mission is to satisfy all the possible needs of musical instrument

and professional audio users offering a wide range of products

using the latest technologies for a reasonable price.

We hope you will be satisfied with this item and, if you want to

collaborate, we are looking for a feedback from you about the

operation of the product and for possible improvements to

introduce in the next future. Go to our website

www.soundsationmusic.com and send an e-mail with your opinion,

this will help us to build instruments ever closer to customer’s real

requirements.

One last thing: read this manual before using the instrument, an

incorrect operation can cause damages to you and to the unit. Take

care!

The SOUNDSATION Team

All SOUNDSATION products feature a limited two-year

warranty. This two-year warranty is specific to the date of

purchase as shown on your purchase receipt.

The following cases/components are not covered from the

above warranty :

Any accessories supplied with the product

Improper use

Fault due to wear and tear

Any modification of the product effected by the user or a third

party

SOUNDSATION shall satisfy the warranty obligations by

remedying any material or manufacturing faults free of charge at

SOUNDSATION’s discretion either by repair or by exchanging

individual parts or the entire appliance. Any defective parts

removed from a product during the course of a warranty claim

shall become the property of SOUNDSATION

While under warranty period, defective products may be returned to

your local SOUNDSATION dealer together with original proof of

purchase. To avoid any damages in transit, please use the original

packaging if available. Alternatively you can send the product to

SOUNDSATION SERVICE CENTER – Via Enzo Ferrari , 10 – 62017

Porto Recanati - Italy . In order to send a product to service center you

need an RMA number. Shipping charges have to be covered by the

owner of the product.

For further information please visit www.soundsationmusic

WA R R A N T Y & S E R V I C E

Specification

LED source specification

Led source: 616*0.5W (warm white 3200K/pure white 6500K/cool whie 7500K)

Beam Angle： 110°

Control specification

Strobe: 0~30Hz

Dimmer : 1 standard +4 kinds of dimmer methods

Channel：9/7/2CH（switchable）

Control Mode：DMX512/Manual/Master-Slave/Sound active

Cooling way: 1pcs temperature detect fan

Over heat protection:

When temperature up to 80°C, power consumption reduce to 50%; when temp.

down to 65°C,will recover full power consumption to be 100% .

Noise:

Fan speed automatically adjust according machine temperature. The maximum

noise is 43.3dB(1m distance)

Working Specification

Voltage：AC110V-240V

Frequency：50/60Hz

Machine Power：300W

Machine Specification

Display:LED Display

DMX: 3 pin or 5 pin

4 barn-door: movable

IP: IP20

Net weight:4.5kg

Size:43*22*8.4 cm

If any foreign objects enter the instrument, please contact

your dealer or an authorized SOUNDSATION center.

The serial number, electrical features and international

standards are printed on a label located in the bottom

of the instrument.

In case of problems remember to give the serial number

to the responsible of the technical assistance.

GENERAL WA R N I N G S

To prevent possible dam ages read the followin g list of actions:

- Do not place the product in wet or dirty environments.

- Do not remove the protective coverings.

-Do not cover any of the productss ventilation holes.

- Air must circulate freely around the product.

- Do not set the product on a surface with excessive vibration.

- Do not expose the product to high electro-magnetic

interference.

- Do not expose the product to heat, cold, wet in improper way

in respect to its IP grade

- Do not leave the product in direct sunlight.

- Do not expose the product to electrostatic forces.

- Do not place items with flames, such as candles or lighters, on

the product.

- Do not place the product on anything containing water or

other fluids.

Contents

Section 1.Getting Started

² Unpacking

² Safety Instruction

Section 2. Set Up

² Installation

² Controlling Board

² Machine Connection

Section 3. troubleshooting

² Troubleshooting

Section 4. Reference

² Control Menu

² DMX Protocol

² Dimmer Curve

² Specification

Section 1.Getting Started

² Unpacking

² Safety Instruction

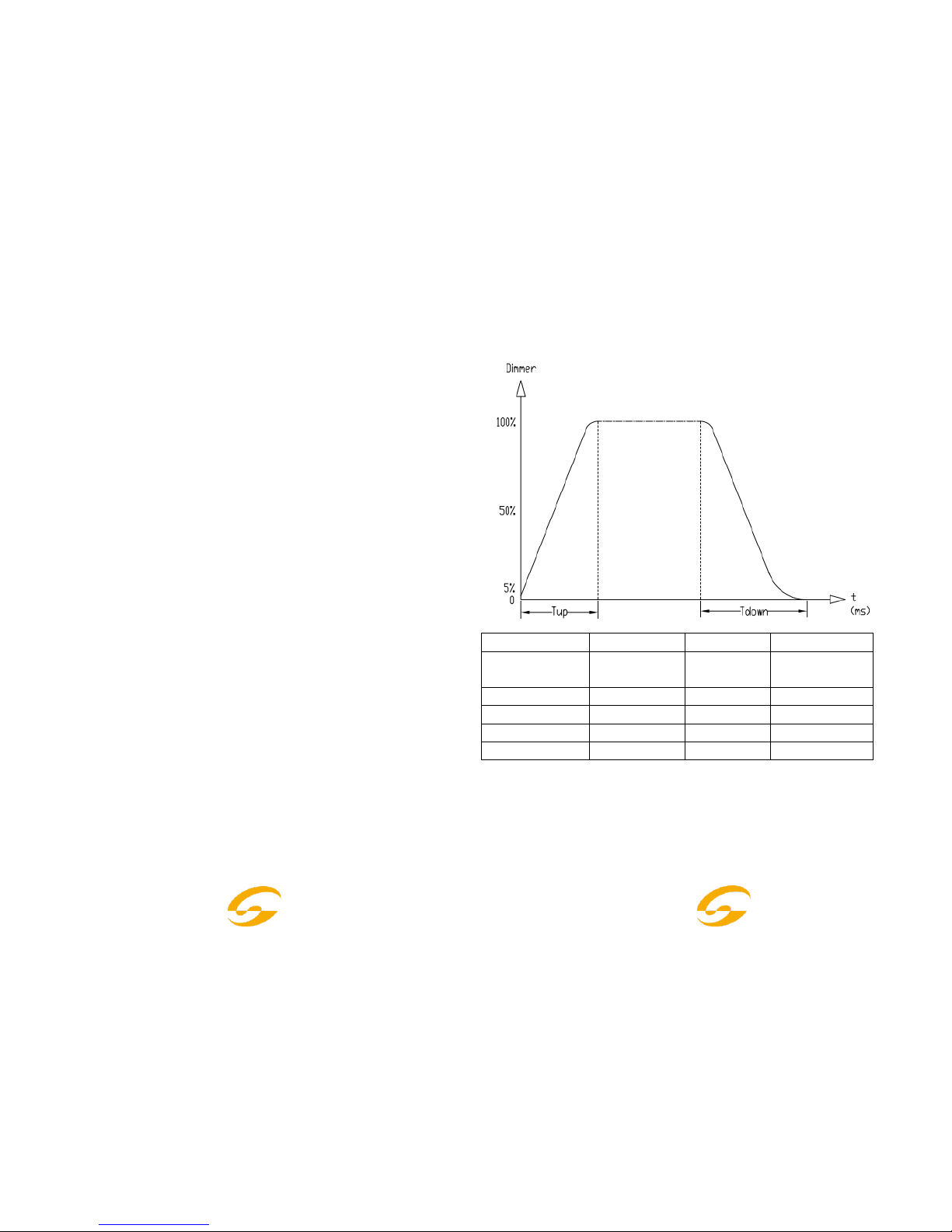

Dimmer Curves

：

Ramp Effect

Tup(ms)

Tdown(ms)

Standard Dimmer

Curve

dr-0

Dimmer Curve 1

dr-1

980

1010

Dimmer Curve 2

dr-2

1210

1320

Dimmer Curve 3

dr-3

1600

1710

Dimmer Curve 4

dr-4

1850

1980

7CH：

Function

Specification

CH1

DIMMER

0-255：dimmer linear adjustment，from dark to bright。

CH2

W1dimmer

0-255：W1 linear adjustment，from dark to bright

CH3

W2dimmer

0-255：W2 linear adjustment，from dark to bright

CH4

W3dimmer

0-255：W3 linear adjustment，from dark to bright

CH5

W4dimmer

0-255：W4 linear adjustment，from dark to bright

CH6

Strobe

0-5：no use 6-55 ：random strobe 56-105：pulse strobe

106-155：average strobe 156-205：thunder strobe 206-255：

standard strobe

CH7

Dimmer

mode/Macro

function

0-20：standard dimmer；21-40 dimmer curve 1;41-60： dimmer

curve 2;61-80： dimmer curve 3;81-100: dimmer curve 4；

101-149:no use ;150-155(stay 3 sec):half power when high

temperature function OFF;106-199: no use;200-205(stay 3

sec):half power when high temperature function ON; 206-255

no use

2CH：

Function

Specification

CH1

W dimmer

0-255：white linear adjustment，from dark to bright

CH2

Strobe

0-5：no use 6-55：random strobe 56-105：pulse strobe 106-155：

average strobe 156-205：thunder strobe 206-255：standard

strobe

Unpacking

1pc Fixture

1pc User Manual

Thanks for choosing our LED strobe serial products. Carefully unpack the box and

check the contents to ensure that all parts are present and in good conditions. If

anything damaged in transit, notify the shipper immediately and keep the packing

material for inspection. Again, please save the carton and all packing materials. If a

fixture must be returned to manufacturer, it is important that the fixture be returned in

the original manufacturer box and packing.

Safety

Instruction

Please conserve this manual as operation guidance. If you sell this product to other

user, please make sure that they also receive this user manual.

" Always make sure that you are connecting to the proper voltage and that the line

voltage you are connecting to is not higher than that stated on the decal or rear

panel of the fixture.

" If the fixture is intended to indoor use only. To prevent risk of fire or shock, do not

expose fixture to rain or moisture. Make sure there are no flammable, explosive or

corrosive materials surrounded in 10 meters while operating.

" The unit must be installed in a location with adequate ventilation, at least 5 m away

from adjacent surfaces. Be sure that no ventilation slots are blocked.

" Some fixture may carry high heat, do not aim at objective more than 2 minutes.

" Safe rope should be used to install machine. Bearing of safe rope should be more

than 3 times of the machine weight. Complimentary signal cable transmits signals

to 20 unit fixtures at most. Signal amplifier is a must to connect more fixtures. And a

terminal should be added at the end of last fixtures’ DMX sockets, 120 Ohm, 1/4W

resistance need welding between Pin 2 and Pin 3.

For your safe, please read this user manual carefully before turn on

the fixture. This machine should be operated by qualified engineer！

" Always disconnect from the power source before servicing or replacing fuse/lamp

and be sure to replace with same fuse/lamp size and type. Cut off power before

moving, repairing and cleaning the machine.

" To avoid electric shock, all fixtures must be connected to circuits with a suitable

earth connection.

" Always secure fixture using a safety chain and carrying handles.

" Do not operate at ambient temperatures higher than 104℉(40℃).

" The power cable for this fixture is 1 ㎡， please mind the safety requirements in

actual using, if any wrong operation, our company takes no responsibility for any

loss. Also, make sure the power cord is never crimped or damaged.

" In case of failure or mis-function occurred, stop using immediately. Never try to

repair the fixture by yourself. Repairs carried out by unskilled people can lead to

damage or malfunction. Please contact the nearest authorized technical assistance

center. Buy the same spare parts/components from manufacturer directly.

" Avoid direct eye exposure to the light source while it is on.

" Do not power on and power off the fixture frequently

" When use DMX controller, please make sure that there is no interference

sources(e.g. intercom, high frequency radio waves and radiation source)

Caution! There are no user serviceable parts inside the unit. Do not open the

housing or attempt any repairs yourself. In the unlikely event your unit may require

service, please contact your local distribution or after-sale service center.

Section 2. Set Up

² Installation

² Controlling Board

² Machine connection

Installation

l This machine should be mounted through the screw holes of truss. Safety rope

is a must to fix fixture well. Make sure truss and safety rope have strong load

capacity to bear more than 3 times of machine weight .

l This machine should be installed by qualified technician.

DMX protocol

9CH：

Function

Specification

CH1

DIMMER

0-255：dimmer linear adjustment，from dark to bright。

CH2

W1dimmer

0-255：W1 linear adjustment，from dark to bright

CH3

W2dimmer

0-255：W2 linear adjustment，from dark to bright

CH4

W3dimmer

0-255：W3 linear adjustment，from dark to bright

CH5

W4dimmer

0-255：W4 linear adjustment，from dark to bright

CH6

Strobe

0-5 ：no use 6-55 ：random strobe 56-105 ：pulse strobe

106-155：average strobe 156-205：thunder strobe 206-255：

standard strobe

CH7

Auto/voice-

control

0-10：no use ；11-40：fade 1；41-70：fade 2；71-100：fade 3；

101-130：pulse change 1；131-160：pulse change 2；161-190：

pulse change 2；191-220：strobe by voice control；221-255：

pulse change by voice control.

CH8

Auto speed

0-255：adjustment of speed of Auto and voice-control, from slow

to fast。

CH9

Dimmer

mode/Macr

o function

0-20：standard dimmer；21-40 dimmer curve 1;41-60： dimmer

curve 2;61-80： dimmer curve 3;81-100: dimmer curve 4；

101-149:no use ;150-155(stay 3 sec):half power when high

temperature function OFF;106-199: no use;200-205(stay 3

sec):half power when high temperature function ON; 206-255 no

use

Section 4. Reference

² Control Menu

² DMX Protocol

² Dimmer Curve

² Specification

Control Menu

No.

Function

D9--

DMX 9 channel control(need connecting controller)

D.7--

DMX 7 channel control(need connecting controller)

A2--

DMX 2 channel control(need connecting controller)

n---

n000 to n255：white from dark to bright

F---

F000 to F255：strobe，from slow to fast

C---

C000 to C255：fade，from slow to fast。

J---

J000 to J255：pulse change，from slow to fast

S---

S000 to S255：voice-control speed，from slow to fast

T---

half power when high temperature function ON，half power when

high temperature function OFF.（non business of fan）； When

temperature up to 80°C, power consumption reduce to 50%; when

temp. down to 65°C,will recover full power consumption to be

100% .

dr--

dr-0：standard dimmer；dr-1：dimmer curve 1；dr-2：dimmer

curve2；dr-3：dimmer curve 3；dr-4：dimmer curve 4；

Controlling Board

MENU UP DOWN ENTER

Front display panel

1. LED Display Panel

2. Buttons

Switch menu function

Scroll upwards

DOWN

Scroll downwards

ENTER

Confirm by pressing ENTER

3. DMX Signal Input

3 PIN XRL port for DMX512 signal input ( daisy chain);

4. DMX signal output

3 PIN XRL Port for DMX512 signal output ( daisy chain);

5. Power Input

AC power cable port input

6. Fuse

7. On/Off Switch

Cable Connectors

Cables must have a male XLR connector on one end and a female XLR connector on the other

end.

A word on termination: DMX is a resilient communication protocol, however errors still

occasionally occur. Termination reduces signal errors, and therefore best practices include use

of a terminator in all circumstances. If you are experiencing problems with erratic fixture

behavior, especially over long signal cable runs, a terminator may help improve performance.

To b uil d y ou r own DM X Te rm in ato r: Obtain a 120-ohm, 1/4-watt resistor, and wire it between

pins 2&3 of the last fixture. They are also readily available from specialty retailers.

Master and slave: select one machine as master, press the menu to choose the

function you want. Press other machines’ address to be DMX state. Use signal

cable to connect machines one by one. Then slave machines will run the same

as master machine.

Use controller to control lot of machines: if all machines are set the same menu

data, or different manual data, after use signal cable to connect to controller, all

machines will be controlled by controller. (before connect to controller, all

machines should be in the same channel mode 9 CH,7 CH or 2 CH).

Section 3. Troubleshooting

Problem

Probable Cause(s)

Remedy

No response from

fixture when power

is applies

No power to fixture

Check power cables

Primary fuse blown

Replace fuse

Secondary fuse

blown

Replace fuse

Fixture resets but

does not respond

correctly to

controller(DMX

mode operation)

Controller not

connected

Connect controller

Incorrect

addressing of the

fixtures

Check address setting on fixture and controller

Bad data link

connection

Inspect cables and correct poor connections

and/or broken cables.

Conflict between

tracking and vector

control

Eliminate scene cross-fade on controller

Data link not

terminated

Insert termination plug in output of last fixture

Defective fixture or

2 devices

transmitting on link

Bypass fixtures one at a time until normal

operation is regained: unplug both connectors

and connect them directly together

Colors cannot be

mixed

Random color

mixing is on

Turn off random color mixing

Fixture does not

reset correctly

Electronic or

mechanical failure

Contact service technician

No light, lamp cuts

out intermittently, or

burns out too

quickly

Lamp missing or

blown

Disconnect fixture and replace lamp

Fixture or lamp is

too hot

Allow fixture to cool. If problem persists,

contact service technician

Table of contents

Other Sound Sation Dj Equipment manuals

Sound Sation

Sound Sation LED-STR864 User manual

Sound Sation

Sound Sation PAR-10W-5-B/BW User manual

Sound Sation

Sound Sation Sestetto 1007 Slim User manual

Sound Sation

Sound Sation OMEGA-300 RGB User manual

Sound Sation

Sound Sation MHL-12W-36Z-RGBWAPV Instruction sheet

Sound Sation

Sound Sation MHL-350BS Instruction sheet

Sound Sation

Sound Sation MBL-5-18W-6in1 User manual

Sound Sation

Sound Sation BAR-18-12W-IP65 User manual

Sound Sation

Sound Sation OMEGA-330 TEXT User manual

Sound Sation

Sound Sation Lightblaster 3000 DMX User manual

Sound Sation

Sound Sation CEL-5318-RG User manual

Sound Sation

Sound Sation Zephiro 600 Snow User manual

Sound Sation

Sound Sation SESTETTO 1012 SLIM SILENT User manual

Sound Sation

Sound Sation BEAM-ARC5-10W User manual

Sound Sation

Sound Sation SCENEMAKER 2416 User manual

Sound Sation

Sound Sation LIGHTBLASTER 616 RGB User manual

Sound Sation

Sound Sation MHL-10W-36-RGBW User manual

Sound Sation

Sound Sation Spire XL 440 User manual

Sound Sation

Sound Sation MHL-12-12W-RGBW User manual

Sound Sation

Sound Sation Lightblaster 1500 DMX User manual

Sound Sation

Sound Sation 4LEDKIT-PRO User manual

Sound Sation

Sound Sation CB-630 User manual

Sound Sation

Sound Sation BEAM-988-10W-6 User manual

Sound Sation

Sound Sation PAR-5-18W-IP65 User manual

Popular Dj Equipment manuals by other brands

ALPHA LITE

ALPHA LITE ALPHA 1500 User manual book

Chauvet

Chauvet OVATION E-930VW Quick reference guide

Zumtobel

Zumtobel APHRODITE Home Instructions for use

Snow Masters

Snow Masters Zig Oscillator user manual

EuroLite

EuroLite 50530554 user manual

Beamz

Beamz BUV243 user manual

thomann

thomann Stairville DJ Lase 40-G MK-III user manual

Eagletone

Eagletone 6 Eyes Flower user manual

EuroLite

EuroLite FLD-1508 user manual

Technical Pro

Technical Pro LG8xSEA user manual

JB Systems

JB Systems Lounge Laser DMX Operation manual

Lightmaxx

Lightmaxx Vega Halo 90 user manual

Elation

Elation FUZE WASH Z350 user manual

Maverick

Maverick MK3 WASH Quick reference guide

Infinity

Infinity TF-260C7 Fresnel manual

Chauvet

Chauvet EVE E-50Z Quick reference guide

Eliminator Lighting

Eliminator Lighting E 138 manual

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC user manual
