3-859-325-11(1)

1997 by Sony Corporation

SLV-7000K CH/PS

Operating Instructions

Video CD Player/

Video Cassette

Player

PAL NTSC

Introduction

WARNING

To prevent fire or shock hazard, do not expose

the unit to rain or moisture.

To avoid electrical shock, do not open the

cabinet. Refer servicing to qualified personnel

only.

Laser component in this product is capable

of emitting radiation exceeding the limit for

Class 1.

This appliance is classified as a CLASS 1

LASER product. The CLASS 1 LASER

PRODUCT MARKING is located on the rear

exterior.

The following caution label is located inside of

the unit.

Caution

Television programmes, films, video tapes, and

other materials may be copyrighted.

Unauthorized recording of such material may

be contrary to the provisions of the copyright

laws. Also, use of this recorder with cable

television transmission may require

authorization from the cable television

transmitter and/or programme owner.

Compatible colour systems

This player is designed to record and play back

using the PAL (B/G and D/K), MESECAM (B/

G and D/K), and NTSC colour systems.

Recording of video sources based on other

colour systems cannot be guaranteed.

Welcome!

Thank you for purchasing the Sony Video CD

Player / Video Cassette Player. Before

operating the unit, please read this manual

thoroughly and retain it for future reference.

Introduction 3

Table of contents

Getting Started

4Step 1: Unpacking

5Step 2: Setting up the remote commander

6Step 3: Connecting

8Step 4: Tuning your TV to this player

10 Step 5: Selecting a language

Getting Started

Basic Operations - VHS part

11 Playing a tape

Basic Operations - VCD part

15 The VCD part of this player can

play the various discs

16 Playing a VIDEO CD/Audio CD

19 Using the display window

Basic Operations - Karaoke

function

22 Before you start karaoke

23 Karaoke sing-along

25 Displaying the karaoke

information

Enjoying Playback and

Recording a Tape

26 Playing/searching at various

speeds

28 Recording TV programmes

30 Editing with another VCR

33 Searching with the index function

34 Adjusting the picture

35 Changing menu options

36 Audio dubbing

Enjoying Playback of a

VIDEO CD/Audio CD

39 Locating scenes directly using the

scene numbers (Scene Search)

41 Resuming playback from the

point you stopped a VIDEO CD

(Resume Play)

42 Locating a particular point in a

scene or track

45 Playing repeatedly

47 Playing in random order (Shuffle

Play)

48 Creating your own programme

(Programme Play)

51 Playing a VIDEO CD with PBC

functions (PBC Playback)

53 Switching the sound

Enjoying Karaoke Sing-

along

54 Programming the order of the

songs

56 Using the various functions

60 Recording your karaoke singing

Additional Information

61 Precautions

62 Troubleshooting

64 Specifications

65 Index to parts and controls

Back cover

Index

Getting Started

• Remote commander

• R6 (Size AA) batteries

• Aerial cable

• Audio/video cable (3-phono to 3-

phono)

Getting Started

Step 1

Unpacking

Check that you have received the following items with this player

• Mains lead

• Microphone

• Plug adaptor (SLV-7000K CH only)

Checking your model name

The instructions in this manual are for the 2 models : SLV-7000K CH,

7000K PS. Check your model number by looking at the rear panel of

your unit. The SLV-7000K CH is the model used for illustration

purposes. Any difference in operation is clearly indicated in the text,

for example, “SLV-7000K CH only.”

Getting Started 5

Getting Started

Remote sensor

TV / VCD/VHS

Step 2

Setting up the remote commander

Inserting the batteries

Insert two R6 (size AA) batteries

by matching the + and – on the

batteries to the diagram inside the

battery compartment.

Using the remote

commander

You can use this remote

commander to operate this

player and a Sony TV. Buttons

on the remote commander

marked with a dot (•) can be

used to operate your Sony TV.

To operate

VCD/VHS

a Sony TV

Set TV / VCD/VHS to

VCD/VHS and point at the remote sensor on this player

TV and point at the remote sensor on the TV

Notes

• The TV/VIDEO button selects an input source of the TV from aerial in or line in.

The button does not control this player.

• With normal use, the batteries should last about three to six months.

• If you do not use the remote commander for an extended period of time, remove

the batteries to avoid possible damage from battery leakage.

• Do not use a new battery with an old one.

• Do not use different types of batteries.

Getting Started

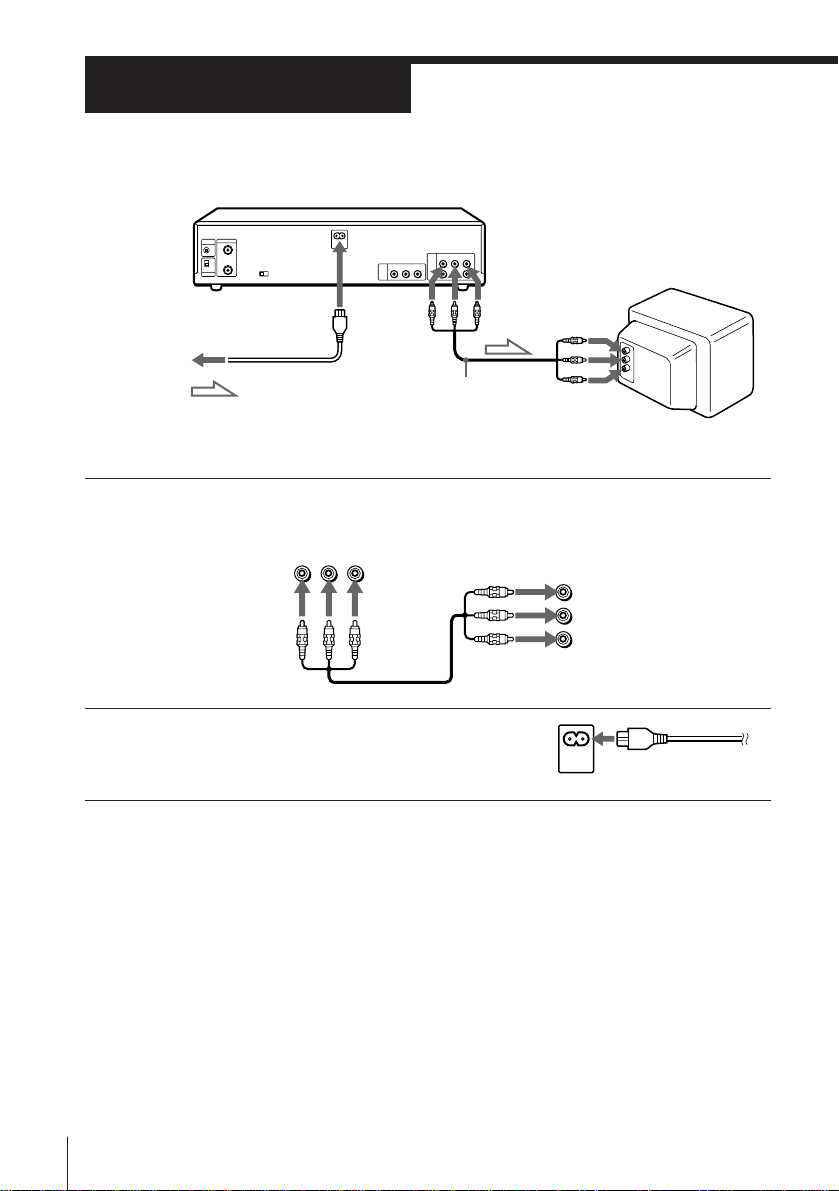

R_AUDIO_L VIDEO

LINE

-1 OUT IN

VIDEO

AUDIO

Step 3

Connecting

to mains

LINE IN

Audio/video cable

LINE OUT

AC IN

: Signal flow

1Connect LINE-1 OUT of this unit and the LINE IN of your TV using

the supplied audio/video cable.

2Connect AC IN of the unit to the mains

using the supplied mains lead.

Getting Started 7

Getting Started

Additional connections

To a TV that does not have phono

type audio/video input jacks

Connect the TV as shown on the

right.

To a stereo system

When you enjoy a VCD and an audio CD,

you can improve sound quality by

connecting a stereo system as shown on the

right.

TV Aerial cable

This unit Stereo system

Audio cable (not supplied)

AERIAL IN

OUT

Video cable (not supplied)

LINE

-1 OUT

Video CD

DIRECT

OUT

AUX IN

R-AUDIO-L VIDEO

IN VIDEO

Getting Started

1Press ON/STANDBY to turn on this player..

2Press INPUT SELECT 1 (or press VHS INPUT SELECT on the

remote repeatedly until “LINE1” appears).

INPUT SELECT 1 button lights up.

3Turn on your TV and select a programme position for video

playback.

Choose a channel between UHF 30 and 39 on the TV, where there is

no picture and no sound or only a steady rustling sound.

This channel will now be referred to as the video channel.

4Tune the TV so that a blue screen appears on the TV screen.

Refer to your TV manual for tuning instructions.

You have now tuned your TV to this player. From now on,

whenever you want to play a tape, set the TV to the video channel.

If the blue screen does not appear clearly, see “To obtain a clear blue

screen” on the next page.

Step 4

Tuning your TV to this player

If you have connected this player to the TV using the audio/video cable,

skip this step.

ON/STANDBY

INPUT SELECT 1

ON/

STANDBY

VHS

INPUT

SELECT

Getting Started 9

Getting Started

To check to see if the TV tuning is correct

Set the TV to the video channel and press PROG +/– on the remote of this

player. If the TV screen changes to a different programme each time you

press PROG +/–, the TV tuning is correct.

To obtain a clear blue screen

If the blue screen does not appear

clearly in step 4 above, turn the RF

CHANNEL screw at the rear of this

player with a screwdriver to a

position where the TV clearly

displays the blue screen.

Selecting the TV system

For your TV to receive the correct

signal from this player, you must set

the TV SYSTEM switch at the rear of

this player to either G (for system B/

G) or K (for system D/K). If this

switch is set to the wrong position,

the sound will be distorted.

Selecting the NTSC PB switch

For your TV to receive the correct

signal from this player, you must set

the NTSC PB switch at the rear of this

player. If this switch is set to the

wrong position, the picture will be

distorted.

RF CHANNEL

To play an NTSC-recorded tape

Set NTSC PB at the rear of this player according to the colour system of your

TV.

Set NTSC PB (VHS/VCD) to

PAL /PAL

4.43 NTSC/PAL

NTSC/NTSC

If your TV is

PAL

NTSC 4.43

NTSC 3.58

Notes

• If you play a VCD whose colour system is different from the NTSC PB position

(VCD) you selected, the size of the picture may not be correct.

• After you changed the NTSC PB position (VCD) of this switch, turn off the power

once, then turn it on again.

TV SYSTEM

NTSC PB

ON PAL TV NTSC 4.43 NTSC3.58

PAL NTSC3.58
