Sony Trinitron KV-AR29 User manual

Sony KV-AR25N90 Group R18 (GB)_4-091-882-11 (1)

Trinitron Color TV

KV-AR29

KV-AR25

4-091-882-11 (1)

Operating Instructions

N90

• Before operating the unit, please read this manual thoroughly and retain

it for future reference.

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110-240 V AC.

• Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

• To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Do not open the cabinet and the rear cover of the

TV as high voltages and other hazards are present

inside the TV. Refer servicing and disposal of the

TV to qualified personnel.

Your TV is recommended for home use only.

Do not use the TV in any vehicle or where it may

be subject to excessive dust, heat, moisture or

vibrations.

To prevent fire or shock hazard, do not expose the

TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not block the ventilation openings of the TV.

Do not install the TV in a confined space, such as a

bookcase or built-in cabinet.

For children’s safety, do not leave children

alone with the TV. Do not allow children to

climb onto it.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals to

clean the TV. Do not attach anything (e.g., adhesive

tape, cellophane tape, glue) on the painted cabinet of

the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

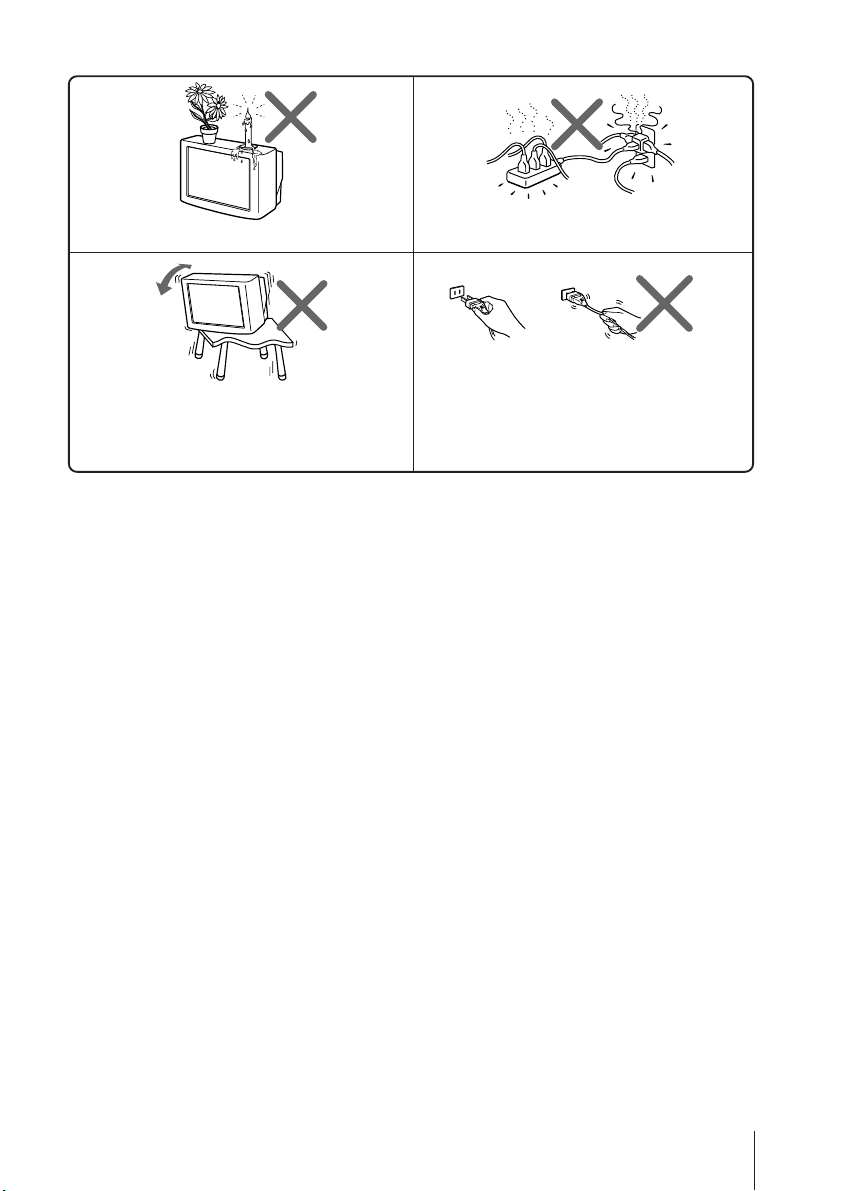

Install the TV on a stable TV stand and floor which

can support the TV set weight. Ensure that the TV

stand surface is flat and its area is larger than the

bottom area of the TV.

Do not place any objects on the TV.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Pull the power cord out by the plug. Do not pull

the power cord itself. Even if your TV is turned

off, it is still connected to the AC power source

(mains) as long as the power cord is plugged in.

Unplug the TV before moving it or if you are not

going to use it for several days.

Screw the band to the TV stand and to the

provided hole at the rear of your TV.

(1) Put a cord or chain through the clamps.

(2) Screw one clamp to a wall or pillar and

the other clamp to the provided hole at

the rear of your TV.

(1) Attach each end of a cord or chain to

the provided holders at the rear of

your TV.

(2) Securely fix the attached cord or chain

to a wall or pillar using an attachment

which can support the TV set weight.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

xSecuring the TV

To prevent the TV from falling, use the supplied screws, clamps and band to

secure the TV.

20 mm

3.8 mm

screws clamps band

Table of Contents

Installation

Getting Started ..................................... 6

Setting up your TV

(“INITIAL SETUP”) ............................. 7

Overview of Controls

TV front and rear panels ..................... 8

Remote control ..................................... 9

Advanced Operations

Selecting the picture and sound

modes .................................................. 11

Viewing the picture in wide mode .. 12

Listening with surround sound ....... 12

Setting the timers ............................... 13

Enjoying stereo or bilingual

programs ............................................. 14

Menu Adjustment

Introducing the menu system .......... 15

Changing the “PICTURE” setting ... 18

Changing the “SOUND” setting ..... 20

Changing the “SETUP” setting ........ 22

Changing the Channel Preset

(“CH PRESET”) setting ..................... 24

Additional Information

Connecting optional components ... 25

Troubleshooting ................................. 27

Specifications ...................... Back cover

6Installation

Installation

xGetting Started

INITIAL SET

ENG ILSHLAN UGAGE

Step 1

Insert the batteries (supplied) into the remote.

Note

• Do not use old or different types of batteries together.

Step 2

Step 3

Step 4

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

Tip

• You can also connect your TV to other optional components

(see page 25).

Set up the TV by following the instructions of the

“INITIAL SETUP” menu (see page 7).

Plug in the power cord, then press !on the TV to

turn it on.

Installation

Setting up your TV

(“INITIAL SETUP”)

When you turn on your TV for the first time,

the “INITIAL SETUP” menu will appear.

This menu allows you to change the menu

language, adjust the picture position and

preset the TV channels automatically.

1Press Vor vto select the desired

menu language (e.g.,”ENGLISH”),

then press .

The selected menu language appears.

2If the “PIC ROTATION” bar is

slanted, press Vor vto adjust it,

then press .

If no adjustment is necessary,

then press .

The or icon on the screen

flashes while adjusting.

3Press Vor vto select “YES”, then press

to preset the channels automatically

(see page 24).

To skip automatic channel presetting, select

“NO”, then press .

4Press Vor vto select “NO”, then press

. The “INITIAL SETUP” menu will not

appear again the next time you turn on

the TV by pressing !.

To allow this menu to appear again, select

“YES”, then press .

Tips

• You can immediately go to the end of the ”INITIAL SETUP” menu by pressing MENU.

• You can also set up your TV using the menu system (see page 15).

INITIAL SET

ENG ILSHLAN UGAGE

INITIAL SET

PIC ROTATI ON

INITIAL SET

START

NOW?

AUTO PROGRAM

INITIAL SET

DISPAL

NEX TTIME?

Y T EN

PIC

MODE

SOUND

MODE WIDE

MODE

SURROUND

SOUND SWAP PIPTV/VIDEO

PIP CH

V/v/

Rotate anti-

clockwise

Rotate

clockwise

Refer to this bar when adjusting.

8Overview of Controls

Overview of Controls

L(MONO) R

PROGRMENU AUTO

PROGR

ENTER SELECT

VIDEO 3 INPUT

VIDEO L(MONO) R

CHANNELMENU

AUDIO

S VIDEO VOLUME

AUTO

PROGR TV/VIDEO STANDBY/

STEREO/

WAKE UP

RETURN SELECT

032

8756

123

S VIDEO

VIDEO

AUDIO

COMPONENT VIDEO (DVD) IN

VIDEO

MONITOR

OUT

RLY

CBCR

qf qd

Button/Terminal Function Page

1!Turn off or turn on the TV. 6

2STANDBY Standby indicator. –

2WAKE UP Wake Up indicator. 13

2STEREO Stereo/bilingual indicator. 14

3Remote control sensor. –

4CHANNEL +/– Select channel number. –

5VOLUME +/– Adjust volume. –

6TV/VIDEO Select TV or video input. –

7AUTO PROGR Preset channels automatically. –

Menu operations

5SELECT V/v Select and adjust items. 17

6RETURN Confirm selected items. 17

8MENU Display or cancel the menu. 17

9VIDEO 3 INPUT Video input terminal 3. 25

0iHeadphone jack. –

qa COMPONENT VIDEO Component video (DVD) input terminal. 26

(DVD) IN

qs 8Antenna input terminal. 25

qd MONITOR OUT Monitor output terminal. 25

qf VIDEO IN 1, 2, 3 Video input terminal 1, 2, 3. 25

TV front panel

TV rear panel

xTV front and rear panels

Overview of Controls

xRemote control

231

564

897

CHVOL

PIC

MODE

MTS

DISPLAY

MUTING POWER

SOUND

MODE WIDE

MODE

SURROUND

RESET

RM-992

WAKE UP SLEEP

SOUND SWAP PIPTV/VIDEO

PIP CH

ENTERJUMP

DVD VIDEO TV

continue

Button Function Page

1POWER Turn off temporarily or –

turn on the TV.

2MTS Select stereo/bilingual mode. 14

3TV Display the TV program. –

40-9 Input numbers. –

5ENTER Confirm input numbers. –

8SURROUND Select surround mode. 12

9WIDE MODE Select wide-mode (16:9). 12

q; CH +/– Select channel number. –

qd DISPLAY Display on-screen –

information.

qf MUTING Mute the sound. –

qg DVD Select component video 26

input.

qh VIDEO

Select TV or video input. 25

qj JUMP Jump to previous channel –

number

ql PIC MODE Select picture mode. 11

w; SOUND MODE Select sound mode. 11

wa VOL +/– Adjust volume. –

ws RESET Set TV to factory setting. 27

Timer operations

qa SLEEP Set TV to turn off 13

automatically.

qs WAKE UP Set TV to turn on 13

automatically.

Menu operations

6MENU Display the menu. 17

7Confirm selected items. 17

V, v, B, b Select and adjust items. 17

10 Overview of Controls

231

564

897

CHVOL

PIC

MODE

MTS

DISPLAY

MUTING POWER

SOUND

MODE WIDE

MODE

SURROUND

RESET

RM-992

WAKE UP SLEEP

SOUND SWAP PIPTV/VIDEO

PIP CH

ENTERJUMP

DVD VIDEO TV

continued

Button Function Page

PIP operations (yellow label)

wd PIP

wf SWAP

wg PIP CH +/–

wh TV/VIDEO

Not function for your TV. –

wj SOUND
