Sony Trinitron KV-AR29 User manual

Sony KV-AR29T80C Group K1 (GB)_2-022-561-E2 (1)

Tr initron Color TV

KV-AR29

2-022-561-E2 (1)

T80C

X80C

•Before operating the unit, please read this manual thoroughly and retain

it for future reference.

Operating Instructions

•Before operating the unit, please read this manual thoroughly and retain

it for future reference.

Do not plug in too many appliances to the same

power socket. Unplug the power cord and clean

any dirt between power cord and power socket

periodically. Do not damage the power cord. Do

not handle the power cord with wet hands.

To prevent fire or shock hazard, do not expose the

TV to rain or moisture.

Do not place any objects on the TV. The apparatus

shall not be exposed to dripping or splashing and

that no objects filled with liquids, such as vases,

shall be placed on the apparatus.

WARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 220 V AC.

•Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

•You may feel a weak electric shock if you touch the picture tube. This is just static

electricity and will not harm the human body. Static electricity will cause dust to

easily collect on the screen.

•Your TV is recommended to be watched at a distance of about 5-7 times of the

screen size and in moderate brightness. Watching the TV for too long or in a room

that is too dark will cause your eyes to become tired.

Do not insert any foreign objects (e.g., metal) into

the TV. Do not operate the TV if any liquid or solid

object falls into it. Have it checked immediately by

qualified personnel only.

For children’s safety, do not leave children alone

with the TV. Do not allow children to climb onto it.

Do not insert fingers into the openings or

ventilation holes of the TV.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

Install the TV on a stable TV stand and floor which

can support the TV set weight. Ensure that the TV

stand surface is flat and its area is larger than the

bottom area of the TV.

Pull the power cord out by the plug. Do not pull

the power cord itself. Even if your TV is turned

off, it is still connected to the AC power source

(mains) as long as the power cord is plugged in.

Unplug the TV before moving it or if you are not

going to use it for several days.

Do not open the cabinet and the rear cover of the

TV as high voltages and other hazards are present

inside the TV. Refer servicing and disposal of the

TV to qualified personnel.

Your TV is recommended for home use only.

Do not use the TV in any vehicle or where it may

be subject to excessive dust, heat, moisture, smoke,

oil, insects, direct sunlight or vibrations.

Do not block the ventilation openings of the TV.

Do not install the TV in a confined space, such as a

bookcase or built-in cabinet.

Unplug the power cord and clean the TV with a dry

and soft cloth. Do not use benzine, thinner, or any

other chemicals to clean the TV. Do not attach

anything (e.g., adhesive tape, cellophane tape, glue)

on the painted cabinet of the TV. Do not scratch the

picture tube.

Accessories

•FD Trinitron CRT • DVD Signal Terminal

•Program Exchange

Accessory Quantity

Remote Commander (RM-W104) 1

Batteries (size 5) 2

Stabilizing band 1

Stabilizing clamp 2

Screw (Dia.3.8 ×20) 3

Product Overview

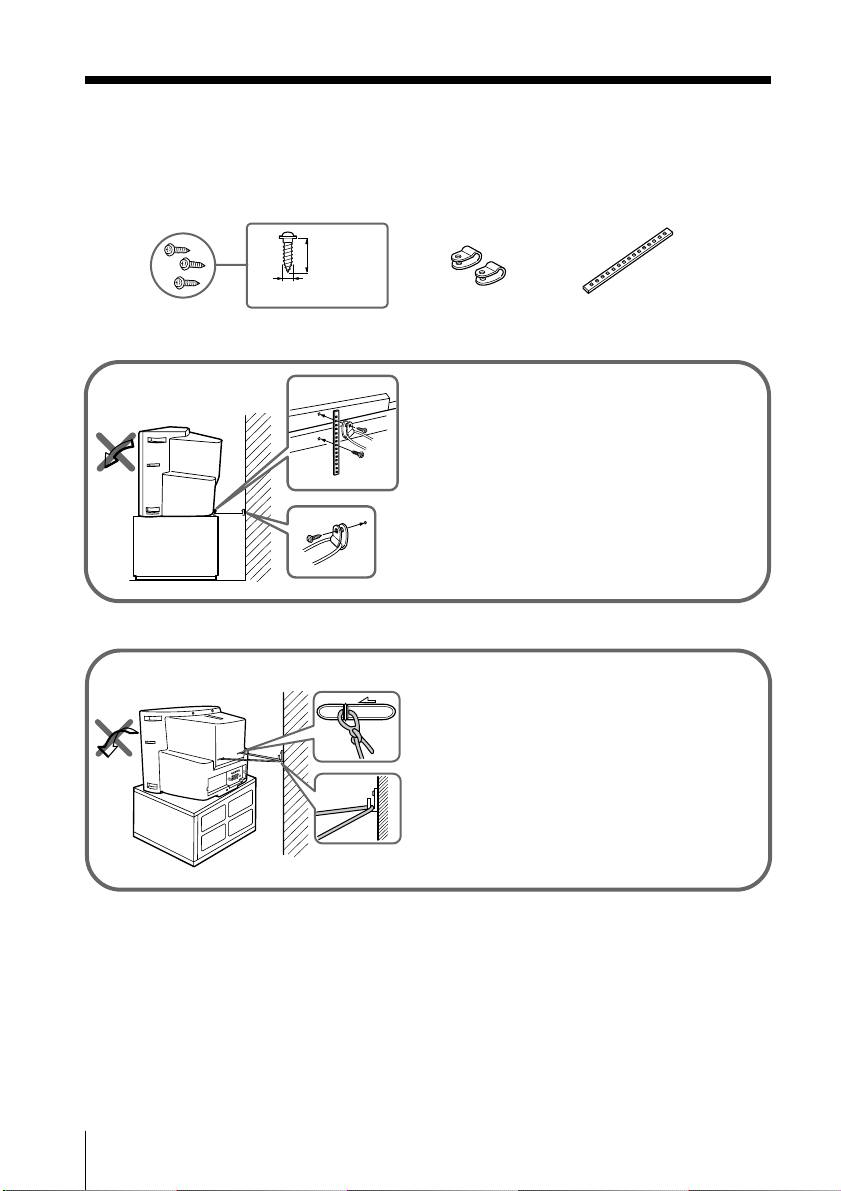

xSecuring the TV

To prevent the TV from falling, use the supplied screws, clamps and band to

secure the TV.

20 mm

3.8 mm

screws clamps band

(1) Screw the band and one clamp to the

provided hole at the rear of your TV.

(2) Screw the band to the TV stand.

(3) Put a cord or chain through both

clamps and screw the other clamp to a

wall or pillar.

(1) Attach each end of a cord or chain to

the provided holders at the rear of your

TV.

(2) Securely fix the attached cord or chain

to a wall or pillar using an attachment

which can support the TV set weight.

Note

•Use only the supplied screws. Use of other screws may damage the TV.

(1)

(2)

(3)

Menu Adjustment

Introducing the menu system ...........11

Changing the “PICTURE SETTING”

....14

Changing the “SOUND SETTING”

......15

Changing the “PROGRAM PRESET”

setting

....................................................16

Using the “PROGRAM EXCHANGE ”

....17

Changing the “FUNCTIONS” setting ....

Additional Information

Connecting optional components ....19

Troubleshooting ..................................21

Specifications ....................... Back cover

Table of Contents

Installation

Getting Started ..................................... 6

Presetting channels

automatically ........................................ 7

Overview of Controls

TV front and rear panels ..................... 8

Using the remote control and

basic functions ...................................... 9

6Installation

Installation

xGetting Started

Step 1

Insert the batteries (supplied) into the remote.

Note

•Do not use old or different types of batteries together.

Step 2

Step 3

Plug in the power cord, then press !on the TV to

turn it on.

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

Tip

•You can also connect your TV to other optional components

(see page 19).

Installation

Presetting channels automatically

You may preset up to 100 channels in numerical sequence from program number 1

using the buttons on the remote control.

Tip

•The MENU, tand 2+/– buttons on the TV front panel can also be used for the operations

below.

1Press MENU.

2Press Vor vto select the “PROGRAM

PRESET” icon ( ), then press .

3Press Vor vto select “AUTO PRESET”,

then press to preset the channels

automatically. Your TV will start

searching for all the available channels.

4Press MENU again to cancel the menu.

SELECT CONFIRM END

PICTURE SETTING

BRIGHTNESS 45

100

COLOR 50


PICTURE MODE: DYNAMIC

HUE 0

SHARPNESS 50

SELECT CONFIRM END

PROGRAM PRESET

MANUAL PRESET ON

FINE TUNING: AUTO

AUTO PRESET

PROGRAM: 1

BAND: VHF LOW

SKIP: OFF

SELECT CONFIRM END

PROGRAM PRESET

MANUAL PRESET ON

FINE TUNING: AUTO

AUTO PRESET

PROGRAM: 1

BAND: VHF LOW

SKIP: OFF

PROGRAM

AUTO PRESET

TV SYSTEM D/K

VHF LOW

END

8Overview of Controls

Overview of Controls

PROG

L(MONO) R

432

PROG

L(MONO) R

9qd

TV front panel

TV rear panel

xTV front and rear panels

Button/Terminal Function Page

1!Turn off or turn on the TV. 6

21Standby indicator. 6

3Remote control sensor. –

4PROG +/– Select program number. –

52+/– Adjust volume. –

6tSelect TV or video input. 19

Menu operations

52+/– Select and adjust items. –

6tConfirm selected items. –

7MENU Display or cancel the menu. –

8t3Video input terminal 3. 19

98Antenna input terminal. 19

q; TMonitor output terminal. 19

qa Component video input terminal. 20

qs t1, t2Video input terminal 1, 2. 19

qd S video input terminal. 19

Overview of Controls

xUsing the remote control and basic

functions

123

789

PROG

A/B

RESET

ql 8

continue

Button Description Page

1?/1 Turn off temporarily or turn on the TV. –

2aDisplay the TV program. –

3Jump to last program number that has been

watched for at least five seconds. –

4PROG +/– Select program number. –

52+/– Adjust volume. –

8Not function for your TV. –

9Mute the sound. –

Display on-screen information. –

qs tSelect TV or video input. 19

qd 0 – 9, -Input numbers. –

qh Select surround mode options: –

“ON”* (surround), “SIMULATED” (stereo-like

monaural sound), “OFF”.

qk RESET Set TV to factory setting. 21

*Surround mode “ON” is available only when receiving signals through the t (video input),

(S video input) or (component video input) jacks.

10 Overview of Controls

continued

Button Description Page

ql Select sound mode options: –

“DYNAMIC” (low and high tones), “DRAMA”

(voice and high tones), “SOFT” (soft, natural and

relaxing sound), “PERSONAL”*.

*When the “PERSONAL” mode is selected, you

can receive the last adjusted sound settings.

w; Select picture mode options: –

“DYNAMIC” (high contrast), “STANDARD”

(normal contrast), “SOFT” (mild), “PERSONAL”*.

*When the “PERSONAL” mode is selected, you

can receive the last adjusted picture settings.

Menu operations

6MENU Display or cancel the menu. 13

7Confirm selected items. 13

qj V, v,B,b Select and adjust items. 13

Timer operations

qf Not function for your TV. –

qg Set TV to turn off automatically according to the –

desired period of time (max. of two hours).

Stereo/bilingual operations

qa A/B Not function for your TV. –
