Sony BKPF-R70 User manual
ROUTING SWITCHER CONTROLLER
BKPF-R70
INSTALLATION MANUAL
1st Edition
Serial No. 10001 and Higher

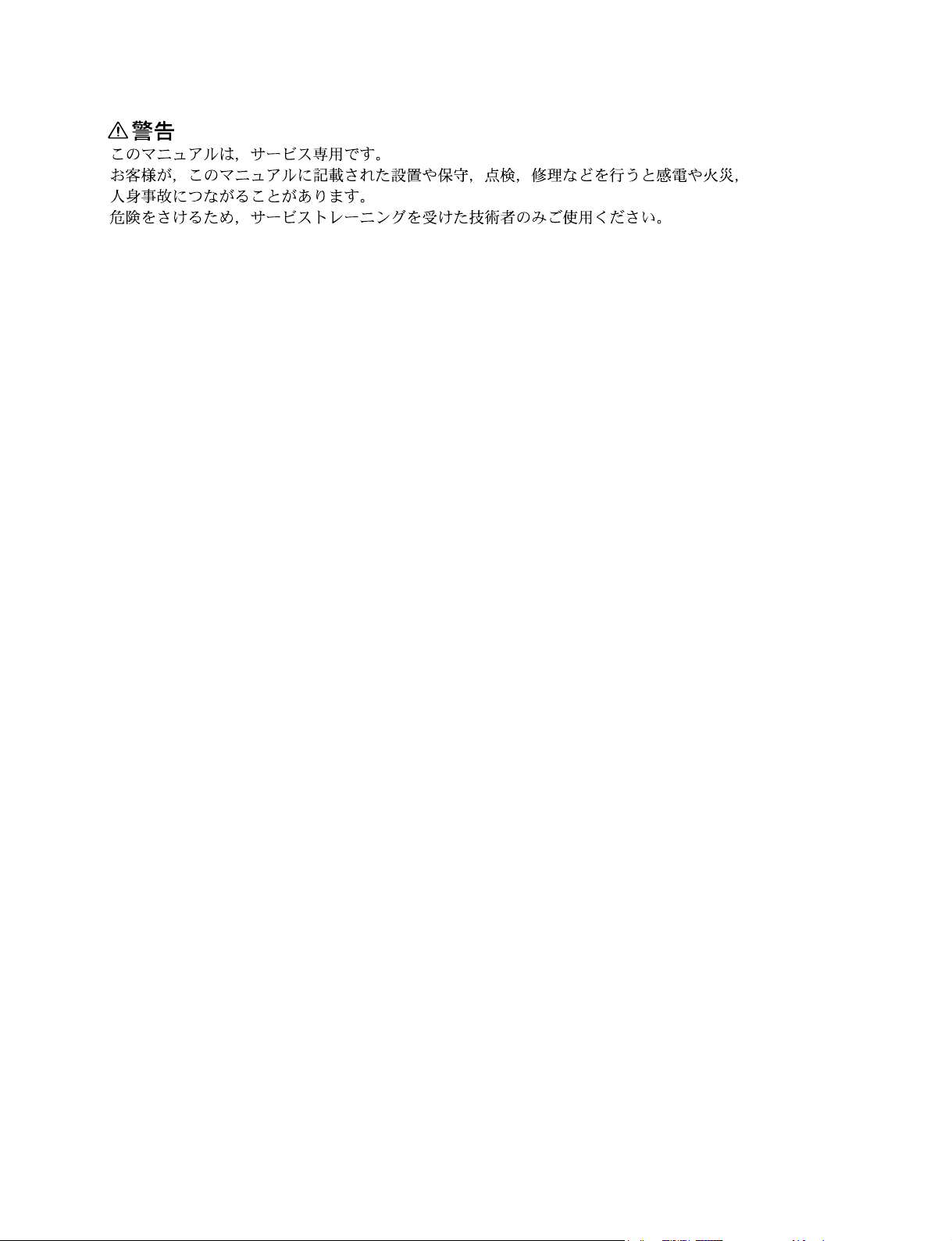

!WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
!WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
!AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.
1 (E)
BKPF-R70
Table of Contents
Manual Structure
Purpose of this manual ........................................................................................ 3 (E)
Contents ............................................................................................................... 3 (E)
Related manuals................................................................................................... 4 (E)
1. Installation
1-1. Installing the Board ...............................................................................1-1 (E)
1-2. System Configuration............................................................................1-3 (E)
1-3. Components...........................................................................................1-4 (E)
1-4. Location and Function of the Connectors .............................................1-4 (E)
1-5. Connecting Connectors and Cables ......................................................1-5 (E)
1-6. Signal Input/Output ...............................................................................1-6 (E)
1-7. Location and Function of Switches/ LEDs ...........................................1-7 (E)
1-8. Connection ..........................................................................................1-11 (E)
1-9. The Cautions Relative to Power Supply .............................................1-12 (E)
1-10. Setup....................................................................................................1-12 (E)
1-11. ISR (Interactive Status Reporting) ......................................................1-14 (E)
3 (E)
BKPF-R70
Purpose of this manual This manual is the installation manual of Routing Switcher Controller BKPF-R70.
This manual is intended for use by trained system and service engineers, and
describes the information for installing.
Contents This manual is organized by following sections.
Section 1 Installation
1-1. Installing the Board
This section explains the board installation into the Digital Video Interface Unit
PFV-D20/D50/D100A/D200A/D300, with taking PFV-D300 as an example.
1-2. System Configuration
This section explains the connection between BKPF-R70 and switchers, remote
control units, monitors, and a personal computer.
1-3. Components
This section explains the items composed BKPF-R70.
1-4. Location and Function of the Connectors
This section explains the location and function of connectors at the rear panel.
1-5. Connecting Connectors and Cables
This section explains the type of connectors at the rear panel and the matching
connectors and cables.
1-6. Signal Input/Output
This section explains the connector pin assignments at the rear panel.
1-7. Location and Function of Switches/ LEDs
This section explains the name and function of the switches and LEDs on the
CPU-256 board and factory setting.
1-8. Connection
This section explains the precautions when connecting the BKPF-R70 to the
system.
1-9. The Cautions of Power-ON
This section explains the precautions in power on when the backup BKPF-R70 is
installed in another PFV which installs the main BKPF-R70.
Manual Structure
4 (E) BKPF-R70
1-10. Setup
This section explains the connection (between BKPF-R70 and a control terminal)
and the sample screen when sets the devices connecting to the S-BUS line.
1-11. ISR (Interactive Status Reporting)
This section explains the overview of the ISR system.
Related manuals The following manuals are prepared for BKPF-R70.
• Operation Manual (Supplied with BKPF-R70)
This manual describes the notes on operating, and the locations and functions of
parts and controls of BKPF-R70.
• Maintenance Manual (Optional manual)
This manual describes the information for periodic maintenance and detailed
service.
For obtaining the maintenance manual, please contact to your local Sony’s sales/
service office.
1-1 (E)
BKPF-R70
1-1. Installing the Board
This section describes how to install the board into the
PFV-D300. If the board is installed into other PFV, refer to
the manual supplied with the PFV. The board can be
installed in any slot of the PFV-D300.
n
Turn off the power of the PFV-D300 and unplug the power
plug from the outlet before installing or removing the
board.
Main board installation
1. Loosen the four screws (with stoppers) and remove the
front panel.
2. Remove the six screws and remove the board retainers.
Fig1-01E
Section 1
Installation
3. Insert the main board along the board guide rails.
Fig1-02E
PSW 3x6
PSW 3x6Board retainers
Board guide rail
Component side
Main board
1-2 (E) BKPF-R70
Connector panel installation
Insert the connector panel to the slot in which the main
board has been installed.
1. Remove the two screws at the slot which the main
board has been installed and remove the blank panel.
n
Keep the removed blank panel.
fig1-04E
2. Insert the connector panel.
3. Secure the connector panel with the two screws
securing the blank panel.
fig1-05E
n
Do not open the slot for air-cooled effect of the
PFV-D300. Install the blank panel to a dead slot.
4. Turn the board levers in the direction of the arrows 1
after inserting the main board to the end of the slot by
hand.
Fig1-03E
5. Stick the slot label supplied with the optional board
onto the board lever.
6. Install the board retainers.
7. Install the front panel.
n
When removing the main board, turn the board levers in
the direction of the arrows 2, and pull out the board
toward you.
1Install
2Remove
12
1
2
12
Board
lever
1
2
Board
lever
B 3x6
Blank panel
B 3x6
Connector panel
1-1. Installing the Board
1-3 (E)
BKPF-R70
1-2. System Configuration
fig1-06E
.Terminal Emulator Software
.Data Backup Software (BZR-10)
REMOTE 3
Routing Switcher Controller
BKPF-R70
(A)
ABC
Routing Switcher Controller
BKPF-R70
(B)
ABC
REMOTE 1
REMOTE 1
REMOTE 1
BKS-R3210
BKS-R3209
BKS-R3209
DVS-V6464B
BKPF-300
(PFV-D300)
BKDS-7700
BKS-R3281
BKS-R3281
BKS-R3281
DVS-7000
RS-422A
<Routing Switcher> <Remote Control Unit> <Display>
Digital Video Interface Unit (PFV-xxx)
: S-BUS
: RS-232C
: RS-422A
: T bridge (B)
: 75 Zterminator
(A) and (B) of the BKPF-R70 mean
the main (A)/backup (B) switch setting
on the board.
Primary
station
Secondary
station
Personal computer
*
1-2. System Configuration
1-4 (E) BKPF-R70
1-3. Components
The BKPF-R70 is composed of the following items.
.Main board (CPU-256 board) (1)
.Connector panel (CN-1515 board) (1)
.Operation Manual (1)
.Installation Manual (1)
.Slot number label (1)
.Data Backup Software (BZR-10) (1)
1-4. Location and Function of the Connectors
fig1-08E
11
11
1REMOTE 1 connectors (BNC type)
These connectors are used for S-BUS control.
The devices of the secondary station can be
connected to the A, B, or C connectors.
For the fast-response communication, connect the
devices as follows.
Connector A: Routing switchers
Connector B and C: Remote control units
22
22
2REMOTE 2 connector (D-sub 9-pin type)
This connector is used for RS-422A control.
The control command input from this connector is
converted to S-BUS (REMOTE 1) in the
BKPF-R70.
33
33
3REMOTE 3 connector (D-sub 9-pin type)
This connector is used for RS-232C control.
44
44
4MAIN-BACKUP connector (D-sub 25-pin type)
This connector is used to connect between the main
board and backup board.
If connects the backup board to the main board and
installs two boards in a PFV, the PFV has a dual
controller.
1-3. Components
1-4. Location and Function of the Connectors
MAIN-BACKUP
BKPF-R70
REMOTE 3
RS232C A
REMOTE 2
C B A
REMOTE 1
CONTROLLER
1
2
3
4
