Sony SS-VZ10 User manual

SS-VZ10/VZ30AV/

ZX30AVW/ZX70DVDW

E Model

SS-VZ10/VZ30AV/

ZX30AVW/ZX70DVDW

Australian Model

SS-ZX30AVW/ZX70DVDW

Chinese Model

SS-VZ30AV/ZX70DVDW

SERVICE MANUAL

SPEAKER SYSTEM

• This set is the speaker system in MHC-VZ10/

VZ30AV/ZX30AV/ZX70DVD.

SPECIFICATIONS

Photo: SS-VZ10

Speaker system 3-way, bass-reflex type,

magnetically shielded type

Speaker units

Woofer: 15 cm, cone type

Super woofer: 15 cm, cone type

Tweeter: 5 cm, cone type

Nominal impedance 8 Ω : EXCEPT SS-VZ10

6 Ω : SS-VZ10

Dimensions (w/h/d) Approx. 250 ×375 ×325 mm

Mass Approx. 7.0 kg net per speaker

Design and specifications are subject to change

without notice.

2

Sony Corporation

Audio Entertainment Group

9-929-231-11 2000D1625-1D

Printed in Japan © 2000.4

Published by HA Quality Assurance Dept.

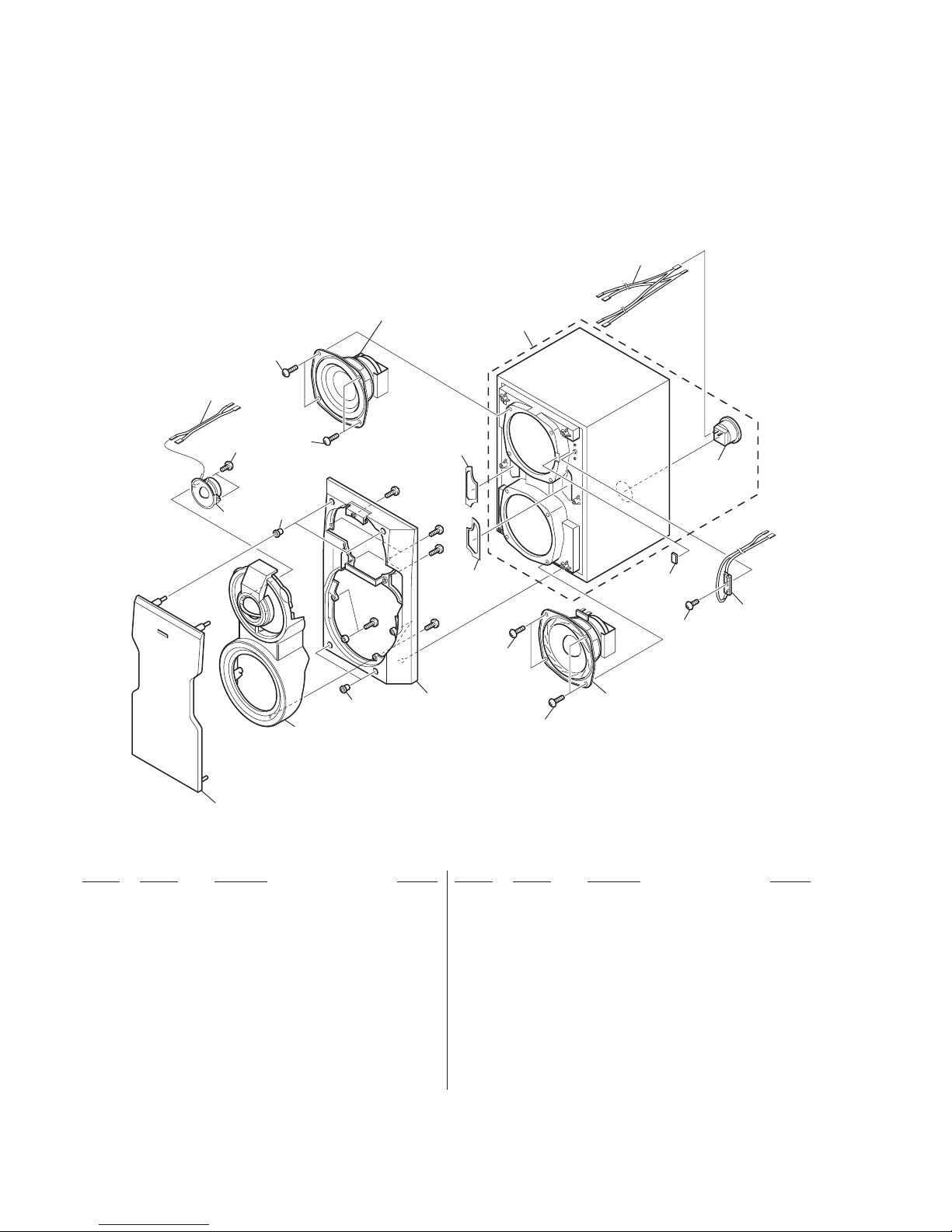

EXPLODED VIEW AND PARTS LIST

NOTE:

• -XX, -X mean standardized parts, so they may

have some differences from the original one.

• Items marked “*” are not stocked since they

are seldom required for routine service. Some

delayshouldbeanticipatedwhenorderingthese

items.

• Themechanical parts with no reference number

in the exploded views are not supplied.

• Abbreviation

TH : Thai model.

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

#1

SP3

#1

#1

#1

#1

1

2

2

3

4

5

6

6

6

6

6

7

7

9

10

11

13

SP1

SP2

12

8

1 A-4412-058-A FRAMEASSY, GRILLE

*2 4-963-075-01 CATCHER

3 A-4412-057-A PANELASSY, ORNAMENTAL

4 4-227-540-01 PANEL, FRONT

5 4-942-029-01 PACKING

6 4-874-614-21 SCREW(4) (3.5X14), TAPPING

7 4-227-572-01 PACKING

8 1-792-576-11 CORD(A)

9 4-982-502-01 SCREW(A TYPE) (M3.5), TAPPING

10 A-4412-056-A CABINET ASSY, SPEAKER (EXCEPT TH)

10 A-4412-191-A CABINET ASSY, SPEAKER (TH)

11 1-537-332-11 TERMINAL BOARD

12 1-792-577-11 CORD(B)

13 1-792-578-11 CORD(C)

SP1 1-529-666-11 SPEAKER (15cm)

SP2 1-529-667-11 SPEAKER (15cm)

SP3 1-529-762-11 SPEAKER (5cm)

#1 7-685-648-79 SCREW +BVTP3X12 TYPE2 SLIT

ACCESSORIES & PACKING MATERIALS

*******************************

1-558-848-11 CORD, SPEAKER

This manual suits for next models
