Sony SS-RG66 User manual

SS-RG66/RG66A

Canadian Model

SS-RG66A

AEP Model

UK Model

E Model

SS-RG66/RG66A

Australian Model

SS-RG66

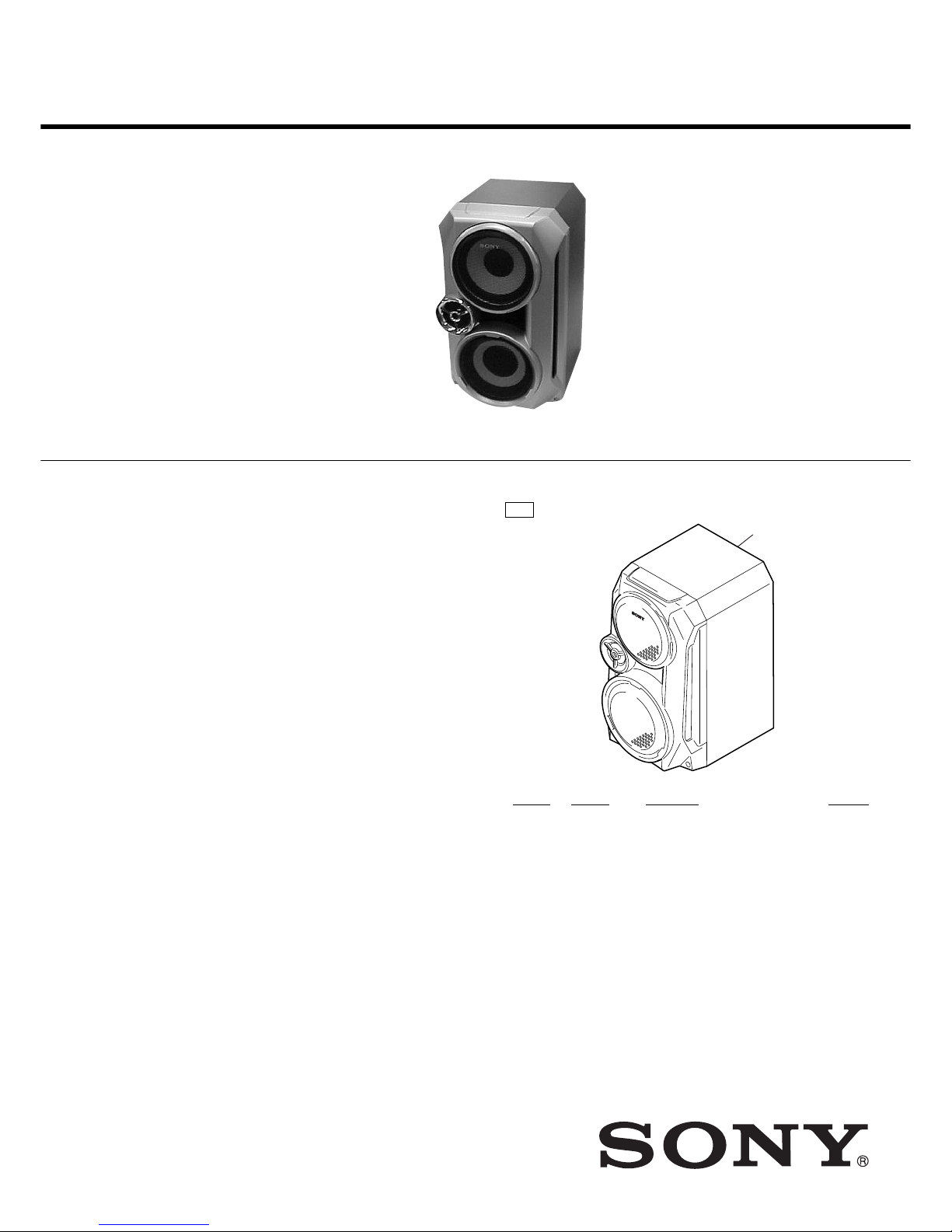

SERVICE MANUAL

SPEAKER SYSTEM

•SS-RG66/RG66A are speaker systems

in MHC-GX30/RG33/RG55/RG66.

EXPLODED VIEW AND PARTS LIST

Ver 1.1 2003. 12

Ref. No. Part No. Description Remarks

SPECIFICATIONS

SS-RG66

Speaker system : 3-way, 3-unit, bass-reflex type

Sub Woofer : 13 cm, cone type

Woofer : 13 cm, cone type

Tweeter : 5 cm, cone type

Nominal impedance : 6 ohms

Dimensions (w/h/d) : Approx. 215 ×356 ×290 mm

Mass : Approx. 4.5 kg net per speaker

SS-RG66A

Speaker system : 3-way, 3-unit, bass-reflex type

Sub Woofer : 13 cm, cone type

Woofer : 13 cm, cone type

Tweeter : 5 cm, cone type

Nominal impedance : 6 ohms

Dimensions (w/h/d) : Approx. 215 ×356 ×260 mm

Mass : Approx. 4.2 kg net per speaker

Design and specifications are subject to change without notice.

1A-4746-917-A SPEAKER (L) ASSY (RG66)

1A-4746-918-A SPEAKER (R) ASSY (RG66)

14-241-701-11 SPEAKER (L) ASSY (RG66A)

14-241-702-11 SPEAKER (R) ASSY (RG66A)

1

Sony Corporation

Home Audio Company

Published by Sony Engineering Corporation

9-873-579-02

2003L16-1

© 2003.12

Photo : SS-RG66 (L-ch)

L-ch

SS-RG66/RG66A

REVISION HISTORY

Clicking the version allows you to jump to the revised page.

Also, clicking the version at the upper right on the revised page allows you to jump to the next revised

page.

Ver. Date Description of Revision

1.0 2002.02 New

1.1 2003.12 Addition of Part. No. for SPEAKER ASSY (L/R)(RG66A) (SPM-03133)

This manual suits for next models

1
