Sony SS-CN195 User manual

SS-CN195/CR195/SR195

US Model

Canadian Model

E Model

SERVICE MANUAL

SPEAKER SYSTEM

Sony Corporation

Home Audio Company

Shinagawa Tec Service Manual Production Group

9-929-083-12

2001G1600-1

Ver 1.1 2001. 07

SPECIFICATIONS

SS-CR195 is composed for following model.

COMPONENT MODEL NAME FOR SS-CR195

Center Speaker SS-CN195

Rear Speaker SS-SR195

[SS-CN195] (Center speaker)

Speaker system Full range, magnetically shielded

Speaker units Woofer: 10 cm, cone type ×2

Tweeter: 2.5 cm, balance drive type

Enclosure type Bass reflex

Rated impedance 8 Ω

Power handling capacity Maximum input power: 100 W

Sensitivity level 88 dB (1W, 1m)

Frequency range 85 Hz –20,000 Hz

Dimensions (w/h/d) Approx. 355 ×126 ×126 mm, not

including front grille

Mass Approx. 2.2 kg

Supplied accessories Speaker cord 2.5m (1)

Foot (4)

[SS-SR195] (Rear speaker)

Speaker system Full range, magnetically shielded

Speaker units 10 cm, cone type

Enclosure type Bass reflex

Rated impedance 8 Ω

Power handling capacity Maximum input power: 100 W

Sensitivity level 85 dB (1W, 1m)

Frequency range 85 Hz –20,000 Hz

Dimensions (w/h/d) Approx. 177 ×126 ×120 mm, not

including front grille

Mass Approx. 1.2 kg

Supplied accessory Speaker cord 10m (2)

Design and specifications are subject to change without notice.

Photo: SS-CN195 Photo: SS-SR195

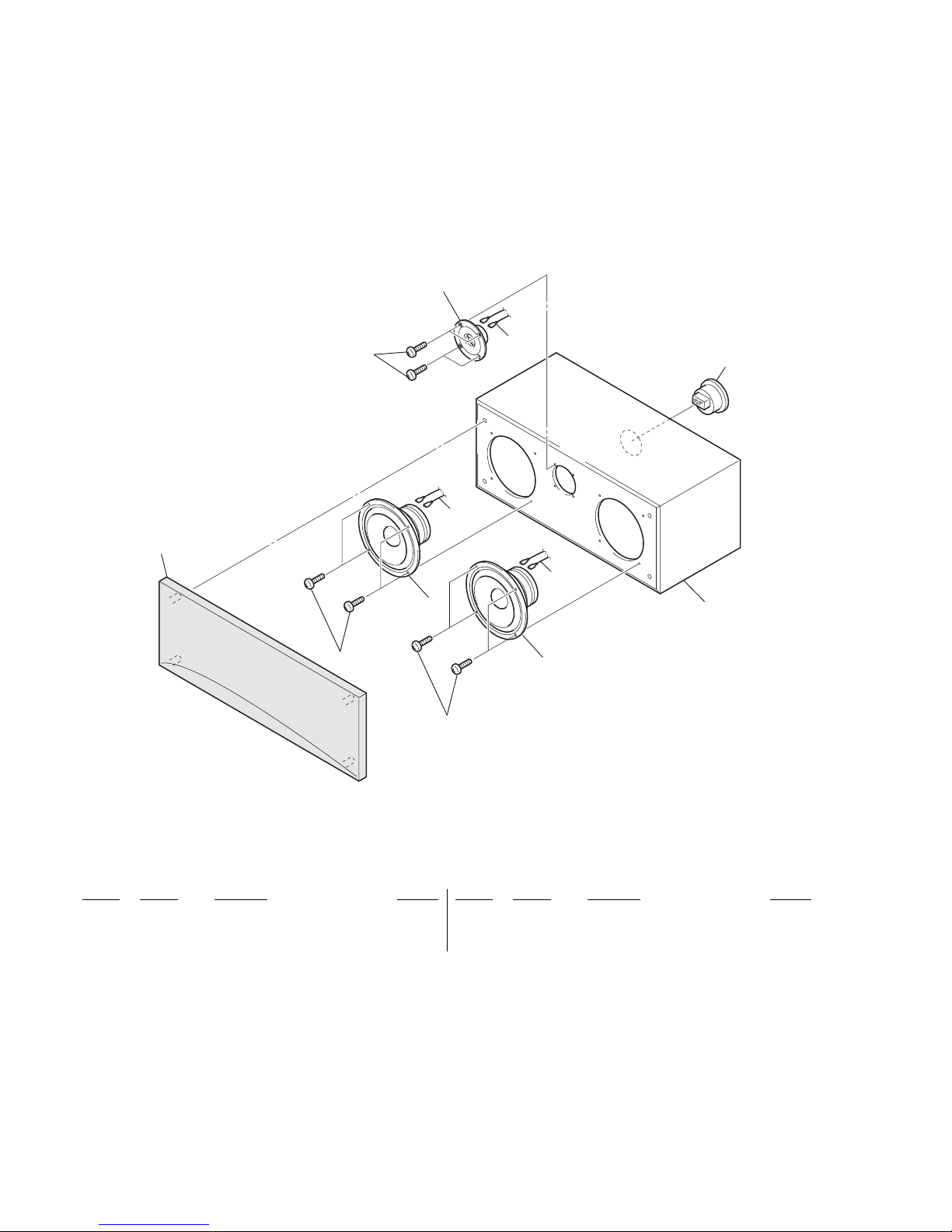

EXPLODED VIEWS

NOTE:

• Items marked “*” are not stocked since they

are seldom required for routine service. Some

delay should be anticipated when ordering these

items.

• The mechanical parts with no reference number

in the exploded views are not supplied.

Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

(1) SS-CN195

1 X-4950-943-1 FRAME ASSY (CN), GRILLE

2 4-874-614-11 SCREW (4) (3.5 ×14), TAPPING

4 4-228-472-01 CABINET, SPEAKER

5 1-537-332-11 TERMINAL BOARD

SP1 1-529-720-11 SPEAKER (10 cm)

SP2 1-529-719-11 SPEAKER (2 cm)

SP2

not

supplied

SP1

not

supplied

not

supplied

Ver 1.1 2001.07

Ref. No. Part No. Description Remarks

(2) SS-SR195

SP1

not

supplied

1 X-4950-942-1 FRAME ASSY (SR), GRILLE

2 4-874-614-11 SCREW (4) (3.5 ×14), TAPPING

4 A-4411-424-A CABINET ASSY, SPEAKER

5 1-537-332-11 TERMINAL BOARD

SP1 1-529-248-11 SPEAKER (10 cm)

Ver 1.1 2001.07

(3) SS-CR195

Ref. No. Part No. Description Remarks

ACCESSORIES & PACKING MATERIALS

********************************

1-769-433-11 CORD, SPEAKER (10 m)

1-769-433-21 CORD, SPEAKER (2.5 m)

4-228-475-11 MANUAL, INSTRUCTION

(ENGLISH, FRENCH, SPANISH,PORTUGUESE, CHINESE)

4-972-322-01 FOOT (Y) (SS-CN195)

SS-CN195/CR195/SR195

MEMO

SS-CN195/CR195/SR195

REVISION HISTORY

Clicking the version allows you to jump to the revised page.

Also, clicking the version at the upper right on the revised page allows you to jump to the next revised

page.

Ver. Date Description of Revision

1.1 2001.07 Correction of the exploded views. (ECN-TAC08152)

1.0 2000.02 New
