Sony HVR-M25C User manual

SERVICE MANUAL

Sony EMCS Co.

2006E0500-1

Published by DI Technical Support Department

9-852-126-11

Link

SERVICE NOTE

DISASSEMBLY

MODEL INFORMATION TABLE

SPECIFICATIONS

SCHEMATIC DIAGRAMS

FRAME SCHEMATIC DIAGRAM

BLOCK DIAGRAMS

ADJUSTMENT

INSTRUCTION MANUAL

REPAIR PARTS LIST

PRINTED WIRING BOARDS

Link

Revision History

How to use

Acrobat Reader

How to use

Acrobat Reader

HVR-M25J/M25U/M25N/M25E/M25P/M25C

Ver 1.0 2006.05

DIGITAL HD VIDEOCASSETTE RECORDER

R MECHANISM (MDX-R211)

The components identified by

mark 0or dotted line with

mark 0are critical for safety.

Replace only with part num-

ber specified.

Les composants identifiés par une

marque 0sont critiques pour la

sécurité.

Ne les remplacer que par une pièce

portant le numéro spécifié.

US Model

Canadian Model

AEP Model

E Model

Chinese Model

Japanese Model

HVR-M25J/M25U/M25N/M25E/

M25P/M25C

RMT-DS5

NOTE

HVR-M25J/M25U/M25N/M25E/M25P/M25C

Link

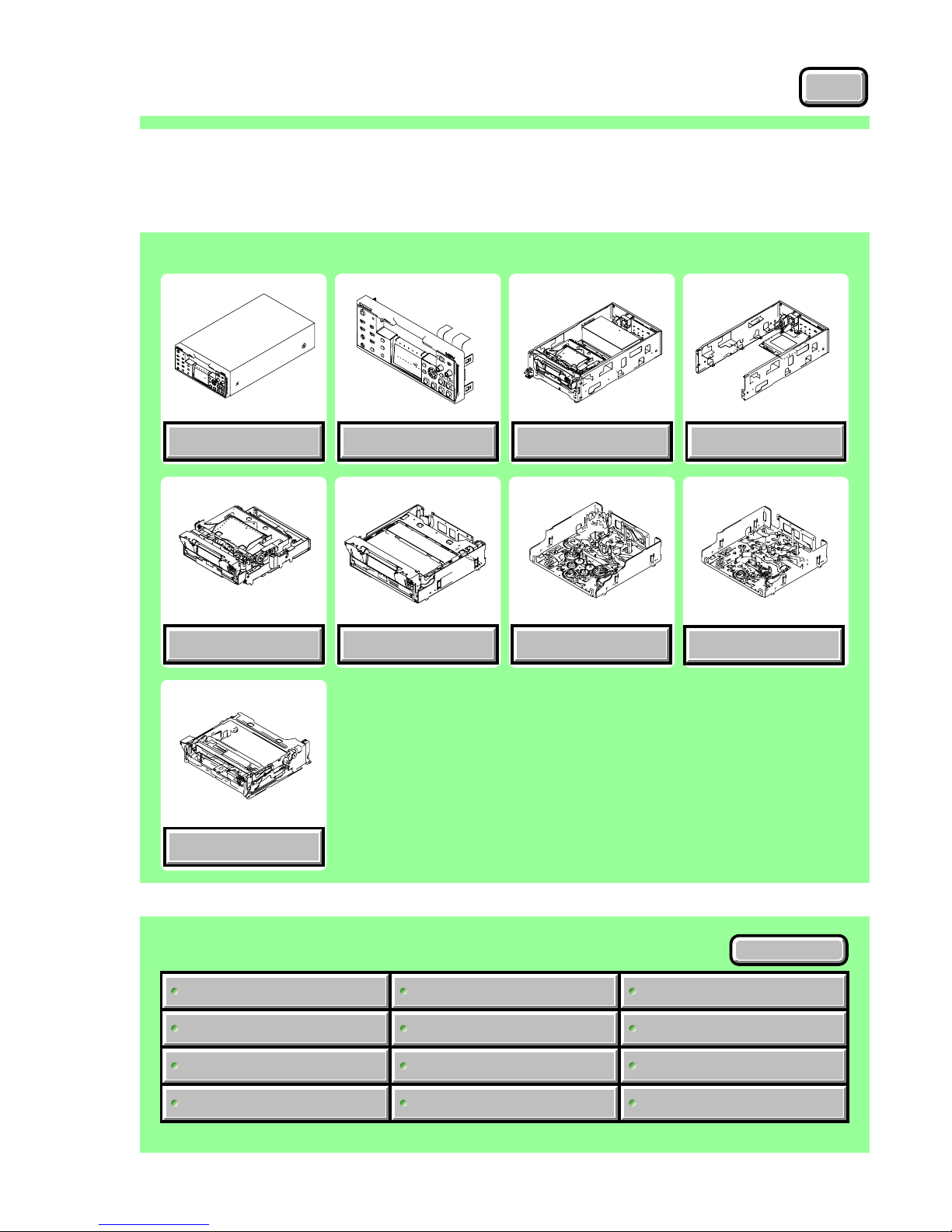

5. REPAIR PARTS LIST

Link

OVERALL ASSEMBLY

FRONT PANEL BLOCK

CHASSIS BLOCK

REAR PANEL BLOCK

CMX BLOCK MECHANISM DECK

ASSEMBLY-1 MECHANISM DECK

ASSEMBLY-3

ELECTRICAL PARTS LIST

EXPLODED VIEWS

ACCESSORIES

NOTE: Characters Ato Zof the electrical parts list indicate location of exploded views in which the desired part is shown.

MECHANISM DECK

ASSEMBLY-4

ABCD

EF H

FR-253 BOARD

FP-248 FLEXIBLE BOARD

FP-104 FLEXIBLE BOARD

HP-141 BOARD

JV-002 BOARD

JK-309 BOARD

MD-76 BOARD

PD-287 BOARD

POWER BLOCK

(ACS1581-MA BOARD)

SH-023 BOARD

VD-036 BOARD

RP-243 BOARD

MECHANISM DECK

ASSEMBLY-2

5-1

5. REPAIR PARTS LIST

HVR-M25J/M25U/M25N/M25E/M25P/M25C

(ENGLISH)

NOTE:

•-XX, -X mean standardized parts, so they may have some differences from

the original one.

•Items marked “*” are not stocked since they are seldom required for routine

service. Some delay should be anticipated when ordering these items.

•The mechanical parts with no reference number in the exploded views are not

supplied.

•Due to standardization, replacements in the parts list may be different from

the parts specified in the diagrams or the components used on the set.

•CAPACITORS:

uF: µF

•COILS

uH: µH

•RESISTORS

All resistors are in ohms.

METAL: metal-film resistor

METAL OXIDE: Metal Oxide-film resistor

F: nonflammable

•SEMICONDUCTORS

In each case, u: µ, for example:

uA...: µA... , uPA... , µPA... ,

uPB... , µPB... , uPC... , µPC... ,

uPD..., µPD...

When indicating parts by reference number,

please include the board name.

(JAPANESE)

•Abbreviation

AR : Argentine model

AUS:Australian model

BR : Brazilian model

CH : Chinese model

CND : Canadian model

EE : East European model

HK : Hong Kong model

J:Japanese model

JE : Tourist model

KR : Korea model

NE : North European model

The components identified by mark 0or

dotted line with mark 0are critical for safety.

Replace only with part number specified.

Les composants identifiés par une marque

0sont critiques pour la sécurité.

Ne les remplacer que par une pièce portant

le numéro spécifié.

【使用上の注意】

•ここに記載されている部品は,補修用部品であるため,回路図及び

セットに付いている部品と異なる場合があります。

•-XX,-Xは標準化部品のため,セットに付いている部品と異なる場

合があります。

•*印の部品は常備在庫しておりません。

•コンデンサの単位でuFはμFを示します。

•抵抗の単位Ωは省略してあります。

金　　被：金属被膜抵抗。

サンキン：酸化金属被膜抵抗。

•インダクタの単位でuHはμHを示します。

•半導体の名称でuA...,uPA...,uPB...,uPC...,uPD...等はそれぞれμ

A...,μPA...,μPB...,μPC...,μPD...を示します。

0印の部品，または0印付の点線で囲まれた部品は，

安全性を維持するために，重要な部品です。

従って交換時は，必ず指定の部品を使用してください。

図面番号で部品を指定するときは基板名又はブロック

を併せて指定してください。

お願い

•Color Indication of Appearance Parts

Example:

(SILVER) : Cabinet’s Color

(Silver) : Parts Color

•外装部品色表示

例：

(SILVER):セットの色を表す。

(Silver) :部品の色を表す。

5-2

5. REPAIR PARTS LIST

HVR-M25J/M25U/M25N/M25E/M25P/M25C

5-1-1. OVERALL ASSEMBLY

Ref. No. Part No. Description Ref. No. Part No. Description

12-660-352-01 KNOB, VOL

23-987-171-01 FOOT (FF-004)

#33 3-077-331-21 +BV3 (3-CR) (Silver)

#36 4-886-821-11 SCREW, M3 CASE (Silver)

5-1. EXPLODED VIEWS

DISASSEMBLY

HARDWARE LIST

ns: not supplied

#33

#36

#33

Front Panel Block

(See page 5-3)

Chassis Block

(See page 5-4)

5-3

5. REPAIR PARTS LIST

HVR-M25J/M25U/M25N/M25E/M25P/M25C

5-1-2. FRONT PANEL BLOCK

Ref. No. Part No. Description Ref. No. Part No. Description

51 2-660-352-01 KNOB, VOL

52 2-673-187-01 PLATE (L), ORNAMENTAL

53 2-673-188-01 PLATE (R), ORNAMENTAL

54 X-2103-340-1 PANEL ASSY, FRONT

55 2-659-717-01 CUSHION, PANEL

*56 2-638-780-01 CLIP

57 A-1166-868-A PD-287 BOARD, COMPLETE

ns: not supplied

58 1-832-964-11 CABLE, FLEXIBLE FLAT (FPD-001)

59 A-1166-869-A FR-253 BOARD, COMPLETE

60 1-832-959-11 CABLE, FLEXIBLE FLAT (FFR-001)

61 A-1153-648-A BLOCK (2.7), LIGHT GUIDE PLATE

LCD901 8-753-256-21 ACX547AK-1

#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)

#37 3-080-206-31 SCREW, TAPPING, P2 (Black)

HARDWARE LIST

DISASSEMBLY

PD-287

FR-253

#37

LCD901

54 55

56 57

5-4

5. REPAIR PARTS LIST

HVR-M25J/M25U/M25N/M25E/M25P/M25C

Ref. No. Part No. Description Ref. No. Part No. Description

101 3-072-975-01 HP BRACKET

102 A-1166-870-A HP-141 BOARD, COMPLETE

103 1-832-960-11 CABLE, FLEXIBLE FLAT (FHP-002)

104 1-964-845-11 HARNESS (LG-052)

105 1-870-263-11 FP-506 FLEXIBLE BOARD

106 1-832-962-11 CABLE, FLEXIBLE FLAT (FJK-001)

107 1-964-812-11 HARNESS (DV-068)

108 1-543-793-11 FILTER, CLAMP (FERRITE CORE)

109 3-941-343-01 TAPE (A)

110 1-964-811-11 HARNESS (CP-097)

5-1-3. CHASSIS BLOCK

111 1-964-810-11 HARNESS (SV-001)

112 1-832-961-11 CABLE, FLEXIBLE FLAT (FJV-002)

113 2-583-498-01 CUSHION (VC (FRONT))

0114 1-468-666-12 POWER BLOCK

115 1-964-814-11 HARNESS (PW-066)

#31 2-102-434-01 SCREW (M3 (ECO)), STEP (Silver)

#32 2-102-498-01 SCREW (2 (G TO)) (ECO) (Silver)

#33 3-077-331-21 +BV3 (3-CR) (Silver)

DISASSEMBLY

HARDWARE LIST

ns: not supplied

#32

#32 #32

#32

#33

#31

#33

101

102

103

104

105

106

107

108

104

Rear Panel Bloc

(See page 5-5)

CMX Block

(See page 5-6)

109

110

111

112

113

114

115

•Refer to page 5-1 for mark 0.

5-5

5. REPAIR PARTS LIST

HVR-M25J/M25U/M25N/M25E/M25P/M25C

5-1-4. REAR PANEL BLOCK

Ref. No. Part No. Description Ref. No. Part No. Description

151 A-1179-542-A JK-309 BOARD, COMPLETE (SERVICE)

152 A-1166-865-A JV-002 BOARD, COMPLETE

*153 3-063-337-01 SWITCH, SLIDE

154 2-676-029-01 HOLDER, FAN

155 2-660-355-01 PANEL, REAR

156 1-961-664-11 HARNESS (AC-249)

157 3-175-037-01 PURSE LOCK

M907 1-787-505-11 MOTOR, FAN

ns: not supplied

#2 2-635-562-31 SCREW (M1.7) (Black)

#32 2-102-498-01 SCREW (2 (G TO)) (ECO) (Silver)

#34 3-077-331-41 +BV3 (3-CR) (Black)

#35 3-975-291-02 SCREW (4X6) (Silver)

#37 3-080-206-31 SCREW, TAPPING, P2 (Black)

#38 7-685-651-79 SCREW, TAPPING, +BV 3X20, TYPE 2, IT-3

(Silver)

HARDWARE LIST

JK-309

JV-002

#32

#34

#37

#34

#35

#38

M907

151

152

153

155

154

157

156

5-6

5. REPAIR PARTS LIST

HVR-M25J/M25U/M25N/M25E/M25P/M25C

Ref. No. Part No. Description Ref. No. Part No. Description

201 A-1166-873-A VD-036 BOARD, COMPLETE (SERVICE)

202 2-679-684-01 SHEET MD

203 3-974-011-01 RUBBER, VIBRATION PROOF

204 1-832-958-11 CABLE, FLEXIBLE FLAT (FRP-001)

205 A-1166-862-A RP-243 BOARD, COMPLETE

206 3-057-667-01 HOLDER, HARNESS

207 A-1166-871-A SH-023 BOARD, COMPLETE

208 1-964-809-11 HARNESS (SC-118)

209 A-1166-872-A CK BLOCK ASSY

210 3-941-343-01 TAPE (A)

5-1-5. CMX BLOCK

211 2-665-055-01 LEVER (4150), DETECTION

212 3-058-376-01 SPRING, COMPRESSION

213 X-3949-980-1 LEVER ASSY, CK

*214 2-698-077-01 SHEET (DEW BARRIER)

0BT1001 1-756-128-11 BATTERY, LITHIUM (SECONDARY)

M906 X-3949-979-1 MOTOR (CK) ASSY

#32 2-102-498-01 SCREW (2 (G TO)) (ECO) (Silver)

#40 7-685-851-04 SCREW +BVTT 2X4 (S) (Silver)

#42 7-628-253-00 SCREW +PS 2X4 (Silver)

HARDWARE LIST

ns: not supplied

DISASSEMBLY

VD-036

RP-243

#32

#42

#32

#40

#32

BT1001

#32

Mechanism Deck Assembly-1

(See page 5-7)

201

202

203

206

207 208

203

204

205

M906

209

211

212

213

210

214

: BT1001 (BATTERY, LITHIUM SECONDARY)

Board on the mount position.

(See page 4-35.)

•Refer to page 5-1 for mark 0.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

注意

電池の交換は，正しく行わないと破裂する恐れがあり

ます。電池を交換する場合には必ず同じ型名の電池

又は同等品と交換してください。

5-7

5. REPAIR PARTS LIST

HVR-M25J/M25U/M25N/M25E/M25P/M25C

5-1-6. MECHANISM DECK ASSEMBLY-1

(DRUM ASSEMBLY)

ns: not supplied

Ref. No. Part No. DescriptionRef. No. Part No. Description

701 1-675-561-11 FP-104 FLEXIBLE BOARD

*702 3-057-351-01 GUIDE, MIC BASE

703 3-057-350-02 BASE, MIC

704 3-732-817-11 SCREW (2X4.5), TAPPING

705 3-057-319-05 RETAINER, PENDULUM

706 X-3949-922-1 ARM ASSY, PENDULUM

707 3-057-286-01 SPRING, EXTENSION (BRAKE)

708 3-057-280-01 ARM (S), BRAKE

709 3-057-279-01 BRAKE (T), RATCHET

710 3-057-232-01 SPRING, COMPRESSION (TG)

711 3-057-238-01 RING, TG

712 3-057-237-01 SLEEVE, TG

713 3-057-235-01 ROLLER, TG

714 3-057-234-01 FLANGE, TG UPPER

715 3-057-379-01 GUARD, GUIDE

716 A-7094-608-C SCREW ASSY, DRUM FITTING

717 3-973-171-01 SUPPORT, TAPE

718 3-057-227-01 RETAINER, TAPE

719 3-973-818-01 SPRING, COMPRESSION (TAPE RETAINER)

720 X-3949-915-1 ARM ASSY, PINCH

721 3-057-228-01 CAP, DRUM

723 3-726-829-01 WASHER, STOPPER

724 3-057-353-01 SPRING, MIC BASE

725 3-318-201-91 SCREW (B) (1.4X3), TAPPING

726 3-973-266-11 SCREW (M2X2.2 (MEK)), HEAD

727 3-703-816-74 SCREW (M1.4X4.5)

729 1-770-363-11 CONNECTOR, ELASTIC

CN004 1-770-312-21 CONNECTOR 4P

M901 A-1193-393-A DRUM ASSY (DEH-21D/J-RP)

S004 1-762-351-22 SWITCH, PUSH (1 KEY) (REC PROOF)

M901

S004

701

703

723

724

702

726

705

706

707

708

709

715

727 727

729

717

721

716

718

719

720

CN004

714

712

711

713

710

714

712

711

713

710

704

725

Mechanism Deck Assembly-

(See page 5-8)

Mechanism Deck Assembly-4

(See page 5-10)

5-8

5. REPAIR PARTS LIST

HVR-M25J/M25U/M25N/M25E/M25P/M25C

5-1-7. MECHANISM DECK ASSEMBLY-2

(GEAR, ARM)

751 752

758

752

753

757

753

M902

756

754 755

762 761

784

760

765

763

775

780

781

776

774

775

767

772 769

773

770 777

778

771

775 774

773

775

766

768

772

782

778

776

777

779

759

783

Mechanism Deck Assembly-3

(See page 5-9)

Ref. No. Part No. DescriptionRef. No. Part No. Description

751 A-7096-800-A GEAR (A) ASSY, IDLER

752 3-057-311-01 GEAR (B), IDLER

753 A-7094-599-A REEL (LARGE) BLOCK ASSY

754 3-057-267-01 GEAR, ENCODER

755 3-057-294-01 GEAR, MAIN CAM

756 3-973-140-01 GEAR, SUB CAM

*757 3-057-302-01 SLIDER, SBR

758 3-057-314-02 SLIDER, SUB

759 X-3950-816-2 ARM ASSY, LOADING

760 3-057-221-01 SLIDER, PINCH

*761 3-057-252-01 ARM, SUB SLIDER

762 3-973-159-01 GEAR, JOINT

763 3-057-222-02 HOLDER, MOTOR

765 3-973-266-11 SCREW (M2X2.2 (MEK)), HEAD

766 X-3949-918-1 ARM ASSY, TG2

767 X-3949-919-1 ARM ASSY, TG7

768 3-057-295-01 SPRING, EXTENSION (TG2)

769 3-057-296-02 SPRING, EXTENSION (TG7)

770 X-3949-921-1 BAND (TG7) ASSY

771 X-3949-920-1 BAND (TG2) ASSY

772 3-057-281-01 MAGNET, ET

773 3-057-336-01 HOLDER, MAGNET

774 3-057-344-01 SPRING, COMPRESSION (TG ARM)

775 3-726-829-01 WASHER, STOPPER

776 3-057-232-01 SPRING, COMPRESSION (TG)

777 3-057-238-01 RING, TG

778 3-057-237-01 SLEEVE, TG

779 3-057-235-01 ROLLER, TG

780 3-057-234-01 FLANGE, TG UPPER

781 3-057-337-01 ROLLER, TG7

782 3-063-887-01 FLANGE (2), TG UPPER

783 X-2148-017-1 TC ASSY

784 2-685-919-01 SCREW (M2X13)

M902 X-3946-702-1 MOTOR ASSY, CAM

This manual suits for next models

Table of contents

Other Sony Recording Equipment manuals

Popular Recording Equipment manuals by other brands

KV2 Audio

KV2 Audio 500 Series user guide

Robotics Technologies

Robotics Technologies microBus-Cam II installation manual

Seca

Seca 460 quick start guide

Cognex

Cognex MVS-8000 Series Hardware manual

Mect

Mect MPNC006 Series user manual

Bad Caf

Bad Caf THE LEASH operating manual

Strymon

Strymon NIGHTSKY user manual

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U user manual

Tews Technologies

Tews Technologies TPMC465 user manual

Honeywell

Honeywell Excel 50 user guide

SeaLevel

SeaLevel COMM+8.LPCI user manual

Arturia

Arturia AUDIOFUSE STUDIO user manual

Rukra

Rukra RK-1240 quick start guide

Samson

Samson SCOM owner's manual

Dynacord

Dynacord DPS260 owner's manual

Nice

Nice Core user manual

Pyle Pro

Pyle Pro PSS8 manual

RF-System

RF-System TinyGate Assembly and user's manual
