Sony SU-PF2 User manual

SU-PF2 4-098-912-32 (1)

4-098-912-32 (1)

Floating Stand

Instructions

SU-PF2

SU-PF2 4-098-912-32 (1)

2(GB)

Thank you for purchasing this product.

For customers

This product should only be installed by qualified Sony service representatives, as it requires at least two

people, special care, safety, and technique. Sony is not liable for any accidents or damages caused by incorrect

installation or handling.

WARNING

If the safety precautions are not observed or the product is used incorrectly, it may result in serious injury or fire.

This instruction manual shows the correct handling of the product and important precautions necessary to prevent

accidents. Be sure to read this manual thoroughly and use the product correctly. Keep this manual available for

future reference.

For Sony dealers

Installation of a plasma TV requires two people, special care and technique. When installing a plasma TV, refer to

this manual carefully. Sony is not liable for any accidents or damages caused by incorrect installation or handling.

Please give this manual to the customer after installation.

On Safety

Products by Sony are designed with safety in mind. If the products are used incorrectly, however, it may result in a

serious injury through fire, electric shock, the product toppling over, or the product dropping. Be sure to observe

the precautions for safety to prevent such accidents.

CAUTION

This Floating Stand is intended for use only with the following products. Use with other apparatus is capable of

resulting in instability causing possible injury.

Specified products (As of June 2004)

Plasma TV KE-MX37A1 KE-MX37S1 KE-MX37N1 KE-MX37K1

KE-MX42A1 KE-MX42S1 KE-MX42N1 KE-MX42K1 KE-MX42M1

We recommend installing the Floating Stand a short distance away from the wall.

SU-PF2 4-098-912-32 (1)

English

3(GB)

WARNING

If the following precautions are not observed, serious injury or death through fire, electric shock the

product toppling over, or the product dropping can result.

This product should only be installed by qualified Sony service

representatives.

Installation by other, non-qualified persons may result in serious injury, as the TV and the stand are very heavy.

Do not lean on or hang from the stand.

The stand may topple over and cause injury.

Be sure to take measures to prevent the stand from toppling over.

If you fail to do so, the Floating Stand may topple over, or the TV may fall and cause injury. Anchor the TV to the

wall to prevent it from toppling over.

Be sure to install the stand on a solid and flat floor.

Do not install the Floating Stand so that it leans in one direction. If you do so, the Floating Stand may topple over

or the TV may fall. This may cause injury.

If you install the stand on a soft surface such as a mat or a carpet, lay a board over the designated location

beforehand.

Do not use a cracked stand.

Do not use the Floating Stand if any cracks appear in it.

The glass may break and the TV may fall, or the stand may topple over. This may cause injury.

Cracked Stand

SU-PF2 4-098-912-32 (1)

4(GB)

WARNING

If the following precautions are not observed, serious injury or death through fire or electric shock can

result.

Do not lean on or hang from the TV with the TV installed on the Floating

Stand.

The Floating Stand may topple over, or the TV may fall and cause serious injury or death.

Do not cover the ventilation hole of the TV.

If you cover the ventilation hole (with a cloth, etc.), heat may build up inside and cause fire.

Do not allow the mains lead or the connecting cable to be pinched.

•Do not allow the mains lead or the connecting cable to be pinched when you

install the TV on the stand. If the mains lead or the connecting cable is damaged,

this may result in fire or electric shock.

•Do not step on the mains lead or the connecting cable when you carry the

Floating Stand. The mains lead or the connecting cable may be damaged, and

this may result in fire or electric shock.

CAUTION

If the following precautions are not observed, injury or property damage may occur.

Do not install any equipment other than the specified product.

This stand is designed for use with the specified product only. If you install equipment other than specified, it may

fall or break, and cause injury.

Be sure to secure the TV.

Secure the TV to the Floating Stand using the supplied screws. If the TV is not installed securely, it may fall and

cause injury.

Do not apply weight to the glass or subject it to any kind of impact.

Do not apply weight to the stand with your hand when installing the TV. Do not hit the stand with hard objects,

such as a screwdriver, etc. The glass may break and cause injury.

SU-PF2 4-098-912-32 (1)

5(GB)

When carrying the Floating Stand

Trying to move the Floating Stand alone, or without following the proper procedures, may cause injury. To avoid

this, be sure to follow the advice given below.

•Be sure that two or more persons carry the Floating Stand only after removing the TV.

• Be careful not to allow your hands or feet to be pinched under the bottom plate.

Do not subject the glass to excessive shock.

This stand is made of tempered glass, but care should be taken. If the glass breaks,

glass fragments could cause injury, so observe the precautions below.

•Do not hit the glass or drop sharp-pointed objects on the glass. Avoid excessive

shock.

•Do not scratch or poke the glass with sharp-pointed objects.

•Do not let hard objects such as a vacuum cleaner hit the edges of the glass.

Notes on installation

• When assembling, lay the packing materials on the floor to avoid damage to the floor.

• Install the stand on a solid and flat floor. Do not allow the stand to be installed at an angle or incline. To avoid

this, observe the following precautions.

– If you install the stand on a soft surface such as a mat or a carpet, lay a board over the designated location

beforehand.

–Do not install the stand in a place subject to direct sunlight or near a heater.

–Do not install the stand in a hot or humid place, or outdoors.

Note on use

To keep the stand clean, occasionally wipe the stand with a dry soft cloth. Stubborn stains may be removed with a

cloth slightly dampened with diluted detergent. Then wipe the area with a dry soft cloth. Do not use chemicals,

such as thinner or benzine, as they damage the finish of the stand.

SU-PF2 4-098-912-32 (1)

6(GB)

For Sony dealers

Be sure to thoroughly read the safety precautions described above and pay

special attention to safety during the installation, maintenance, checking, and

repair of this product.

Be sure that two or more persons do the installation work.

Be sure that two or more persons install the TV on the Floating Stand. If one person does the installation work

alone, this may result in an accident or injury. Be sure to keep children away during the installation.

Be sure to assemble the Floating Stand securely

following the instructions.

If a screw is not tightened securely, or it is dropped, the Floating Stand may topple

over. This may cause damages or injury.

Be sure to install the TV securely following the instructions.

Tighten the screws securely. If the TV is not installed securely, it may fall and cause injury.

Be careful not to hurt your hands or fingers during installation.

Be careful not to hurt your hands or fingers when assembling the Floating Stand and installing the TV.

Check the parts

Name Quantity Name Quantity

Bottom plate Cable cover (for pillar)

Cable cover (for bottom plate)

Pillars with a glass panel 1

Screw (large) 2

Screw (small)

Securing screw 4

Anchor attachment 2

Be sure to have a Phillips screwdriver that fits the screws indicated above prior to the assembly.

SU-PF2 4-098-912-32 (1)

7(GB)

Assembling the Floating Stand

Tip

Lay the packing box of the Floating Stand, etc., on the floor and place the pillars on the box with their rear sides

(the side the cable cover is to be attached to) facing up. Set the box high enough that the bottom plate can stand

upright to stabilize assembly, as illustrated below. Also, if you spread the cushioning sheet on the floor,

damage to the floor can be avoided.

Attach the bottom plate to the pillars and secure them with screws.

1Align the pillar screw holes with their respective hollows on the bottom plate.

2Tighten all the screws to halfway, and then tighten each firmly.

Tip

Assembly can be made easier by temporarily securing the longer screws first.

Pillars with a glass panel

Use the packing box, etc.,

to align the screw holes.

Bottom plate

Note

When using an electric screwdriver, set the torque setting to about 1.5N·m.

Do not use an impact driver. If you use an impact driver or an electric screwdriver with the torque

setting out of the specified range, screws may be excessively tightened, which may damage the screws or

product. The stand may fall and serious injury may result.

Screw (small)

Screw (large)

SU-PF2 4-098-912-32 (1)

8(GB)

Mounting a TV

WARNING

If you allow the mains lead to be pinched under or between pieces of equipment, this may result in a short

circuit or an electric shock.

If you stumble over the mains lead or the connecting cable, the stand may topple over and cause injury.

Decide on the installation location and lay the stand down before installing the TV.

Since the TV is heavy, it is recommended that you decide on the installation location and lay the Floating Stand

down before installing the TV.

Note

Do not push or pull the Floating Stand while it is on the floor. The rubber footings on the base of the Floating

Stand may come off.

1Hold the TV upright and place it on the Floating Stand so that the dowels

of the pillars fit into the slots of the TV.

Slots

Rear side of the TV

Dowel

Hold the bottom

side of the TV at

the position

approximately up

to 20 cm from the

side to avoid your

hands to

be pinched

between

the TV and

the stand.

SU-PF2 4-098-912-32 (1)

9(GB)

Securing screw

3Connect the mains lead and the connecting cables to the TV.

Tip

For details on the mains lead and the connecting cable, refer to the operating instructions of the plasma TV

(KE-MX37A1/KE-MX37S1/KE-MX37N1/KE-MX37K1/KE-MX42A1

KE-MX42S1/KE-MX42N1/KE-MX42K1/KE-MX42M1).

Mains lead and

connecting cables

2Secure the TV and the Floating Stand with the supplied screws.

SU-PF2 4-098-912-32 (1)

10 (GB)

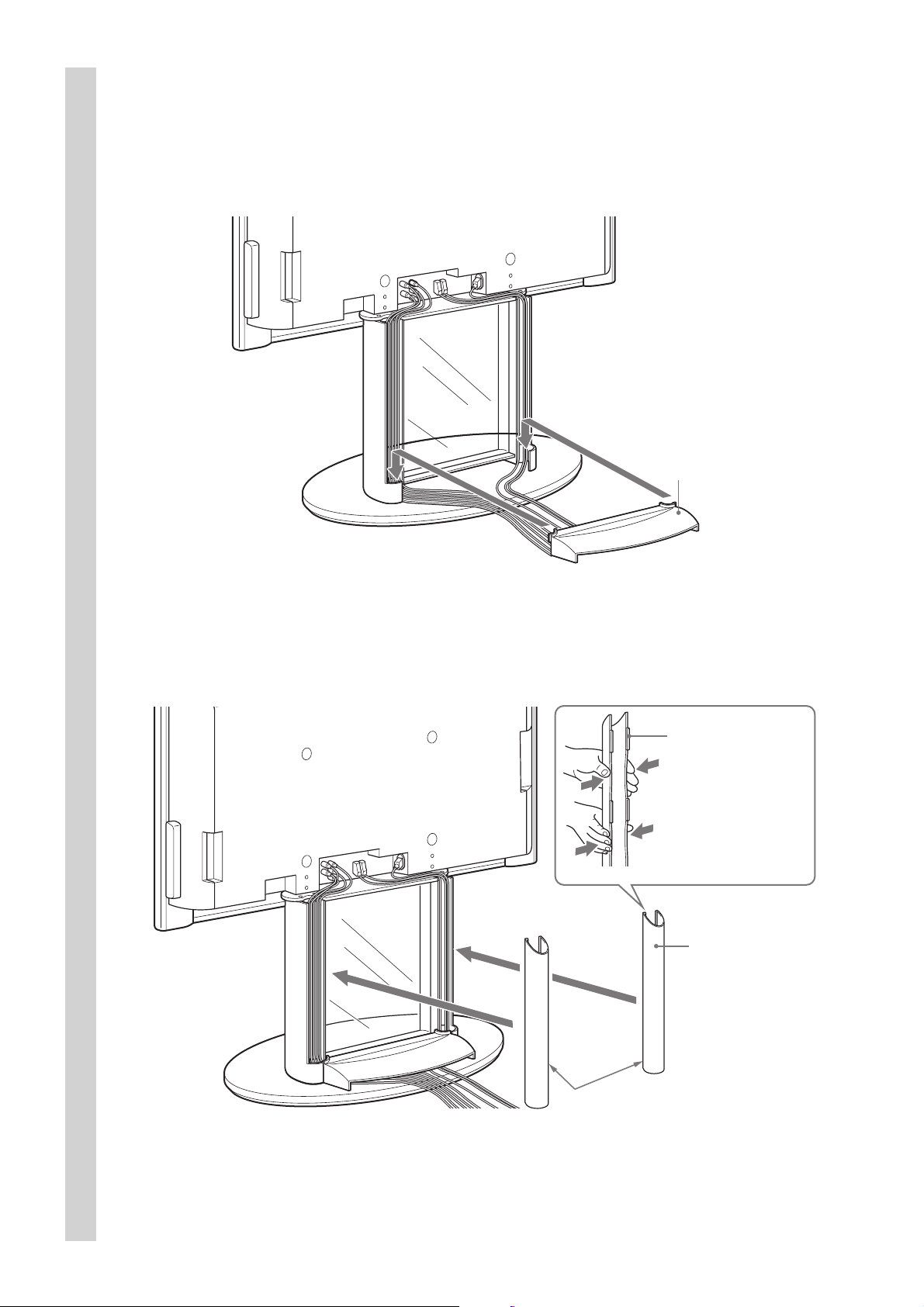

4Attach the cable cover to the Floating Stand.

1Pull the cables to take up the slack. Run the cables into the right and left pillars in equal proportions.

2Place the cable cover for the bottom plate so that the tabs of the cable cover hook into the pillars.

Cable cover (for bottom plate)

3Hold the cable cover with both hands. Hook the inside tabs of the cable cover into the pillars, and then,

likewise, the outside tabs, to attach the cable cover.

Tabs

When detaching the

cable cover, push the

cable cover inwards at

the points between the

tabs with both hands.

Cable cover (for pillar)

Hook the inside tabs first.
