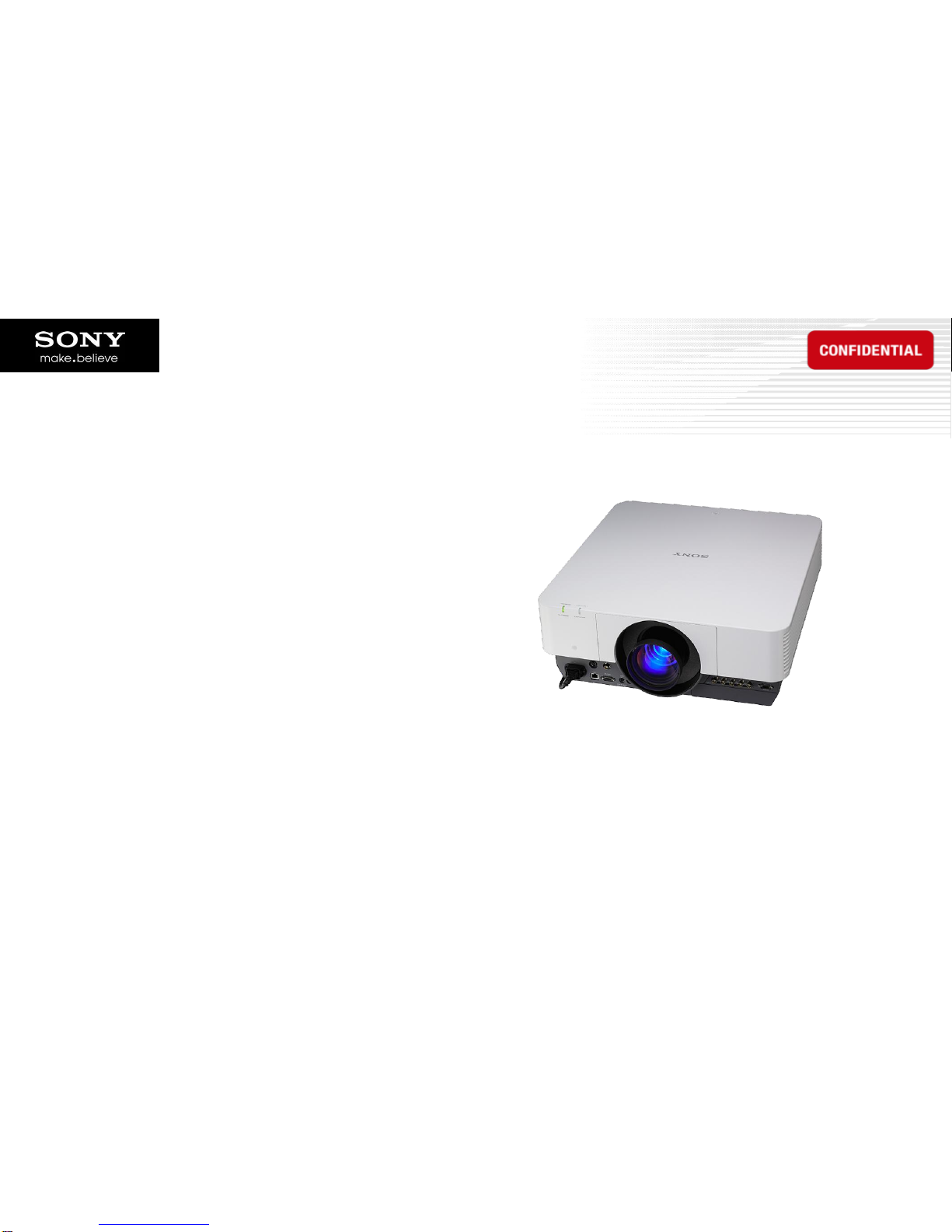

Sony VPL-FH500L User manual
Data Projector
VPL-FH500L
Sales Points
High resolution WUXGA
with Full HD compatibility
Twin-lamp System
Great Lens Compatibility &
Extreme lens shift
Good TCO & ECO Friendly
Blend-in Design
6
For Dealers
For Decision makers
For User
For Decision makers
For User
NEW
7
Performance
Specification table (1/6)
Name of product type VPL-FH500L (Falcon H)
Display system 3 LCD system
Display device Size of effective
display area 0.95” (24.1 mm) x 3, aspect ratio: 16:10
Number of pixels 6,912,000 (1920 x 1200 x 3) pixels
Projection lens
Zoom Powered / Manual (Depend on lens)
Focus Powered / Manual (Depend on lens)
Lens shift Powered
Light source High-pressure mercury lamp 330 W type
Recommended lamp replacement time*1 6000 H (Lamp mode : High) / 8000 H (Lamp mode : Standard) *2
Filter replacement cycle Same time as the lamp replacement
Screen size 40” to 600'„ (1.02 m to 15.24 m) (Depend on lens)
Light output 7000 lm (Lamp mode: High) / 5600 lm (Lamp mode: Standard) *3
Color light output 7000 lm (Lamp mode: High) / 5600 lm (Lamp mode: Standard) *3
Contrast ratio (full white/full black)*4 2500:1
*1: The figures are approximate. They vary depending on the environment or how the projector is used. Jigyobu cannot guarantee them.
*2: With two lamp sequential use.
*3: When attaching the VPLL-ZP41
*4: This value is average with lamp dimming.
NEW
This color texts are different points from FX500
8
Performance
Specification table (2/6)
Name of product type VPL-FH500L (Falcon H)
Speaker No
Displayable
scanning frequency Horizontal 14 kHz to 93 kHz
Vertical 47 Hz to 93 Hz
Display resolution Computer signal
input Maximum display resolution: 1920 x 1200 dots*5
Panel display resolution: 1920 x 1200 dots
Video signal input NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i,
1080/50i, 1080/60p, 1080/50p, 1080/48i*６, 1080/24p, 1080/30p*６
Color system NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
Keystone correction Vertical: Max. +/- 5 degrees
OSD language 20-languages (English, Dutch, French, Italian, German, Spanish, Portuguese ,Turkish, Polish,
Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean,
Thai, Vietnamese, Arabic, Persian)
*5: Available for VESA Reduced Blanking signal.
*6:Available via BKM-FW16
NEW
This color texts are different points from FX500
9
Performance
Specification table (3/6)
Name of product type VPL-FH500L (Falcon H)
Computer and Video
signal input/output INPUT A RGB / Y PBPRinput connector: 5BNC (female)
INPUT B RGB input connector: Mini D-sub 15-pin (female)
INPUT C DVI-D input connector: DVI-D 24-pin (Single link), supported HDCP
INPUT D HDMI input connector: Digital RGB/Y PBPR
INPUT E Optional adapter slot (For HD-SDI/SDI Input Adapter “BKM-FW16”)
S VIDEO IN S video input connector: Mini DIN-4 pin
VIDEO IN Video input connector: BNC
OUTPUT Monitor output connector*7: Mini D-sub-15 pin (female)
Control signal input/output RS-232C connector: D-sub-9 pin (female)
LAN connector: RJ45, 10BASE-T/100BASE-TX
Control S input connector: Stereo mini jack, Plug in power DC5V
Control S output connector: Stereo mini jack
*7: From INPUT A (RGB/YPBPR) and INPUT B (RGB)
NEW
This color texts are different points from FX500
10
Performance
Specification table (4/6)
Name of product type VPL-FH500L (Falcon H)
Acoustic noise 39 dB (Lamp mode: High) / 35 dB (Lamp mode: Standard)
Operating temperature (Operating
humidity) 0°C to 40°C / 32°F to 104°F (35% to 85% (no condensation))
Storage temperature (Storage humidity) -20°C to +60°C / -4°F to +140°F (10% to 90%)
Power requirements AC 100 V to 240 V, 4.9 A to 2.0A, 50 Hz / 60 Hz
Power consumption AC 100 V to 120 V 490 W
AC 220V to 240 V 460 W
Standby mode
power consumption AC 100 V to 120 V 11 W (Standby mode: Standard) / 0.1 W (Standby mode: Low)
AC 220V to 240 V 10 W (Standby Mode: Standard) / 0.2 W (Standby mode: Low)
Heat dissipation AC 100 V to 120 V 1672 BTU
AC 220V to 240 V 1569 BTU
MTBF 28,039 H
Safety regulations WW model UL60950-1 2nd Edition, cUL (No.60950-1 2nd Edition), FCC/IC ClassA, CE EN60950-1 2nd
Edition (LVD,EMC), C-Tick, 電気用品安全技術基準省令２項, VCCIクラスA情報技術装置, 電
源高調波自主規制 JIS C 61000-3-2, 電気通信事業法 技術基準（10/100Base）, GOST-R
Body color White / Gray
Outside dimensions W 530 x H 213 x D 545 mm / W 20 7/8 x H 8 3/8 x D 21 15/32 in
W 530 x H 204 x D 545 mm / W 20 7/8 x H 8 1/32 x D 21 15/32 in
(without protrusions)
Mass 20 kg / 44 lb 1 oz
The values for mass and dimensions are approximate.
NEW
This color texts are different points from FX500
11
Performance
Specification table (5/6)
Name of product type VPL-FH500L (Falcon H)
Supplied accessories RM-PJ19 Remote Commander (1)
Size AA (R6) batteries (2)
AC Power Cord (1) (@local)
Cable ties (2)
Cable tie holder for HDMI (1)
Lens installation screws (4)
Lens gap cover (1)
Quick Reference Manual (1)*8
Warranty Card (1) (@local)*9
Security Label (1)
Operating Instructions: CD-ROM*10 (1)
Battery for the
remote commander
of the projector
Category Battery Manganese
Type Size AA (R6)
Weight of single
battery (g) Approx. 18g
Number of batteries
per package 2
*8: World Wide model only. Languages are JP/GB/FR/DE/IT/ES/CS. Lens replacement instructions to be added
*9: When revise warranty period, must consult with Jigyoubu
*10: CD-ROM contents: Operating Instructions (JP/GB/FR/DE/IT/ES/CS/RU) Installation manual is to be integrated into operating instruction.
NEW
This color texts are different points from FX500
12
Performance
Specification table (6/6)
Name of product type VPL-FH500L (Falcon H)
Optional accessories
Projector Lamp (for replacement) : LMP-F330
Projector Suspension Support: PSS-630
Projector Suspension Support Joint Pole: PSS-630P
Projection Lens: VPLL-FM22
Projection Lens: VPLL-ZM32
Projection Lens: VPLL-ZM42
Projection Lens: VPLL-ZP41
Projection Lens: VPLL-ZM102
Projection Lens: VPLL-4008
Projection Lens: VPLL-Z4015
Projection Lens: VPLL-Z4019
Projection Lens: VPLL-Z4025
Projection Lens: VPLL-Z4045
Projection Lens Adapter: PK-F500LA1
Projection Lens Adapter: PK-F500LA2
HD-SDI/SDI Input Adaptor: BKM-FW16
NEW
This color texts are different points from FX500
Functions
Picture by Picture (TWIN)
DICOM GSDF simulation gamma
Screen Aspect
V Center & Vertical Size
Panel Alignment
Color Matching
Picture Muting -Mechanical Shutter-
ECO Mode
Security Pack
Network
Discrete Power key
Test Pattern
Digital Zoom
Smart APA (Auto Pixel Alignment)
Freeze
Configuration Reset
ID Mode
Closed Captioning (CC Display)
Direct Power On/Off
Installation Attitude
High Altitude Mode 13
NEW
Changed
Same as FX500, refer its PIL
Functions

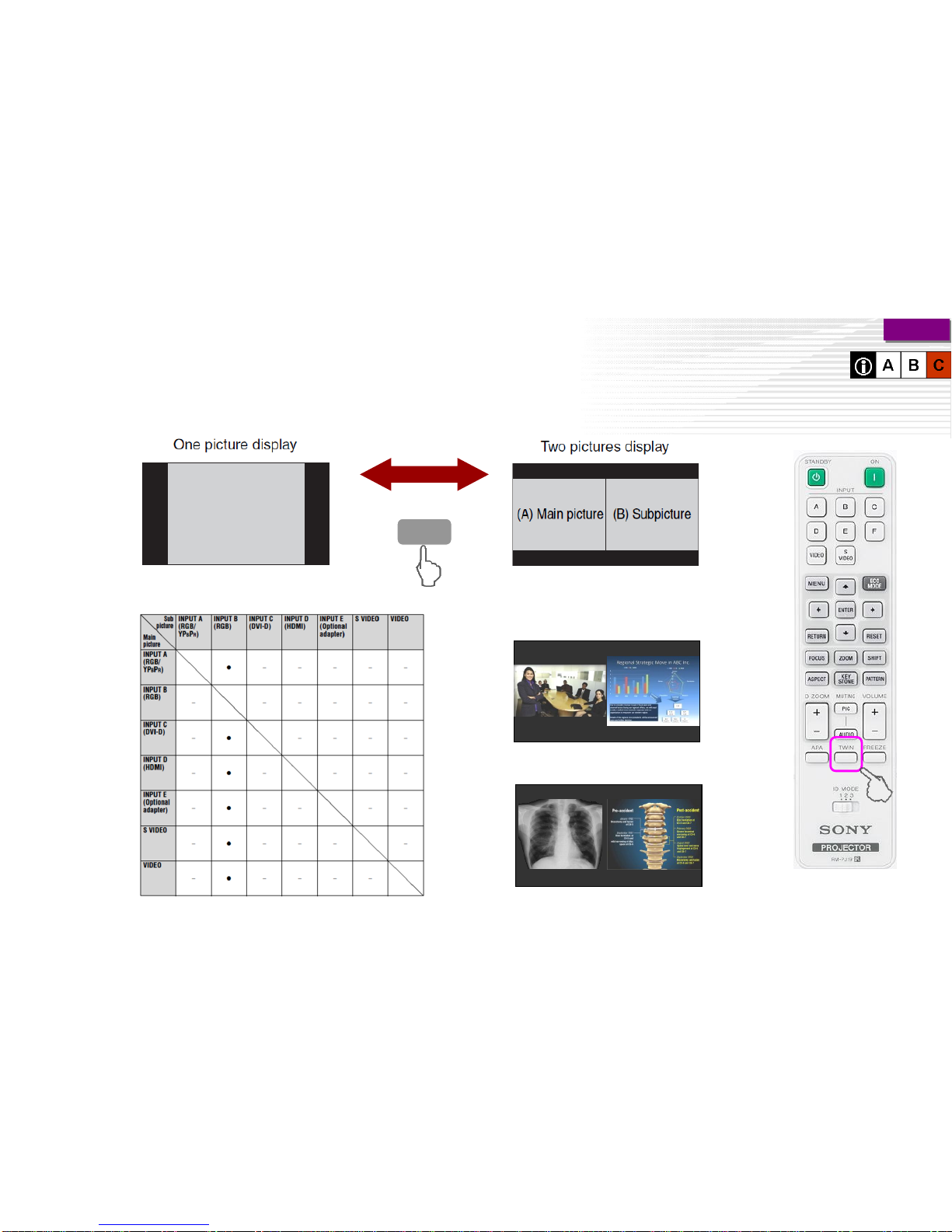

Picture by Picture (TWIN)
14
This function simultaneously displays two different pictures
Case 1: Video Conference
Case 2: Using two materials
TWIN
Input signals combinations
Only form
INPUT B (Fixed)
NEW
