Sony FWD-S42E1 User manual

• 42-inch* LCD Touch Screen

• Incorporates 3M™ DST (Dispersive Signal

Technology) Touch System

• Thin 20mm Bezel Design

• USA Service and Technical Support

• 1920 x 1080 High Denition

• Touch Screen Integrated within Factory Enclosure

• 3 year Warranty (Monitor)

• 3 Year Warranty (Sensor and Controller)

FWD-S42E1 Touch Screen Display

Large-format Interactive LCD

Sony LCD Monitor Model: FWD-S42E1

LCD Element 42-inch* diagonal LCD

Max. Resolution (pixels) 1920 x 1080

Pixel Pitch 0.48 mm

Max. Colors 1.06 Billion colors

Display Response Time 8 ms

Viewing Angle 178° right/left/up/down

Screen active area 36.63 x 20.59 inches

(930.24 x 523.25 mm)

Contrast Ratio 1000:1

Brightness 500 cd/m2

(before touch screen)

Power Requirements AC 100V—240 V 50/60 Hz

Power Consumption 98 (typ.) 160 (max)

Operating Temperature 0° to 35° C

Operating Humidity 20% to 90% (no condensation)

Speaker Optional

Dimensions

Approx.

38.27 x 22.24 x 5.17 inches

(972.1 x 565.1 x 131.3 mm)

excluding protrusions,

Touch Screen Installed

Weight lbs.

Approx.

56.0 lbs (25.4 kgs) with

integrated Touch Screen

installed

Input Terminals

HDMI™Connections No (Available through option

card BKM-FW15)

DVI DVI (x1)

Composite Video BNC (x1)

RGB/Component D-sub 15 Pin Female (x1)

S-Video Mini Din 4-pin (x1)

PC Audio Stereo Mini Jack (x1)

Video Audio Stereo Mini Jack (x1)

Stereo Mini Jack (x1) Stereo Mini Jack (x1)

Output Terminals

Analog Audio Stereo Mini Jack (x1)

RGB/Component D-sub 15 Pin Female (x1)

Ethernet RJ-45

Composite Video BNC (x1)

Speaker Out L/R Grip Connector

*Viewable area, measured diagonally. On-screen image is simulated.

permission is prohibited. Sony, BRAVIA, make.believe, Ziris and their respective logos

are trademarks of Sony. 3M and MicroTouch are trademarks of the 3M Company.

Sony Electronics Inc.

1 Sony Drive

Park Ridge, NJ 07656

sony.com/digitalsignage

DI-0210

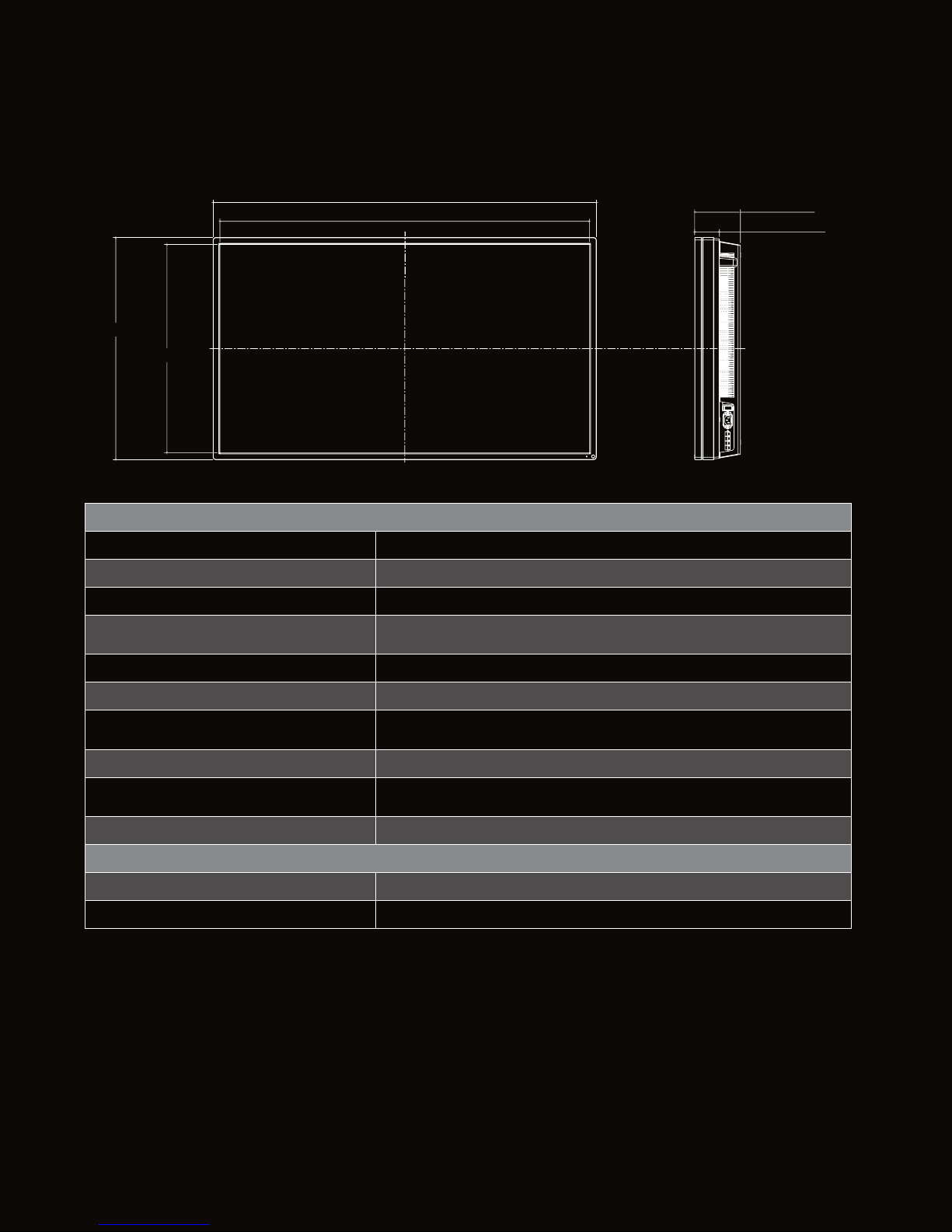

Sony FWD-42SE1 Touch Screen Display Dimensional Drawing

38.27” [972.1]

22.24” [565.1]

20.71” [523.2]

5.17” [131.35]

3.00” [76.35]

36.74” [933.2]

3M™ DST (Dispersive Signal Technology) Touch Screen Speciﬁcations

Total additional weight to monitor 6.0 lbs

Construction Glass chemically-strengthened anti-glare substrate

Input Method Finger and stylus input

Positional Accuracy Reported coordinates are within 1.0% of true position

(based on viewing area dimensions)

Light Transmission Up to 92%

Operating Temperature -15°C to 90°C

Minimum Touch Impact 50 mN.s (milli-newton seconds), the equivalent of a very light touch

Response Time 20 ms for tap input

Expected Life Performance No known wear-out mechanism, as there are no layers, coating,

or moving parts.

Total Additional Depth to Sony FWD-S42E1 1/4”

Touch screen Connector Speciﬁcations

Interface USB or RS-232 Serial (specify when ordering)

Maximum Single USB Cable Length 5m (16.4 ft)

Note: When using USB over distances of 5m, a USB extension system can be used.

Note: Power for the LCD monitor itself requires a connection to a 110 VAC receptacle. In addition, the Sony DST touch screen monitors require an external power

supply to drive the integrated touch screen controller. This small form factor 110 VAC to 5Vdc power supply is included with every Sony DST touch screen monitor.
