Sony ECM680S User manual

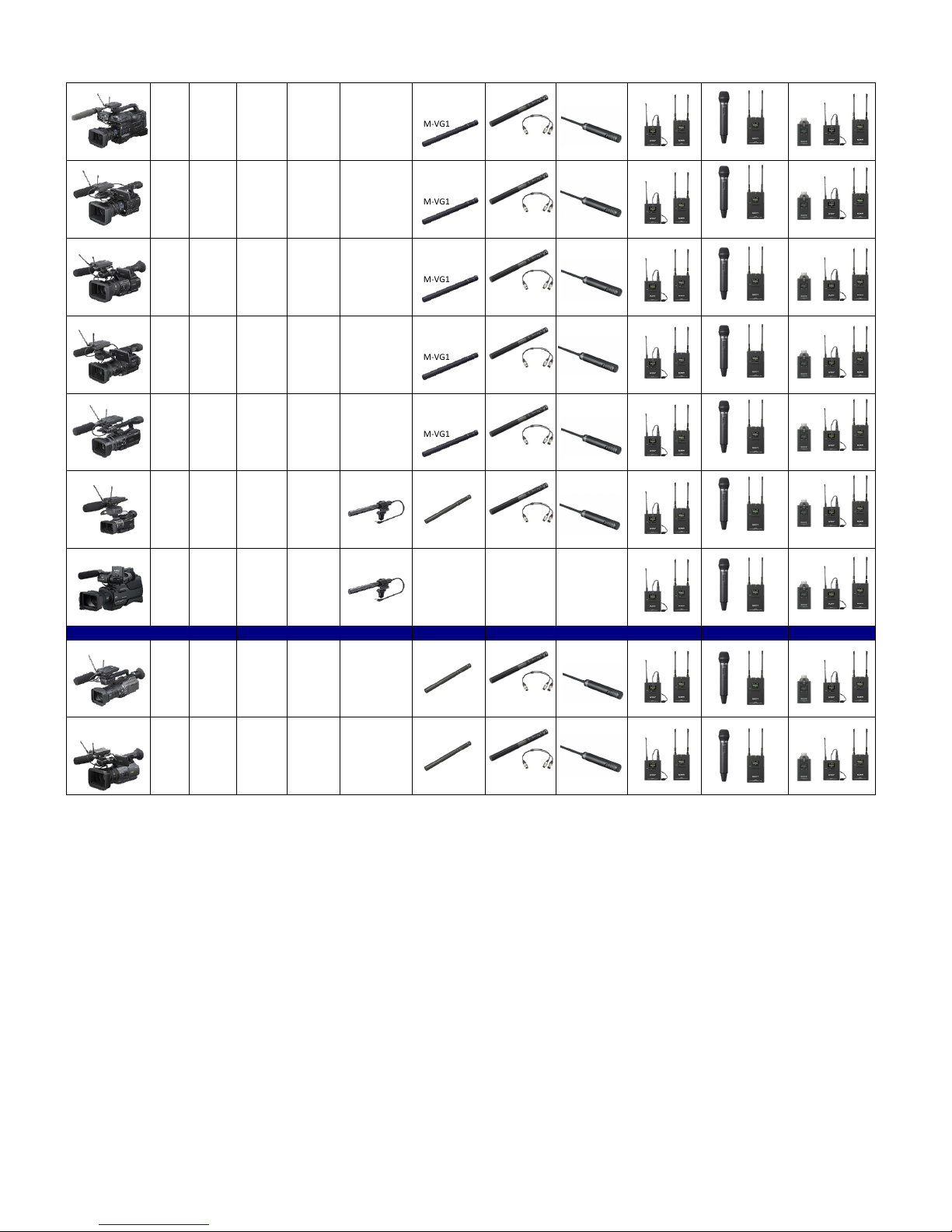

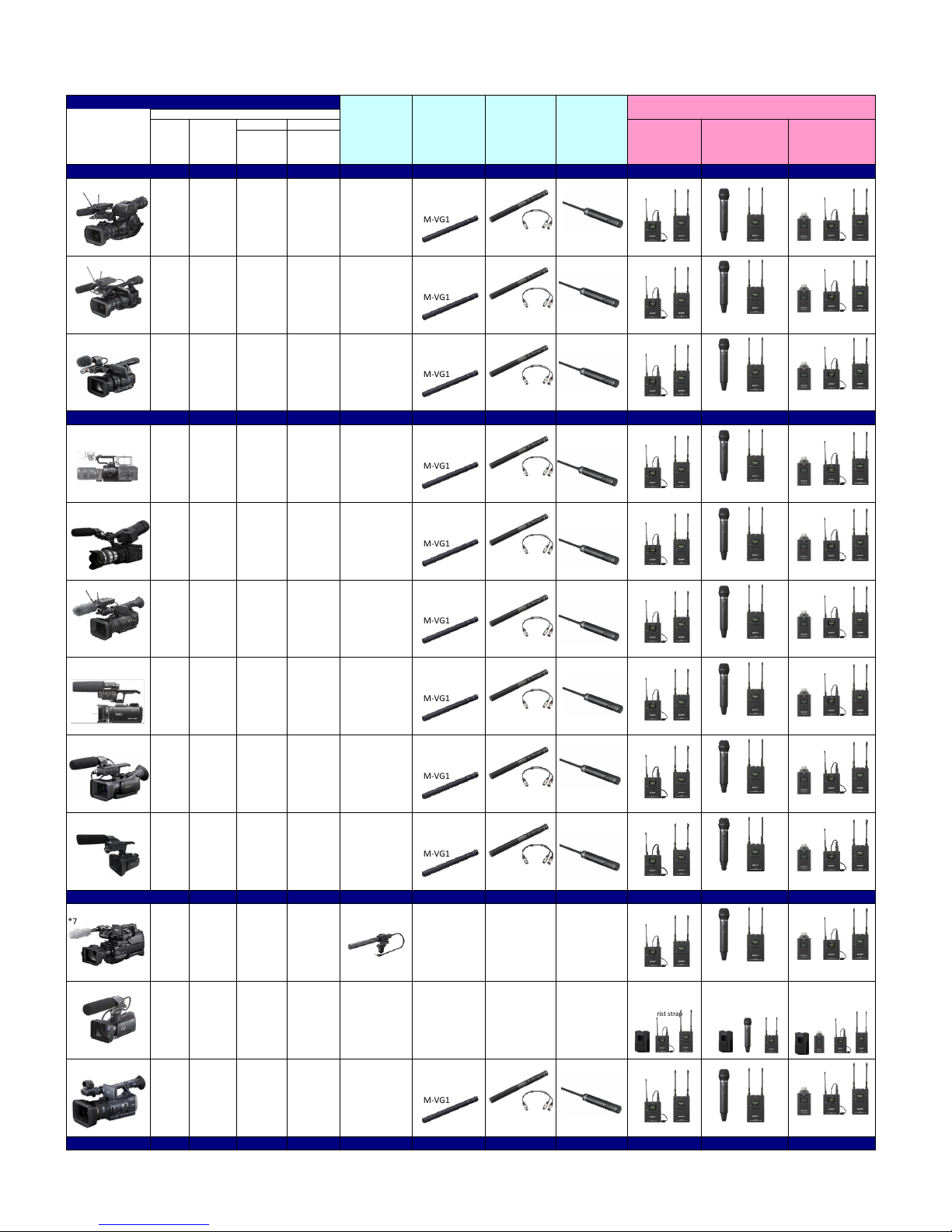

Wireless Microphone Tuner/Wired Microphone and Camcorder Combinations(w/New UWP) As of Feb.28th. 2012

Front Rear

Mic Input

Connector

Mic/Line

Input

Connector

XDCAM EX Camcorders

PMW-EX3 No No

XLR-3pin x2

ECM-678

ECM-674(*1)

ECM-673

ECM-VG1

ECM-680S ECM-MS2

PMW-EX1/EX1R No No

XLR-3pin x2

ECM-678

ECM-674(*1)

ECM-673

ECM-VG1

ECM-680S ECM-MS2

PMW-100 No No

XLR-3pin x2

ECM-678

ECM-674(*1)

ECM-673

ECM-VG1

ECM-680S ECM-MS2

NXCAM Camcorders

NEX-FS700 No No XLR-3pin x2

ECM-678

ECM-674(*1)

ECM-673

ECM-VG1

ECM-680S ECM-MS2

NEX-FS100 No No XLR-3pin x2

ECM-678

ECM-674(*1)

ECM-673

ECM-VG1

ECM-680S ECM-MS2

HXR-NX5 No No XLR-3pin x2

ECM-678

ECM-674(*1)

ECM-673

ECM-VG1

ECM-680S ECM-MS2

HXR-NX3D1 *8 No No XLR-3pin x2

ECM-678

ECM-674(*1)

ECM-673

ECM-VG1

ECM-680S ECM-MS2

HXR-NX70 *8 No No XLR-3pin x2

ECM-678

ECM-674(*1)

ECM-673

ECM-VG1

ECM-680S ECM-MS2

HXR-NX30 No No XLR-3pin x2

ECM-678

ECM-674(*1)

ECM-673

ECM-VG1

ECM-680S ECM-MS2

AVCHD Camcorders

HXR-MC2000/1500

No No

Stereo mini

jack x1

ECM-CG50BP

HXR-MC50 No No

Stereo mini

jack x1

Requires LCSURXP2 soft

carring case for Velcro

mounting on the

camera wrist strap

Requires LCSURXP2 soft

carring case for Velcro

mounting on the camera

wrist strap

Requires LCSURXP2 soft

carring case for Velcro

mounting on the camera

wrist strap

HDR-AX2000 *6 No No XLR-3pin x2

ECM-678

ECM-674(*1)

ECM-673

ECM-VG1

ECM-680S ECM-MS2

HDV Camcorders

Applicable Analog Wireless Microphone

UWP-V1

UWP-V2

UWP-V6

Camcorders

Applicable

Stereo

Microphone

(Mono available)

XLR-3pin x 2

Applicable

Shotgun

Microphone

(Mono)

XLR-3pin

Model Name

Camcorder interface for Microphone

Built-in

Wireless

Slot

DC Output

for

Wireless Tuner

Applicable

Shotgun

Microphone

(Mono)

3.5mm mini-plug

Applicable

Shotgun

Microphone

(Stereo/mono)

XLR-5pin

Requires optional Cable

ECM-0.5X5F3M *4

Requires optional Cable

ECM-0.5X5F3M *4

Requires optional Cable

ECM-0.5X5F3M *4

Requires optional Cable

ECM-0.5X5F3M *4

Requires optional Cable

ECM-0.5X5F3M *4

Requires optional Cable

ECM-0.5X5F3M *4

Requires optional Cable

ECM-0.5X5F3M *4

Requires optional Cable

ECM-0.5X5F3M *4

Requires optional Cable

ECM-0.5X5F3M *4

Requires optional Cable

ECM-0.5X5F3M *4

HVR-S270 No Yes XLR-3pin x2 XLR-3pin x2

ECM-678

ECM-674(*1)

ECM-673

ECM-VG1

ECM-680S ECM-MS2

HVR-Z7 Series No No XLR-3pin x2

ECM-678

ECM-674(*1)

ECM-673

ECM-VG1

ECM-680S ECM-MS2

HVR-Z5 Series No No XLR-3pin x2

ECM-678

ECM-674(*1)

ECM-673

ECM-VG1

ECM-680S ECM-MS2

HVR-Z1 Series No No XLR-3pin x2

ECM-678

ECM-674(*1)

ECM-673

ECM-VG1

ECM-680S ECM-MS2

HVR-V1 Series No No XLR-3pin x2

ECM-678

ECM-674(*1)

ECM-673

ECM-VG1

ECM-680S ECM-MS2

HVR-A1 Series No No

XLR-3pin x2

Stereo mini

jack x1

ECM-CG50BP

ECM-673

ECM-VG1

ECM-680S ECM-MS2

HVR-HD1000 Series No No

Stereo mini

jack x1

ECM-CG50BP

DVCAM Camcorders

DSR-PD170/170P

No No

XLR-3pin x2

ECM-673

ECM-VG1

ECM-680S ECM-MS2

DSR-PD175P/

177P/198P *2

No No

XLR-3pin x2

ECM-673

ECM-VG1

ECM-680S ECM-MS2

*1 : The ECM-674 can be driven by external DC power(40 to 52V) or battery(AA-size).

*2 : The DSR-175P/177P/198P are not available for NTSC area.

*3 : Active interface shoe can not be used to mount UWP receiver(URX-P2)

*4 : The ECM-0.5X5F3M is successor to the K1504

*5 : ECM-CG50BP holder can not be mounted to active interface shoe

*6 : HDR-AX2000 is consumer model

*7 : Defference between the HXR-MC2000 and the HXR-MC1500 is internal memory size only.

*8 : Set long shotguns such as ECM-680S / 678 / 674 back position to preventinadvertent vignetting of the microphone

Discontinued

Requires optional Cable

ECM-0.5X5F3M *4

Requires optional Cable

ECM-0.5X5F3M *4

Requires optional Cable

ECM-0.5X5F3M *4

Requires optional Cable

ECM-0.5X5F3M *4

Requires optional Cable

ECM-0.5X5F3M *4

Requires optional Cable

ECM-0.5X5F3M *4

Requires optional Cable

ECM-0.5X5F3M *4

Requires optional Cable

ECM-0.5X5F3M *4

Other manuals for ECM680S

This manual suits for next models
