Sony KDL-32W6100 Operation instructions

Dismantling information for use

by professional recyclers

LCD TV

9-888-729-41

Conditions of Use:

(1) Please use this information only for the purpose of repair and recycling of Sony products. Using this information for any

purpose other than the purpose described foregoing is forbidden.

(2) Do not copy, replicate, reproduce, alter, translate, transmit, sell, lease, or distribute this information in whole or in part

without the prior written permission of the author.

Revision of Information:

This information may be changed or updated at any time without any prior notice. Please confirm that this information is up-

to-date before using it.

Sony Home Entertainment & Sound Products Inc.

Model

：

KDL-32W6100

KDL-32W6105

ORIGINAL MANUAL ISSUE DATE: 2021.02

MODEL REMOTE DESTINATION

KDL-32W6100 RM-ED062 CEI

KDL-32W6105 RM-ED062 CEI

MODEL LIST

TOOLS & EQUIPMENTS

1 LIST OF ITEMS TO BRING

1. Screwdriver (e.g. #2 Phillips Screwdriver)

2. Multimeter

3. ESD Wrist Straps

4. Metal Washer (Flat) or Coin (for remove Rear Cover)

5. Ruler (for remove Rear Cover)

2 OPTIONAL EQUIPMENT

1. Screwdriver (e.g. #0 Phillips Screwdriver)

2. Parts Tray for loose screws and small items

3. Flashlight

For Surface Mounted Parts/Connectors;

Hot-Air Type soldering Iron is needed.

Thickness: approx. 1.5mm

Diameter: 20~25mm

(wrap in tape (L=50mm))

Plastic or Metal Ruler

(In case of Metal ruler, wrap

in tape (L=50mm) for prevent

scratches)

DISSASSEMBLY

REAR

COVER

LOUD

SPEAKER

P-MOD

BRACKET, SIDE (FRE)

SWITCH UNIT

UNIVERSAL

SIL-TU

BLM BOARD

LK1 BRD

SHEET,

THERMAL (BM)

1LABEL, UNDER

TERMINAL

BRACKET

SWITCH

HKT-E MOUNT

GUIDE, LIGHT

LOUDSPEAKER

STAND, ASSY

•Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.

• and shaded parts are critical for safety. Replace only with part number specified.

• Parts contain confidential information. Strictly follow the instruction whenever the components are

repaired and/or replaced.

(*) Parts are not stocked since they are seldom required for routine service.

Some delays should be anticipated when ordering these components.

Picture provided in this section might have slight difference from the actual sets.

Lines that indicate parts are shown in blue in the illustration.

The reference number beside the part description indicates the disassembly sequence.

Remove screws before disassembly. Unplug connectors before disassembly

3-1. KDL-32W61*

3-1-1. Disassembly, Exploded View

BEZEL

PANEL,

ORNAMENT (MZT)

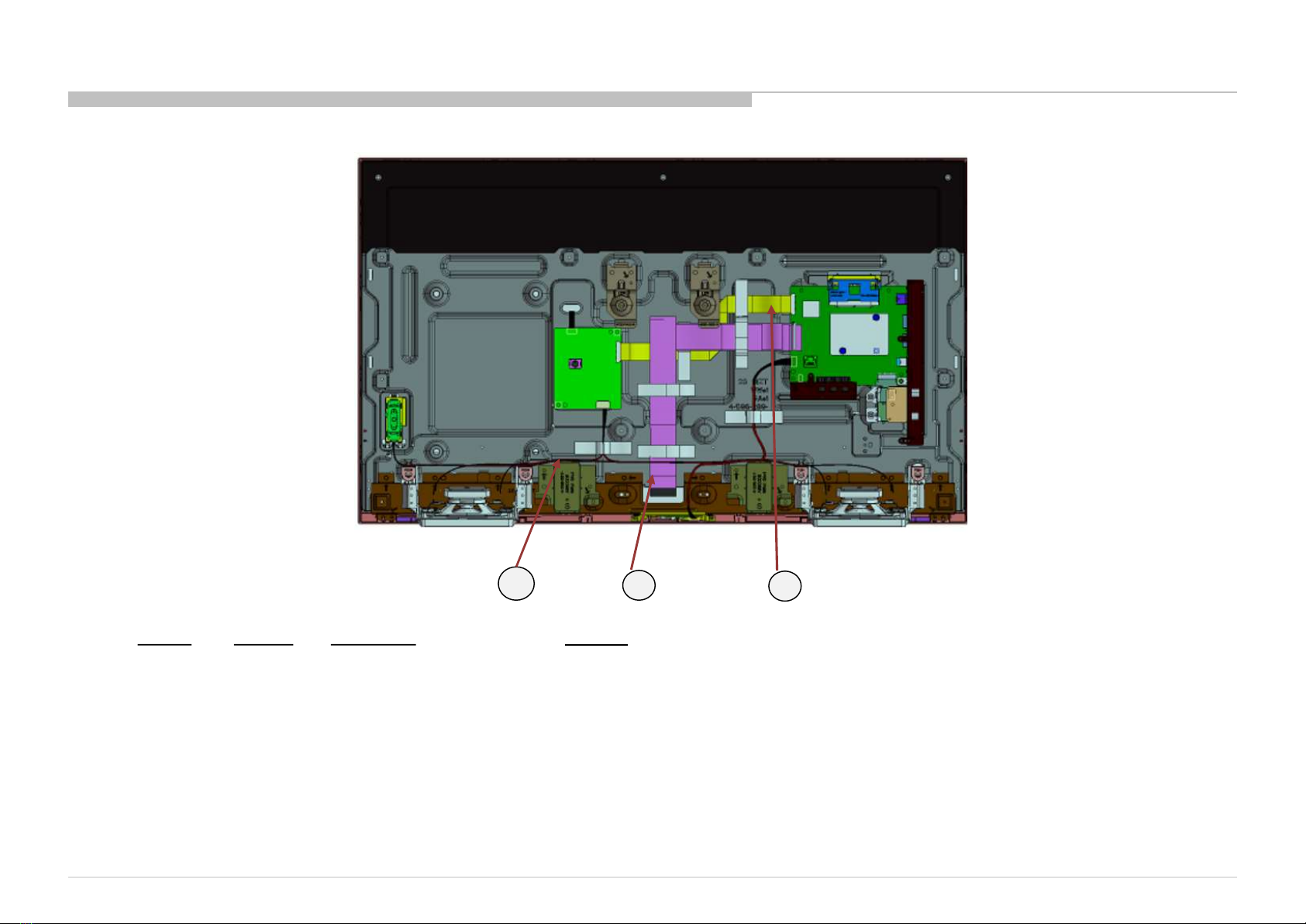

DISASSEMBLY, EXPLODED VIEWS AND OTHER PARTS

81 82

REF. NO. PART NO. DESCRIPTION REMARKS

81 1-912-036-11 FLEXIBLE FLAT CABLE 30P CN8501(BLM)-

SOURCE BOARD (1)

KDL-32W6100/6103/6105 (CEI)

82 1-849-993-11 FLEXIBLE FLAT CABLE 40P CN9601(BLM)-

CN9901(LK1) (1)

KDL-32W6100/6103/6105 (CEI)

83 1-910-805-95 HARNESS ASSY CN9602(BLM)-CN100(HKT)-CN1(3KEY)/CN4001(LK1)-

SP (1)

HARNESS/CABLE

REF. NO. PART NO. DESCRIPTION REMARKS

12 A-2180-708-A COMPL SVC BLM_KML_AEP_WXGA

14 A-2179-427-A SPRO MODULE LK1_M32_M40

15 A-2180-817-A P-MOD (IS7S320HNO0101)(SERVICE

SET PART LIST

PART NO. DESCRIPTION REMARKS

1-493-332-11 AC ADAPTOR(60W) KDL-32W6100/6103 (CEI)

1-493-000-51 AC ADAPTOR(85W) KDL-32W6105 (CEI)

1-846-420-11 CORD SET, POWER-SUPPLY KDL-32W6100/403/405 (CEI)

External Power Supply

Cable

Other Parts

PARTS LIST

Liquid Crystal Display

Printed Circuit Board, incl. capacitors

9-888-729-E4 English

Sony Home Entertainment & Sound Products Inc.
