Sony BDV-E970W User manual

SUBWOOFER

FRONT R

CENTER

Main unit/

Surround amplifier/

FRONT L

SUR L

SUR R

4-178-252-81(1)

(1)

Quick Setup Guide/

BDV-E970W/E670W

Connect the speakers/

Connect the speaker cords to match the color of the SPEAKERS jacks of the unit.

Rear panel of the main unit/

Red

White Green

Purple

FRONT R FRONT L

SUBWOOFER CENTER

SPEAKERS

Rear panel of the surround amplifier/

Blue

Gray

EZW-RT10

SURROUND BACK

IMPEDANCE USE

3-16

SURROUND SELECTOR

SPEAKERS

To connect speaker cords to the speaker/

Rear or bottom of the speaker/

Connect your TV/set-top box/

Depending on the jacks on your TV or set-top box, select the video and audio connection method.

Connecting the video to your TV/

VIDEO

CENTER

DIGITAL IN

COAXIAL

SAT/CABLE

EZW-RT10

AUDIO IN

AUDIO

ABC

S-AIR ID

ECM-AC2

A. CAL MIC

COAXIAL

ANTENNA

DIGITAL IN

OPTICAL

LAN(100)

/ C

COMPONENT VIDEO OUT

VIDEO OUT

OUT

ARC

DIGITAL OUT

COAXIAL

OPTICAL

AUDIO OUT L

TV/VIDEO

COMPONENT VIDEO IN HDMI IN VIDEO IN

Method 3/

Method 2*/

Method 1**/

*Not supplied/ *

**Supplied with Singapore, Chinese, and Taiwan models only./ **

Connecting the audio from your set-top box

If you do not use a set-top box, refer to “Connecting the TV (Audio connection)” in the Operating Instructions.

AUDIO

DIGITAL IN

OPTICAL

AUDIO IN

AUDIO

DIGITAL IN

COAXIAL

SAT/CABLE

OPTICAL

DIGITAL OUT

AUDIO OUT

COAXIAL

DIGITAL OUT

Method 1*/

Method 2*/

*Not supplied/ *

For details, refer to the Operating Instructions.

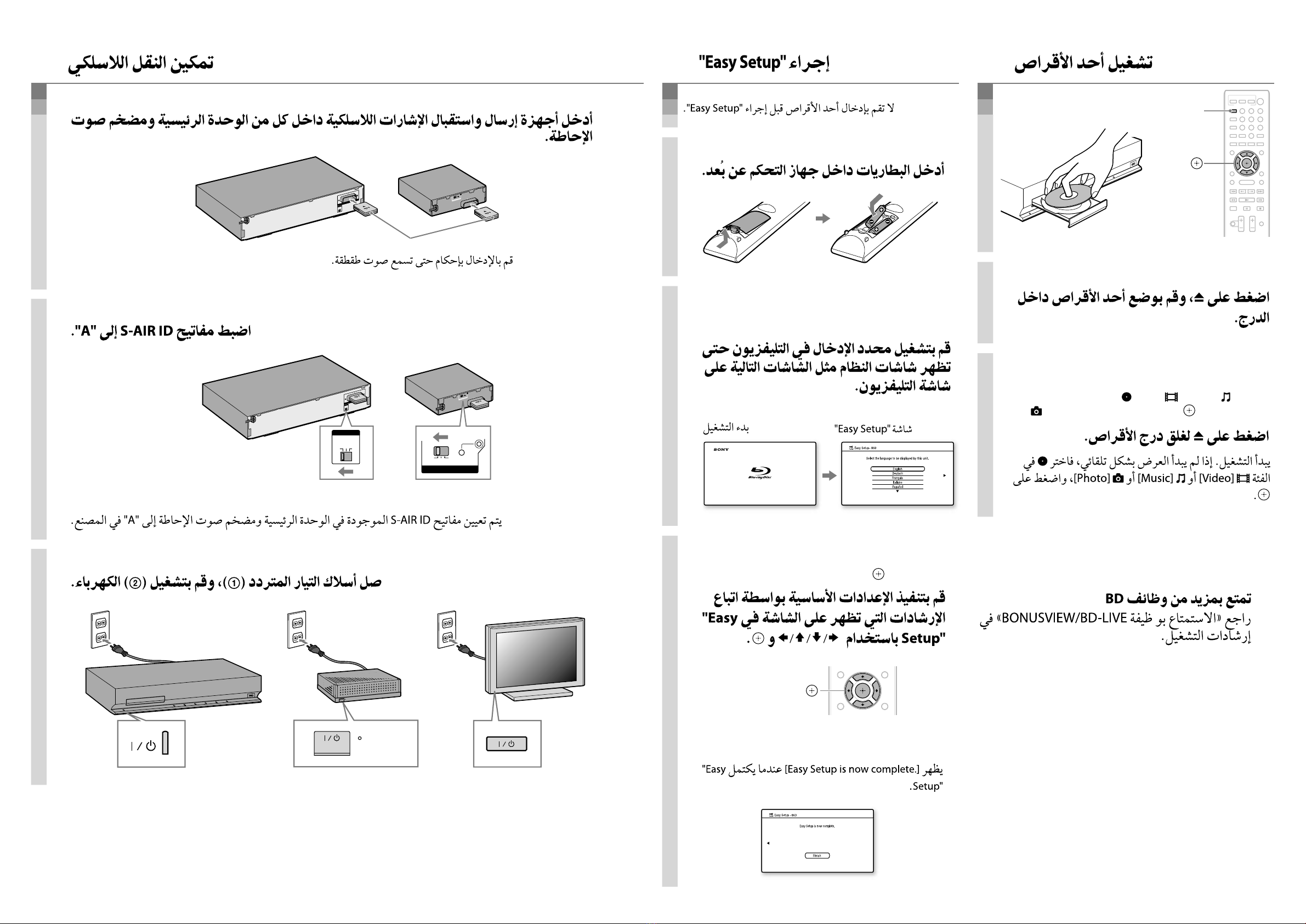

Enable wireless transmission/

1. Insert the wireless transceivers into both the main unit and surround amplifier.

SURROUNDSELECTOR

SURROUNDBACK IMPEDANCE USE

3-16

SURROUND

EZW-RT10

ABCPAIRING

S-AIR ID

FRONTR FRONTL

SUBWOOFER CENTER

SPEAKERS

COMPONENTVIDEO OUT

VIDEOOUT

LAN(100)

DIGITALIN

COAXIAL

SAT/CABLE

DIGITALIN

OPTICAL

OUT

ARC

COAXIAL

ANTENNA

ECM-AC2

A.CAL MIC

AUDIOIN

AUDIO

ABC

S-AIRID

EZW-RT10

Insert securely until they click.

2. Set the S-AIR ID switches to“A.”

FRONTR FRONTL

SUBWOOFER CENTER

SPEAKERS

COMPONENTVIDEO OUT

VIDEOOUT

LAN(100)

DIGITALIN

COAXIAL

SAT/CABLE

DIGITALIN

OPTICAL

OUT

ARC

COAXIAL

ANTENNA

ECM-AC2

A.CAL MIC

AUDIOIN

AUDIO

ABC

S-AIRID

EZW-RT10

SURROUNDSELECTOR

SURROUNDBACK IMPEDANCE USE

3-16

SURROUND

EZW-RT10

ABCPAIRING

S-AIR ID

A B C

A B C PAIRING

S-AIR ID

The S-AIR IDs on the main unit and surround amplifier are set to “A” at the factory.

3. Connect the AC power cords (), and turn on the power ().





S-AIR/STANDBY



 



Perform “Easy Setup”/

Do not insert a disc before performing the “Easy Setup”.

1. Insert batteries into the remote.

2. Switch the input selector on your TV

so that system screens like the ones

below appear on the TV screen.

“Easy Setup” screen/Starting up/

3. Perform basic settings by following

the on-screen instructions in “Easy

Setup” using///and .

///,

[Easy Setup is now complete.] appears when “Easy

Setup” is complete.

Play a disc/

///,

5 64

2 31



1. Press , and place a disc on the tray.

2. Press to close the disc tray.

Playback starts. If playback does not start

automatically, select in the [Video], [Music],

or [Photo] category, and press .

Enjoying more BD functions

Refer to“Enjoying BONUSVIEW/BD-LIVE” in the

Operating Instructions.
