Sony MDR-V6 User manual
SERVICE MANUAL
STEREO HEADPHONES
US Model
Canadian Model
AEP Model
UK Model
E Model
Ver. 1.2 2007.07
MDR-V6
Sony Corporation
Personal Audio Division
Published by SonyTechno Create Corporation
9-952-103-14
2007G00-1
© 2007.07
2
MDR-V6
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
12-115-668-03 PAD, EAR
22-113-129-01 STOPPER, DRIVER
*42-113-152-02 REGISTER, FRONT
*52-113-140-01 PLATE, FRONT
6 2-113-137-01 BUSHING
7X-2113-114-1 HOUSING (LEFT) ASSY
8X-2113-113-1 HOUSING (RIGHT) ASSY
92-113-133-11 HANGER (RIGHT)
10 2-113-132-11 HANGER (LEFT)
11 2-113-134-11 CASE, HINGE
12 7-671-113-01 STEEL, BALL 3
13 2-113-146-01 SPRING, COMPRESSION
14 X-2113-116-1 CASE (LEFT) ASSY, CLICK
*15 2-113-122-01 BAND, HEAD
16 X-2113-112-1 CUSHION ASSY, HEAD
*17 2-113-124-11 LID (LEFT), CLICK CASE
18 X-2113-101-1 SLIDER (LEFT) ASSY
*19 2-113-123-11 LID, HINGE CASE

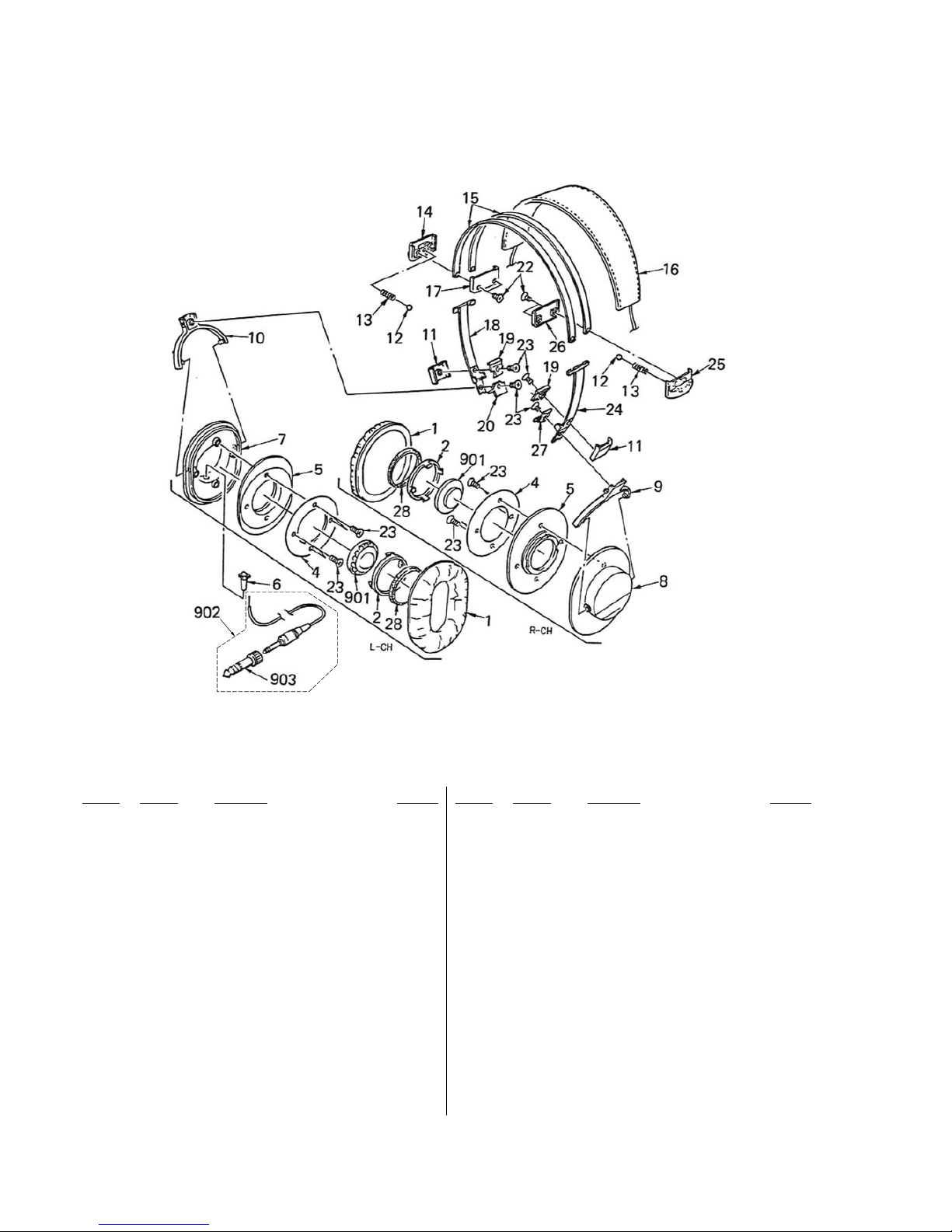

3. EXPLODEDVIEW AND PARTS LIST
NOTE:
Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
Ver. 1.2
20 2-113-130-11 LID (LEFT), HANGER
22 7-685-235-29 SCREW +KTP 2.6X10 TYPE2NON-SLIT
23 7-685-232-19 SCREW +KTP 2.6X5 TYPE2NON-SLIT
24 X-2113-102-1 SLIDER (RIGHT) ASSY
25 X-2113-115-1 CASE (RIGHT) ASSY, CLICK
*26 2-113-125-11 LID (RIGHT), CLICK CASE
27 2-113-131-11 LID (RIGHT), HANGER
28 2-113-149-01 RING, URETHANE
901 1-542-491-11 DRIVER (040F001P)
902 1-580-792-12 CORD (WITH PLUG) (with PLUG ADAPTOR)
903 1-506-589-11 ADAPTOR, PLUG
ACCESSORIES
************
2-113-147-11 CASE, SOFT
3-765-010-21 MANUAL, INSTRUCTION
(ENGLISH, FRENCH, SPANISH, GERMAN)
3
MDR-V6
MEMO
MDR-V6
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the top of the revised page allows you to jump to the next revised page.
Ver. Date Description of Revision
– 1986.01 New
1.0 1986.08 Addition of Canadian, AEP, UK, and E model.
1.1 2007.06 Part No. change of Ref. No. 1, 901, 902 and 903.
Delete of Packing material (SPM-07047)
1.2 2007.07 Correction of Parts No. for Ref. No.902.
