Sony MDR-RF875RK User manual

MDR-RF875RK

AEP Model

UK Model

SERVICE MANUAL

WIRELESS STEREO

HEADPHONE SYSYTEM

MDR-RF875RK is composed of the following models.

As for the service manual it is issued for each component

model, then please refer to it.

Headphones MDR-RF875R

Transmitter TMR-RF875R

COMPONENT MODEL NAME FOR MDR-RF875RK

PARTS LIST

The components identified by mark 0or dotted

line with mark 0are critical for safety.

Replace only with part number specified.

Ref. No. Part No. Description Remarks

ACCESSORIES & PACKING MATERIALS

*******************************

01-475-761-12 ADAPTOR, AC (AC-S901K)(AEP)

01-473-590-12 ADAPTOR, AC (AC-S901) (UK)

01-473-606-11 ADAPTOR, PLUG

1-559-906-32 CORD, CONNECTION

3-222-709-11 MANUAL,INSTRUCTION (ENGLISH)(AEP,UK)

3-222-709-21 MANUAL,INSTRUCTION

(FRENNCH,GERMAN,SPANISH,DUTCH,ITALIAN,

PORUTGUESE) (AEP)

SPECIFICATIONS

General

Carrier frequency

863.5 – 864.5 MHz

Channel Ch1, Ch2, Ch3

Modulation FM stereo

Frequency response

18 – 22,000 Hz

Transmitter TMR-RF875R

Power source DC 9 V: supplied AC power

adaptor

Audio input phono jacks/stereo mini jack

Dimensions Approx. 130 ×135 ×150 mm

(5

1

/

4

×5

3

/

8

×6 in.) (w/h/d)

Mass Approx. 200 g (7 oz.)

Headphones MDR-RF875R

Power source DC 2.4 V: Built-in rechargeable

battery

Mass Approx. 350 g (12.25 oz.) incl.

built-in rechargeable battery

Built-in Ni-MH rechargeable battery

Model name NH-AAC

Voltage 1.2 V

Capacity 1,000 mAh

Design and specifications are subject to change without

notice.

Ver 1.0 2000. 08

MDR-RF875RK

— 2 —

Sony Corporation

Audio Entertainment Group 2000H1646-1

Printed in Japan ©2000.8

Published by PE General Engineering Dept.

9-927-965-11

SECTION 1

GENERAL This section is extracted

from instruction manual.

DC IN 9V

OFF ON

FILTERNOISE

123

CHANNEL

RBAL

AUDIO IN

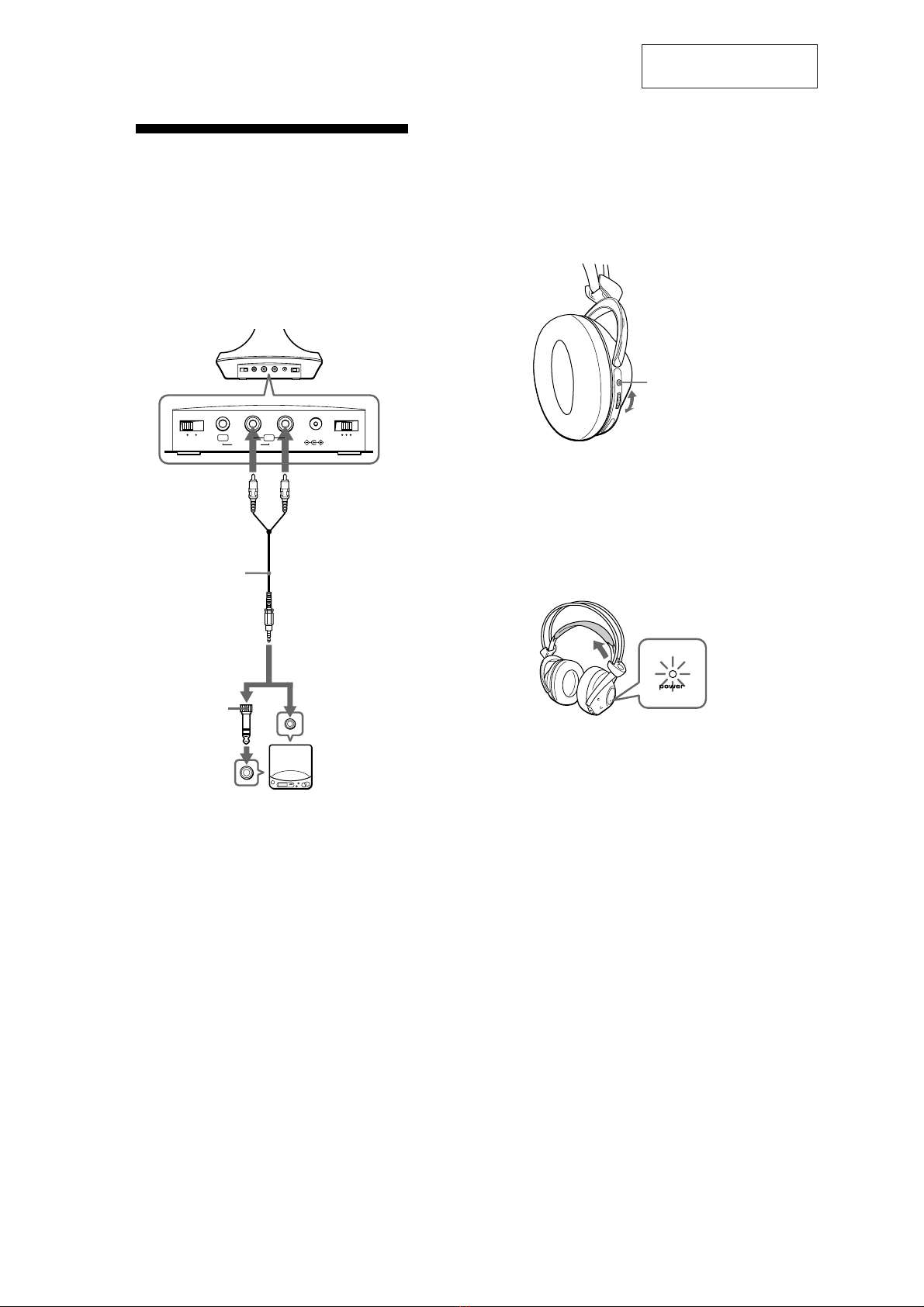

Setting up the

transmitter

1

Connect the transmitter to audio/video

equipment. Select one of the hookups

below depending on the jack type:

ATo connect to a headphone jack

Transmitter

Left channel

(white)

Right channel

(red)

Unimatch plug

adaptor

(supplied)

CD Walkman,

MD Walkman,

WALKMAN*,

VCR, etc.

to headphones

jack (stereo

mini jack)

Connecting cord

(supplied)

to AUDIO IN

A jacks

to headphones

jack (stereo

phone jack)

5

Turn up the volume to a moderate

level with the VOL control.

Press the TUNING button briefly for

automatic tuning of the headphones.

If you do not receive a clear audio

signal, press it again.

Try the above steps 3 and 5 until the

receiving performance becomes better.

Auto power on/off function

When you remove the headphones from your

head, the power turns off automatically. Do not

allow the self adjusting band to be pulled up,

otherwise the headphones will be switched on.

The power turns on.

Note

If a hissing noise is heard move closer to the transmitter.

TUNING

VOL control
