Sony PCGA-DVD51 User manual
4-647-113-11(1)
2000 Sony Corporation
DVD-ROM Drive
PCGA-DVD51
Operating Instructions
2
– Reorient or relocate the receiving antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced
radio/TV technician for help.
The shielded interface cable (audio cable)
recommended in this manual must be used
with this equipment in order to comply with
the limits for a digital device pursuant to
subpart B of Part 15 of FCC.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
For questions regarding your product or for
the Sony Service Center nearest you, call
1-888-476-6972 in the United States or
1-800-961-7669 in Canada.
The number below is for FCC related matters
only.
Regulatory Information
Declaration of Conformity
Trade Name: SONY
Model No.: PCGA-DVD51
Responsible Party: Sony Electronics Inc.
Address: 1 Sony Drive,
Park Ridge, NJ 07656
USA
Telephone No.: 201-930-6972
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
CAUTION - VISIBLE AND INVISIBLE
LASER RADIATION WHEN OPEN. DO
NOT STARE INTO BEAM OR VIEW
DIRECTLY WITH OPTICAL
INSTRUMENTS.
WARNING
To prevent fire or shock
hazard, do not expose the unit
to rain or moisture.
Dangerously high voltages are
present inside the unit. Do not
open the cabinet. Refer servicing
to qualified personnel only.
Pour prévenir tout risque
d’incendie ou d’électrocution,
garder cet appareil à l’abri de
la pluie et de l’humidité.
Pour prévenir tout risque
d’électrocution, ne pas ouvrir
le boîtier. Confier l’entretien
de cet appareil exclusivement
au personnel qualifié.
For customers in the U.S.A.
Owner’s Record
The model number and the serial number
are located on the bottom of the drive.
Record the serial number in the space
provided below. Refer to this number
whenever you call your Sony dealer
regarding this product.
Model No. PCGA-DVD51
Serial No.
FCC Notice
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
3
Welcome!
Thank you for purchasing the Sony
DVD-ROM drive PCGA-DVD51. Before
operating the drive, be sure to read this
manual thoroughly and retain it for
future reference.
This DVD-ROM drive is designed for
use with your Sony PCG-505, N505,
Z505, SR, C1 Series* Notebook
Computer, check your computer.
* As of June, 2000
Caution
This DVD-ROM drive is compatible with
WindowsR98, and WindowsR2000
Professional. Display windows appearing
when you use this drive may vary
depending on the operating system you use.
Sony, VAIO and the VAIO logo are
registered trademarks of Sony Corporation.
DirectCD and the logo of Adaptec, Inc. are
trademarks of Adaptec, Inc.
Microsoft, MS, MS-DOS, Windows and the
Windows logo are registered trademarks of
Microsoft Corporation.
Intel, Pentium and Celeron are trademarks
and registered trademarks of Intel
corporation.
Copyright 1999, 2000 Adaptec, Inc. All rights
reserved. Adaptec, the Adaptec logo, and
DirectCD are trademarks of Adaptec, Inc.
All other trademarks are trademarks of
their respective owners.
This product incorporates copyright
protection technology that is protected by
method claims of certain U.S. patents and
other intellectual property rights owned by
Macrovision Corporation and other rights
owners. Use of this copyright protection
technology must be authorized by
Macrovision Corporation, and is intended
for home and other limited viewing uses
only unless otherwise authorized by
Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
Before using the PCGA-DVD51, be sure to
read the End User Software License
Agreement that accompanies it.
• Copyright laws prohibit reproducing the
software or the manual accompanying it in
whole or in part, or renting the software
without the permission of the copyright
holder.
• In no event will SONY be liable for any
financial damages, or loss of profits,
including claims made by third parties,
arising out of the use of the software
supplied with this drive.
• In the event a problem occurs with this
product as a result of defective
manufacturing, SONY will replace it.
However, SONY bears no other
responsibility.
• The software provided with this drive
cannot be used with other drives.
• Please note that, due to continued efforts to
improve quality, the software specifications
may be changed without notice.
• Operation of this drive with software other
than that provided is not covered by the
warranty.
Caution:
The use of optical instruments with this
product will increase eye hazard.
As the laser beam used in this product is
harmful to eyes, do not attempt to
disassemble the cabinet. Refer to servicing to
qualified personnel only.
Laser diode properties
Laser output 30.2 µW
Wave Length 785 nm and 650 nm
For customers in Canada
This Class B digital apparatus complies with
Canadian ICES-003.
Pour les utilisateurs au
Canada
Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
4
Table of Contents
Overview........................................................ 5
Usable discs......................................................6
Unpacking the DVD-ROM drive.................... 7

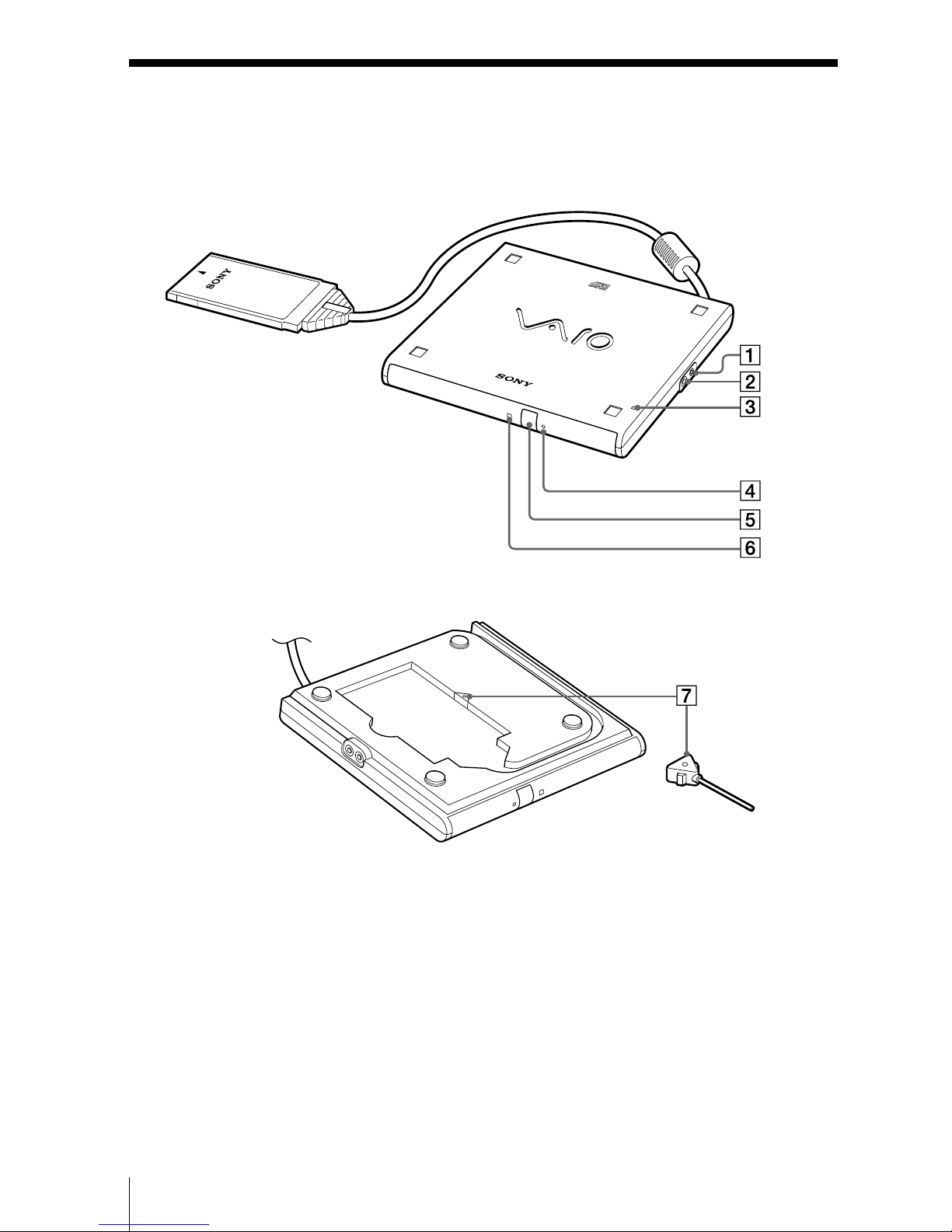

Locating the controls and connectors .......... 8
Setting up the DVD-ROM drive .................... 9
Installing the driver (WindowsR98) ...................... 9
Installing the driver
(WindowsR2000 Professional) ...................... 12
Using the DVD-ROM drive .......................... 13
Connecting the DVD-ROM drive
to the notebook computer .............................. 13
Removing the DVD-ROM drive
from the notebook computer ......................... 15
Transporting ........................................................... 16
Inserting a disc ....................................................... 17
Playing a DVD-VIDEO .......................................... 19
Notes about DVD-VIDEO discs ........................... 22
Playing an audio CD ............................................. 23
Reinstalling ............................................................. 24
Precautions.................................................... 25
Notes on Discs.............................................. 27
Specifications ............................................... 28
Getting Help................................................. 30
Troubleshooting............................................ 31
5
The DVD-ROM disc is a data memory medium that
can be used to read a program or other data for a
computer only. You cannot save your own data on it.
The data capacity of a single-layer and single-sided
DVD-ROM disc, at 4.7 GB (Giga Byte), is 7 times that
of a CD-ROM disc.
Furthermore, the data capacity of a dual-layer and
single-sided DVD-ROM disc is 8.5 GB, a single-layer
and double-sided disc, 9.4 GB, and a dual-layer and
double-sided disc, 17 GB.
Features of the PCGA-DVD51 are as follows:
• EnablesthereadingofDVD-ROMdiscdataataspeedof
8×max.(about11000KB/s)andCD-ROMdataataspeed
of24 ×max.(3600KB/s)withthesuppliedACadapter.
• EvenwithoutthesuppliedACadapter,itenablesthe
reading of DVD-ROM disc data at aspeedof about 2×max.
(about2200KB/s) andCD-ROMdata ataspeedof12 ×
max.(1800KB/s).
• YoucanenjoyDVD-VIDEOdiscsbyinstallingthe
suppliedsoftware(withlimitedmodels).Seepage19.
• YoucanenjoyAudioCDdiscsfromthespeakersofyour
notebookcomputerwhicharesuitablefordigitalAudio
CDdiscplay.Seepage23.
• Youcanreinstalltheoperatingsystemonyournotebook
computerbya recoveryCD-ROMdiscusing theDVD-
ROMdriveeasily.Seepage24.
• ThisdrivesupportsaPCcardinterfacefunction
compatiblewithboththeCardBusand16-bitmode.Ifyou
usethisDVD-ROMdrivewiththesuppliedACadapter,
thedriveissettotheCardBusmodeautomatically.Ifyou
usethedrivewithoutthesuppliedACadapter(withthe
electricpowerfromtheconnectiontoyournotebook
computer),thedriveissettothe16-bitmode
automatically.
• TheCardBusmodeenableshighspeedcopyingofdata.
• ThePCcardandcablecanbestowedinthebottomofthe
DVD-ROMdrive.Thisisconvenientwhentransporting
thedrive.
• ThesuppliedcompactandlightweightACadapter
supportsthefollowingpowerrequirements.
AC-CDR51 :100~240V
Overview
6
Usable discs
1) To play CD-R discs
writtenusing
“DirectCD“software,
closetheoperation
whenthewritingis
finished.
2) IfyouuseaWindows R
98modelsandplay
CD-RWdiscswritten
using “DirectCD“
software,“UDF
Reader“softwaremust
beinstalledinyour
notebookcomputer.
To check if “UDF
Reader“softwareis
installed,clickthe
[Start]button,pointto
[Settings],click
[ControlPanel],and
thendouble-click
[Add/Remove
Programs].If“Adaptec
DirectCD Reader“ is in
thelist,“UDFReader“
softwarehasalready
beeninstalled.
Notes
• Onlyusecirculardiscs.
Donotusediscswith
anyothershape(star,
heart,etc.),asthismay
damagetheDVD-ROM
drive.
• Donotusescratchedor
damageddiscs,as
doingsomaydamage
the DVD-ROM drive.
• Whenusingavideo
CD, an MPEG playback
videocardorplayback
applicationsoftware
mustbeinstalled.
• Whenusingdiscs,
searchapplication
softwareorplayback
applicationsoftware
mustbeinstalled.

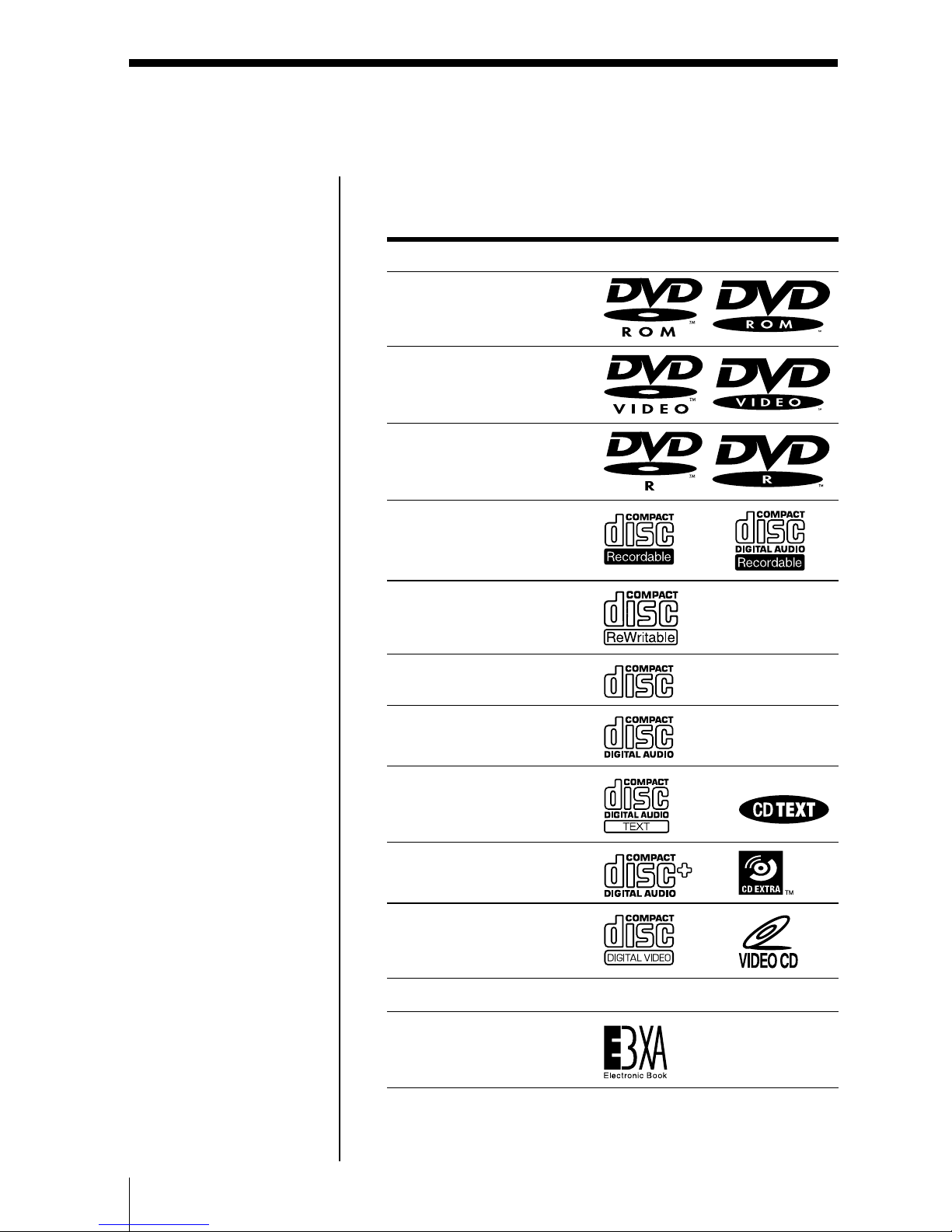

Your DVD-ROM drive can use all discs with the
following icons.
This drive can play Icon
DVD-ROMs
DVD-VIDEOs
DVD-Rs (reading only)
CD-Rs1) (reading only)
CD-RWs2) (reading only)
CD-ROMs
Audio CDs
CD TEXTs
CD EXTRAs
VIDEO CDs
Photo CDs ————
Electronic Books
You cannot use any of the following discs.
• DVD-RAMs
• DVD-RWs
7
Unpacking the
DVD-ROM drive

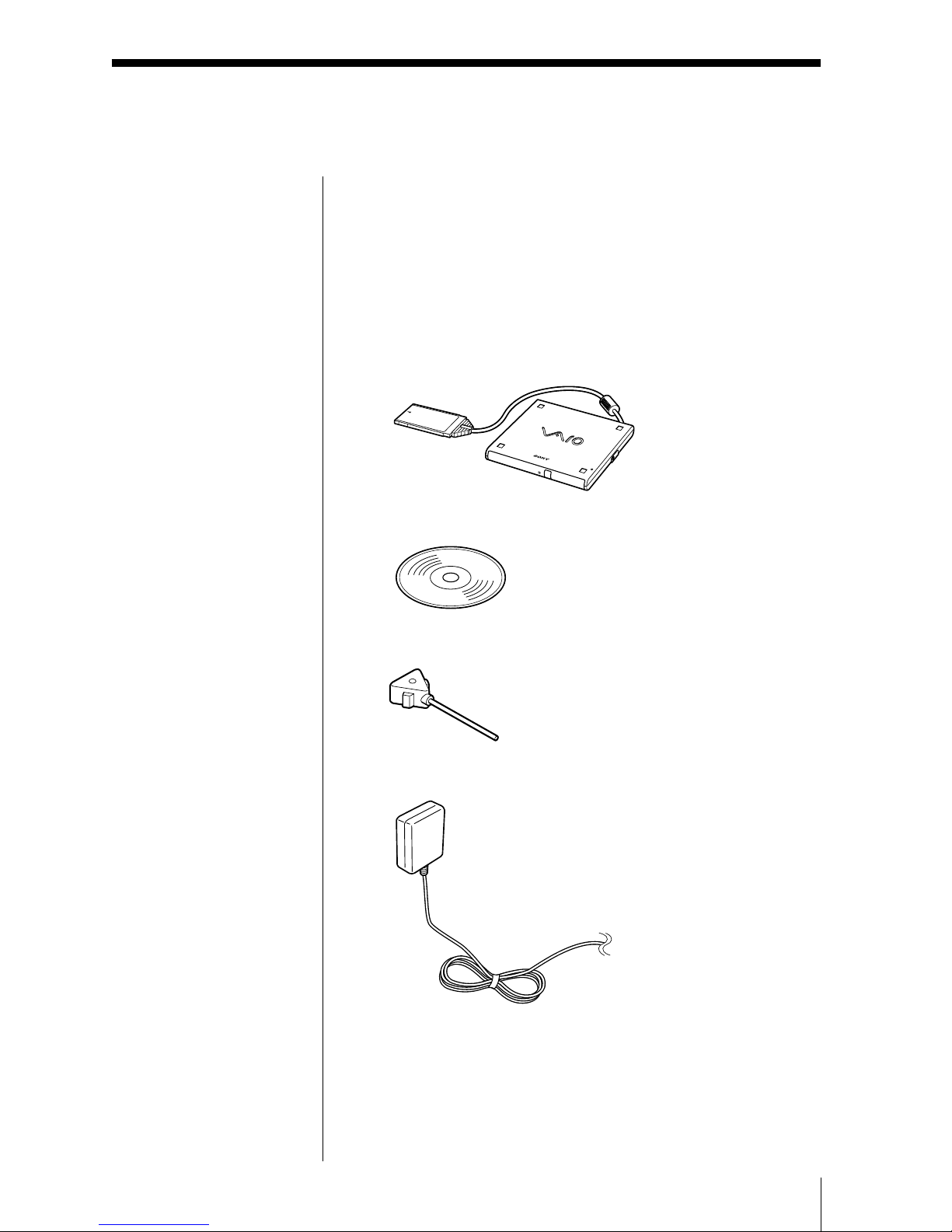

After taking the DVD-ROM drive out of the box,
check that the package contains the components listed
below.
If anything is missing, contact the Sony dealer where
you purchased this product or a Sony service
representative serving your area.
• PCGA-DVD51 DVD-ROM drive (1)
• Software CD-ROM (1)
• Manual eject pin (1, stowed in the back of the drive)
• AC adapter AC-CDR51 (1)
• Installation disk (1, 3.5 inch floppy disk)
• DVD-ROM Drive Operating Instructions
(1, this manual)
• Warranty card (1)
8
Locating the controls
and connectors
1DC IN connector
2LINE OUT connector
3POWER indicator
4Manual eject hole
5Eject button
6BUSY indicator
7Manual eject pin (P. 18)
9
Setting up the
DVD-ROM drive
If you are using one of the following models
PCG-505GX, 505G, 505FX, 505F, 505TX, 505TS, 505TR,
Z505SX, Z505S, Z505HSK, PCG-C1X
Before installing the DVD-ROM drive, the required
driver must be installed in the notebook computer.
If you are using other than those above,
you do not need to install the driver. Follow the
procedure on page 13 to connect the DVD-ROM drive
to the notebook computer.
Installing the driver (WindowsR98)
Make sure you connect the supplied AC adapter to
the drive before installing the device.
1Connect the floppy disk drive to the computer.
If you use a USB floppy disk drive, it can be
connected after the computer has been turned on.
2Turn on the computer.
Do not attempt to operate the computer until
Windows is functioning.
3Insert the supplied installation disk in the floppy
disk drive.
4Connect the AC adapter included in the package,
to the DVD-ROM drive and an AC outlet, and then
insert the PC card into the PC card slot on the
notebook computer.
For details, see “Connecting the DVD-ROM drive
to the notebook computer” on page 13.
The “Add New Hardware Wizard” dialog box
appears.
5Click [Next].
6Ensure that “Search for the most appropriate
driver for using a device (Recommendation)” is
selected and then click [Next].
Note
Makesuretoconnectthe
suppliedACadapterto
thedrivebeforeinstalling
thedriver.Thedriver
cannotbeinstalled
withouttheACadapter.
(Continued)
10
7Ensure that “Floppy disk drive” is checked and the
supplied floppy disk is inserted in the floppy disk
drive. Then, click [Next].
8Wait until the search is complete and the window
changes.
9
Click [Next].
Copying starts.
Wait until copying is finished and the window
changes.
10
Click [Finish].
The driver installation is finished.
In step 11, confirm the installation.
11
Click the [Start] button, point to [Settings], and
then click [Control Panel].
12
Double-click [PC card].
[PC card (PCMCIA)] opens.
If “Sony CardBus ATAPI-Socket 1” appears on the
list, the driver is installed correctly.
If you use any of the following models, follow
the steps below to complete the installation
PCG-505GX, 505G, 505FX, 505F, 505TX, 505TS, 505TR,
C1X
Remove the connected PC card and keep the supplied
installation disk in the floppy disk drive.
1Click the [Start] button, point to [Settings], and
then click [Control Panel].
2Double-click [Add New Hardware].
The “Add New Hardware Wizard” window appears.
3Click [Next].
4Click [Next].
Wait until the search is completed and the screen
display changes.
5Select “No” and click [Next].
Setting up the DVD-ROM drive (continued)
This manual suits for next models
1
Table of contents
Other Sony DVD Drive manuals
Sony
Sony DRX-530UL User manual
Sony
Sony XDCAM XDBK-J102 User manual
Sony
Sony DRU-810A User manual
Sony
Sony DRU110A User manual
Sony
Sony PCGA-DDRW2 User manual
Sony
Sony DRX-700UL User manual
Sony
Sony AD-7740H User manual
Sony
Sony Optiarc AD-7700S User manual
Sony
Sony DRU-700A User manual
Sony
Sony VRD-VC20 User manual
Sony
Sony DDU220E User manual
Sony
Sony DRU-800A User manual
Sony
Sony DRU-530AX User manual
Sony
Sony AW-G170A-B2 Specification sheet
Sony
Sony DRXS50U - DRX S50U User manual
Sony
Sony 2-586-675-11 (1) User manual
Sony
Sony PlayStation CFI-ZDD1 User manual
Sony
Sony DRX-820UL User manual
Sony
Sony MPD-AP20U User manual
Sony
Sony DW-G120A User manual
