Sony PCS-XG100 Quick setup guide

HD VIDEO COMMUNICATION SYSTEM

PCS-XG100/XG77

System Integration Manual

1st Edition (PCS-XG100/XG77:Ver1.0)

PCS-XG100/XG77 System Integration Manual

Release History

Date

Contents

2013/9/25

Release

Contents

Section 1. Installation........................................................................................................... 3

1.1. SuppliedAccessories........................................................................................... 3

1.2. Layout of Connectors........................................................................................... 3

1.3. Camera Units ....................................................................................................... 4

1.3.1. 1stCamera Selection.................................................................................... 4

1.3.2. 2nd Camera Selection.................................................................................... 5

1.3.3. Camera Cable............................................................................................... 6

1.3.4. HDMI IN Connector (PCS-XG100S only)..................................................... 7

1.3.5. Supported Input Signals................................................................................ 8

1.4. Using Microphones............................................................................................... 9

1.5. Audio Specifications and Settings...................................................................... 12

1.5.1. Connector Input/Output Signals.................................................................. 12

1.5.2. Note on Using External Microphone........................................................... 13

1.5.3. Audio Level Adjustment .............................................................................. 13

1.5.4. Audio Output Delay Detting (Setup→Audio 2) ........................................... 14

1.5.5. Audio input delay setting (Setup→Audio 2)................................................ 14

1.5.6. Reversed MIC Inputs Function (Setup→Audio 2) ...................................... 14

1.5.7. Echo Canceller............................................................................................ 16

1.6. Connecting Monitor............................................................................................ 18

1.7. Two Serial Ports................................................................................................. 20

PCS-XG100/XG77 System Integration Manual

Section 1. Installation

For details on connection examples via a LAN or others, refer to the operating Instructions.

1.1.Supplied Accessories

PCS-XG100S PCS-XG77S

Camera Cable (3m) 1 pc 1 pc

PCSA-A1 Microphone (Cable length 8m) 2 pcs 1 pc

ACAdapter 1 pc 1 pc

HDMI cable (3m) 1 pc 1 pc

RF Remote Commander 1 pc 1 pc

Size AA (R6) Batteries for Remote Commander 2 pcs 2 pcs

Manuals, Other papers 1 set 1 set

1.2.Layout of Connectors

For details on specifications for CAMERA IN, DVI-I1 IN, DVI-I2 IN, HDMI IN, HDMI 1/2 OUT

signals, refer to the operating instructions.

For details on specifications for LAN 1, LAN2, ISDN UNIT connectors, refer to the operating

instructions.

PCS-XG100/XG77 System Integration Manual

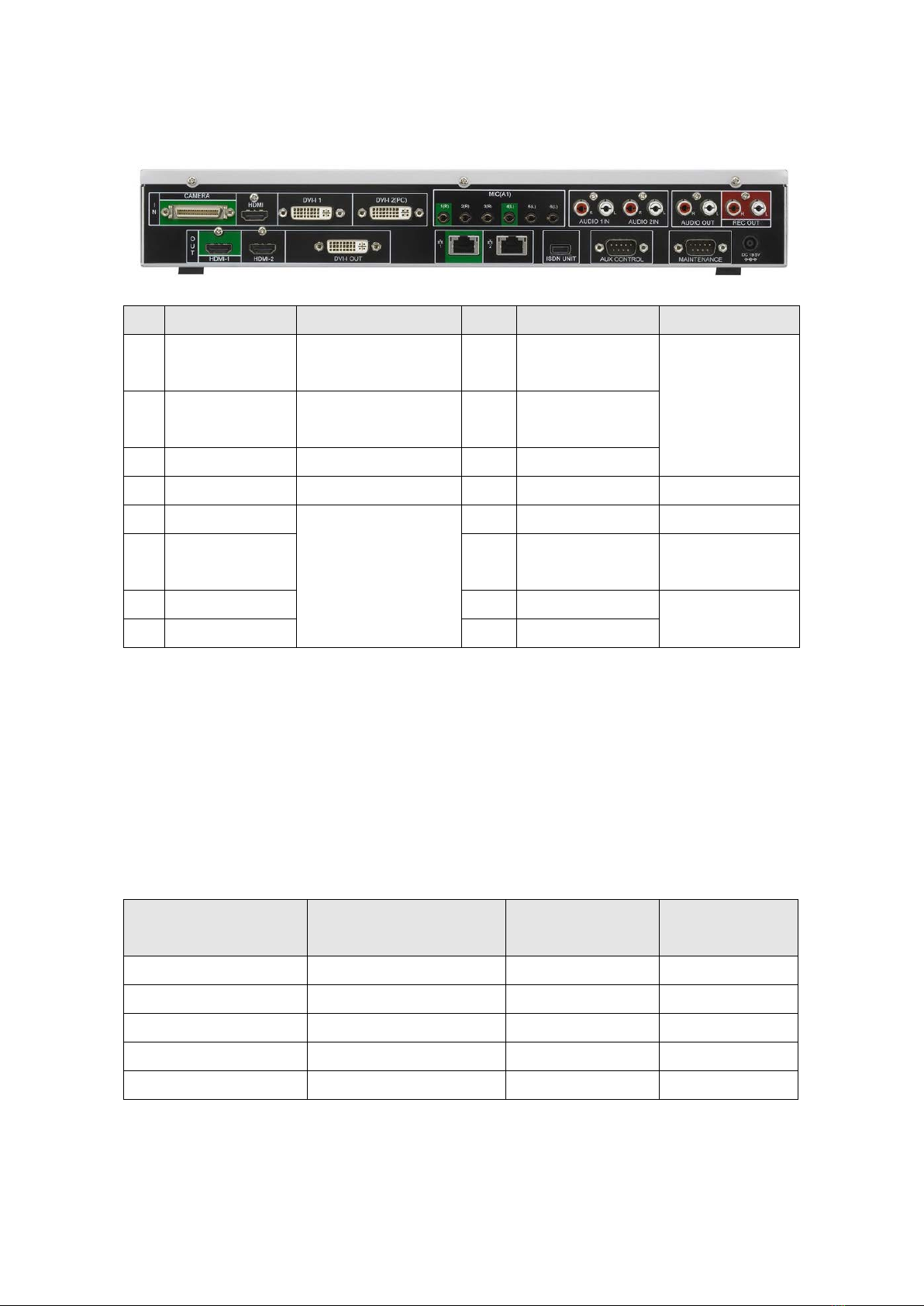

Rear Panel (Photo: PCS-XG100S)

No Connector Remarks No Connector Remarks

(1) CAMERA IN

Refer to Sections 1.3.3

and 1.3.5

(9) HDMI-1 OUT *Note Refer to Section 1.6

(2) HDMI IN *Note

Refer to Sections 1.3.4

and 1.3.5

(10) HDMI-2 OUT *Note

(3) DVI-I 1 IN Refer to Section 1.3.5 (11) DVI-I OUT

(4) DVI-I 2(PC) IN Refer to Section 1.3.5 (12) LAN 1 *Note

(5) MIC(A1) IN Refer to Section 1.5.1 (13) LAN 2 *Note

(6) AUDIO 1 IN

AUDIO 2 IN

(14) ISDN UNIT

(7) AUDIO OUT (15) AUX CONTROL Refer to Section 1.7

(8) REC OUT (16) MAINTENANCE

*Note: HDMI IN, HDMI-2 OUT, and LAN2 connectors are not available on the PCS-XG77S.

HDMI-1 OUT and LAN1 are called HDMI OUT and LAN respectively for the PCS-XG77S.

1.3.Camera Units

Camera unit is not supplied with the codec.

For details on operations and settings, refer to the operating instructions for the camera unit.

1.3.1. FirstCamera Selection

PCSA-CXG100

/EVI-H100V

EVI-HD7V EVI-HD3V

Video signal 1080 30p/720 30p *1 1080 60p/720 60p 720 60p

Horizontal field of view 55.4 degrees 70 degrees 70 degrees

Optical zoom (digital) 20x (12x) 10x (4x) 10x (4x)

Interface DVI-I DVI-I DVI-I

Others Exmor, Ceiling mountable *2

*1 Even when 720 60p was selected by the EVI-H100V/PCSA-CXG100, the PCS-XG100S recognizes

the connected camera and automatically encodes signals to 720 30p.

*2 Turning on the IMAGE FLIP switch on the camera rear panel flips the image upside down.

(1) (2) (3) (4) (5) (6) (7) (8)

(9) (10) (11) (12) (13) (14) (15) (16)

PCS-XG100/XG77 System Integration Manual

1.3.2. 2nd Camera Selection

Support Camera Interface Remarks

EVI-HD7V DVI-I

EVI-HD3V DVI-I

EVI-H100V DVI-I

EVI-HD1 YPbPr/RGB To connect the camera to DVI-I

connector, DVI-to-YPbPr cable

etc., is separately required

BRC-H900 YPbPr/RGB

BRC-H700 YPbPr/RGB

BRC-Z700 YPbPr/RGB

BRC-Z330 YPbPr/RGB

HDMI Output Camera

(Handycam)

HDMI To connect the camera to DVI-I

connector, only the video signal

can be input by using a

DVI-HDMI adaptor etc.

PCS-XG100/XG77 System Integration Manual

1.3.3. Camera Cable

3-meter long camera cable is supplied with the unit. If you wish to extend the camera cable,

do at your own responsibility.

Before starting actual operation, be sure to verify operation.

Symbol Description

A: CAMERA IN, B: MINI DIN (VISCA IN), C: DC IN, D: DVI-I IN

Cable Wiring

PCS-XG100/XG77 System Integration Manual

1.3.4. HDMI IN Connector (PCS-XG100S only)

An HDMI output camera like Handycam can be connected to HDMI IN.

If using it as the second camera, make appropriate setting under “Camera” setup menu →

“Second Camera Input”.

Notes

・Playback of a Blu-ray disc copy-guarded cannot be input to the HDMI IN connector as it

does NOT support HDCP.

・Supported HDMI version is 1.4b.

・Without HDMI IN, connect as shown in the figure below.

Audio Input

To send HDMI audio to a remote party, set “AUX” as “Audio Input”.

In order not to send HDMI audio to a remote party, set “MIC” as “Audio Input”.

The above settings are enabled regardless of “Link to Audio Input” setting.

Note

・OtherAUX audio input will be ignored if set.

In case of not using HDMI IN

* Do the same way when

PCS-XG77S is used.

PCS-XG100/XG77 System Integration Manual

1.3.5. Supported Input Signals

Connector

Signal

CAMERA IN DVI-I IN DVI-I 2 (PC) IN HDMI IN

(PCS-XG100S only)

DVI-D Yes *1 Yes *2 Yes *2 *3 No

HDMI No No No Yes

YPbPr No Yes *4 No No

RGB No No Yes *5 *6 No

* 1:Connecting a camera with HDMI I/F: By using the camera cable supplied and DVI-HDMI Adaptor etc.,

only the video signal can be input

* 2:Connecting a camera with HDMI I/F: By using a DVI-HDMIAdaptor etc., only the video signal can be

input

* 3:Sending presentation data by connecting a PC with HDMI I/F: By using a DVI-HDMI Adaptor etc.,

only the video signal can be input

* 4: Connecting a camera with YPbPr I/F: DVI-to-YPbPr conversion cable etc., is required

* 5: Connecting a camera with RGB I/F: DVI-to-RGB conversion cable etc., is required

* 6: Sending presentation data by connecting a PC with RGB I/F: DVI-to-RGB conversion cable etc., is

required

PCS-XG100/XG77 System Integration Manual

1.4.Using Microphones

You can input the stereo sound from two PCS-A1 (two are supplied with the PCS-XG100S

and one is supplied with the PCS-XG77S) microphones to the system. Up to 6 microphones

are available with another optional PCS-A1(s).

Notes

When using two or more microphones, connect them as follows.

• For two microphones: 1 (R) and 4 (L) connectors of the MIC (A1) connectors

• For four microphones: 1 (R), 2 (R), 4 (L), and 5 (L) connectors of the MIC (A1)

connectors

• For six microphones: 1 (R), 2 (R), 3 (R), 4 (L), 5 (L), and 6 (L) connectors of the MIC (A1)

connectors

Microphone Layout Example

The Operating Instructions which describes precautions to take when installing PCS-A1

microphone(s). So, refer to it in advance.

Case 1 and Case2 shown below are recommended layouts for using the PCS-XG100S

PCS-XG100/XG77 System Integration Manual

Case1

To be Required: PCS-A1 x 2

Recommended Number of Attendees: 4 to 6

InputAudio Mode (Mic): Stereo *Note

OutputAudio Mode (Loud Speaker): Stereo *Note

Setup Menu Settings:

Setup Menu Item Setting

Communication 2 Audio Mode MPEG4

Audio 1 Audio Input MIC

Input Select (MIC) MIC (A1)

Echo Canceller On

Input Mode Stereo *Note

Output Mode Stereo *Note

*Note: Remote site’s setting also affects whether communication is established in stereo or monaural

mode.
