Sony CFD-V30L User manual

CFD-V20/V30/V30L.E.G_3-859-117-3X.CED/CEK/EE1/SP5/KR2/E23/EA1/HK2

3-859-117-31(2)

CD Radio

Cassette-Corder

1996 by Sony Corporation

CFD-V20

CFD-V30

CFD-V30L

Operating Instructions page 2EN

Bedienungsanleitung Seite 2DD

Introduction

CFD-V20/V30/V30L.E.G_3-859-117-3X.CED/CEK/EE1/SP5/KR2/E23/EA1/HK2

2EN

Warning

To prevent fire or shock hazard, do

not expose the player to rain or

moisture.

To avoid electrical shock, do not open

the cabinet. Refer servicing to

qualified personnel only.

Information

For customers in Europe

Notice for customers in the United

Kingdom

A moulded plug complying with BS 1363 is

fitted to this equipment for your safety and

convenience.

Should the fuse in the plug supplied need to

be replaced, same rating fuse approved by

ASTA or BSI to BS 1362, (i.e. marked with

or mark) must be used.

If the plug supplied with this equipment has

a detachable fuse cover, be sure to attach the

fuse cover after you change the fuse. Never

use the plug without the fuse cover. If you

should lose the fuse cover, please contact

your nearest Sony service station.

This Compact Disc player is classified as

a CLASS 1 LASER product.

The CLASS 1 LASER PRODUCT label is

located on the bottom exterior.

WARNING

Do not install the appliance in a confined

space, such as a bookcase or built-in cabinet.

The FUNCTION selector is located at the

front.

When you turn on the player, the OPR/BATT

indicator lights up.

About this manual

The instructions in this manual are for the

CFD-V20, CFD-V30 and CFD-V30L. Before

you start reading, check your model number.

The CFD-V20 is the model used for

illustration purpose.

3EN

Introduction

Basic Operations

CFD-V20/V30/V30L.E.G_3-859-117-3X.CED/CEK/EE1/SP5/KR2/E23/EA1/HK2

Table of contents

Basic Operations

4Playing a CD

6Listening to the radio

8Playing a tape

10 Recording on a tape

The CD Player

12 Using the display

13 Locating a specific track

14 Playing tracks repeatedly

(Repeat Play)

15 Creating your own program

(Program Play)

Setting Up

16 Choosing the power sources

18 Adjusting the sound emphasis

(TONE/MEGA BASS)

Additional Information

19 Precautions

21 Troubleshooting

23 Maintenance

24 Specifications

25 Index

CFD-V20/V30/V30L.E.G_3-859-117-3X.CED/CEK/EE1/SP5/KR2/E23/EA1/HK2

Basic Operations4EN

Playing a CD

Basic Operations

42,3

OPEN/CLOSE

CFD-V20/V30 CFD-V30L

Connect the supplied AC power cord (see page 16).

1Set FUNCTION to CD.

2Press 6OPEN/CLOSE down to

open the CD compartment and

place a CD on the CD

compartment.

3Close the CD compartment.

With the label side up

Basic Operations

5EN

CFD-V20/V30/V30L.E.G_3-859-117-3X.CED/CEK/EE1/SP5/KR2/E23/EA1/HK2

Display

Track number

4Press ^.

The player plays all the tracks

once.

Playing time

Use these buttons for additional operations

VOLUME ^p 6OPEN/CLOSE

FUNCTION

=/+

To Do this

Adjust the volume Turn VOLUME.

Stop playback Press p.

Pause playback Press ^.

Press again to resume play

after pause.

Go to the next track Press +.

Go back to the previous track Press =.

Remove the CD Press 6OPEN/CLOSE.

Turn off the player Set FUNCTION to TAPE

(CD/RADIO OFF).

CFD-V20/V30/V30L.E.G_3-859-117-3X.CED/CEK/EE1/SP5/KR2/E23/EA1/HK2

Basic Operations6EN

Listening to the radio

Connect the supplied AC power cord (see page 16).

1Select the band (CFD-V20/V30:

FM or AM, CFD-V30L: FM or

LW).

2Turn TUNE to tune in a radio

station.

If the received FM stereo is too

weak, the reception becomes

monaural.

CFD-V20/V30 CFD-V30L

Basic Operations

7EN

CFD-V20/V30/V30L.E.G_3-859-117-3X.CED/CEK/EE1/SP5/KR2/E23/EA1/HK2

Use these buttons for additional operations

FUNCTIONVOLUME

To Do this

Adjust the volume Turn VOLUME.

Turn off the radio Set FUNCTION to TAPE

(CD/RADIO OFF).

To improve broadcast reception

Reorient the antenna for FM. Reorient the player itself

for AM/LW.

For FM For AM/LW

Tip

To receive an FM stereo

program (only for the

models equipped with

FM MODE/ISS selector

at the rear)

Set the FM MODE/ISS

selector at the rear to

STEREO. If the FM

broadcast is noisy, set

the selector to MONO

and the radio will play

in monaural.

CFD-V20/V30/V30L.E.G_3-859-117-3X.CED/CEK/EE1/SP5/KR2/E23/EA1/HK2

Basic Operations8EN

Playing a tape

32 1

With the side you want

to play facing upward

Connect the supplied AC power cord (see page 16).

1Set FUNCTION to TAPE (CD/

RADIO OFF).

2Press p6 to open the tape

compartment and insert a

recorded tape. Use TYPE I

(normal) tape only. Close the

compartment.

3Press (.

CFD-V20/V30 CFD-V30L

Basic Operations

9EN

CFD-V20/V30/V30L.E.G_3-859-117-3X.CED/CEK/EE1/SP5/KR2/E23/EA1/HK2

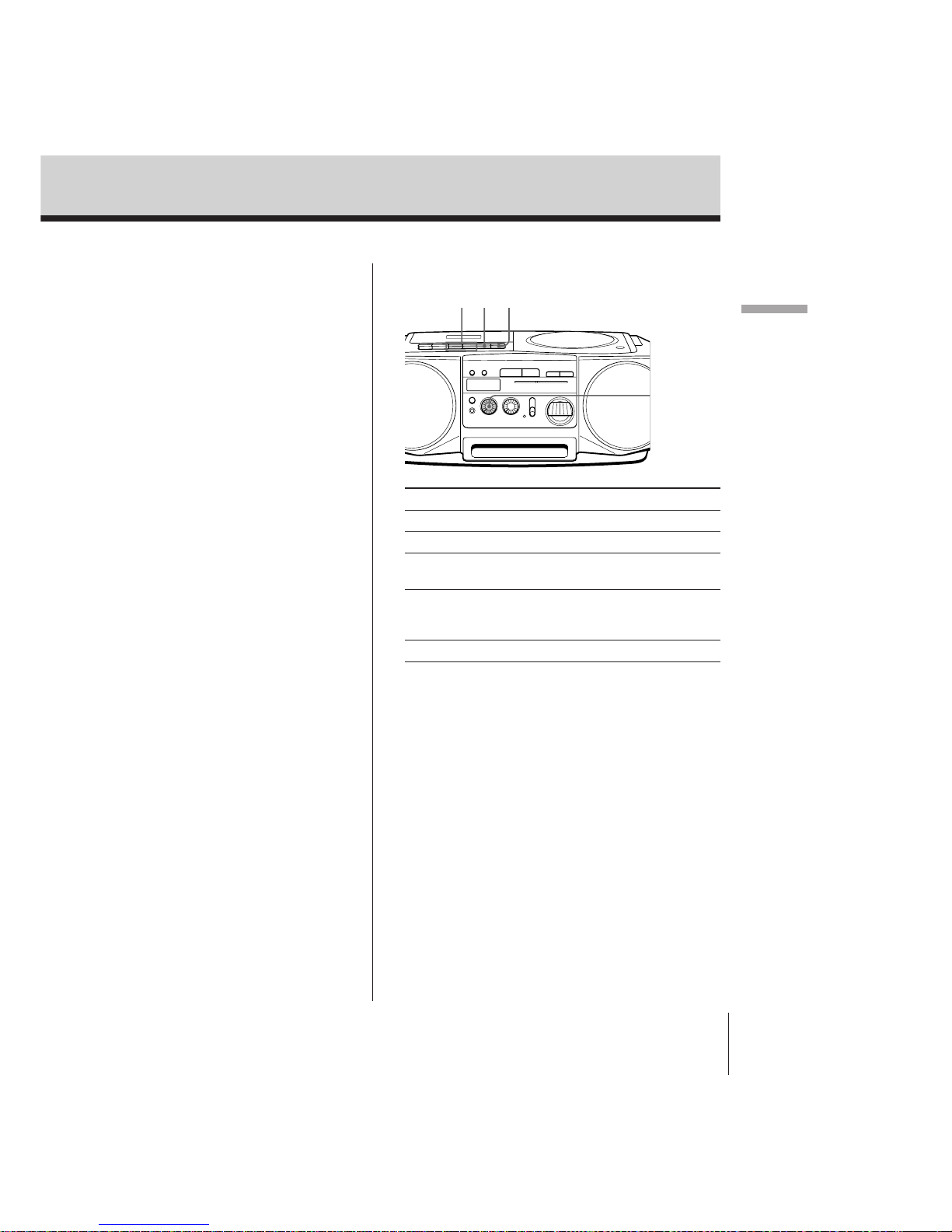

Use these buttons for additional operations

P0/) p6

VOLUME

To Do this

Adjust the volume Turn VOLUME.

Stop playback Press p6.

Fast-forward or rewind the tape Press )or 0for the

side facing upward.

Pause playback Press P.

Press the button again to

resume play after pause.

Eject the cassette Press p6.

CFD-V20/V30/V30L.E.G_3-859-117-3X.CED/CEK/EE1/SP5/KR2/E23/EA1/HK2

Basic Operations10EN

Connect the supplied AC power cord (see page 16).

1Press p6 to open the tape

compartment and insert a blank

tape. Use TYPE I (normal) tape

only.

2Select the program source you

want to record.

To record from the CD player, set

FUNCTION to CD and insert a

CD (see page 4).

To record from the radio, select

the band and tune in the station

you want (see page 6).

Recording on a tape

Display

With the side you want to

record on facing upward

CFD-V30L

CFD-V20/V30 CFD-V30L

CFD-V20/V30
