Sony CDX-GT56UIW User manual

Enjoy the crisp and clear sound of your MP3/WMA/AAC1 les with CD or control your

digital music using the USB 1-wire on your Sony® CDX-GT56UIW. You can also ne

tune your listening experience with the Advanced Sound Engine processor.

Specications

CDX-GT56UIW CDX-GT56UIW CD Receiver with USB input

Bullets

• Detach face with LCD display and front aux input

• Front USB input for iPod®2, iPhone® & USB music players

• MP3/WMA/AAC1 playback with DM+ enhancement technology

• Intuitive Quick-BrowZer® and ZAPPIN™ search features

• Advanced Sound Engine and 52 Watts x 4 High Power

• 2 Volt rear/sub selectable preamp outputs

• Automatic Level Optimizer

• Wireless card remote included (RM-X211)

• Radio Data System (RDS)

• Red key illumination

Amplier Section

Max power output 52 watts x 4 at 4 ohms

Power Ad Hoc CEA2006 Standard Power: 17 Watts RMS per channel into 4 Ohms, 4 channels driven from 20 Hz to 20

kHz with less than 1% THD+N.

Speaker Impedance 4-8 Ohms

AMP & General Feature

Automatic Level Optimizer Yes

Aux-In Yes (Front)

DM+ (Codec enhancer) Yes(Gen2.1)

EQ EQ7: 7 band EQ with +/- 6 dB adjustment at 63 Hz, 160 Hz, 400 Hz, 1000 Hz, 2.5 kHz, 6.3 kHz and 16

kHz.

High Pass Filter Selectable on/o at: 50, 60, 80, 100 or 120 Hz.

Loudness Dynamic Loudness

Low Pass Filter Selectable on/o at: 50, 60, 80, 100 or 120 Hz.

Output Power (4ohm, 1kHz,16V)(W) 52 watts x 4

Pre Out (1) Rear / Sub switchable

Rear/Sub initial Sub

Rear Bass Enhancer Yes

Time Alignment Custom Yes (Adjustment)

Time Alignment Preset Yes

USB Yes (Front)

Audio

Band AM / FM

Equalizer EQ7: 7 band EQ with +/- 6 dB adjustment at 63 Hz, 160 Hz, 400 Hz, 1000 Hz, 2.5 kHz, 6.3 kHz and 16

kHz.

Format(s) Supported MP3/WMA/AAC les1

Preout Impedance 220 ohms

Preout Voltage 2 volt

S/N Ratio Audio Power: CEA2006 S/N 80 dBA

Signal-to-Noise Ratio (dB) CD: 120 dB

Station Preset(s) 18 FM / 12 AM

Tuner Frequency Range FM (MHz): 87.5-107.9

AM (kHz): 530-1710

Tuner Type SSIR-EXA with RDS

Wow and Flutter Below measurable limit

AUX in Feature

Level Adjustment Yes (-8dB / +18dB)

Convenience

Tilt Range 0-45° mounting angle

Convenience Features

Dimmer Adjust Manual

Key Illumination Red

On-Screen Clock 12H

Display

Display Color Black / Negative Color

Display Technology LCD

Text Displayed Source, artist, track, playback time, menu and clock

Text Lines 1 line of information

Display Panel

Auto o mode Yes

Dimmer Adjust Manual

Panel Design

Display color (Color Variation/Nega or Posi) Black color / Negative

Display Device (LCD/FL/OEL/TFT) LCD

Key Illumination RED

Panel nish color Black (Bare)

Feature

CODEC (for USB) MP3, WMA, AAC1

Jump Mode Yes

List Browsing (Folders/Files) Yes

Pause Yes

Repeat OFF/ TRACK/ ALBUM

Resume Play Yes

Shue OFF/ALBUM/DEVICE

ZAPPIN Yes

General

CEA2006 output power 17

CEA2006 S/N 80

Dimensions (WxHxD) (mm) 178x50x180

Maximum output power (4ohm, 1kHz, 16V)(W) 52

Mounting dimensions (WxHxD)(mm) 182 x 53 x 162

Preout impedance (ohms) 220

Preout output level (V) 2

Weight (kg) 1.2

Inputs and Outputs

12V Trigger Output(s) Power amplier turn on

Antenna Terminal(s) AM/FM Antenna Input Terminal

Audio In Front Aux in with variable level

Front USB input

Digital Audio Input(s)

Ability to use all forms of USB devices may vary as not all devices are compatible. This unit is compliant

with MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices compliant with the

USB standard. This unit cannot recognize USB devices via a USB hub.

This unit can be connected to the following iPods. Update your iPod to the latest software before you

use it.

iPod Nano 1st - 6th generation

iPod Touch 1st - 4th generation

iPod Classic

iPod with video

iPhone

iPhone 3G

iPhone 3GS

iPhone 4

If you have any questions or problems concerning your unit that are not covered in the owners

manual, consult your nearest Sony dealer.

Infrared Port Wireless remote

RCA Audio Output(s) Rear/Subwoofer selectable RCA pre-amp outputs

Remote Jack Optional wired remote terminal

USB Port(s) Front

iPod Control Feature

Accessory Information Yes

CODEC (for iPod) depend on iPod content

List Browsing (Folders / Files) Quick-BrowZer®

Passenger Control Yes

Pause Yes

Repeat Yes (Track, Album, Artist, Playlist, Genre, Podcast)

Resume Play Yes

Shue Yes (Genre, Album, Artist, Playlist, Device, Podcast)

ZAPPIN Yes

USB Capable

USB Mass Storage Device Yes

Other Features

Card Remote ( ): Option RM-X211

CD lock mode Yes

Clock 12H

Rotary commander ( ):Option (RM-X4S)

Security Detachable

Tuner

1. Copy-protected content not supported.

2. Works with iPod touch® 1st - 4th generation, iPod nano® 1st - 6th generation, iPod classic®, iPod® with video, and iPhone® 3G, 3GS and 4.

© 2011 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, ZAPPIN, Walkman, Quick-BrowZer and their respective logos are trademarks of

Sony. iPod, iPod classic, iPod nano, and iPhone are trademarks of Apple Inc. All other trademarks are trademarks of their respective owners. Features and specications are subject to change without notice.

Updated: September 9, 2011

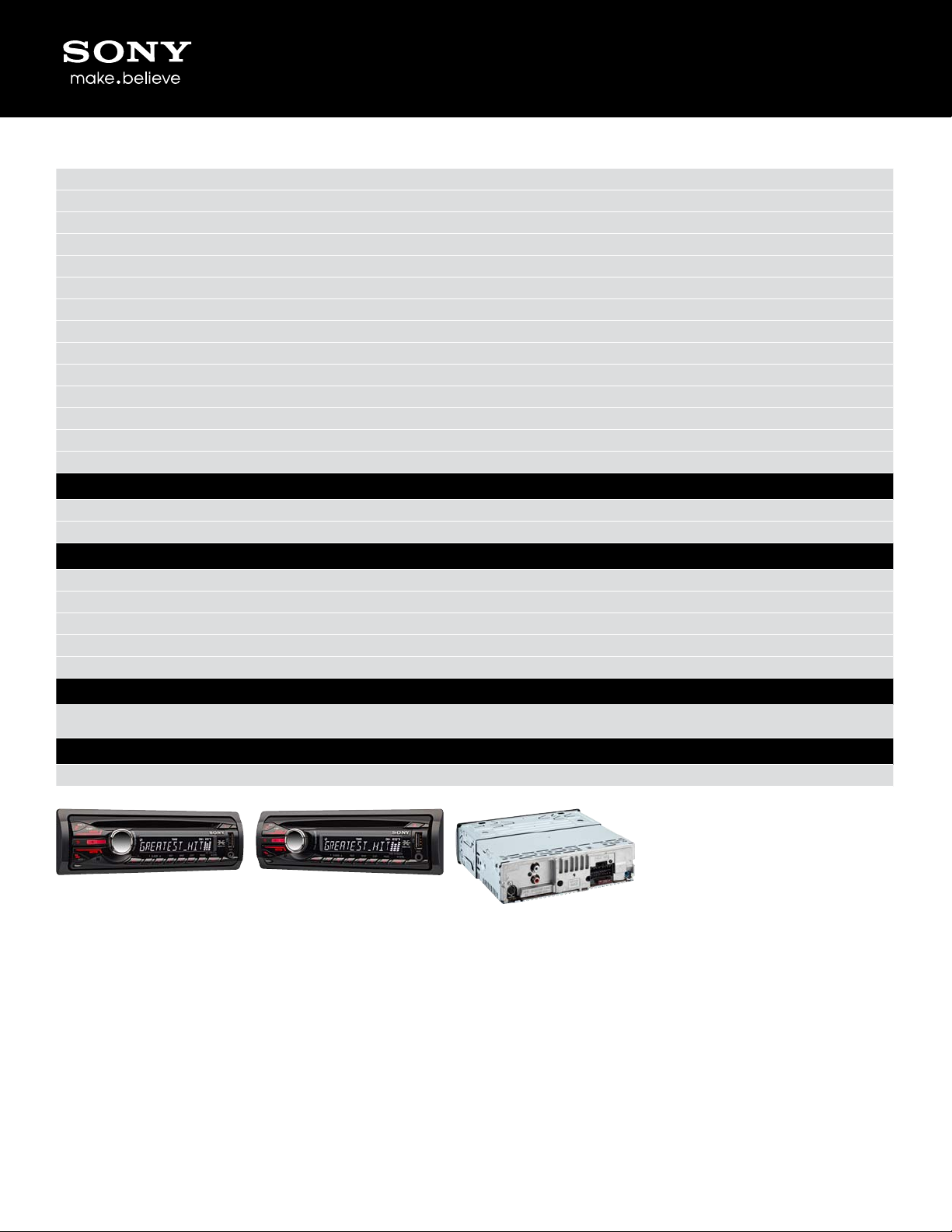

FM Usable Sensitivity 8 dBf

Frequency Response FM: 20-15,000 Hz

S/N Ratio 80 dB (stereo)

Selectivity 75 dB at 400 kHz

Stereo Separation 50 dB at 1 KHz

FM: Channel separation (dB) 50 dB at 1 kHz

FM: Frequency response (Hz) 20 - 15k

FM: Intermediate frequency (MHz) 25KHz

FM: S/N ratio (mono) (dB) 80 dB stereo

FM: Selectivity (400 kHz) (dB) 75 dB

FM: Tuning range (MHz) 87.5-107.9

FM: Usable sensitivity (75 ohm) (dBf) 8 dBf

MW: Tuning range(kHz) 530-1710

MW/LW/SW: Sensitivity (75 ohm) MW/LW/SW(uV) 26/-/-

Tuner Feature

Preset FM18/AM12

RDS/EON (NA Only:RBDS, Others:RDS) Yes (RBDS)

Weights and Measurements

Dimensions (Approx.) 178 x 50 x 180 mm, 7.125 x 2 x 7.125 inch (w/h/d)

Dimensions (Approx) Depth 7.125" (180 mm)

Dimensions (Approx) Height 2" (50 mm)

Dimensions (Approx) Width 7.125" (178 mm)

Weight (Approx.) 1.2 kg (2 lb. 11 oz.)

Supplied Accessories

Supplied Accessories Parts for installation and connections (1 set)

RM-X211 wireless remote

Optional Accessories

Optional Accessories USB Connection Cable for iPod®: RC-100IP
