Sony HST-471 User manual

Operating Instructions

Mode d‘emploi

Manual de Instrucciones

Cassette Deck

Receiver

3-859-749-14 (1)

HST-471

2EN

WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet.

Refer servicing to qualified personnel only.

Do not install the appliance in a confined space,

such as a bookcase or built-in cabinet.

Do not, under any circumstances, place the CD

player or any other component on top of the cassette

deck receiver HST-471.

– For CD player CDP-C661/CDP-CX571 –

The mains lead plug of CDP-C661/CDP-CX571 is a

2-pin type designed to be connected only to

HST-471. Do not connect this plug to any other

system or mains supply.

IMPORTANT: Never connect two mains leads into a

single mains plug.

This system is equipped with Dolby Noise

Reduction and Dolby Pro Logic Surround* decoder.

* Manufactured under license from Dolby

Laboratories Licensing Corporation.

DOLBY, the double-D symbol aand “PRO

LOGIC” are trademarks of Dolby Laboratories

Licensing Corporation.

If the power switch is kept depressed, you can turn

on and off the components by only pressing the

SYSTEM POWER switch on the remote.

3EN

Table of Contents

Getting Started

Step 1: Hooking up the system............ 4

Step 2: Setting up the speakers ............ 8

Connecting optional AV

components .................................... 12

Connecting optional outdoor

antennas .......................................... 13

The Radio

Presetting radio stations ...................... 14

Listening to the radio........................... 16

The Tape Deck

Playing a tape........................................ 17

Recording on a tape ............................ 18

Recording from the radio ................... 19

Recording from a tape ......................... 20

Inserting a blank space during

recording ......................................... 21

Sound Adjustment

Adjusting the sound ............................ 22

Selecting the preset sound fields........ 22

Selecting the surround mode.............. 23

Emphasizing the bass sound .............. 24

Additional Information

Precautions ............................................ 25

Troubleshooting ................................... 27

Specifications ........................................ 29

Index....................................................... 31

4EN

Step 1: Hooking up the system

Left front speaker

Right front speaker

AM loop antenna CD player (CDP-CX571*)

FM lead antenna

Getting Started

HST-471

rear panel

Perform the following procedure 1to 9(skip 7for European and Australian models) to hook

up your system using the supplied cords and accessories. To complete the setup, do step 2 also.

Superwoofer Left rear speaker Center speaker

* CDP-CX571 is used for illustration purpose. You can connect CDP-C661 in the same manner.

Right rear speaker

5EN

R L

–

5Connect the FM/AM antennas.

Set up the AM loop antenna, then

connect it.

For European model

For other models

Extend the FM lead

antenna horizontally.

AM loop antenna

Pull the lever toward you after

connecting the antenna.

Pull the lever toward you after

connecting the antenna.

1Connect the front speakers.

Connect the speaker cords to the FRONT

SPEAKER terminals of the same color.

Keep the speaker cords away from the

antennas to prevent noise.

* The color of your speaker cords might be

different. See the manual provided with your

speaker system for details.

2Connect the rear speakers.

Connect the speaker cords to the REAR

SPEAKER terminals of the same color.

3Connect the center speaker.

Connect the speaker cords to the

CENTER SPEAKER terminals of the

same color.

4Connect the superwoofer.

Connect the speaker cords to the SUPER

WOOFER terminals of the same color.

Black* (’)

Red* (‘)Insert this portion.

Pull the lever toward you after

connecting the speaker cords.

Extend the FM lead

antenna horizontally.

AM loop antenna

continued

COAXIAL AM

75Ω

6EN

9Connect the power cord from the

system to a wall outlet.

Inserting two R6 (size AA)

batteries into the remote

Tip

With normal use, the batteries should last for about

six months. When the remote no longer operates

the system, replace both batteries with new ones.

Note

If you do not use the remote for a long period of

time, remove the batteries to avoid possible damage

from battery leakage.

6Connect the CD player.

Use the audio cord, matching the color

of the plugs and the jacks.

Insert the plugs firmly, pushing them in

all the way.

7Set VOLTAGE SELECTOR to the

position of your local power line

voltage (except for European and

Australian models).

8Connect the AC power cord from

the CD player to the AC OUTLET

on the system.

By connecting the AC power cord from

the CD player to the AC OUTLET, you

can turn on/off the CD player

automatically when you turn on/off the

system.

Step 1: Hooking up the system

(continued)

220–240V 110–120V

7EN

)·

–

)

·P

–

––

Using the remote

You can operate Sony TVs and VCRs and CD

players CDP-C661/CDP-CX571 using the

supplied remote. Operations using the

HST-471 remote are described under the

various sections in this manual.

To operate a Sony TV or VCR

Turn on/off a Sony TV

Turn on/off a Sony VCR

Switch input signal

between TV and VCR

Switch output signal from

the antenna terminal

between TV and VCR

Select the type of VCR to

operate

Select the preset channels

on the VCR

Select the preset channels

on the TV

Adjust the volume of

the TV

Fast-forward or rewind

the VCR

Pause the VCR

Stop the VCR

Play the VCR

Before you begin

Press the POWER switch on the system to

turn it on.

When the STANDBY lamp on the system is lit

in red, you can turn on the system by

pressing SYSTEM POWER on the remote.

Turning the power off by the remote sets the

system to STANDBY mode (the STANDBY

lamp is lit).

If you are not going to use the system for a

long time, be sure to turn it off by pressing

the POWER switch on the system.

TV/VCR

operating

buttons

CD player

operating

buttons

Press

TV POWER

VTR POWER

TV/VIDEO

ANT TV/VTR

VTR 2 (8 mm)

VTR 3 (VHS)

VCR CH +/–

TV CH +/–

TV VOL +/–

)or 0

continued

SYSTEM

POWER

–

)

·P

–

––

POWER

pª·

STANDBY

POWER STANDBY

8EN

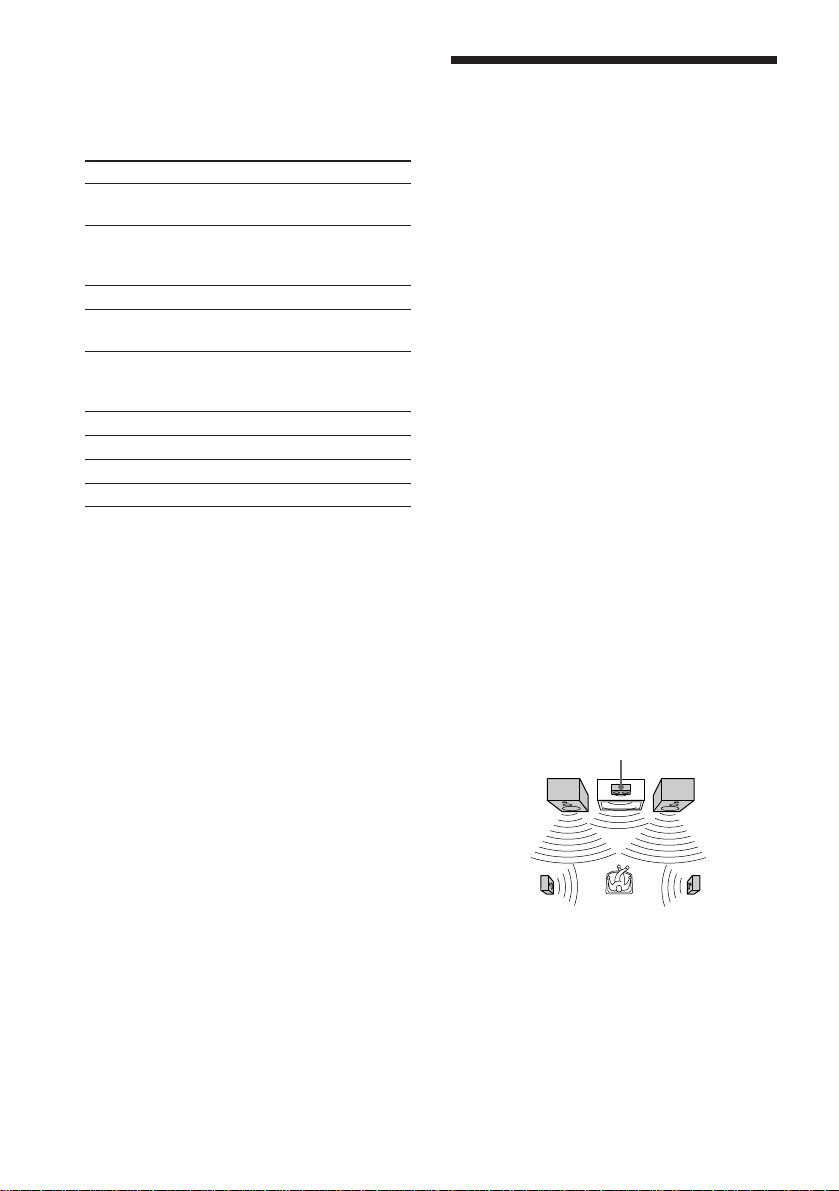

Front

speaker

(L)

Front

speaker

(R)

Center speaker

Rear

speaker

(R)

Rear

speaker

(L)

By connecting the speakers, you can enjoy

Dolby Pro Logic Surround sound. Dolby Pro

Logic Surround is a decoding system

standardized in TV programs and movies.

Dolby Pro Logic Surround improves sound

imaging by using four separate channels.

These channels manipulate the sound and

enhance the action as it happens on the

screen.

Selecting the Dolby Pro

Logic Surround mode

To take advantage of Dolby Pro Logic

Surround, you should connect at least one

pair of rear speakers and/or one center

speaker, plus a TV and a VCR. Also, to enjoy

a full effect, you need to select the

appropriate Dolby Pro Logic mode

(NORMAL, WIDE, 3CH or PHANTOM

modes) according to your speaker system.

NORMAL mode

Select NORMAL mode if you have front and

rear speakers and a small center speaker such

as those provided with this system. Since a

small speaker cannot produce enough bass,

the bass sound of the center channel is output

from the front speakers.

To operate the CD players

CDP-C661/CDP-CX571

To Press

Select disc numbers DISC SKIP +/–*1

Select disc numbers directly DISC, disc

(for CDP-CX571 only) number, then

ENTER*2

Select track numbers 1 to 10

Select track numbers over 10 >10*3

(for CDP-C661 only)

Select track numbers directly TRACK, track

(for CDP-CX571 only) number, then

ENTER*4

Select a track +or =

Pause play P

Stop play p

Start play ·

*1You cannot use the DISC SKIP – button for

CDP-C661.

*2Example:

To select 24th disc: DISC n2 n4 nENTER

*3Example:

To select 24th track in the disc: >10 n2 n4

*4Example:

To select 24th track in the disc: TRACK n2 n

4 nENTER

Step 2: Setting up

the speakers

Step 1: Hooking up the system

(continued)

9EN

Positioning the speakers

Before you connect them, determine the best

location for your speakers.

1Place the front speakers at the angle

of 45 degrees from your listening

position.

2Place the center speaker so it is

placed at about the same height as

the front speakers (A). Align the

center speaker with the front

speakers or place it a little backward

from the front speakers’ position

(B).

Front

speaker

(L)

Front

speaker

(R)

Center speaker

45°

Rear

speaker

(L)

Rear

speaker

(R)

BCenter speaker

continued

WIDE mode

Select WIDE mode if you have front and rear

speakers and a large center speaker. With

this mode, you can take full advantage of

Dolby Surround sound.

3CH mode

Select 3CH (3 channel logic) mode if you have

front and center speakers but no rear

speakers. The sound of the rear channel is

output from the front speakers to let you

experience some of the surround sound

without using rear speakers.

PHANTOM mode

Select PHANTOM mode if you have front

and rear speakers but no center speaker. The

sound of the center channel is output from

the front speakers.

Rear

speaker

(R)

Rear

speaker

(L)

Front

speaker

(L)

Front

speaker

(R)

Front

speaker

(L)

Front

speaker

(R)

Center speaker

Front

speaker

(L)

Front

speaker

(R)

Center speaker

Rear

speaker

(R)

Rear

speaker

(L)

10EN

POWER

pª·

2–/+

Adjusting the speaker

volume

To enjoy Dolby Pro Logic Surround sound,

select the appropriate Dolby Pro Logic mode,

then adjust the volume of each speaker using

the test tone that the system provides.

Step 2: Setting up the speakers

(continued)

3Place the rear speakers facing each

other at about 60 to 90 cm above

your listening position.

Rear speaker

60 to 90 cm

3,5 6

4+/–

)·

–

)

·P

–

––

Other manuals for HST-471

Table of contents

Languages:

Other Sony Car Receiver manuals

Sony

Sony Xplod CDX-GT40W User manual

Sony

Sony CDX-GT71W - Fm/am Compact Disc Player User manual

Sony

Sony XR-CA300 - Fm-am Cassette Car Stereo User manual

Sony

Sony CDX-M800 Product guide

Sony

Sony XPlod MEX-BT5000 Product guide

Sony

Sony XR-2590 User manual

Sony

Sony CDX-MP30 User manual

Sony

Sony XR-CA300 - Fm-am Cassette Car Stereo User manual

Sony

Sony CXS-GT4216F Product guide

Sony

Sony CDX-A30 User manual

Sony

Sony MEX-BT4000U User manual

Sony

Sony HCD-GTZ2 User manual

Sony

Sony CDX-20W User manual

Sony

Sony HCD-DR4 User manual

Sony

Sony XR-CA610XFP User manual

Sony

Sony XR-C5300RX Product guide

Sony

Sony CXS-GT46F - Fm/am Compact Disc Player Product guide

Sony

Sony XR-4950X User manual

Sony

Sony CDX-CA680X User manual

Sony

Sony XAV-A1 - Av Center Product guide

Sony

Sony CDX-CA710X Addendum to User manual

Sony

Sony MEX-N4200BT User manual

Sony

Sony MDX-G55 User manual

Sony

Sony HCD-ZUX999 User manual

Popular Car Receiver manuals by other brands

Motorola

Motorola VWA63 Service manual

Nextar

Nextar D3201 instruction manual

Alpine

Alpine CDE-163BT owner's manual

Pioneer

Pioneer DEH-P645R installation manual

Axxera

Axxera XDMA7600 Installation & owner's manual

XM OnyX quick start guide

Sound Storm

Sound Storm STM93R user manual

Soundstream

Soundstream VIR-5000 owner's manual

Avson

Avson MKT Platform user manual

Pioneer

Pioneer DVH-P500UB Operation manual

JVC

JVC KD-AHD69 Specifications

Blaupunkt

Blaupunkt SANTIAGO CR 87 operating instructions

XFIRE AUDIO

XFIRE AUDIO BMW42S owner's manual

VDO

VDO CD 2253 datasheet

Volvo

Volvo 13 84 580 installation instructions

ZENEC

ZENEC ZE-160DVD instruction manual

Medion

Medion Car Audio manual

Philips

Philips CEM5000 user manual
