General

Wired remote (RM-X81RF)

System Compact disc digital audio system

Laser Diode Properties

Material GaAlAs

Wavelength 780 nm

mission Duration Continuous

Laser output power Less than 44.6 µW*

* This output is the value measured at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block.

Transmitting frequency 88.3 MHz/88.5 MHz/

88.7 MHz/88.9 MHz/

89.1 MHz/89.3 MHz/

89.5 MHz/89.7 MHz/

89.9 MHz/(switchable)

Input/output terminals Wired remote control (8 pin)

RF signal (FM) output

Power input (3 pin)

Current drain 800 mA (at playback)

800 mA (at disc loading/ejecting)

Operating temperature 10°C to +55°C (14°F to 131°F)

Dimensions Approx. 262 × 90 × 185 mm

(10 3/8 × 3 5/8 × 7 3/8 in.) (w/h/d)

Mass Approx. 2.1 kg (4 lb. 10 oz.)

2002 SONY MOBILE

PRODUCT GUIDE

Input/output Antenna input terminal

Antenna output cord

CD Changer input cord

Dimensions Approx. 40 × 40 × 27 mm

(1 5/8 × 1 5/8 × 1 1/8 in.) (w/h/d)

Mass Approx. 140 g (5 oz.)

Dimensions Approx. 52 × 8.5 × 90 mm

(2 1/16 × 3/8 × 3 9/16 in.) (w/h/d)

Mass Approx. 30 g (1 oz.) not incl. battery

Battery Lithium battery (CR2025)

Wireless remote (RM-X81RF)

CDX-555RF

Compact Disc Changer System

Relay Box

Dimensions Approx. 122 × 36.5 × 15.5 mm

(4 3/8 × 1 7/16 × 5/8 in.) (w/h/d)

Mass Approx. 255 g (9 oz.)

 CD-R Playback

 110-CD Custom File memory

 Built-in RF Modulator

 9 selectable RF frequencies

 5 selectable output levels

 Super Suspension Shock Isolation

 XA-250 10-disc Magazine

 Supplied Low-profile Wired Commander

(RM-X80RF)

 Supplied Wireless Remote (RM-X81RF)

 Indicates step-up

 CD T XT®

 8X Oversampling

 1-Bit D/A Converter

 D-Bass

Supplied accessories Disc magazine (1)

Parts for installation and connections (1 set)

CD Changer

Plug shown with wires facing viewer.

Pin Number Wire Color Description

1 Black Ground

2 Yellow Battery

3 Red Accessory

Harness Plug Configuration

321

Design and Specifications subject to change without notice.

185 mm (7 3/8)

2002 SONY MOBILE

PRODUCT GUIDE

CDX-555RF

Compact Disc Changer System

90 mm (3 5/8)

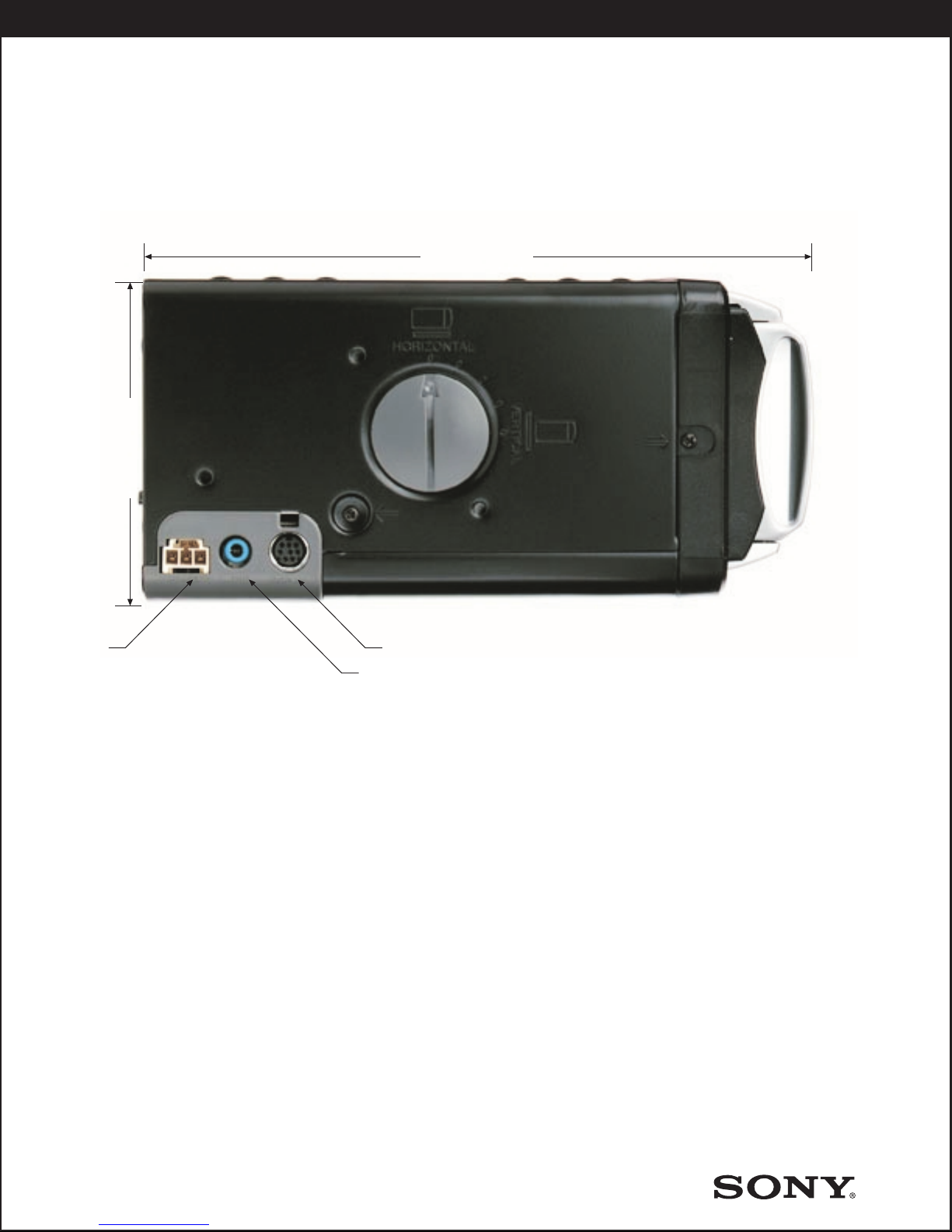

Wired Remote Connector

Relay Box Connector

Power

Design and Specifications subject to change without notice.
