SOMFY J4 WT User manual

2 - Instructions to be respected

3 - Wiring 1 - Advance information

Images are not contractually binding.

Common (L) 3 Down Brown

2 Up Black

Neutral (N) 1 Blue

Earth ( )Green-Yellow

123

Drive connector

These instructions apply to all

J4 WT Protect drive, the diﬀerent

versions of which are available in

the current catalogue.

FIELD OF APPLICATION

J4 drive are designed to drive all

types of tiltable venetian blinds.

The installer, who must be a

motorisation and home automation

professional, must ensure that the

motorised product is installed in

accordance with the standards in

force in the country in which it is

installed such as EN 13561 relating

to outdoor screens and awnings.

LIABILITY

Please read these instructions

carefully before installing and using

the drive. In addition to following the

instructions given in this guide, the

instructions detailed in the attached

Safety instructions document

must also be observed.

The drive must be installed by a

motorisation and home automation

professional, according to

instructions from Somfy and the

regulations applicable in the country

in which it is commissioned.

It is prohibited to use the drive

outside the ﬁeld of application

described above. Such use, and

any failure to comply with the

instructions given in this guide and

in the attached Safety instructions

document, absolves Somfy of

any liability and invalidates the

warranty.

The installer must inform its

customers of the operating and

maintenance conditions for the

drive and must provide them

with the instructions for use and

maintenance, and the attached

Safety instructions document,

aer installing the drive. Any

Aer-Sales Service operation on

the drive must be performed by a

motorisation and home automation

professional.

If in doubt when installing the drive,

or to obtain additional information,

contact a Somfy adviser or go to the

website www.somfy.com.

GENARAL SAFETY

INSTRUCTIONS

The installation must be protected

from all unauthorised use.

Comply with the assembly and

operating guides, in particular

the safety instructions of the

manufacturer of the device to be

used.

To remove the drive supply cable

: Please use the J4 cable removal

tool supplied, ref: 9017811.

The drive, torque and operating

time must be adjusted accroding to

the whole installation.

The moving parts of the drives must

be protected if operating below

2.50 m from ground level.

Disconnect all connected cables

from the power supply before

working on the installation.

SAFETY INSTRUCTIONS FOR

WIRING

Cables which pass through a

metal wall must be protected

and isolated using a sheath or

sleeve.

Attach cables to prevent any

contact with moving parts.

If the drive is used outdoors,

and if the power supply cable is

a type H05-VVF cable, the cable

should be installed in a UV-resistant

duct, e.g. under a gland.

Leave the drive power supply

cable accessible: it must be

possible to replace it easily.

Always make a loop in the

power supply cable to prevent

water entering the drive.

SPECIFIC INSTRUCTIONS

Do not connect the drive to an

isolating transformer.

Do not use mains disconnection

devices in conjunction with a drive.

Use only mechanical switches

or electro-mechanical switches

(ex : relays) to control drives. The

contacts of the relays must not be

bypassed by capacitors.

In user mode, do not use electric

switches allowing simultaneous 

and  contact.

The drive must not be driven by a

solid-state relay or triac relay.

Always refer to the control system

instructions to do the proper wiring.

For control systems using

an «automatic running time

recognition procedure», please

consider the recommendations

given by the producer of the

controller : the N wire of the

controller has to be connected to

the N wire of each drive.

Continuous orders of at least

200ms must be sent to the drive to

ensure proper execution.

Intervals between “Down” and “Up”

orders must be at least 500ms.

The drive can be wired in parallel.

In this case take in consideration

the maximal load of the switch/

controller used (starting current

peak of the drive : 9 A in the ﬁrst

3ms).

Phases and neutrals of each drive

must be connected together

respectively as shown below :

M MM

Common (down)

Common (up)

Neutral

Earth

THE WT SETTING TOOL

You can choose to use the WT setting tool or a control

point, type non-locking double pushbutton. Their

actions are equivalent, as below:

The type «non-locking double pushbutton» is only

useful for installation steps.

GUIDE TO FOLLOW

This short installation guide allows you to

follow step by step the drive installation

key stages.

Further information about the installation

of this drive is also available online:

RTS

LEXICON

Safety warning!

1Caution!

Information

Control point, type non-locking

double pushbutton



«Up» button /



«Down» button

RTS

WT setting tool

Ref. Europe : 9015971

Ref. Switzerland : 9016772



WT button of the WT setting tool

Mushroom

Drive

www.somfy.info

1/2

Short installation guide

J4 drive for External Venitian Blinds

EN J4 WT Protect

Ref. 5133944B

Translated instructions

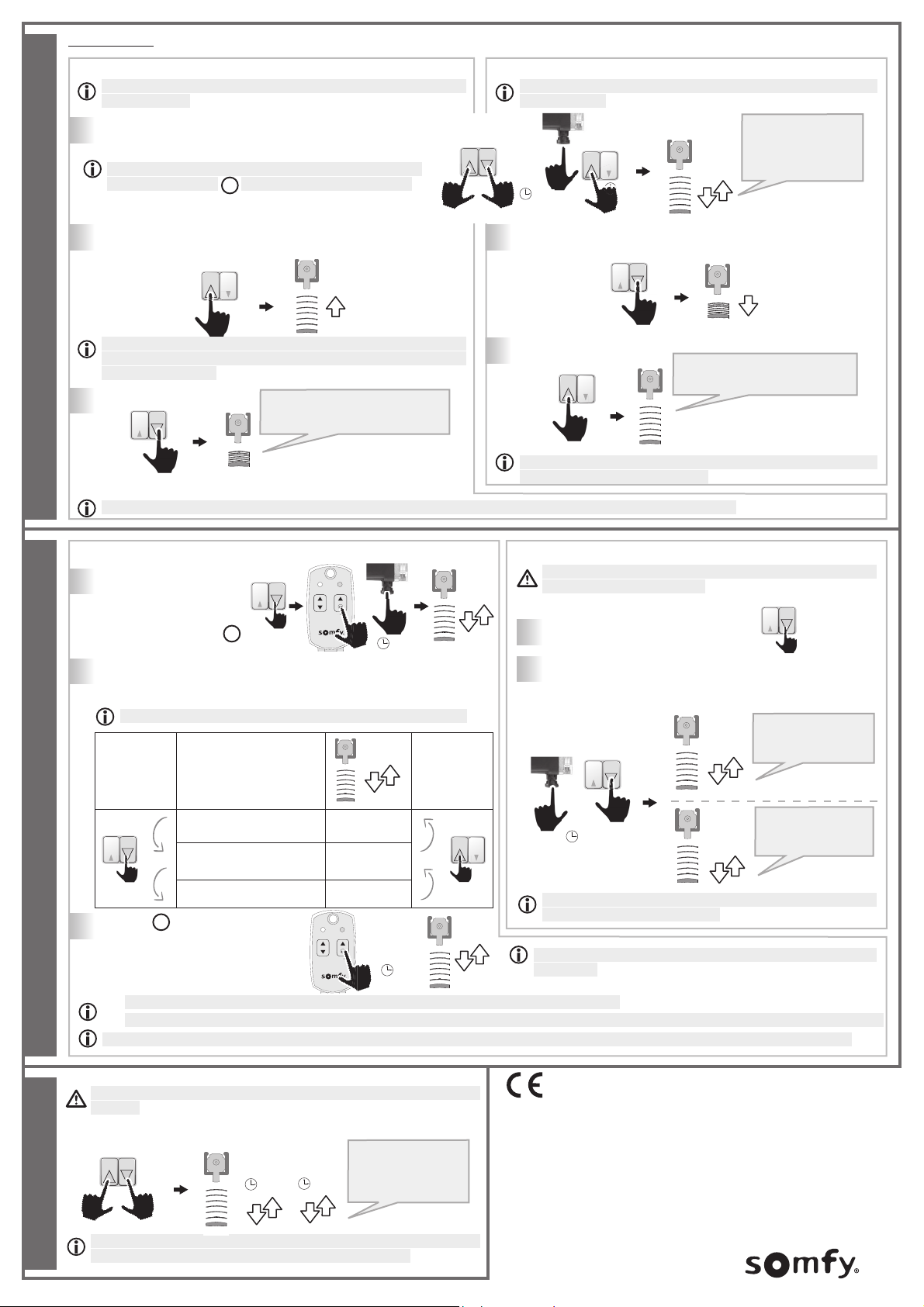

5 - Activation of functions 4 - End limits setting6 - Drive resetting

Ensure that the EVB is at least 30cm below the stop on the mushroom

position.

Press simultaneously the buttons and hold at least 15seconds:

The current position of the EVB is stored as the lower position, unless

the lower end limit has been locked by the manufacturer.

SOMFY ACTIVITES SA, F-74300

CLUSES as manufacturer hereby

declares that the drive covered by these

instructions when marked for input voltage

230V~50Hz and used as intended according

to these instructions, is in compliance with

the essential requirements of the applicable

European Directives and in particular of the

Machinery Directive 2006/42/EC and EMC

Directive 2014/30/EU. The full text of the EU

declaration of conformity is available at

www.somfy.com/ce. Antoine Crézé,

Approval manager, acting on behalf of

Activity director, Cluses,

07/2019.

SOMFY ACTIVITES SA

50 avenue du Nouveau Monde

F - 74300 Cluses

www.somfy.com

2 back and forth

movements aer

5s then 15s =

drive reset

15 s

5 s

THE AUTO READJUSTMENT

Never activate this function if the head rail is out of alignment

or the mushroom is missing!

If there is no reaction from the EVB, the drive does not have

the auto readjustment function.

THE OBSTACLE DETECTION

Only 1 back and

forth movement =

function activated

2 back and forth

movements =

function deactivated

Brief movement =

lower end limit recorded.

Factory setting : the drive is supplied in lower end limit position. The mushroom can therefore be used to set the upper end limit position.

Brief movement =

upper end limit recorded.

5 s 5 s

Brieﬂy press the



button.

Simultaneously press

and hold the motor

mushroom and the



button for 5 seconds:

Brieﬂy press the



button.

2/2

Simultaneously press and hold the motor mushroom and

the



button for 5 seconds:

The EVB moves downwards for a few seconds.

5 s

3x1

RTS

Press the



button and hold

5s :

5 s

UPPER END LIMIT SETTING LOWER END LIMIT SETTING

1Press simultaneously the buttons and hold at least

5seconds :

You can exit this mode during the setting operation by

brieﬂy pressing the



button on the WT setting tool.

1 back and forth

movement =

setting mode

activated.

0,5 s Sensitivity level 0,5 s

Function activated, high

sensitivity level x 3

Function activated, low

sensitivity level x 2

Function deactivated x 1

The obstacle detection only works during an EVB upper

movement.

If the EVB moves up until it rests against the mushroom, the

upper end limit is stored at approximately 6 mm below the

mushroom position.

3Press the



button:

Ensure that the EVB is as least 15cm below the new desired

upper end limit.

2Press the



button (brief movement) and hold it until the required

upper end limit is reached:

If during a cycle, the upper end limit has automatically changed, then the auto readjustment function is activated.

Ensure that the EVB is as least 15cm up of the new desired

down end limit.

2Press the



button (brief movement) and hold it until the required

lower end limit is reached:

3Press the



button:

If there is no reaction from the EVB, the lower end limit has been

locked and can not be readjusted.

• if priority is given to the wind sensor order -> deactivate the obstacle detection function.

• if priority is given to the obstacle detection function -> set the low/high sensitivity level according to the type of outdoor venetian blinds.

When ﬁrst using the product or if resetting, a full cycle must be completed (return movement of the product) to optimise the function.

Obstacle detection is set to a low sensitivity level as standard.

To select the sensitivity level of the obstacle detection function, press

the



button to increase the level and the



button to reduce the level

until deactivation:

RTS

5 s
