SOMFY GOME MOTION Roll Up 28 WT User manual
1Copyright © 2013 Somfy SAS. All rights reserved - V1 - 02/2013
Roll Up 28 WT
Ref. 5122340A
EN Instructions
NL Handleiding
IT Manuale
SV Bruksanvisning
NO Bruksanvisning
DA Brugsvejledning
FI Käyttöohje
L
3Copyright © 2015 Somfy SAS. All rights reserved - V1 - 02/2015
CONTENTS
1. PREREQUISITE INFORMATION
1. Prerequisite information 3
1.1 Fields of application 3
1.2 liability 4
2. Installation 5
2.1. Installation 5
2.2. Wiring 6
2.3. Commissioning 7
2.4. Tips and recommendations
for installation 9
3. Use and maintenance 9
3.1. Up and Down buttons 9
3.2. STOP function 9
4. Technical data 10
1.1 FIELDS OF APPLICATION
The Roll Up 28 WT is a motor specially dedicated to interior applications.
The Roll Up 28 WT can motorize roller blinds, sheer blinds, cellular blinds
and pleated blinds.
The Roll Up 28 WT is a 24 V dc operated motor, powered by a power supply.
Warning : The Roll Up 28 WT cannot be used with sealed double glazing.
4Copyright © 2015 Somfy SAS. All rights reserved - V1 - 02/2015
1.2 LIABILITY
Before installing and using the drive, please read operating and installation
guide carefully. In addition to following the instructions given in this guide,
the instructions detailed in the attached Safety instructions document must
also be observed.
The drive must be installed by a drive and home automation profes-
sional, according to instructions from Somfy and the regulations appli-
cable in the country in which it is commissioned.
It is prohibited to use the drive outside the elds of application described
above. Such use, and any failure to comply with the instructions given in this
guide and in the attached Safety instructions document, absolves Somfy of
any liability and invalidates the warranty.
The installer must inform its customers of the operating and maintenance
conditions for the drive and must provide them with the instructions for use
and maintenance, and the attached Safety instructions document, after
installing the drive. Any After-Sales Service operation on the drive must be
performed by a drive and home automation professional.
If in doubt when installing the drive, or to obtain additional information, contact
a Somfy adviser or go to the website www.somfy.com
Safety warning! Information
Caution!
5Copyright © 2015 Somfy SAS. All rights reserved - V1 - 02/2015
2. INSTALLATION
Instructions which must be followed by the drive and home automation
professional installing the Roll Up 28 WT drive.
Never drop, knock, drill or submerge the drive.
Install a separate control point for each drive.
2.1. INSTALLATION
2.1.1. Preparing the drive
Check that the inner diameter of the tube is 26,6 mm or greater.
1) Fit the accessories required to
integrate the drive in the roller tube:
• Either t the drive wheel aon the
drive.
• Fit the crown band the drive wheel
con the drive.
2) Measure the length (L) between
the inner edge of the drive head and
the rim of the drive wheel.
2.1.2. Tube preparation
1) Cut the roller tube to the required length, depending on the motorised
product.
2) Deburr the roller tube and remove the swarf.
3) For roller tubes which are smooth inside, cut a notch with the following
measurements: d: 4 mm e: 7 mm
L
L
1
2
c
b
a
L
1 2 3
d
e
6Copyright © 2015 Somfy SAS. All rights reserved - V1 - 02/2015
2.1.3. Drive/tube assembly
1) Slide the drive into the roller tube.
For roller tubes which are smooth
inside, position the notch previously
cut on the boss on the crown.
2) Fix the tube to the motor with self-
tapping screws or steel pop rivets
depending on the dimension (L).
The screws or pop rivets must
only be attached to the drive
wheel and not to the drive.
2.1.4. Installing the drive/tube assembly
Install and x the drive/tube
assembly onto the end bracket (f)
and onto the drive bracket (g) :
2.2 WIRING
Cables which pass through a metal wall must be protected and
isolated using a sheath or sleeve.
Attach cables to prevent any contact with moving parts.
The cable for the Roll Up 28 WT cannot be removed. If it is damaged,
return the drive to the After-Sales department.
L
1
2
g
f
7Copyright © 2015 Somfy SAS. All rights reserved - V1 - 02/2015
- Switch off the power supply.
- Connect the drive according to the information in the table below:
2.3. COMMISSIONING
2.3.1. Checking the direction of rotation
1) Switch the power back on.
2) Press the UP button on the
control point:
a) If the motorised product rises
(a), the direction of rotation is
correct: Move onto the section
entitled “Setting the end limits”.
b) If the motorised product
lowers (b), the direction of
rotation is incorrect: Move onto
the next step.
3) Switch off the power supply.
Reverse the 2 wires on the control
point.
4) Switch the power back on.
Press the UP button on the control
point to check the direction of
rotation.
1)
2)
4)
3)
a
b
=
=
a
b
=
=
a
b
=
=
a
b
=
=
+
-
+
-
++
8Copyright © 2015 Somfy SAS. All rights reserved - V1 - 02/2015
2.3.3. Setting the end limits
The end limits can be set in any order.
Setting the upper end limit
1) Press the UP button on the control point
to raise the motorised product to the upper
end limit.
2) Press the STOP button on the control
point when the motorised product reaches
the desired upper end limit.
3) Slide the “switch” corresponding to the
upper end limit to record it.
Setting the lower end limit
1) Press the DOWN button on the control
point to lower the motorised product to the
lower end limit.
2) Press the STOP button on the control
point when the motorised product reaches
the desired lower end limit.
3) Slide the “switch” corresponding to the
lower end limit to record it.
1)
2)
3)
1)
2)
3)
9Copyright © 2015 Somfy SAS. All rights reserved - V1 - 02/2015
2.4. TIPS AND RECOMMENDATIONS FOR INSTALLATION
2.4.1. Questions about the Roll Up 28 WT?
Observations Possible causes Solutions
The motorised
product does not
operate.
The wiring is incorrect. Check the wiring and modify it if
necessary.
The control point is not
compatible.
Check for compatibility and
replace the control point if
necessary.
The end limits are set at the same
place. Readjust the end limits.

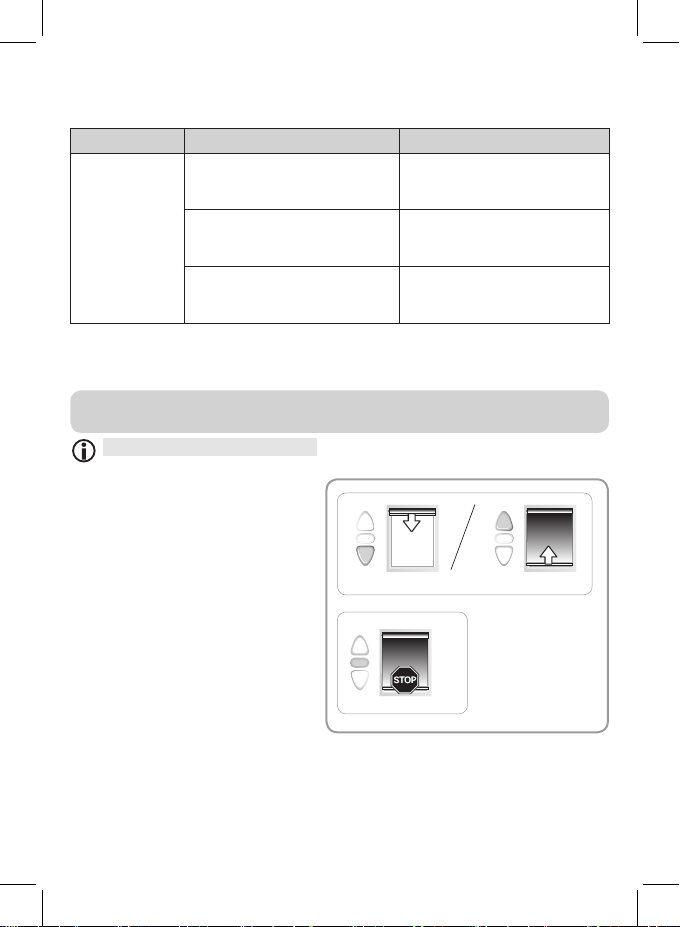

3. USE AND MAINTENANCE
This drive is maintenance-free
3.1. UP AND DOWN BUTTONS
Pressing the UP or DOWN button
fully raises or lowers the motorised
product.
3.2. STOP FUNCTION
The motorised product is moving.
-Briey press the STOP button:
the motorised product stops
automatically.
1)
2)
10 Copyright © 2015 Somfy SAS. All rights reserved - V1 - 02/2015
4. TECHNICAL DATA
Somfy hereby declares that the product conforms with the essential requirements and
other relevant provisions of the European Directives applicable for Europe. A Declaration
of Conformity is available at www.somfy.com/ce.
Power supply 24 Vdc SELV
Torque 0.8 Nm
Up speed 28 rpm
Down speed 51 rpm
Electrical insulation III
Maximum distance between two end-limit 45 turns
Maximum running time 6 min
Operating temperature -10°C to + 85°C (Cf data sheet)
Protection rating IP 30 (For indoor use only)
