SOMFY Sonesse 30 RS485 User manual

Sonesse 30 RS485

EN Instructions

EN Sonesse 30 RS485

ORIGINAL INSTRUCTIONS

These instructions apply to all Sonesse 30 RS485 drives, the different versions of

which are available in the current catalogue.

CONTENTS

Prior information...........................................................................................

1.1.

Field of application............................................................................

1.2.

Liability ...............................................................................................

Installation......................................................................................................

2.1.

Assembly ............................................................................................

2.2.

Commissioning ..................................................................................

2.3.

Tips and advice on installation.........................................................

Use and maintenance ....................................................................................

3.1.

Operation ...........................................................................................

3.2.

PROG button.....................................................................................

3.3.

LED feedback .....................................................................................

Tips and advice on operation .......................................................................

4.1.

Questions about the drive?..............................................................

Technical data ................................................................................................

Sonesse 30 RS485 EN

GENERAL INFORMATION

Safety instructions

DANGER

Indicates a danger which may result in immediate death or

serious injury.

WARNING

Indicates a danger which may result in death or serious

injury.

PRECAUTION

Indicates a danger which may result in minor or moderate

injury.

CAUTION

Indicates a danger which may result in damage to or

destruction of the product.

1.PRIOR INFORMATION

1.1.Field of application

The drives are designed to drive all types of interior blinds and projection screens up

to 2 Nm except pantographs.

The installer, who must be a motorisation and home automation professional, must

ensure that the motorised product is installed in accordance with the standards in

force in the country in which it is installed such as EN13120 relating to interior blinds.

1.2.Liability

Before installing and using the drive, please read these instructions carefully.

EN Sonesse 30 RS485

In addition to the instructions provided in this guide, please also comply with the

instructions provided in the attached Safety instructions document.

The drive must be installed by a home motorisation and automation

professional, in accordance with Somfy’s instructions and the applicable

regulations in the country of installation.

Any operation of the drive outside the field of application described above is

prohibited. Such use, and any failure to comply with the instructions given in this guide

and in the attached Safety instructions document, absolves Somfy of any liability and

invalidates the warranty.

After installing the drive, the installer must inform his customers of the operating and

maintenance conditions for the drive and must provide them with the operating and

maintenance instructions, and the attached Safety instructions document. Any After-

Sales Service operation on the drive must be performed by a home motorisation and

automation professional.

Never begin installing without first checking the compatibility of this product with the

associated equipment and accessories. If in doubt when installing this product and/or

to obtain additional information, contact a Somfy representative or visit the website

www.somfy.com.

Using this drive with any power supply which is not listed in the attached

"Compatibility matrix" document or in the drive leaflet shall also render invalid any

Somfy warranty and release Somfy from any liability.

2.INSTALLATION

WARNING

•

These instructions are mandatory for the home motorisation and

automation professional installing the drive.

•

Comply with current standards and legislation in the country of installation.

CAUTION

•

Never drop, knock or puncture the drive or immerse it in liquid.

•

Install an individual control point for each drive.

•

To insure optimized silent operation, the gaps between the drive, the

accessories, the tube and the tube end piece must be minimized.

Sonesse 30 RS485 EN

2.1.Assembly

2.1.1.Replace the head cover with a different color (Optional)

NOTICE

Head has interchangeable covers to fit with the fabric.

1] Unclip the cover.

2] Clip the new cover on the head.

2.1.2.Preparing the drive

CAUTION

•

Sonesse 30 RS485 : interior diameter of the tube has to be Ø27.7 mm or

greater.

•

The crown is mandatory.

1] Fit the accessories required to integrate

the drive into the tube:

Fit the crown (a) and the wheel (b) to

the drive.

2] Measure the length (L) between the inner

edge of the drive head and the rim of the

wheel.

2.1.3.Preparing the tube

1] Cut the tube to the required length.

2] Deburr the tube and remove the debris.

1] 2]

EN Sonesse 30 RS485

2.1.4.Assembling the drive-tube

1] Slide the drive into the tube. For tubes

with a smooth interior, position the cut

notch on the crown.

2] The wheel must be locked in place to

prevent any movement in the tube.

▪

This can be achieved by fastening the tube to the wheel using self-tapping

screws, or steel pop rivets, placed between 5mm and 15mm from the outer

edge of the wheel, regardless of the tube.

▪

or by using a wheel lock, for non-smooth tubes.

CAUTION

The screws or pop rivets must only be fastened on the wheel and not on the

drive.

2.1.5.Installing the drive-tube assembly

CAUTION

•

The motorised product must not be compressed between the brackets.

•

Do not use the plastic cross without the metal bracket adapter.

▪

The drive can be fixed directly onto the drive bracket (the screw holes are

spaced 29mm apart). Use 2screws (3.5 x 9mm). A manual tightening torque of

1Nm is recommended.

▪

Drive plates are also available in the current

catalogue (Select the correct drive plate

adapted to the bracket and check the

torque requirements in the system). Use

the 2 screws (3 x 6mm) delivered with the

motor plate. A manual tightening torque of

0,3Nm is recommended.

Sonesse 30 RS485 EN

1] Screw the bracket adapter to the drive

head.

2] Install and fix the drive-tube assembly

onto the end bracket (c) and onto the

drive bracket (d).

CAUTION

•

Do not let the tube hanging by the head side only.

•

Ensure that the drive-tube assembly is secured onto the end bracket. This

operation prevents the tube-drive assembly from coming out of the end

bracket attachment.

•

Light gap reduced: Do not pinch cable or be careful they are not in contact

with moving parts.

2.1.6.Compatible power supplies (for US only)

For USA and CANADA, use only SOMFY power supply listed in the leaflet. For other

countries, see Compatibility Matrix document for appropriate power supply.

References Designations

1870259 Somfy Power Panel

2.1.7.Wiring

2.1.7.1.Power wiring

CAUTION

•

The product is intended for being supplied by Class II output of an external

power supply.

•

Do not use an extension cord. If the power supply cord is too short, have a

qualified electrician install an outlet near the motorised product.

Connect the drive to the power supply:

▪

Black wire: -

▪

Red wire: +

EN Sonesse 30 RS485

PRECAUTION

•

Cables routed through a metal wall must be protected and insulated by

sleeving or sheathing.

•

Secure the cables to prevent any contact with moving parts.

•

If the drive is used outdoors and if the power supply cable is of the H05-VVF

type, run the cable in a UV-resistant duct, e.g. trunking.

•

The drive cable cannot be removed. If it is damaged, return the drive to the

After-Sales department.

CAUTION

•

Leave the drive power supply cable accessible: the product must be easily

replaceable.

•

Always make a loop in the power supply cable to prevent water from

entering the drive.

WARNING

To ensure electrical safety, this Class III drive must be powered by a “class 2”

power source (SELV -Safety Extra Low Voltage) + LPS (Limited Power Supply).

2.1.7.2.Data wiring

CAUTION

•

For RJ45 connector version, there is a RJ45

female to female coupler provided with the

drive to add easily an extension cable.

•

Make sure the data cable is not pinched or

damaged during the installation of the drive/

tube onto the end bracket.

Sonesse 30 RS485 EN

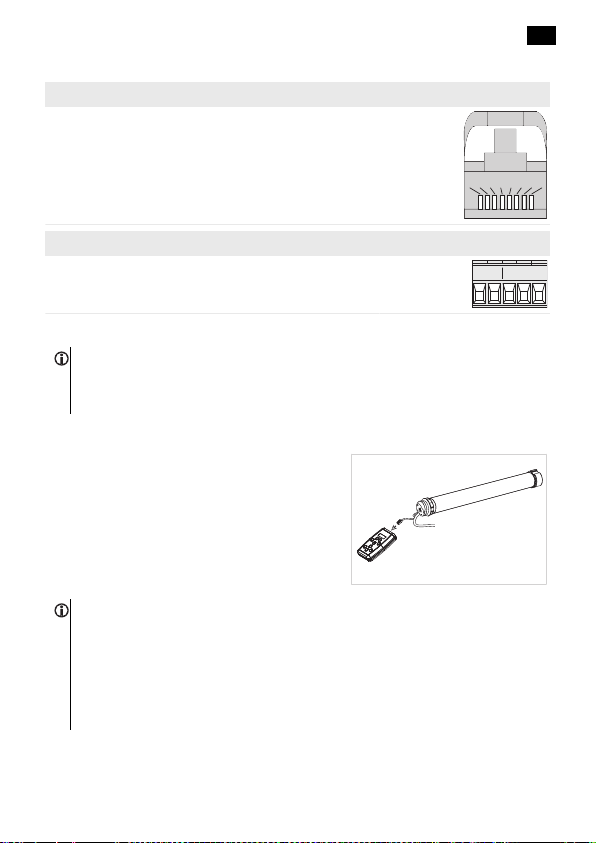

Connect the data cables to the drive according to the information in the tables below.

RJ45 connector

1: +RS485

5: Not

connected*

2: -RS485

6: Not

connected*

3: Not

connected*

7: Not

connected*

4: Not

connected*

8: Ground

1 2 3 4 5 6 7 8

Weidmuller connector

1: Power (+) 2: Power (-) 3: Data (+) 4: Data (-) 5: Data

Ground

1 2 3 4 5

* If connected, the drive can be damaged.

NOTICE

The wiring guide is available for download at https://www.somfy.com/projects/

downloads

2.2.Commissioning

Two tools are available to set the drive.

▪

RS485 SETTING TOOL: Connect the RS485

SETTING TOOL to the drive switch on and

follow the instruction on the RS485

SETTING TOOL.

NOTICE

•

For Weidmuller connection, use the setting cable ref 9019873.

•

The SDN Config Tool is available for download at https://www.somfy.com/

projects/downloads

•

When setting end limits, take care that the load bar remains free at upper

end Limit.

▪

SDN Config Tool: Somfy Digital Network Configuration Tool.

EN Sonesse 30 RS485

NOTICE

These instructions apply to all Sonesse 30 RS485 drive, the different versions of

which are available in the current catalogue..

2.3.Tips and advice on installation

2.3.1.Questions about the drive?

Observations Possible causes Solutions

The motorised

product does

not work.

"Power" or "datas" wiring are

incorrect.

Check the wiring and modify it if

necessary.

The drive is in thermal

protection mode. LED

Red=ON then lightsOFF.

Wait for the drive to cool down

to restart the drive.

Do not touch the drive: risk of

burns.

An incorrect Data cable has

been used

Check the Data cable.

End-limits are not properly

adjusted.

Adjust the end-limits.

The motorised

product is

noisy.

The wheel and the crown are

not adapted to the used tube.

Change the wheel and the crown.

The mechanical plays between

drive, accessories, tube and end

of tube are too high.

The mechanical plays between

drive, accessories, tube and end

of tube must be decreased to the

minimum.

The wheel is not properly fixed

to the tube.

Fix the wheel properly to the tube.

The equipment is constrained

between the brackets.

Decrease the constraint between

the brackets.

The length of the notch is not

adapted to the drive hook or to

the used crown.

Adapt the length of the notch to

the drive hook or to the used

crown.

Debris, screws or other are in

the tube.

Empty the tube.

Other manuals for Sonesse 30 RS485

Table of contents

Other SOMFY DC Drive manuals

SOMFY

SOMFY HOME MOTION Twipso io User manual

SOMFY

SOMFY Dexxo Compact RTS User manual

SOMFY

SOMFY MR User manual

SOMFY

SOMFY Sunea 40 RTS DC User manual

SOMFY

SOMFY OXIMO BASIC WF RTS User manual

SOMFY

SOMFY Sonesse 50 User manual

SOMFY

SOMFY Sonesse 28 WireFree RTS Li-ion User manual

SOMFY

SOMFY Sonesse 50 RTS User manual

SOMFY

SOMFY ILMO 2 40 WT User manual

SOMFY

SOMFY sonesse 30 rts User manual

SOMFY

SOMFY Movelite DCT User manual

SOMFY

SOMFY ALTUS RTS Series User manual

SOMFY

SOMFY Sonesse 50 User manual

SOMFY

SOMFY Oximo 40 io User manual

SOMFY

SOMFY Sonesse 30 DCT User manual

SOMFY

SOMFY ILMO2 50 io User manual

SOMFY

SOMFY Sonesse 28 WF Zigbee User manual

SOMFY

SOMFY Sonesse 30 RS485 User manual

SOMFY

SOMFY LS 40 User manual

SOMFY

SOMFY Sonesse 50 RTS Installation guide

SOMFY

SOMFY Sonesse Ultra 50 RS485 User manual

SOMFY

SOMFY Sonesse 28 WF Zigbee User manual

SOMFY

SOMFY J4 io Assembly instructions

SOMFY

SOMFY MAESTRIA Plus 50 io User manual

Popular DC Drive manuals by other brands

Vincent Associates

Vincent Associates UNIBLITZ ED12DSS user manual

EKSMA OPTICS

EKSMA OPTICS DQ-100-4 Technical description

Chamberlain Garog

Chamberlain Garog D Series operating manual

Parker

Parker PDS Series user guide

Festo

Festo DGC G Series Repair instructions

Binks

Binks QS-5012-1-CE Service manual

Danfoss

Danfoss VLT 2800 Series Quick setup

ABB

ABB ACQ580-01 Series Quick installation and start-up guide

YASKAWA

YASKAWA CANopen SI-S3 Technical manual

GE D20A6 instructions

Unex

Unex MC-D-250-1000-050W-TW operating manual

Geckodrive

Geckodrive G213V manual

ABB

ABB RSYC-01 user manual

Rockwell Automation

Rockwell Automation PowerFlex 700S Programming manual

WEG

WEG DeviceNet CFW500 user manual

Siemens

Siemens SINAMICS G List manual

Siemens

Siemens SINAMICS SM150 6SL3815-7NP41-0AA1 Operating instructions & installation instructions

Beckhoff

Beckhoff AX8911 Documentation
