Solar Bollard Lighting SBL User manual
© 2003 - 2019 Key Wholesalers Pty Ltd t/a Solar Bollard Lighting- All rights reserved
SOLAR BOLLARD INSTALLATION GUIDE
Congratulations on purchasing your
Solar Light Bollard
SBL
SBL2
IMPORTANT BEFORE YOU INSTALL
The highest powered Solar Bollard Light for
your location shown in all our location specific
sales brochures and technical data sheets is
specified to be installed in direct undisrupted
sunlight from dawn until dusk based on your
locations winter month’s lowest sun trajectory.
Note: Battery is pre-connected for immediate
activation after pole/mounting installation.
Installation Site: If shading from trees or other
structures are found at the site of installation
not discussed prior to delivery of your order
Solar Light Bollard/s, please immediately
contact your supplier prior to commencing
the installation as a lower power model
maybe required to ensure dusk until dawn
operation at full power throughout the year and
as specified in our Warranty T&C’s.
Ensure your Solar Light Bollard power model
ordered allows for possible future shading
issues such trees growing and/or new buildings
being possibly erected near the installation site.
AN INCORRECT POWER MODEL
SELECTION IS NOT WARRANTABLE
Next are the time of day examples of amounts
of shading on the Solar Light Bollard to allow
for lower power model choice compensations.
FULL WINTER SUN (Lowest Sun Trajectory)
SHADING EXAMPLES
Partly in Shade
or Snow Covered Region in Full WINTER Sun
Drop down at least one (1-2) power levels
Mostly in Shade – SBL2 ONLY
Drop down to 40mA
Your supplier will have a relevant installation
guide specific for your actual location.
Contact them for a copy to ensure you have
chosen the correct power model for the
installation location if you have any concerns.
© 2003 - 2019 Key Wholesalers Pty Ltd t/a Solar Bollard Lighting- All rights reserved

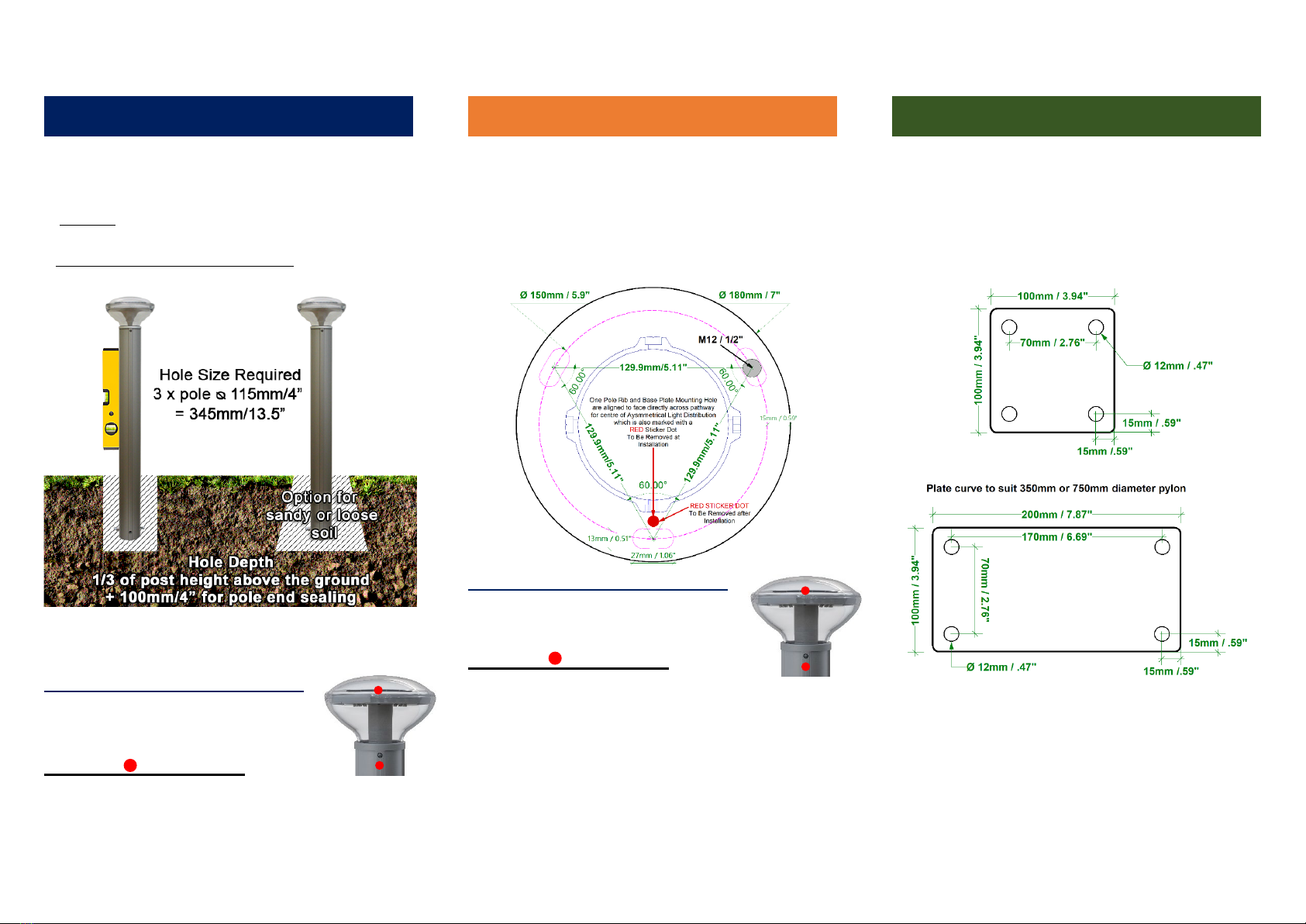

SOLAR BOLLARD MOUNTING TYPE INSTALLATION INSTRUCTIONS
BEFORE YOU INSTALL: Dial before you Dig
Ensure Anchor Bolts are through pole base/s.
STEP 1 – Dig hole with shovel, auger or similar.
In good soil we suggest ᴓ345mm/13.5” x 1/3 pole length
deep hole + 100mm /4” extra below bottom of pole end
A much larger foundation may be required if soil is poor/sandy
to prevent bollards being pushed over or removed/stolen
STEP 2 - Pour concrete into the hole
STEP 3 - Insert pole into concrete ensuring the internal of
the pole is also filled with concrete.
SLB2 with asymmetric “pathway” optic:
Removable RED dot labels are applied to
the bollard pole. These labels should face
the pathway centre.
Remove After Install
STEP 4 - Use spirit level to ensure pole is set correctly.
STEP 5 - Cure concrete.
STEP 6 - Remove the black shrink wrap from the light head
to activate the system. Your Solar Light Bollard is now
installed and ready for operation.
BEFORE YOU INSTALL: (not included in kit)
3 x M12 (1/2”) Mounting Thread, Washer, Nuts. We
recommend using security fasteners to prevent theft.
STEP 1 - Check surface is flat or determine how to ensure
bollard is perfectly vertical
STEP 2 - Mark out the 3 hole centre points as shown
below on the ᴓ150mm/5.9” to suit the base plate.
SLB2 with asymmetric “pathway” optic:
Removable RED dot labels are applied to
the bollard pole. These labels should face
the pathway centre.
Remove After Install
STEP 3 - Drill or core hole to take an M12 (1/2”) threaded
rod or other securing device
STEP 4 - Install rod or other securing device ensuring
sufficient thread protrudes from plate which is 12mm/0.47”
thick.
STEP 5 - Place the base plate over the bolts and use spirit
level while tensioning to ensure pole is set level.
STEP 6 - Remove the black shrink wrap from the light head
to activate the system. Your Solar Light Bollard is now
installed and ready for operation.
BEFORE YOU INSTALL: (not included in kit)
4 x M10 (7/16”) Mounting Thread, Washer, Nuts. We
recommend using security fasteners to prevent theft.
Please Note: All Wall/Pylon mount lights are Asymmetrical
STEP 1 - Check mounting surface is flat or determine how
to ensure bollard is vertical.
STEP 2 - Mark out 4 x holes to suit below mounting plates
STEP 3 - Drill hole to take M10 (7/16”) threaded rod or
other securing device such as a Dynabolt with Nylock Nuts.
STEP 4 - Install rod or other securing device ensuring
sufficient thread protrudes from plate which is 10mm/0.4”
thick.
STEP 5 - Place plate over the bolts and secure fasteners
STEP 6 - Remove the black shrink wrap from the light head
to activate the system. Your Solar Light Bollard is now
installed and ready for operation.
DIRECT BURIED
BASE PLATE
WALL MOUNT
WM
TYPE
PM
TYPE
This manual suits for next models
